ZSAT500GTA datasheet, PDF - EEWORLD Datasheet

ZSAT500GTA: DescriptionFixed Positive Standard Regulator, 5VBIPolar, PDSO4, SOT-223, 4 PIN; CategoryPower/power management The power supply circuit; File Size235KB，6 Pages; ManufacturerZetex Semiconductors; Websitehttp://www.zetex.com/

Download Datasheet Parametric View All

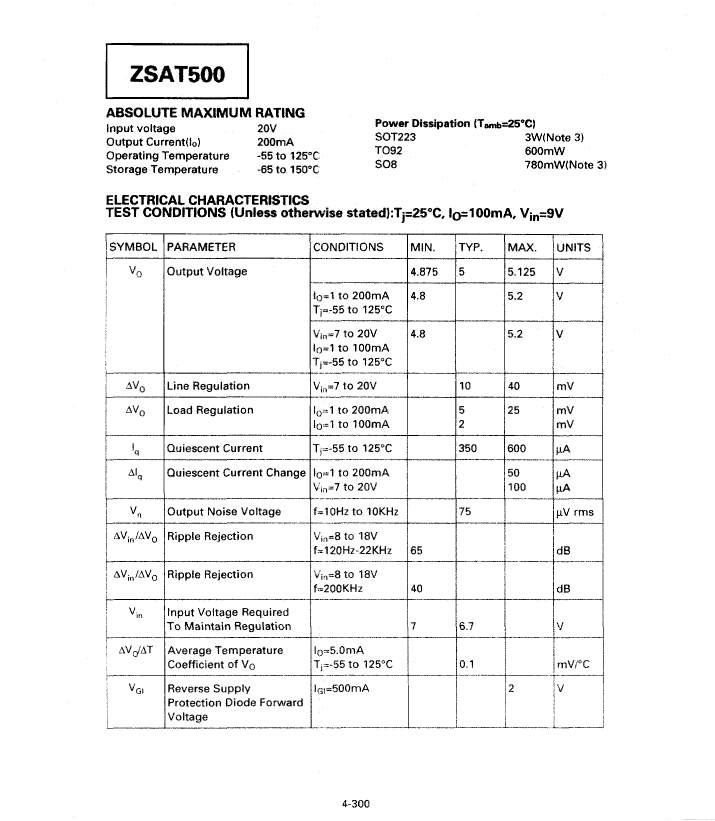

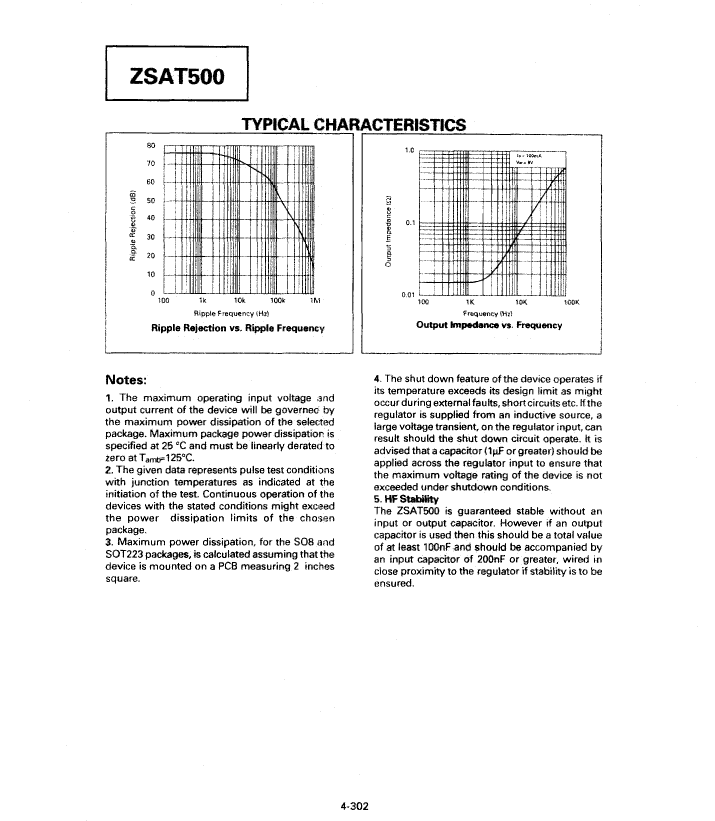

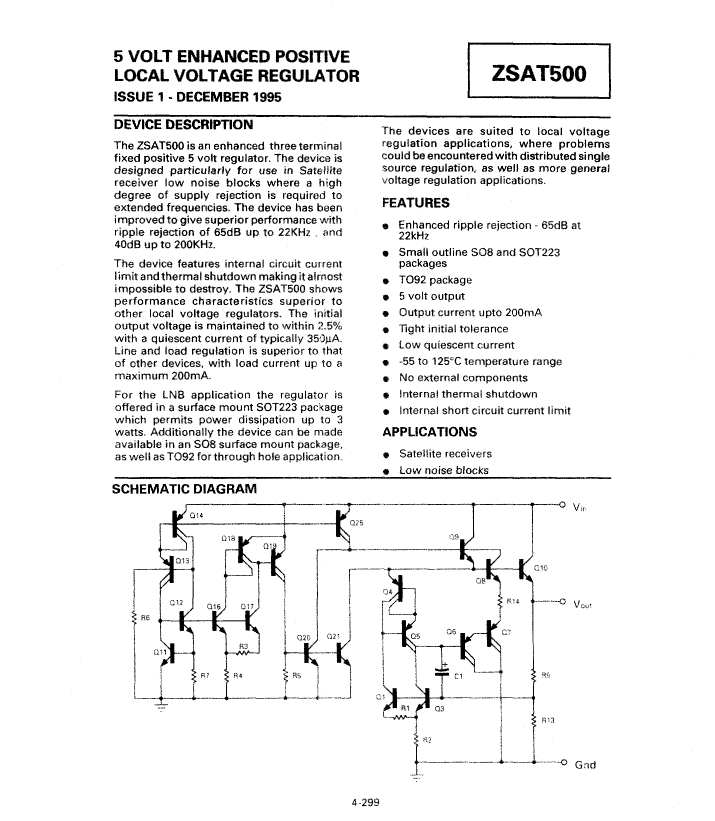

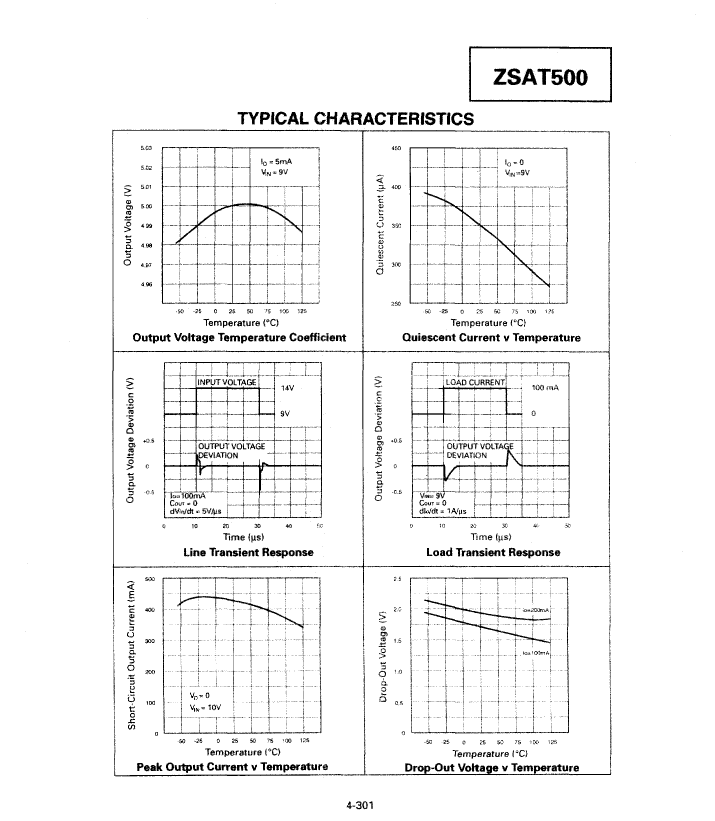

ZSAT500GTA Overview

Fixed Positive Standard Regulator, 5VBIPolar, PDSO4, SOT-223, 4 PIN

Parameter Name	Attribute value
Maker	Zetex Semiconductors
package instruction	LSOP,
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum input voltage	20 V
Minimum input voltage	7 V
JESD-30 code	R-PDSO-G4
length	6.5 mm
Number of functions	1
Number of terminals	4
Maximum output current 1	0.2 A
Maximum output voltage 1	5.2 V
Minimum output voltage 1	4.8 V
Nominal output voltage 1	5 V
Package body material	PLASTIC/EPOXY
encapsulated code	LSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE
Certification status	Not Qualified
Regulator type	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR
Maximum seat height	1.7 mm
surface mount	YES
technology	BIPOLAR
Terminal form	GULL WING
Terminal pitch	2.3 mm
Terminal location	DUAL
width	3.5 mm
Base Number Matches	1
