SY100E136JC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> SY100E136JC

SY100E136JC: DescriptionBinary Counter, 100E Series, Synchronous, Positive Edge Triggered, 6-Bit, Bidirectional, ECL, PQCC28,; Categorylogic logic; File Size274KB，7 Pages; ManufacturerSynergy Semiconductor Corp

Download Datasheet Parametric Compare View All

SY100E136JC Overview

Binary Counter, 100E Series, Synchronous, Positive Edge Triggered, 6-Bit, Bidirectional, ECL, PQCC28,

SY100E136JC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Synergy Semiconductor Corp
Reach Compliance Code	unknown
Other features	TCO OUTPUT; LOOK-AHEAD-CARRY INPUT AND OUTPUT
Counting direction	BIDIRECTIONAL
series	100E
JESD-30 code	S-PQCC-J28
JESD-609 code	e0
Load/preset input	YES
Logic integrated circuit type	BINARY COUNTER
Maximum Frequency@Nom-Sup	550000000 Hz
Operating mode	SYNCHRONOUS
Number of digits	6
Number of functions	1
Number of terminals	28
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	OPEN-EMITTER
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Encapsulate equivalent code	LDCC28,.5SQ
Package shape	SQUARE
Package form	CHIP CARRIER
power supply	-4.5 V
Maximum supply current (ICC)	170 mA
propagation delay (tpd)	1.45 ns
Certification status	Not Qualified
surface mount	YES
technology	ECL
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
Trigger type	POSITIVE EDGE
minfmax	650 MHz
Base Number Matches	1

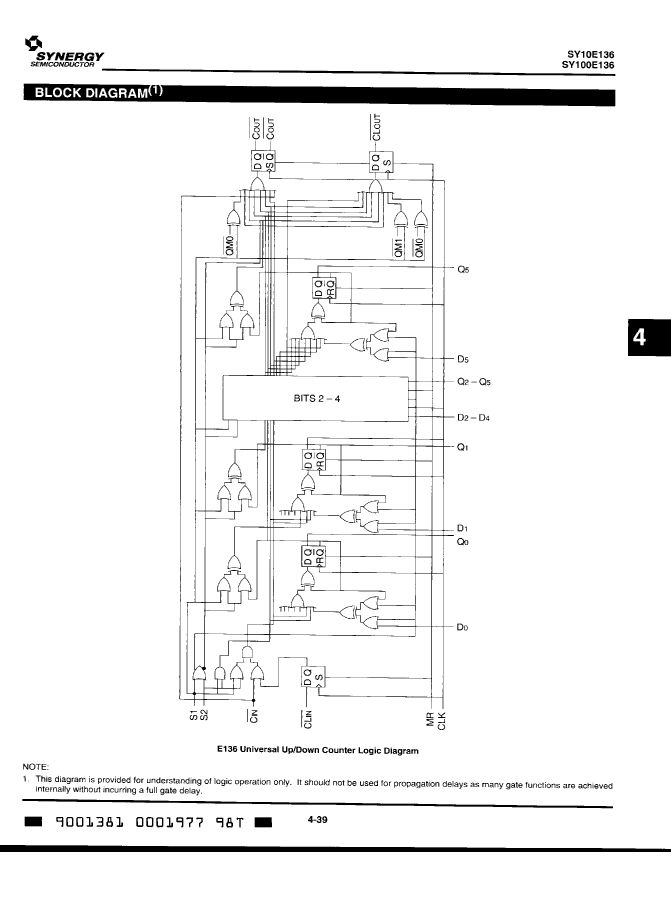

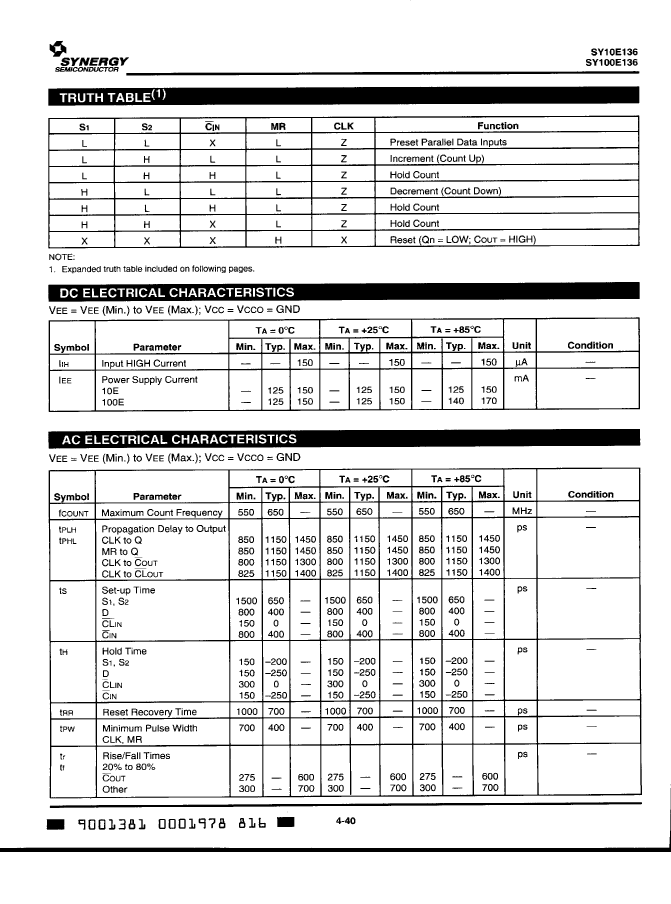

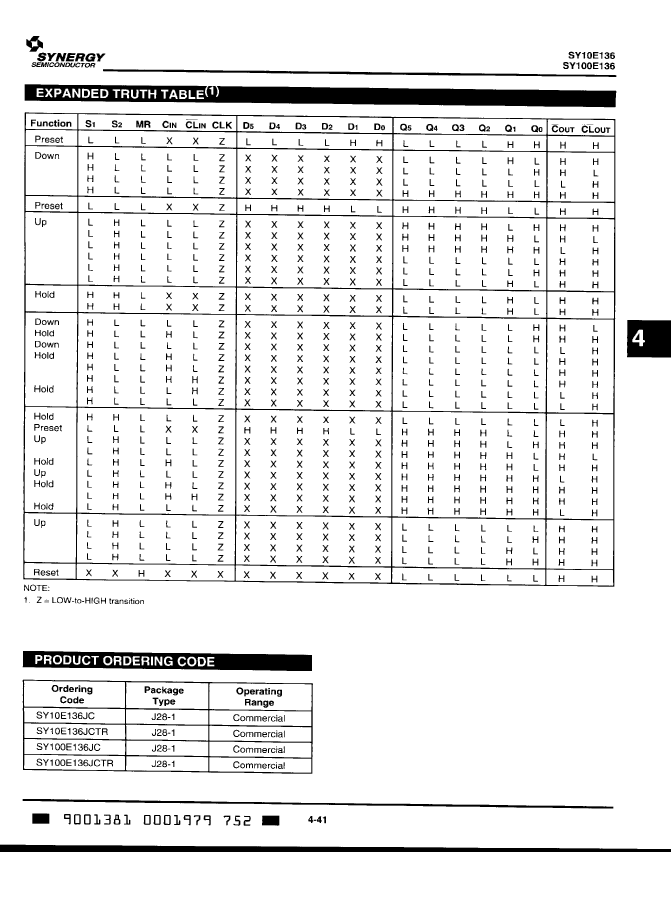

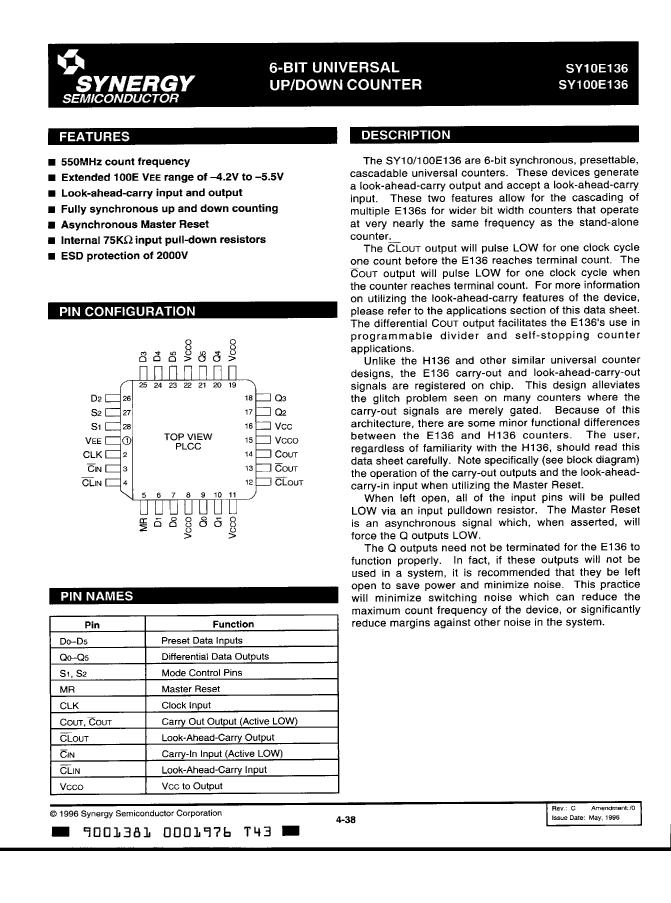

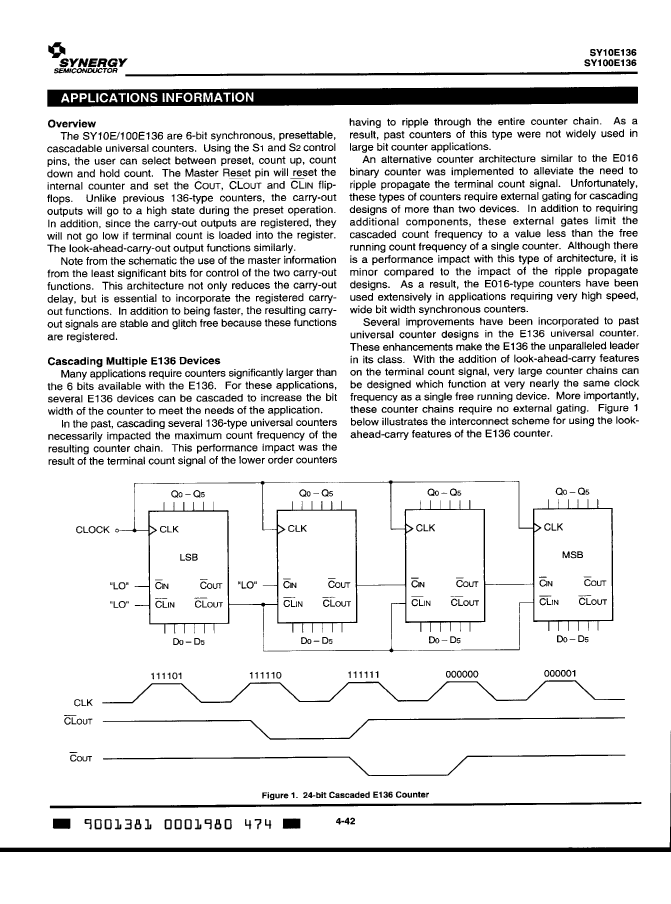

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

SY100E136JC Related Products

	SY100E136JC	SY10E136JCTR	SY10E136JC	SY100E136JCTR
Description	Binary Counter, 100E Series, Synchronous, Positive Edge Triggered, 6-Bit, Bidirectional, ECL, PQCC28,	Binary Counter, 10E Series, Synchronous, Positive Edge Triggered, 6-Bit, Bidirectional, ECL, PQCC28,	Binary Counter, 10E Series, Synchronous, Positive Edge Triggered, 6-Bit, Bidirectional, ECL, PQCC28,	Binary Counter, 100E Series, Synchronous, Positive Edge Triggered, 6-Bit, Bidirectional, ECL, PQCC28,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Maker	Synergy Semiconductor Corp	Synergy Semiconductor Corp	Synergy Semiconductor Corp	Synergy Semiconductor Corp
Reach Compliance Code	unknown	unknown	unknown	unknown
Other features	TCO OUTPUT; LOOK-AHEAD-CARRY INPUT AND OUTPUT	TCO OUTPUT; LOOK-AHEAD-CARRY INPUT AND OUTPUT	TCO OUTPUT; LOOK-AHEAD-CARRY INPUT AND OUTPUT	TCO OUTPUT; LOOK-AHEAD-CARRY INPUT AND OUTPUT
Counting direction	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL
series	100E	10E	10E	100E
JESD-30 code	S-PQCC-J28	S-PQCC-J28	S-PQCC-J28	S-PQCC-J28
JESD-609 code	e0	e0	e0	e0
Load/preset input	YES	YES	YES	YES
Logic integrated circuit type	BINARY COUNTER	BINARY COUNTER	BINARY COUNTER	BINARY COUNTER
Maximum Frequency@Nom-Sup	550000000 Hz	550000000 Hz	550000000 Hz	550000000 Hz
Operating mode	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS
Number of digits	6	6	6	6
Number of functions	1	1	1	1
Number of terminals	28	28	28	28
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
Output characteristics	OPEN-EMITTER	OPEN-EMITTER	OPEN-EMITTER	OPEN-EMITTER
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QCCJ	QCCJ	QCCJ	QCCJ
Encapsulate equivalent code	LDCC28,.5SQ	LDCC28,.5SQ	LDCC28,.5SQ	LDCC28,.5SQ
Package shape	SQUARE	SQUARE	SQUARE	SQUARE
Package form	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER
power supply	-4.5 V	-5.2 V	-5.2 V	-4.5 V
Maximum supply current (ICC)	170 mA	150 mA	150 mA	170 mA
propagation delay (tpd)	1.45 ns	1.45 ns	1.45 ns	1.45 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	YES	YES	YES	YES
technology	ECL	ECL	ECL	ECL
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	J BEND	J BEND	J BEND	J BEND
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	QUAD	QUAD	QUAD	QUAD
Trigger type	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE
minfmax	650 MHz	650 MHz	650 MHz	650 MHz
