58638-104LF: DescriptionTelecom and Datacom Connector, 34 Contact(s), Male, Straight, Surface Mount Terminal, Plug, LEAD FREE; CategoryThe connector The connector; File Size470KB，5 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

58638-104LF Overview

Telecom and Datacom Connector, 34 Contact(s), Male, Straight, Surface Mount Terminal, Plug, LEAD FREE

58638-104LF Parametric

Parameter Name	Attribute value
Maker	Amphenol
package instruction	LEAD FREE
Reach Compliance Code	compliant
Other features	POLARIZED
Body/casing type	PLUG
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	MATTE TIN (80) OVER NICKEL
Contact point gender	MALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	58638
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Options	GENERAL PURPOSE
Shell material	POLYETHYLENE
Termination type	SURFACE MOUNT
Total number of contacts	34
UL Flammability Code	94V-0
Base Number Matches	1

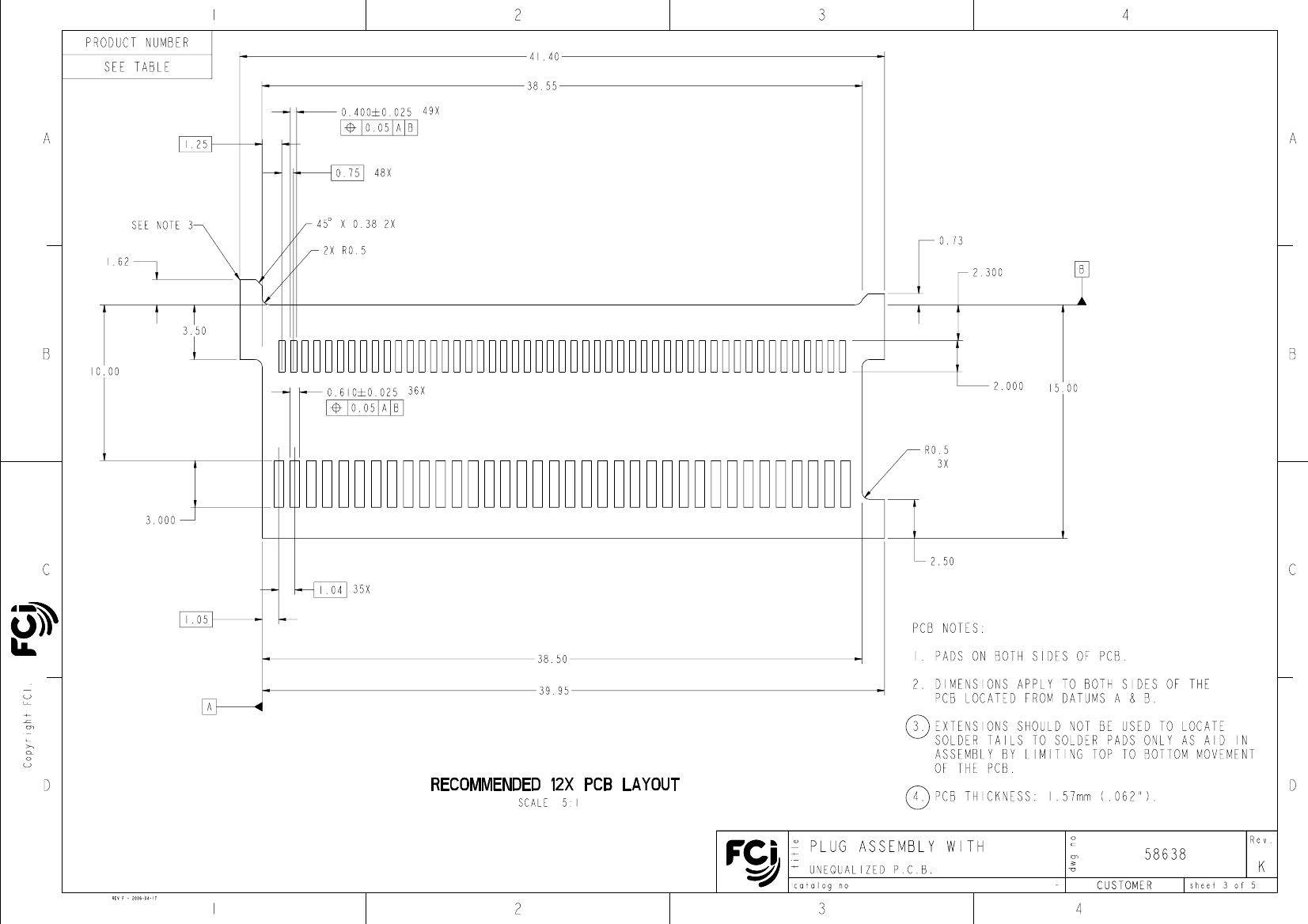

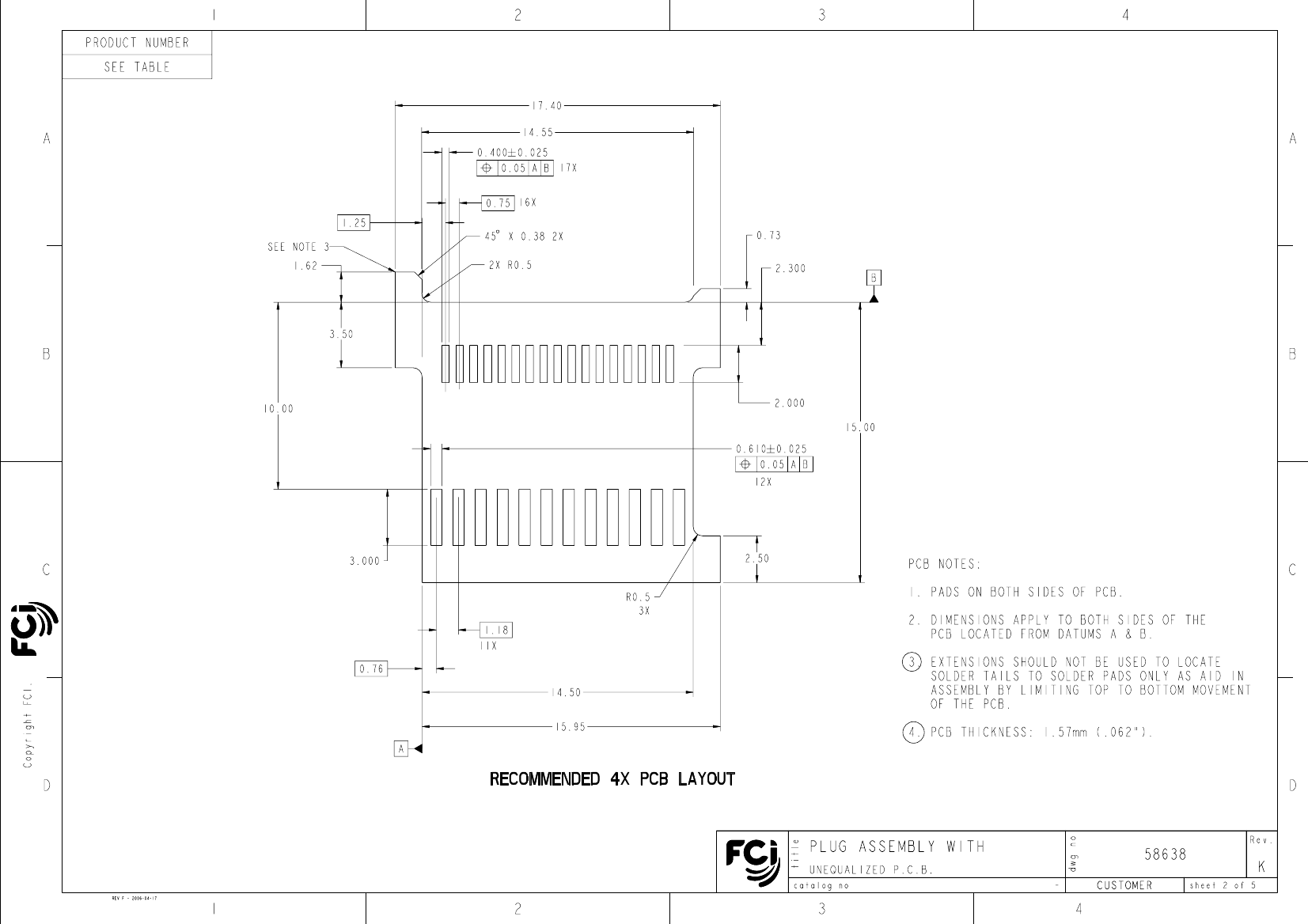

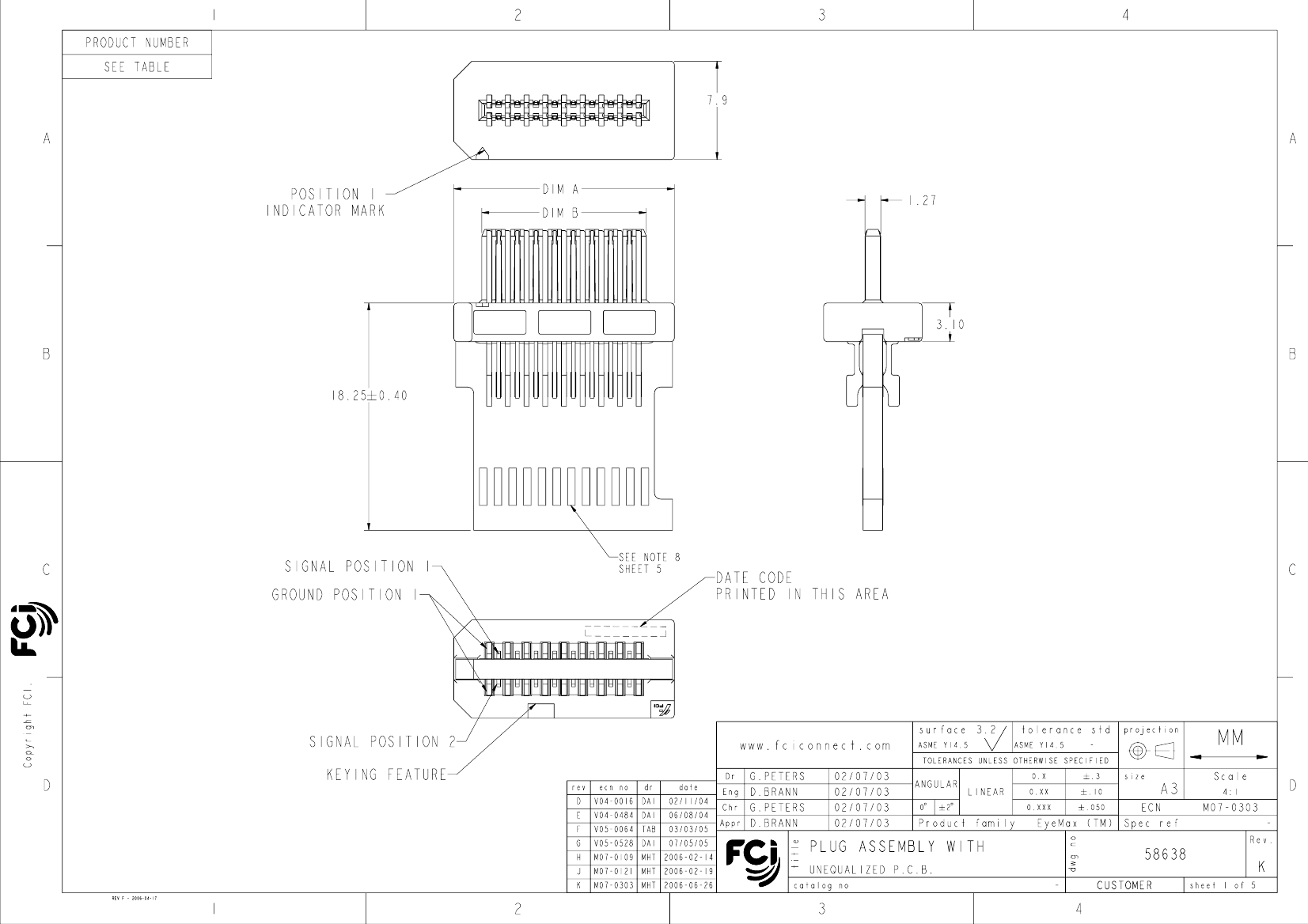

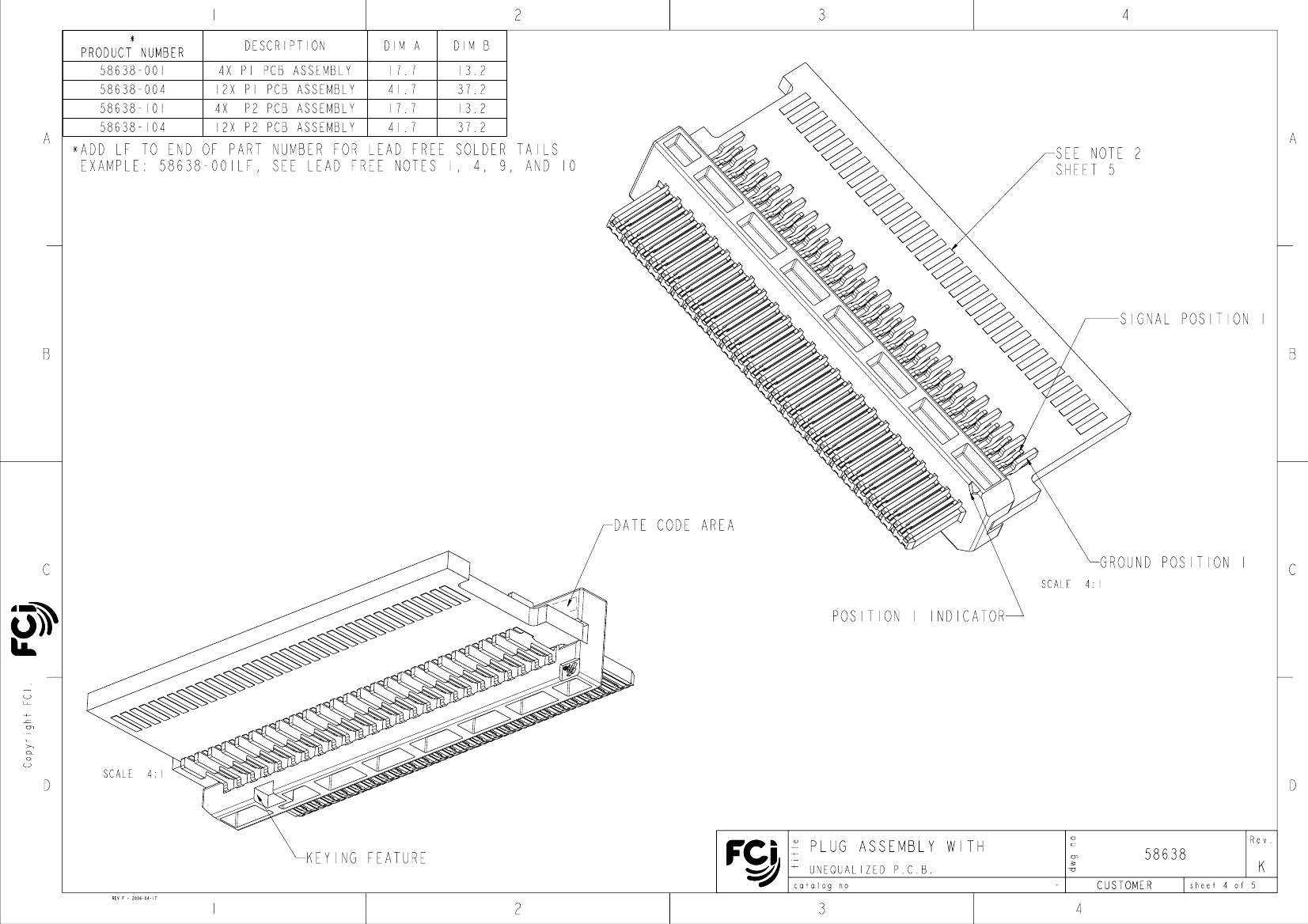

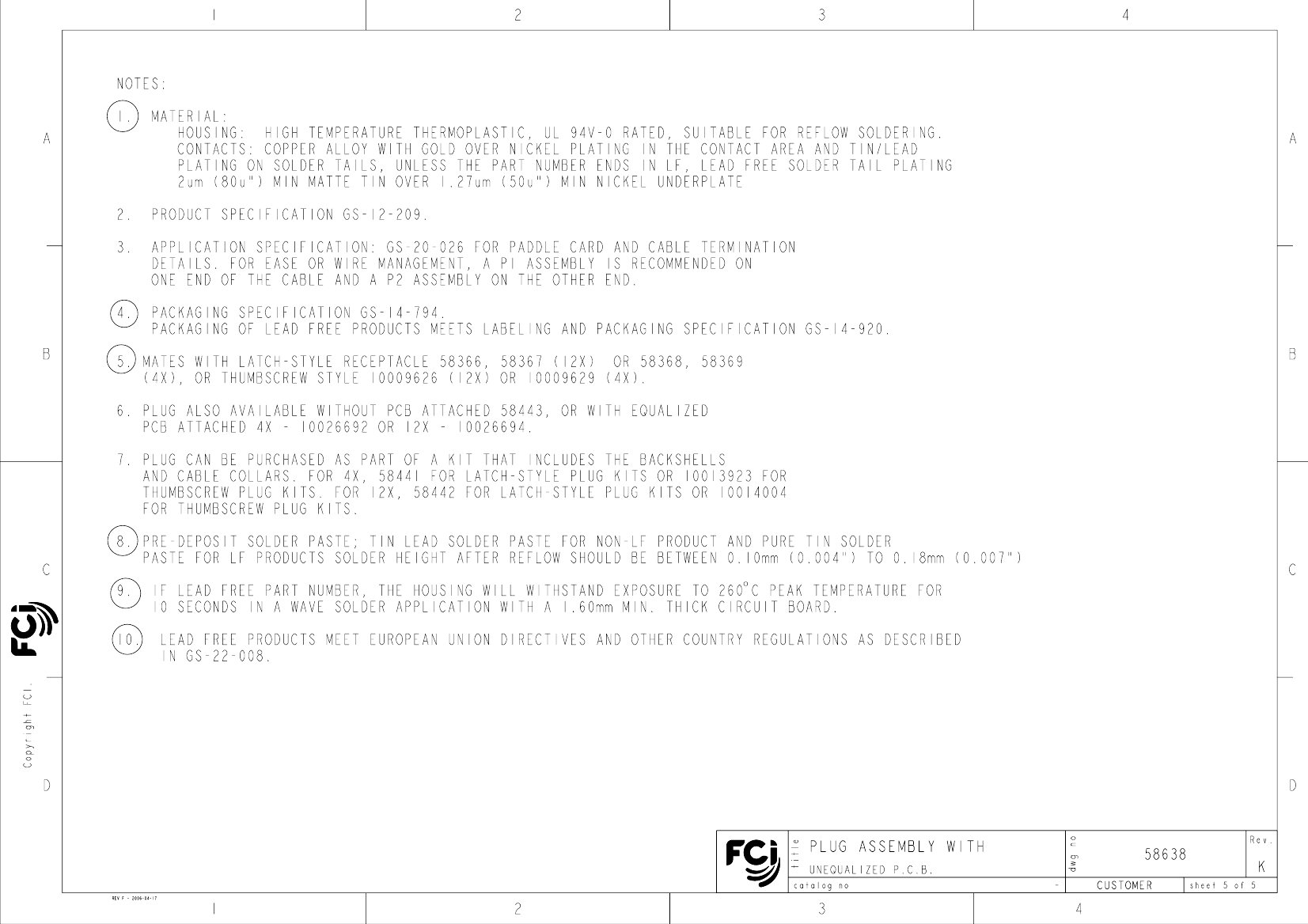

Preview

Download Datasheet

View All

PDM: Rev:K

STATUS:

Released

Printed: Feb 09, 2010

.

58638-104LF Related Products

	58638-104LF	58638-001LF	58638-001	58638-101	58638-104	58638-101LF	58638-004LF	58638-004
Description	Telecom and Datacom Connector, 34 Contact(s), Male, Straight, Surface Mount Terminal, Plug, LEAD FREE	Telecom and Datacom Connector, 34 Contact(s), Male, Straight, Surface Mount Terminal, Plug, LEAD FREE	Telecom and Datacom Connector, 34 Contact(s), Male, Straight, Surface Mount Terminal, Plug	Telecom and Datacom Connector, 34 Contact(s), Male, Straight, Surface Mount Terminal, Plug	Telecom and Datacom Connector, 34 Contact(s), Male, Straight, Surface Mount Terminal, Plug	Telecom and Datacom Connector, 34 Contact(s), Male, Straight, Surface Mount Terminal, Plug, LEAD FREE	Telecom and Datacom Connector, 34 Contact(s), Male, Straight, Surface Mount Terminal, Plug, LEAD FREE	Telecom and Datacom Connector, 34 Contact(s), Male, Straight, Surface Mount Terminal, Plug
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG
Connector type	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR
Contact completed and terminated	MATTE TIN (80) OVER NICKEL	MATTE TIN (80) OVER NICKEL	TIN LEAD	TIN LEAD	TIN LEAD	MATTE TIN (80) OVER NICKEL	MATTE TIN (80) OVER NICKEL	TIN LEAD
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO
empty shell	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO
JESD-609 code	e3	e3	e0	e0	e0	e3	e3	e0
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	58638	58638	58638	58638	58638	58638	58638	58638
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell material	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	34	34	34	34	34	34	34	34
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Base Number Matches	1	1	1	1	1	1	1	1
Maker	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	-	-
Contact to complete cooperation	GOLD OVER NICKEL	-	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	-	GOLD OVER NICKEL
