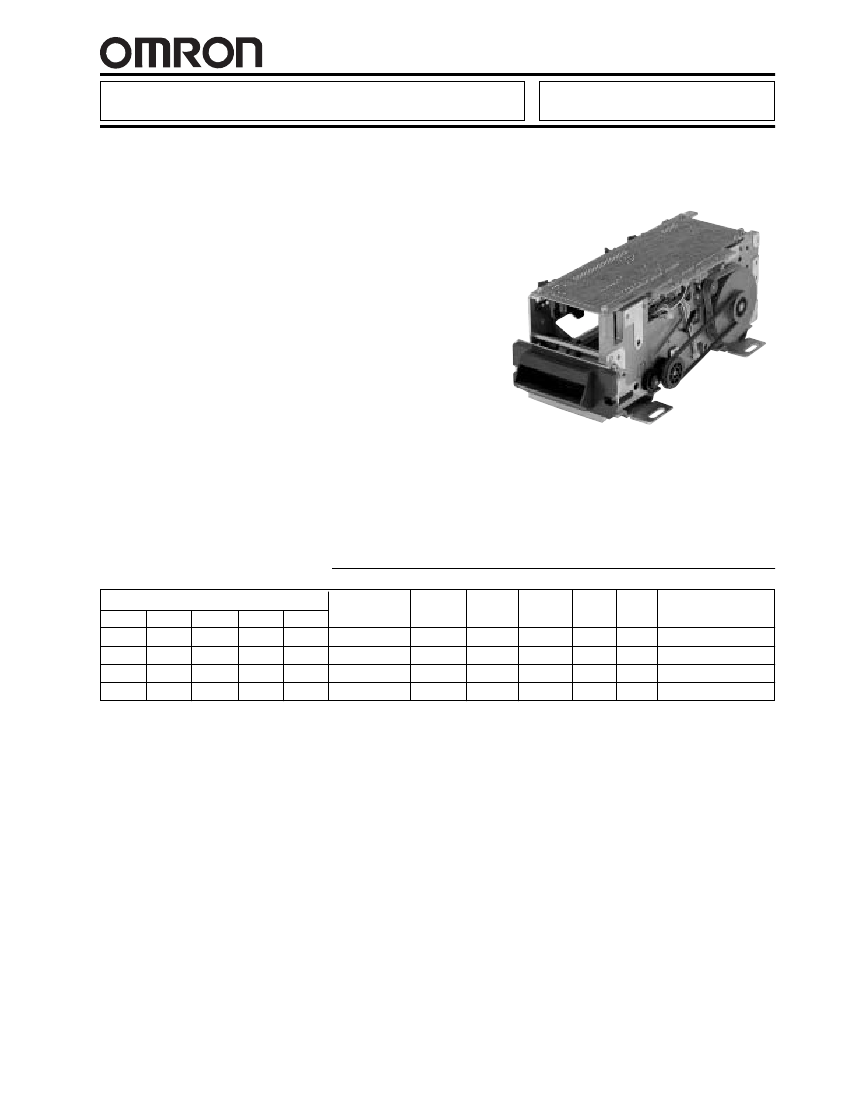

Motor Driven Card Reader/Writer
Versatile Hybrid Reader/Writer Handles
Both Magnetic and IC Cards
■
Durable 4-wheel, 2-belt drive with roller
3S4YR-MKW
■
■
■
■
accommodates discrepancies in card thickness
to accept warped or bent cards
Metal blade shutter prevents tampering
Compact size and light weight allow easy
installation in any terminal
Two integrated chip station positions available
Adjustable to card thicknesses of 0.20 mm,
0.40 mm, and 0.76 mm
(PET, paper, or PVC cards)
■
HiCo write capability available
Ordering Information
Magnetic Tracks Supported (R, R/W)
1
R/W
R/W
—
R/W
2
R/W
R/W
R/W
R/W
3
R/W
R/W
—
R/W
Center
—
—
—
—
JIS II
—
—
—
R/W
IC Contact
Option
Option
Option
—
Interface
TTL
TTL
TTL
TTL
Shutter
Option
Option
Option
No lnlet
Cover
No
No
No
No
Cable
No
No
No
No
Color
Black
Black
Black
Black
Part Number
3S4YR-MKW1PC-01
3S4YR-MKW1PCH
3S4YR-MKW4PC-01
3S4YR-MKWAPC-100k
Note: Only the MKW1PCH is capable of writing HiCo cards. All models can read HiCo cards.
3S4YR-MKW
■
TYPICAL APPLICATIONS
• Cash Dispensers
• Automatic Teller Machines (ATM)
• POS Terminals
• Credit Card Checkers
• ID Card Checkers
• Electronic Lock Systems
• Medical Patient Systems
• Health Control Systems
3S4YR-MKW
■
ACCESSORIES
Description
IC Contact, chip on the front, lower position
IC Contact, chip on the front, upper and lower positions
Shutter for MKW1PC-01, MKW1PCH
Shutter for MKW4PC-01
Part Number
IC CONTACT J
IC CONTACT X
(See note 1)
(See note 1)
SHUTTER MKD7
SHUTTER MKD4
Note 1: Consult your Omron sales representative for IC contact accessories. Special configurations can be supplied.
Specifications
Part number
Recommended card type
Recording method
Card feeding speed
Motor type
Service life
(See note)
Operating power supply
Amplifier
Motor
Control logic
Current consumption
Amplifier
Motor
Control logic
Mounting location
Mounting orientation
Ambient temperature
Ambient humidity
Vibration
Shock
Dimensions
Weight
Note: One pass denotes one round trip.
With shutter
Without shutter
Operation
Storage
Operation
Storage
Magnetic card
IC card
3S4YR-MKW
ISO 7810-7813
ISO 7816/1, 2
FM decoding (F2F)
20 cm/sec
±
10% (7.87 in/sec)
DC motor
1,200,000 passes min.
24 VDC
±
10%
24 VDC
±
10%
5 VDC
±
5%
260 mA max.
1.7 A max.
330 mA max.
Anywhere not directly subject to water or rain
Stripe top or stripe bottom
-5° to 55°C (23° to 131°F)
-25° to 70°C (-13° to 158°F)
45% to 85% RH without condensation
30% to 90% RH
10 to 55 Hz, 2 mm double amplitude, for 30 minutes in X, Y, and Z directions
300 m/sec
2
(30 G) in each of X, Y, and Z directions
247L x 106W x 92H mm (9.72L x 4.17W x 3.62H in)
222L x 98W x 92H mm (8.74L x 3.86W x 3.62H in)
Approx. 1.9 kg (4.2 lbs) when fully equipped
3S4YR-MKW
3S4YR-MKW
Engineering Data
■
INPUT CIRCUIT DIAGRAM
+5 VDC
74HC14
correspondence
4.7 kΩ
Interface part
TTL open collector
74LS06 correspondence
■
OUTPUT CIRCUIT DIAGRAM
Interface part
■
I/O INFORMATION
3S4YR-MKW
Connector of Magnetic Card (CN1 Signal)
3M 3433-5302JL. Mate: 3M 3425-6550EL.
Pin #
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
Signal
Input/Output
Pin #
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
Signal
S1
S2
S3
S4
STW
RCP1
RDP1
RCP2
RDP2
RCP3
RDP3
RCP4
RDP4
WCP1
WCP2
WDT1
CNT1
WDT2
CNT2
WDT3
CNT3
WDT4
CNT4
Input/Output
Output
Output
Output
Output
Output
Output
Output
Output
Output
Output
Output
Output
Output
Output
Output
Input
Input
Input
Input
Input
Input
Input
Input
3S4YR-MKW
Connector of IC Card (CN2 Signal)
3M 3408-5302JL. Mate: 3M 3452-6516EL.
Pin #
1
2
3
4
5
6
7
8
Signal
IVCC
IRST
ICIO
IGND
—
ICKL
IVCC
IVPP
Input/Output
◆
◆
◆
◆
—
◆
◆
◆
Pin #
9
10
11
12
13
14
15
16
Signal
IRS1
IRS2
IECO
—
IMSL
ISOL
0V
Input/Outut
◆
◆
Input
—
Input
Input
—
+5 VDC —
+5 VDC —
0V
0V
P24V
P24V
P0V
P0V
MFW
MRV
SOL1
—
—
—
—
—
WEN
—
RCPS
RDP5
SHD1
WDV
SHE
WID
S0
—
—
—
—
—
—
Input
Input
Input
—
—
—
—
—
Input
—
—
—
Output
Output
Output
Output
Output
+5 VDC —
◆
= Direct IC Contact
+24 VDC —
+24 VDC —
3S4YR-MKW
3S4YR-MKW

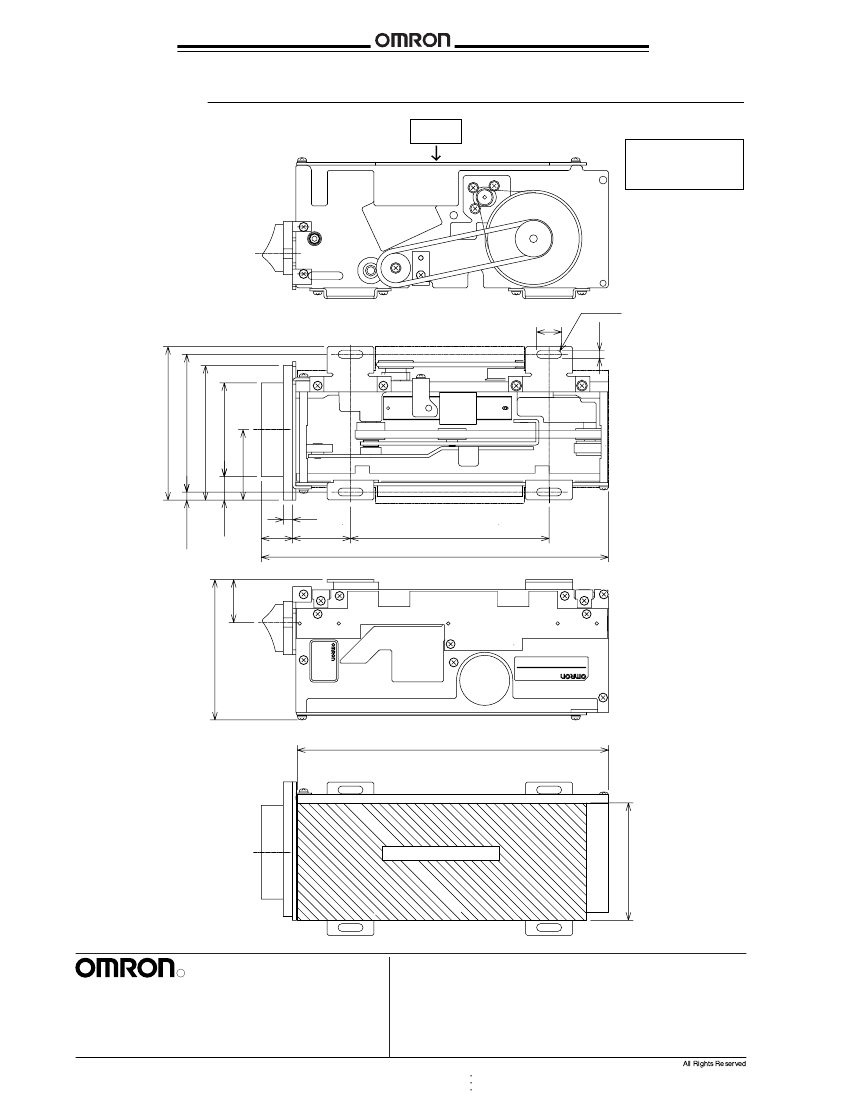

Dimensions
Unit: mm (inch)
■
3S4YR-MKW WITHOUT SHUTTER
Dimensions : mm
Tolerance :
±0.5mm
SHEET
Stripe down shown.
Can be mounted with
stripe up.
R2.5
5
75
16
98.15
88
86
60
45
5.15
15
6
20
37
127
222
89.8
27.5
199
PCB and SHEET
Contact our nearest representative at
R
Card Business Promotion Division
Card Reader Components Dept.
C
⃝
OMRON Corporation
Ｇ ½ City Ohsaki, West Tower 14F 1-11-1, Ohsaki, Shinagawa-Ku Tokyo, 141-0032 JAPAN
½½
TEL. 81-3-5435-2012 FAX. 81-3-5435-2017
URL : http://www.omron.com/card/cardreader
CAT. No. IW-01
C
⃝
OMRON Corporation 2002
All Rights Reserved
¥
This catalog is valid as of April 2002.
¥
Real products may slightly differ in color from catalog products, due to catalog printing methods.
¥
All specifications may be subject to change without notice.
