L1 SERIES 1 WATT HIGH VOLTAGE LINEAR DC/DC CONVERTERS
FEATURES
*
Customer Selects Output Voltage
*
*
*
*
*
*
*
*
Outputs to 500 Vdc
Low Profile
Excellent Line & Load Regulation
Low Output Ripple
60 kHz Switching Frequency
1000 Vdc Output Isolation
Continuous Short Circuit Protection
Economical

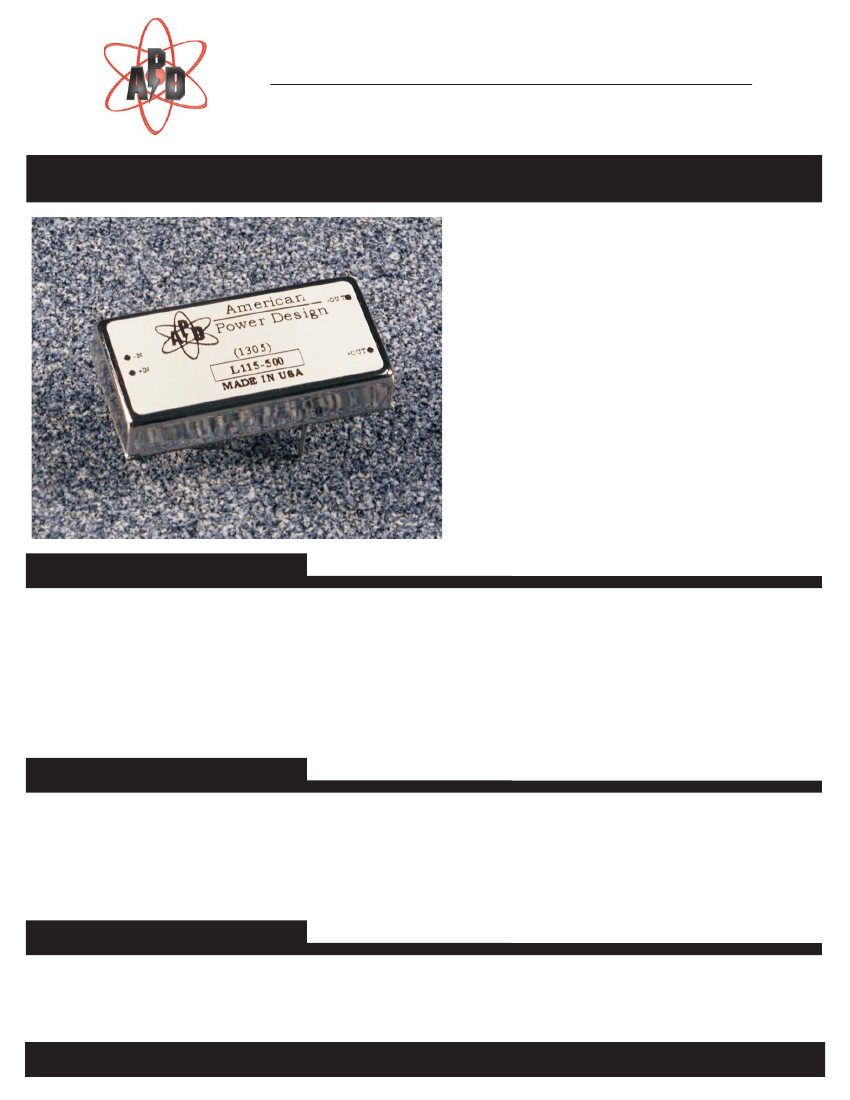

The L1 Series Low Profile DC/DC converter offers a
1000 Vdc isolated high voltage output in a six-sided
copper case. Their small size, low output ripple, and
excellent regulation characteristics make them ideally
suited for applications that demand a high degree of
performance All models will tolerate a short circuit
indefinitely.
ELECTRICAL SPECIFICATIONS
Voltage Accuracy ........................................................+/-1%
Input Regulation ......................................................+/- 0.1%
Load Regulation ......................................................+/- 0.2%
Output Ripple ............................................................< 0.05%
Input Range.................................................................+/-10%
Input Filter..............................................Low ESR Capacitor
Short Circuit Protection ....................................Continuous
Switching Frequency .................................................60 kHz
Isolation...................................................................1000 Vdc
GENERAL SPECIFICATIONS
Temp. Stability ........................................................+/-0.3%/°C
Temp. (Operating , Case) ......................................0 to +70°C
Temp. (Storage) .................................................-40 to +100°C
EMI/RFI...........................................................Six Sided Shield
Temp. Derating................................................................None
Cooling.....................................................Free-Air Convection
* All models designed to meet UL 60950
* For RoHS Compliant part, add suffix /Y

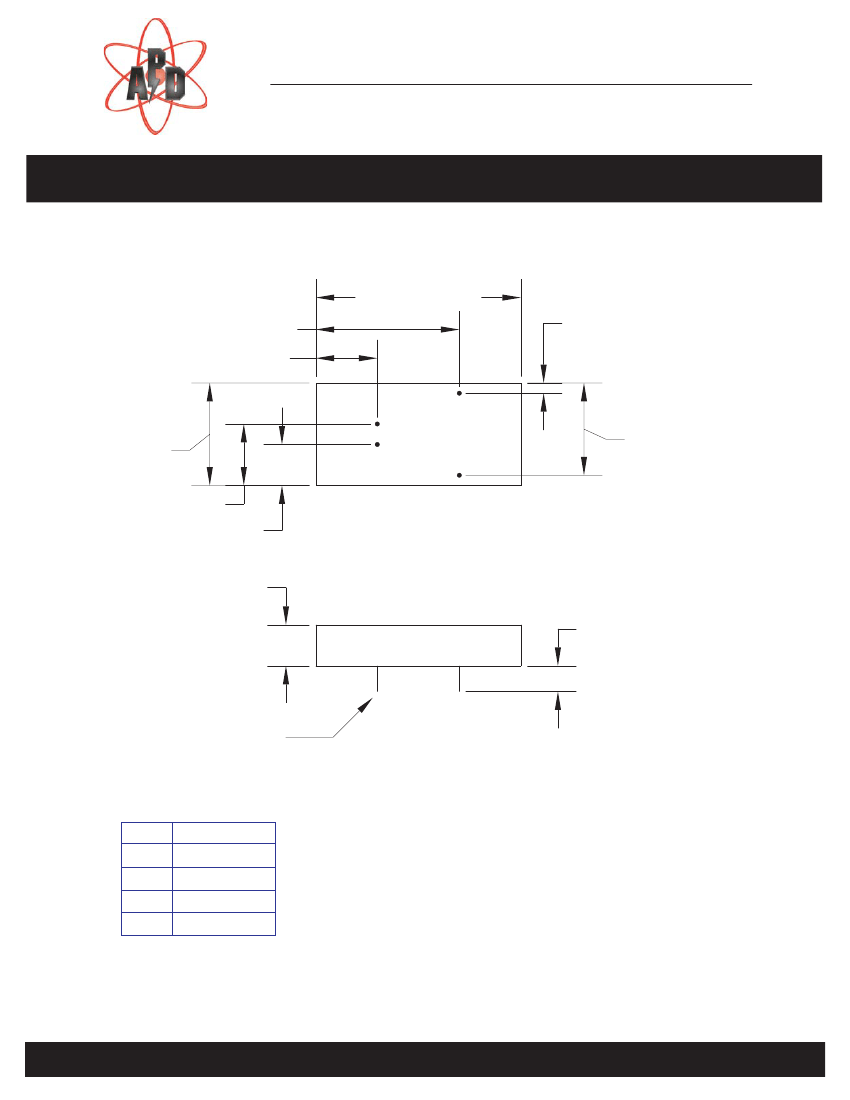

PHYSICAL SPECIFICATIONS
Dimensions ................................................. 1 x 2 x 0.41 inches
Weight .........................................................................1.2 Oz
Case Material ......................................... Nickel Plated Copper
(With Non-Conductive Base Plate)
Tel (888) 894-4446
WWW.APOWERDESIGN.COM
Fax (603) 898-6534
