Datasheet> All Categories > Discrete semiconductor> The transistor> BFS98

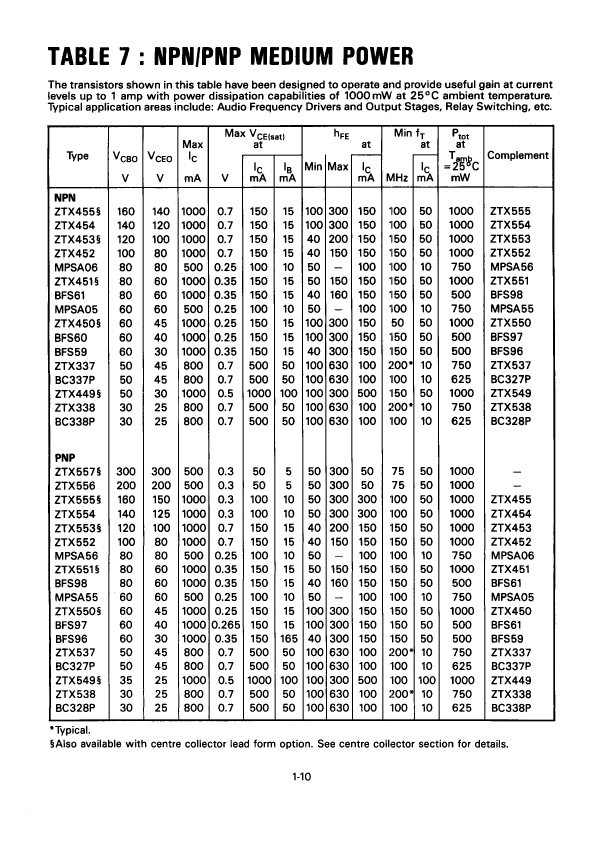

BFS98: DescriptionSmall Signal Bipolar Transistor, 1A I(C), 60V V(BR)CEO, 1-Element, PNP, Silicon, TO-92 STYLE, E-LINE PACKAGE-3; CategoryDiscrete semiconductor The transistor; File Size50KB，1 Pages; ManufacturerZetex Semiconductors; Websitehttp://www.zetex.com/

Download Datasheet Parametric Compare View All

BFS98 Overview

Small Signal Bipolar Transistor, 1A I(C), 60V V(BR)CEO, 1-Element, PNP, Silicon, TO-92 STYLE, E-LINE PACKAGE-3

BFS98 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Zetex Semiconductors
package instruction	IN-LINE, R-PSIP-W3
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum collector current (IC)	1 A
Collector-emitter maximum voltage	60 V
Configuration	SINGLE
Minimum DC current gain (hFE)	40
JESD-30 code	R-PSIP-W3
JESD-609 code	e0
Number of components	1
Number of terminals	3
Maximum operating temperature	200 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	235
Polarity/channel type	PNP
Maximum power dissipation(Abs)	0.5 W
Certification status	Not Qualified
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	WIRE
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	150 MHz
VCEsat-Max	0.35 V
Base Number Matches	1

Preview

Download Datasheet

View All

BFS98 Related Products

	BFS98	BC327P	BC328P	BC338P	BFS59	ZTX337	BFS96	BC337P	ZTX338	ZTX537
Description	Small Signal Bipolar Transistor, 1A I(C), 60V V(BR)CEO, 1-Element, PNP, Silicon, TO-92 STYLE, E-LINE PACKAGE-3	Small Signal Bipolar Transistor, 0.8A I(C), 45V V(BR)CEO, 1-Element, PNP, Silicon, TO-92 STYLE, E-LINE PACKAGE-3	Small Signal Bipolar Transistor, 0.8A I(C), 25V V(BR)CEO, 1-Element, PNP, Silicon, TO-92 STYLE, E-LINE PACKAGE-3	Small Signal Bipolar Transistor, 0.8A I(C), 25V V(BR)CEO, 1-Element, NPN, Silicon, TO-92 STYLE, E-LINE PACKAGE-3	Small Signal Bipolar Transistor, 1A I(C), 30V V(BR)CEO, 1-Element, NPN, Silicon, TO-92 STYLE, E-LINE PACKAGE-3	Small Signal Bipolar Transistor, 0.8A I(C), 45V V(BR)CEO, 1-Element, NPN, Silicon, TO-92 STYLE, E-LINE PACKAGE-3	Small Signal Bipolar Transistor, 1A I(C), 30V V(BR)CEO, 1-Element, PNP, Silicon, TO-92 STYLE, E-LINE PACKAGE-3	Small Signal Bipolar Transistor, 0.8A I(C), 45V V(BR)CEO, 1-Element, NPN, Silicon, TO-92 STYLE, E-LINE PACKAGE-3	Small Signal Bipolar Transistor, 0.8A I(C), 25V V(BR)CEO, 1-Element, NPN, Silicon, TO-92 STYLE, E-LINE PACKAGE-3	Small Signal Bipolar Transistor, 0.8A I(C), 45V V(BR)CEO, 1-Element, PNP, Silicon, TO-92 STYLE, E-LINE PACKAGE-3
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Zetex Semiconductors	Zetex Semiconductors	Zetex Semiconductors	Zetex Semiconductors	Zetex Semiconductors	Zetex Semiconductors	Zetex Semiconductors	Zetex Semiconductors	Zetex Semiconductors	Zetex Semiconductors
package instruction	IN-LINE, R-PSIP-W3	IN-LINE, R-PSIP-W3	IN-LINE, R-PSIP-W3	IN-LINE, R-PSIP-W3	IN-LINE, R-PSIP-W3	IN-LINE, R-PSIP-W3	IN-LINE, R-PSIP-W3	IN-LINE, R-PSIP-W3	IN-LINE, R-PSIP-W3	IN-LINE, R-PSIP-W3
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknow	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum collector current (IC)	1 A	0.8 A	0.8 A	0.8 A	1 A	0.8 A	1 A	0.8 A	0.8 A	0.8 A
Collector-emitter maximum voltage	60 V	45 V	25 V	25 V	30 V	45 V	30 V	45 V	25 V	45 V
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Minimum DC current gain (hFE)	40	100	100	100	40	100	40	100	100	100
JESD-30 code	R-PSIP-W3	R-PSIP-W3	R-PSIP-W3	R-PSIP-W3	R-PSIP-W3	R-PSIP-W3	R-PSIP-W3	R-PSIP-W3	R-PSIP-W3	R-PSIP-W3
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0	e0	e0
Number of components	1	1	1	1	1	1	1	1	1	1
Number of terminals	3	3	3	3	3	3	3	3	3	3
Maximum operating temperature	200 °C	200 °C	200 °C	200 °C	200 °C	200 °C	200 °C	200 °C	200 °C	200 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Polarity/channel type	PNP	PNP	PNP	NPN	NPN	NPN	PNP	NPN	NPN	PNP
Maximum power dissipation(Abs)	0.5 W	0.625 W	0.625 W	0.625 W	0.5 W	0.75 W	0.5 W	0.625 W	0.75 W	0.75 W
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
transistor applications	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Nominal transition frequency (fT)	150 MHz	100 MHz	100 MHz	100 MHz	150 MHz	200 MHz	150 MHz	100 MHz	200 MHz	200 MHz
VCEsat-Max	0.35 V	0.7 V	0.7 V	0.7 V	0.35 V	0.7 V	0.35 V	0.7 V	0.7 V	0.7 V
Peak Reflow Temperature (Celsius)	235	235	235	235	235	-	235	235	235	235
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
