General-purpose Relay
G2RS-(S)
Slim and Space-saving Power Plug-in Relay
• Lockable test button models now available.
• Built-in mechanical operation indicator.
• Provided with nameplate.
• AC type is equipped with a coil-disconnection self-
diagnostic function (LED type).
• High switching power (1-pole: 10 A).
• Environment-friendly (Cd, Pb free).
• Wide range of Sockets also available.
• RoHS Compliant.
LR
Model Number Structure
■
Model Number Legend
G2R
1
-
2
3
4
-
5
6
-
7
(S)
5. Terminals
S:
Plug-in
6. Classification
Blank:General-purpose
N:
LED indicator
D:
Diode
ND: LED indicator and diode
NI:
LED indicator with test button
NDI: LED indicator and diode with test button
7. Rated Coil Voltage
1. Relay Function
Blank:General-purpose
2. Number of Poles
1:
1 pole
2:
2 poles
3. Contact Form
Blank:SPDT
4. Contact Type
Blank:Single
Ordering Information
■
List of Models
Classification
Plug-in terminal
General-purpose
LED indicator
LED indicator with test button
Diode
LED indicator and diode
LED indicator and diode with test button
DC
Enclosure
rating
Unsealed
Coil ratings
AC/DC
G2R-1-S
G2R-1-SN
G2R-1-SNI
G2R-1-SD
G2R-1-SND
G2R-1-SNDI
Contact form/Model
SPDT
DPDT
G2R-2-S
G2R-2-SN
G2R-2-SNI
G2R-2-SD
G2R-2-SND
G2R-2-SNDI
Note:
When ordering, add the rated coil voltage and "(S)" to the model number. Rated coil voltages are given in the coil ratings table.
New model
Example: G2R-1-S DC12 (S)
Rated coil voltage
General-purpose Relay
G2RS-(S)
245
■
Accessories (Order Separately)
Connecting Sockets
Applicable Relay model
Track/surface-mounting Socket
Screwless clamp terminal
(See note.)
1 pole
G2R-1-S(N)(D)(ND)(NI)(NDI)
2 poles
G2R-2-S(N)(D)(ND)(NI)(NDI)
P2RF-05-S
+
P2CM-S
P2RF-08-S
+
P2CM-S
Screw terminal
P2RF-05-E
P2RF-05
P2RF-08-E
P2RF-08
Back-mounting Socket
Terminals
PCB terminals
Solder terminals
PCB terminals
Solder terminals
Model
P2R-05P, P2R-057P
P2R-05A
P2R-08P, P2R-087P
P2R-08A
Note: 1.
Use of P2CM Clips are optional. However, use of the P2CM Clip & Release Lever is recommended to ensure stable mounting.
2.
“-E” models are of finger-safe product construction. Round terminals cannot be used. Use Y-shaped terminals.
Accessories for Screwless Clamp Terminal Socket (Option)
Name
Clip & Release Lever
Nameplate
Socket Bridge
P2CM-S
R99-11 Nameplate for MY
P2RM-SR (for AC), P2RM-SB (for DC)
Model
Mounting Tracks
Applicable Socket
Mounting track and accessories
Mounting track
Description
50 cm (l) x 7.3 mm (t)
PFP-50N
1 m (l) x 7.3 mm (t)
PFP-100N
1 m (l) x 16 mm (t)
PFP-100N2
PFP-M
PFP-S
P2R-P
Model
End plate
Spacer
Mounting plate*
Back-connecting Sockets
*Used to mount several P2R-05A and P2R-08A Connecting Sockets side by side.
Specifications
■
Coil Ratings
Rated voltage
Rated current*
Coil
resistance*
Coil inductance (H)
(ref. value)
Armature
OFF
253
Ω
5,566
Ω
7,286
Ω
27,172
Ω
30,360
Ω
Coil
resistance*
0.81
13.33
16.13
72.68
90.58
Armature
ON
1.55
26.83
32.46
143.90
182.34
Must
operate
voltage
Must
release
voltage
Max.
voltage
Power
consumption
(approx.)
Must
operate
voltage
Must
release
voltage
Max.
voltage
Power
consumption
(approx.)
50 Hz
AC
24 V
110 V
120 V
230 V
240 V
Rated voltage
43.5 mA
9.5 mA
8.6 mA
4.4 mA
3.7 mA
60 Hz
37.4 mA
8.2 mA
7.5 mA
3.8 mA
3.2 mA
% of rated voltage
80% max.
30% min.
110%
0.9 VA at 60 Hz
Rated current*
Coil inductance (H)
(ref. value)
Armature
OFF
Armature
ON
0.48
2.35
8.25
29.82
% of rated voltage
70% max.
15% min.
110%
0.53 W
DC
6V
12 V
24 V
48 V
87.0 mA
43.2 mA
21.6 mA
11.4 mA
69
Ω
278
Ω
1,113
Ω
4,220
Ω
0.25
0.98
3.60
15.2
*
The rated current and coil resistance are measured at a coil temperature of 23°C with tolerances of
±10%.
246
General-purpose Relay
G2RS-(S)
■
Contact Ratings
Number of poles
Load
Rated load
Rated carry current
Max. switching voltage
Max. switching current
Max. switching capacity
Minimum permissible load
Resistive load
(cosφ = 1)
10 A at 250 VAC;
10 A at 30 VDC
10 A
440 VAC, 125 VDC
10 A
2,500 VA,
300 W
100 mA at 5 VDC
1,875 VA,
150 W
1 pole
Inductive load
(cosφ = 0.4; L/R = 7 ms)
7.5 A at 250 VAC;
5 A at 30 VDC
Resistive load
(cosφ = 1)
5 A at 250 VAC;
5 A at 30 VDC
5A
380 VAC, 125 VDC
5A
1,250 VA,
150 W
10 mA at 5 VDC
500 VA,
90 W
2 poles
Inductive load
(cosφ = 0.4; L/R = 7 ms)
2 A at 250 VAC; 3 A at
30 VDC
Note:
P level:
λ
60
= 0.1 x 10
-6
/operation
■
Characteristics
Item
Contact resistance
Operate (set) time
Release (reset) time
Max. operating
frequency
Insulation resistance
Dielectric strength
100 mΩ max.
15 ms max.
AC: 10 ms max.; DC: 5 ms max.
(w/built-in diode: 20 ms max.)
Mechanical:
Electrical:
AC: 15 ms max.; DC: 10 ms max.
(w/built-in diode: 20 ms max.)
1 pole
2 poles
18,000 operations/hr
1,800 operations/hr (under rated load)
1,000 MΩ min. (at 500 VDC)
5,000 VAC, 50/60 Hz for 1 min between coil and
5,000 VAC, 50/60 Hz for 1 min between coil and contacts*;
contacts*;
3,000 VAC, 50/60 Hz for 1 min between contacts of different polarity
1,000 VAC, 50/60 Hz for 1 min between contacts of 1,000 VAC, 50/60 Hz for 1 min between contacts of same polarity
same polarity
Destruction:
Malfunction:
Destruction:
Malfunction:
Mechanical:
Electrical:
10 to 55 to 10 Hz, 0.75 mm single amplitude (1.5 mm double amplitude)
10 to 55 to 10 Hz, 0.75 mm single amplitude (1.5 mm double amplitude)
1,000 m/s
2
200 m/s
2
when energized; 100 m/s
2
when not energized
AC coil: 10,000,000 operations min.;
DC coil: 20,000,000 operations min. (at 18,000 operations/hr)
100,000 operations min. (at 1,800 operations/hr under rated load) (DC coil type)
–40°C to 70°C (with no icing or condensation)
5% to 85%
Vibration resistance
Shock resistance
Service life
Ambient temperature
Ambient humidity
Weight
Operating:
Operating:
Approx. 21 g
Note:
Values in the above table are the initial values.
*4,000 VAC, 50/60 Hz for 1 minute when the P2R-05A or P2R-08A Socket is used.
■
Approved Standards
UL Recognized (File No. E41643) - - Ambient Temp. = 40°C
Model Contact Coil ratings
form
G2R-1-S SPDT
IEC/VDE (EN61810)
Contact
form
1 pole
Contact ratings
Cycles
6 x 10
3
Coil ratings
6, 12, 24, 48 VDC
24, 110, 120, 230,
240 VAC
6, 12, 24, 48 VDC
24, 110, 120, 230,
240 VAC
Contact ratings
5 A, 440 VAC (cosφ = 1.0)
10 A, 250 VAC (cosφ = 1.0)
10 A, 30 VDC (0 ms)
5 A, 250 VAC (cosφ =1.0)
5 A, 30 VDC (0 ms)
Cycles
100 x 10
3
G2R-2-S DPDT
10 A, 30 VDC (resistive)
10 A, 250 VAC (general use)
5 to 110 VDC TV-3 (NO contact only)
5 to 240 VAC 5 A, 30 VDC (resistive)
5 A, 250 VAC (general use)
TV-3 (NO contact only)
6 x 10
3
2 poles
100 x 10
3
CSA Certified (File No. LR31928)
Model Contact Coil ratings
form
G2R-1-S SPDT
LR
Cycles
6 x 10
3
Contact ratings
Number
of poles
1 pole
Coil ratings
5 to 110 VDC
5 to 240 VDC
Contact ratings
10 A, 250 VAC (general use)
7.5 A, 250 VAC (PF0.4)
10 A, 30 VDC (resistive)
5A, 30VDC (L/R=7ms)
5 A, 250 VAC (general use)
2 A, 250 VAC (PF0.4)
5 A, 30 VDC (resistive)
3A, 30VDC (L/R=7ms)
Cycles
G2R-2-S DPDT
10 A, 30 VDC (resistive)
10 A, 250 VAC (general use)
5 to 110 VDC TV-3 (NO contact only)
5 to 240 VAC 5 A, 30 VDC (resistive)
5 A, 250 VAC (general use)
TV-3 (NO contact only)
100 x 10
3
6 x 10
3
2 poles
5 to 110 VDC
5 to 240 VDC
100 x 10
3
General-purpose Relay
G2RS-(S)
247

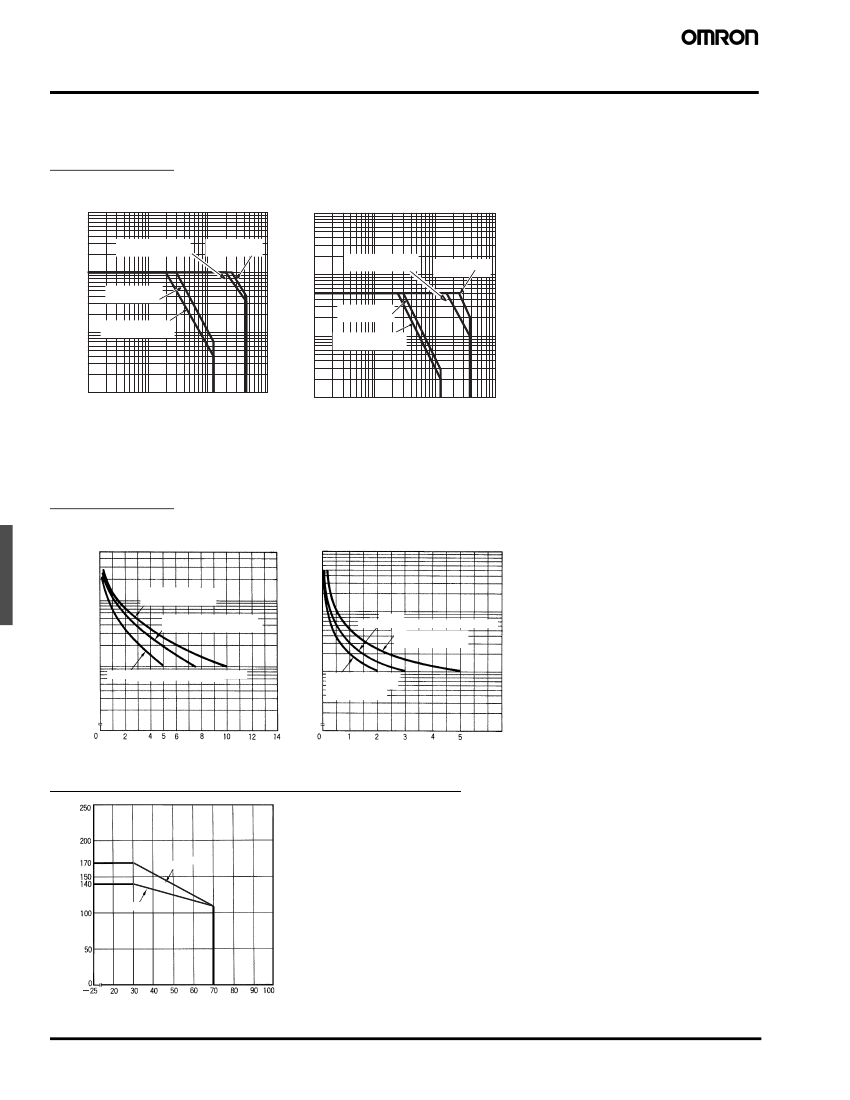

Engineering Data
■
Maximum Switching Capacity
Plug-in Relays
G2R-1-S
100
G2R-2-S
100
Switching current (A)
Switching current (A)
AC inductive load
(cosφ = 0.4)
AC resistive
load
10
DC resistive
load
DC inductive load
(L/R = 7 ms)
10
AC inductive load
(cosφ = 0.4)
AC resistive
load
DC resistive
load
1
1
DC inductive load
(L/R = 7 ms)
0.1
1
10
100
1000
0.1
1
10
100
1000
Switching voltage (V)
Switching voltage (V)
■
Electrical Service Life
Plug-in Relays
G2R-1-S
Service LIfe (x10
3
operations)
Service Life (x10
3
operations)
5,000
G2R-2-S
10,000
5,000
1,000
500
250-VAC/30-VDC
resistive load
250-VAC inductive load
(cosφ = 0.4)
1,000
500
30-VDC inductive load (L/R = 7ms)
250-VAC/30-VDC
resistive load
100
50
30-VDC inductive load (L/R = 7ms)
100
250-VAC
50
inductive load
(cosφ = 0.4)
Switching current (A)
Switching current (A)
Ambient Temperature vs. Maximum Coil Voltage
Maximum voltage (%)
DC coil
AC coil
Note:
The maximum voltage refers to the maximum
value in a varying range of operating power
voltage, not a continuous voltage.
Ambient temperature (°C)
248
General-purpose Relay
G2RS-(S)

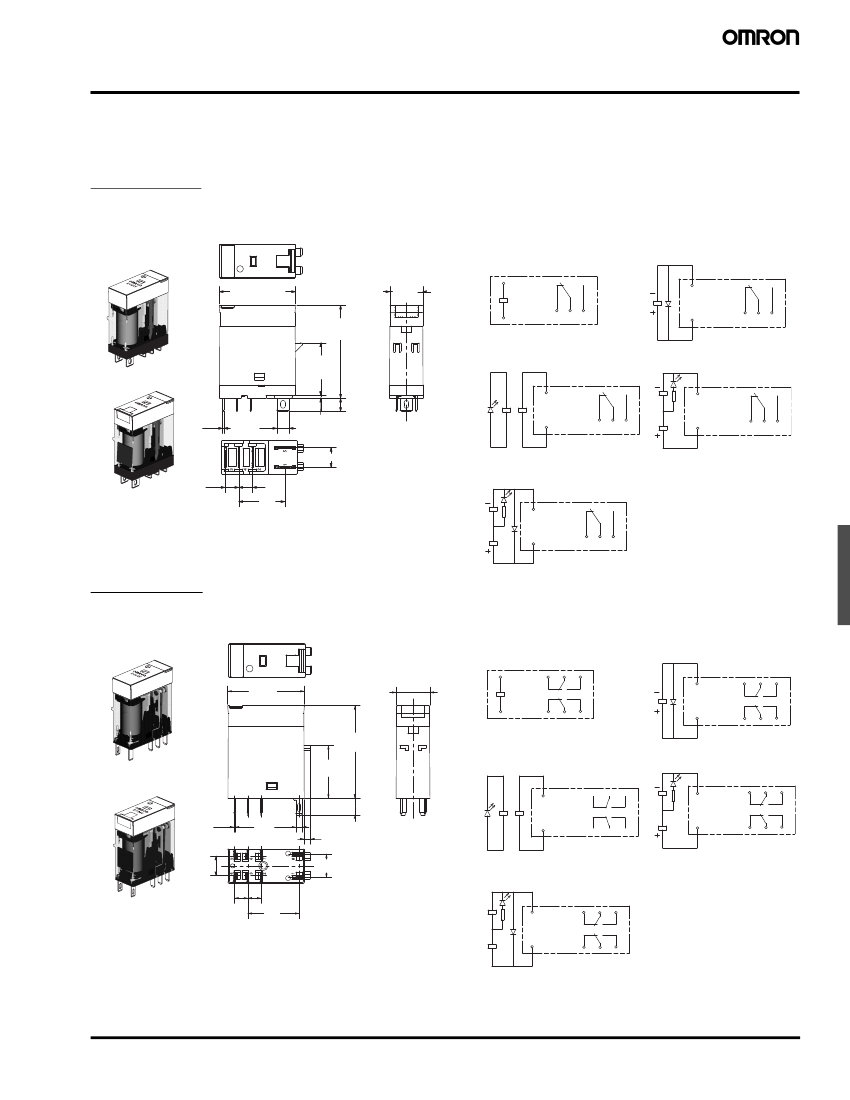

Dimensions
Unit: mm (inch)
■
Relays with Plug-in Terminals
SPDT Relays
G2R-1-S, G2R-1-SN, G2R-1-SNI
G2R-1-SD, G2R-1-SND, G2R-1-SNDI
Terminal Arrangement/Internal Connections
(Bottom View)
G2R-1-S
1
G2R-1-SD (DC)
29 (1.14) max.
13 max.
(0.51)
35.5 max.
(1.40)
1
5
2
4
3
5
2
4
3
20
(0.79)
G2R-1-SN, G2R-1-SNI (AC)
G2R-1-SN, G2R-1-SNI (DC)
1
DC
24V
1
5 (0.20)
0.5
(0.02)
4.75
(0.19)
1(0.04)
5
2
4
3
5
2
4
3
7.5 (0.29)
G2R-1-SND, G2R-1-SNDI (DC)
5.2
(0.20)
5.2
(0.20)
17.5
(0.69)
1
5
2
4
3
DPDT Relays
G2R-2-S, G2R-2-SN, G2R-2-SNI
G2R-2-SD, G2R-2-SND, G2R-2-SNDI
Terminal Arrangement/Internal Connections
(Bottom View)
G2R-2-S
1
2
3
4
G2R-2-SD (DC)
1
2
3
4
29 max.
(1.14)
13 max.
(0.51)
8
35.5 max.
(1.40)
20
(0.79)
7
6
5
8
7
6
5
G2R-2-SN, G2R-2-SNI (AC)
1
2
3
4
G2R-2-SN, G2R-2-SNI (DC)
1
2
3
4
0.5
(0.02)
7.4
(0.29)
2.5
(0.10)
2.4
(0.09)
8.9
(0.35)
6.2
(0.29)
8
7
6
5
8
7
6
5
G2R-2-SND, G2R-2-SNDI (DC)
1
5 (0.02)
5 (0.02)
19.4
(0.76)
2
3
4
8
7
6
5
General-purpose Relay
G2RS-(S)
249
