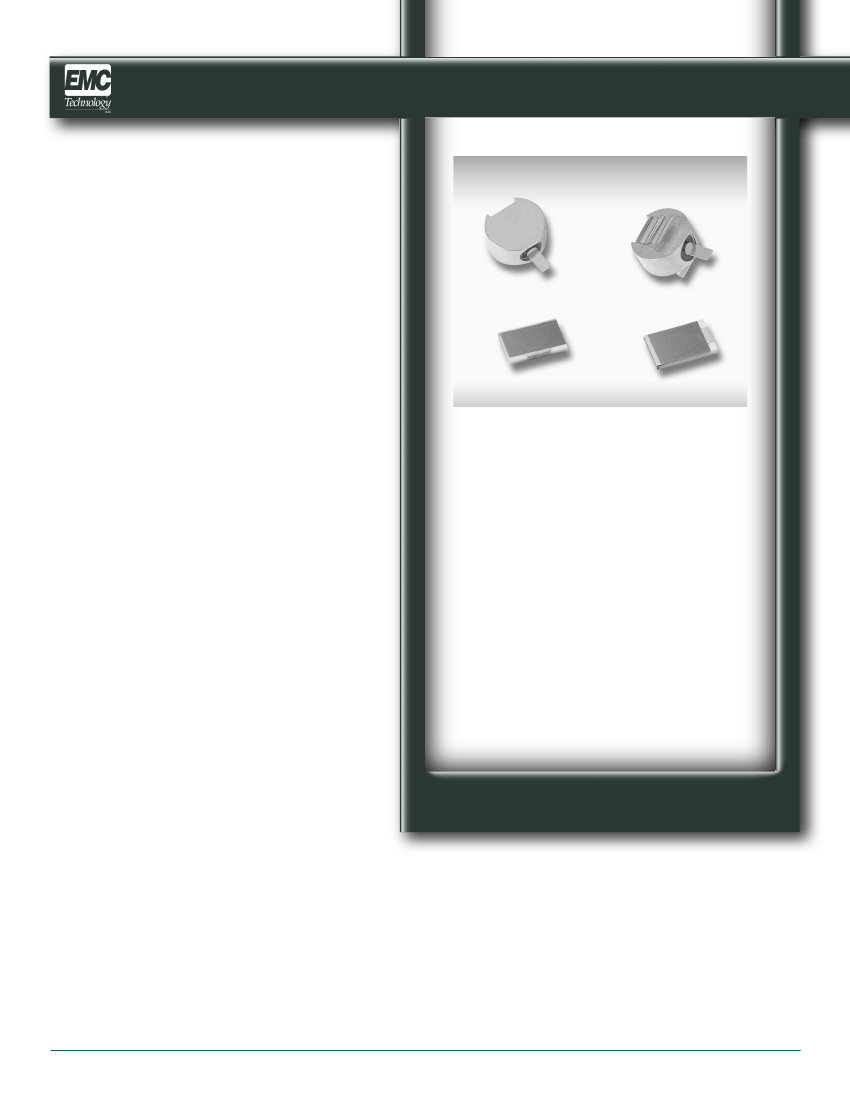

Introduction
Terminations
Features
• Nominal Impedance 50 or 100 Ohms
• Power Rating 5 to 250 Watts
• Frequency Range from DC to 26.5 GHz
• Substrates in BeO, AlN or Alumina
• Three Package Styles Available -
Surface Mount, Chip, and Pill
• S-parameter Data Available
• Non-50 Ohm Resistance Values
Available
• Conforms to Many Military Standards
Applications
• Broadcast (TV and Radio)
• High Power Amplifiers
• High Power Filters
• Instrumentation
• Isolators
• Military
• Remote Termination
• Satellite Communication
• Splitters/Combiners
• Directional Couplers
EMC Technology is the world’s
premier manufacturer of surface
mount, chip, and pill terminations.
EMC invented the original pill
termination (patent 3,354,412) and
holds the patent for the asymmetrical
surface mount termination (patent
5,739,743), allowing for improved
power handling capabilities.
EMC also offers small 0402 and 0505
size full ground plane terminations
with alumina, AlN and BeO
type substrates.
Table of Contents
Surface Mount ........................................................36
Chips – Standard ....................................................38
Chips – High Frequency ........................................ 40
Chips – High Reliability .......................................... 42
Pill Termination ........................................................44
EMC Technology
8851 SW Old Kansas Ave. Stuart FL 34997 (772) 286-9300 (800) 544-5594 www.emct.com
35
A Smiths Group company

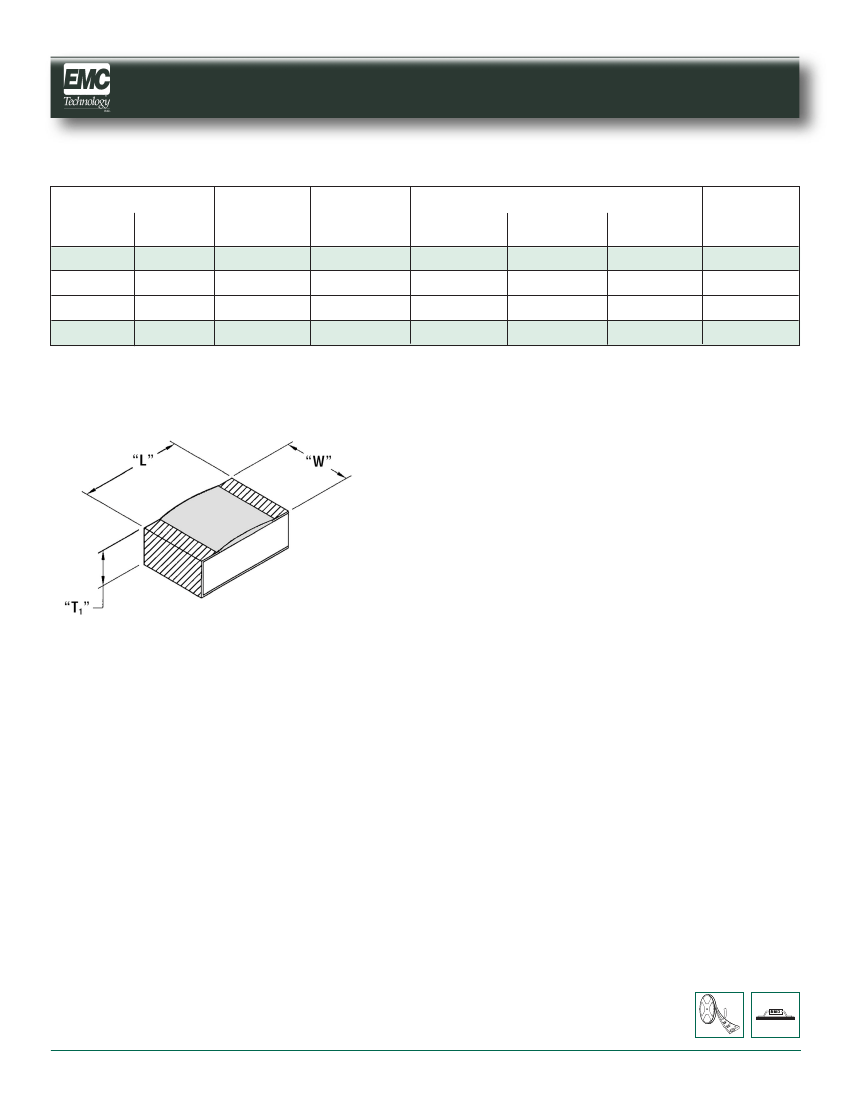

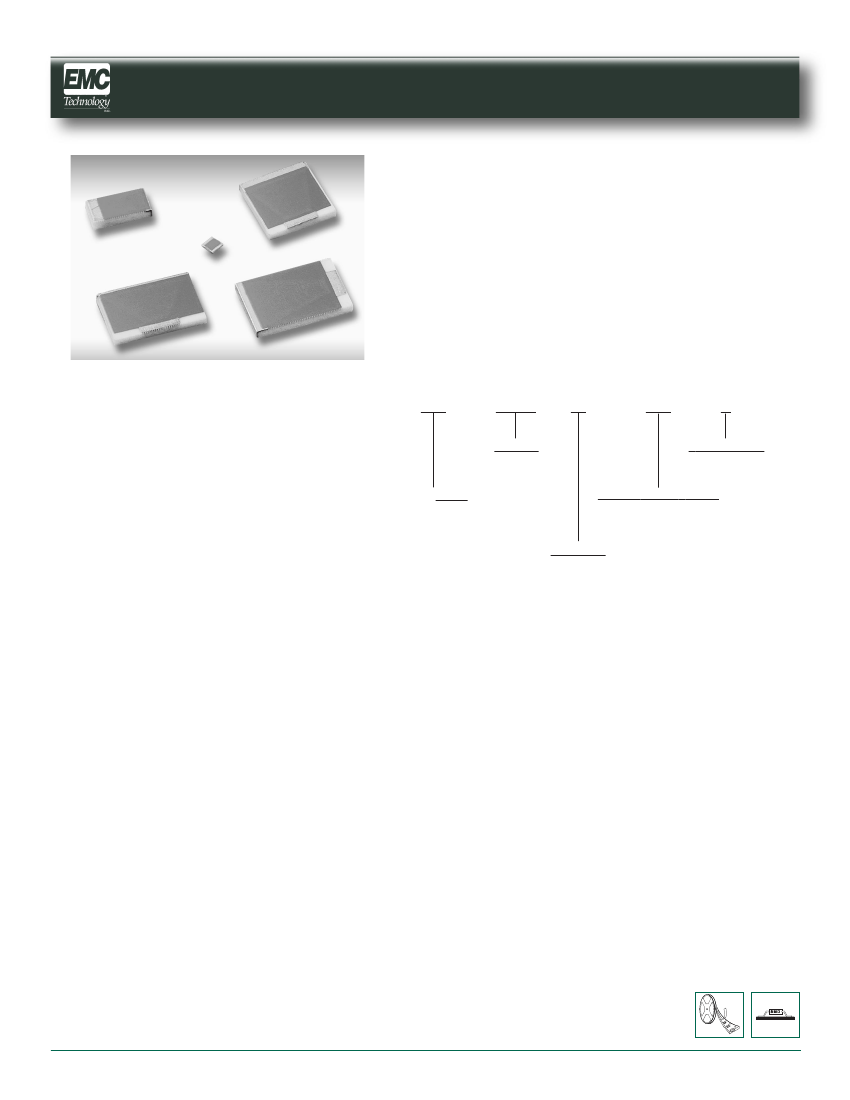

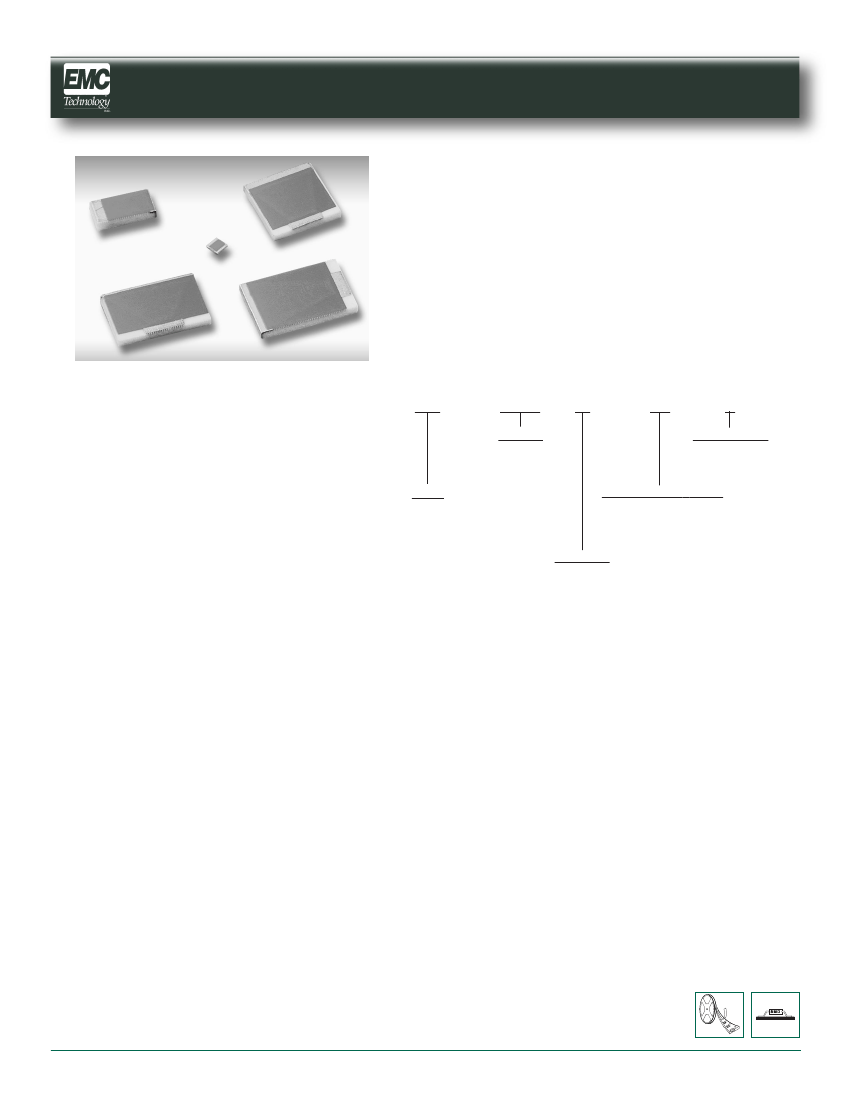

Chips – High Reliability
Terminations
EMC Technology also offers the SC series chip termination
with BeO (Beryllium Oxide) substrates for applications with
critical reliability requirements.
General Specifications
Resistance Values . . . . 50 and 100 Ohms Standard
Tolerance . . . . . . . . . . . . . . . . . . . . . . .± 1% or 5%
Frequency Range . . . . . . . . . . . . . . DC to 18 GHz
Power Rating . . . . . . . . . . . . . . . .10 to 150 Watts
Power Derating . . . . . . . . . . . . . . 100% @ 100° C
Derates 0% @ 125° C
Operating Temperature . . . . . . . . -55° C to 150° C
Ordering Information
SC
0051
MODEL
See Selection
Table
M
50
5
TOLERANCE
1
= 1%
5
= 5%
TYPE
SC
= Standard Chip
RESISTANCE VALUE
50
= 50 Ohms
100
= 100 Ohms
Material Specifications
Substrate . . . . . . . . . . . . . . . . . . . . . . . . . . . . BeO
Resistive Material . . . . . . . . . . . . . . . . . Thick Film
Termination Material . . . . . . . . . . . . . . Thick Film
OPTIONS
M
= Wrap-around termination,
full bottom metallization
MS
= Wrap-around termination
with pretinning (with Sn62)
EMC Technology
8851 SW Old Kansas Ave. Stuart FL 34997 (772) 286-9300 (800) 544-5594 www.emct.com
42
A Smiths Group company
