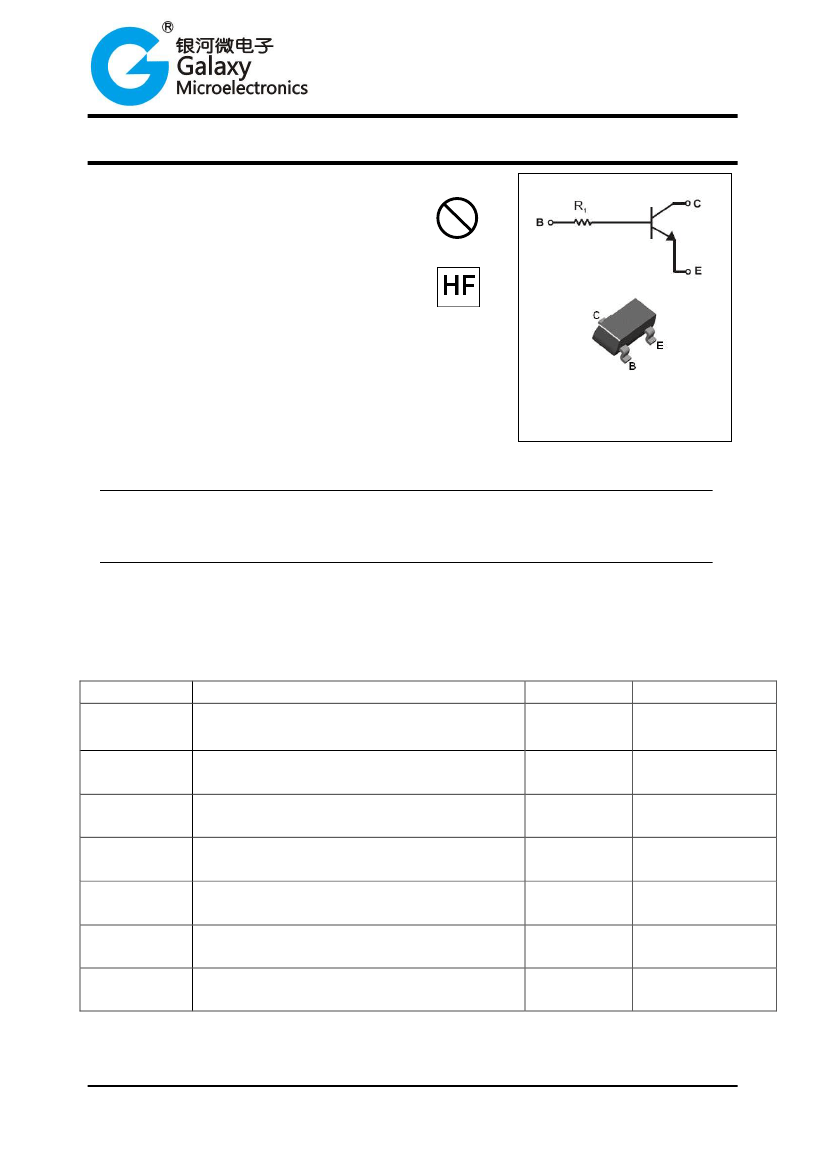

Product specification
Digital Transistor
FEATURES
Epitaxial planar die construction.
Complementary PNP types available(DTA).
Built-in biasing resistor,R
1
only.
Also available in lead free version.
DTC(R
1
-only SERIES)CA
Pb
Lead-free
APPLICATIONS
The NPN style digital transistor.

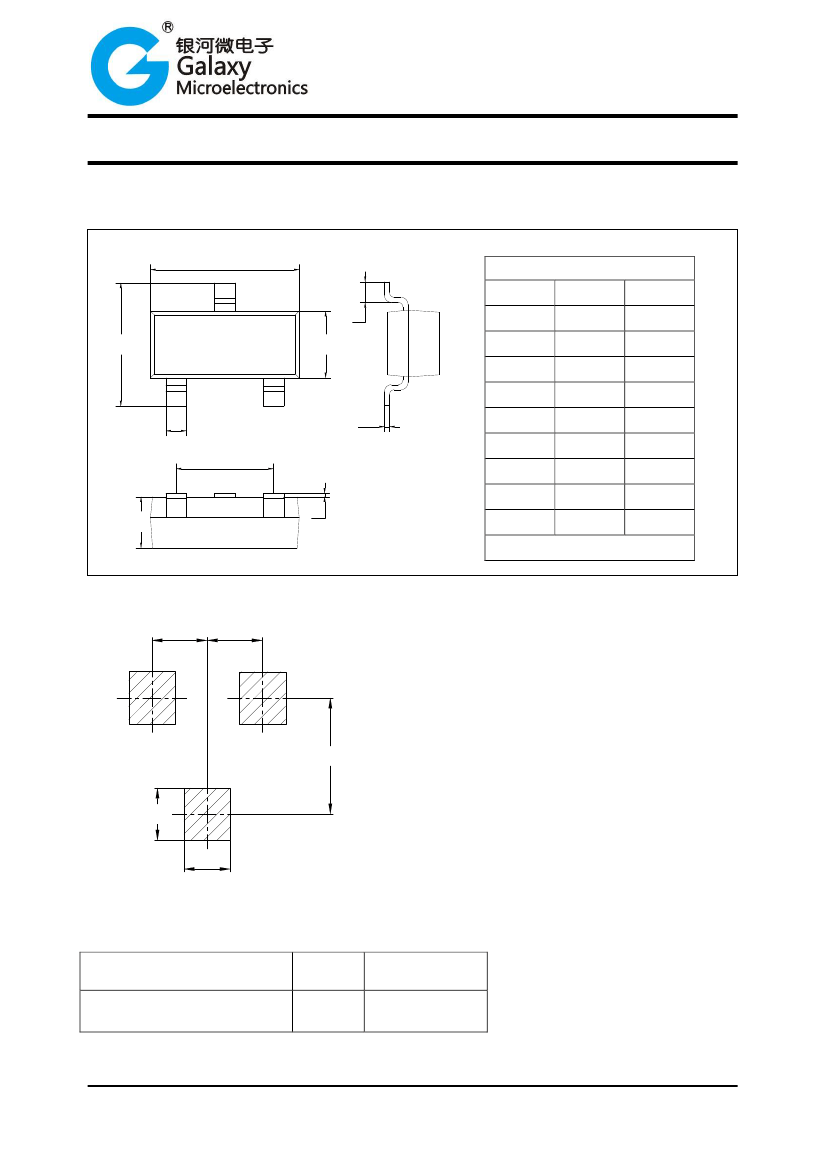

SOT-23
ORDERING INFORMATION
Type No.
DTC114TCA
□
DTC143TCA
□
DTC144TCA
□
□:
none is for Lead Free package;
“G” is for Halogen Free package.
Marking
04
03
06
Package Code
SOT-23
SOT-23
SOT-23
MAXIMUM RATING
@ Ta=25℃ unless otherwise specified
Symbol
V
CBO
V
CEO
V
EBO
I
C
(Max.)
P
D
R
θJA
T
j
,T
stg
Parameter
Collector-Base Voltage
Collector-Emitter Voltage
Emitter-Base Voltage
Collector Current
Power Dissipation
Thermal Resistance, Junction to Ambient Air
Operating and Storage and Temperature Range
Value
50
50
5
100
200
625
-55 to +150
Units
V
V
V
mA
mW
℃/W
℃
DTM0014A
www.gmesemi.com
1
Product specification
Digital Transistor
DTC(R
1
-only SERIES)CA
ELECTRICAL CHARACTERISTICS
@ Ta=25℃ unless otherwise specified
Parameter
Collector-Base breakdown Voltage
Collector-Emitter breakdown Voltage
Emitter-Base breakdown Voltage
Collector cutoff Current
Emitter cutoff Current
Collector-Emitter saturation voltage
DTC114TCA
DTC143TCA
DTC144TCA
DC Current Gain
Input Resistor(R
1
)
DTC114TCA
DTC143TCA
DTC144TCA
Symbol
BV
CBO
BV
CEO
BV
EBO
I
CBO
I
EBO
Test conditions
I
C
=50μA
I
C
=1mA
I
E
=50μA
V
CB
=50V
V
EB
=4V
I
C
/I
B
=10mA/1mA
I
C
/I
B
=5mA/0.25mA
I
C
/I
B
=5mA/0.5mA
I
C
=1mA,V
CE
=5V
100
7
3.29
32.9
V
CE
=10V,I
E
=-5mA,
f=100MHz
-
250
10
4.7
47
250
MIN
50
50
5
-
-
-
-
0.5
0.5
TYP
MAX UNIT
V
V
V
μA
μA
V
CE(sat)
0.3
V
h
FE
R
1
600
13
6.11
61.1
-
kΩ
Gain-Bandwidth Product
f
T
MHz

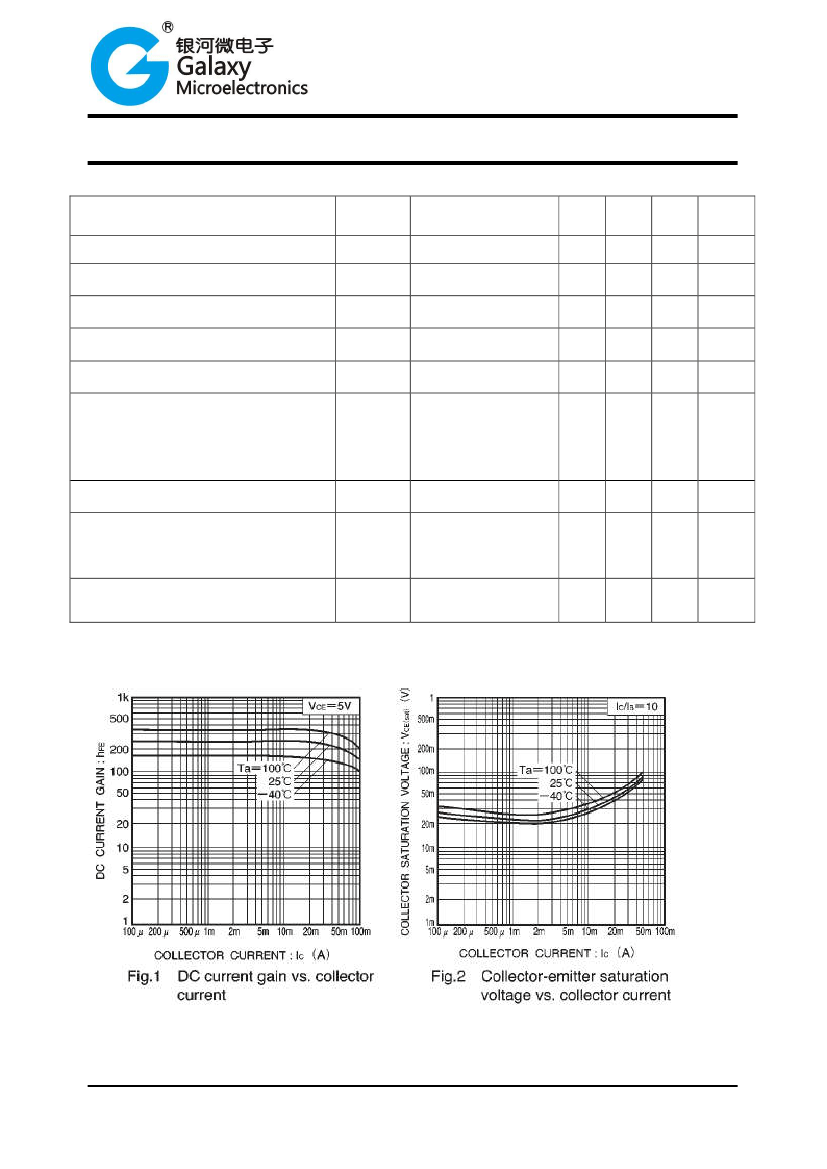

TYPICAL CHARACTERISTICS
@ Ta=25℃ unless otherwise specified
DTM0014A
