Connector

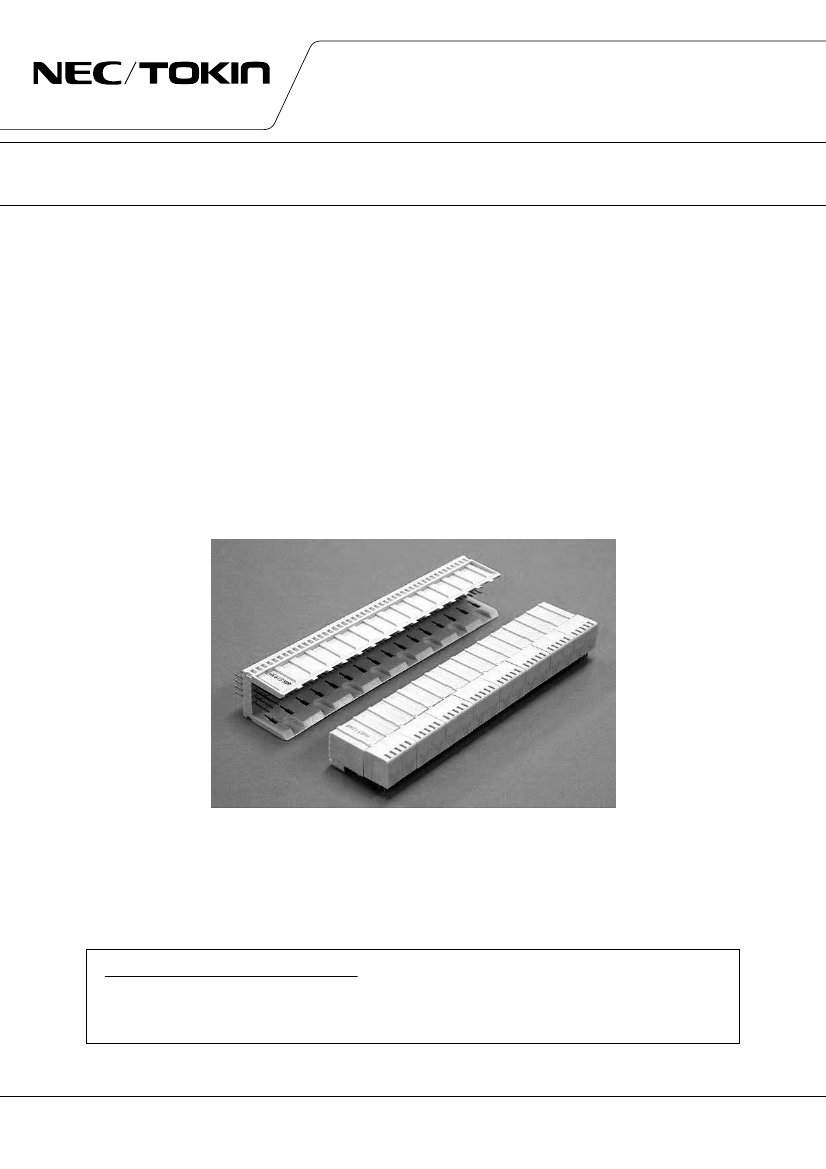

FB Series 4-row Type
4-row Metric Connectors for Printed Circuit Board
This metric connector is ideal for connecting boards such as those of controllers and communication devices
that demand high-performance and high-density characteristics.
FEATURES
™
Conforms to IEC61076-4-104 Standard
™
High-density mounting using 2 mm pitch array
™
Number of pins can be selected from 24, 48, 96, and 192
™
Supports multi-stage connection structure for circuit protection
APPLICATIONS
Interface between boards such as switchboards, transfer devices, and measurement control devices.
Notes on correct usage of connectors
* Do not use this device in conditions where the temperature, voltage, and current exceed the
restricted range.
* Misuse could cause the product to overheat or catch fire.
The information in this document is subject to change without notice.
Document No. 0132EMDD03VOL01E
Date Published August 2002 M
Printed in Japan
©
NEC TOKIN Corporation
2002
FB Series 4-row Type
Performance
Parameter
Withstand voltage
F Type (Female)
M Type (Male)
AC1000 Vrms for 1 minute (between adjacent / facing pins)
5000 MΩ min. (at DC 100V) (between adjacent / facing pins)
A row : 25 mΩ max.
B row : 35 mΩ max.
C row : 40 mΩ max.
D row : 45 mΩ max.
Electrical
characteristics
Insulation resistance
Connection resistance
Curent capacity
Connector total insertion force
1 A / pin (ambient temperature 75˚C)
192 pins
96 pins
48 pins
24 pins
192 pins
96 pins
48 pins
24 pins
0.15N min.
(0.5 w
×
0.485 t gauge)
100 cycles max. (with power off)
192 pins : 16 kN min.
96 pins : 8 kN min.
48 pins : 4 kN min.
24 pins : 2 kN min.
5N min.
192 pins : 30 kN min.
96 pins : 15 kN min.
48 pins : 7.5 kN min.
24 pins : 4 kN min.
20N min.
: 120 N max.
: 60 N max.
: 30 N max.
: 15 N max.
: 27 N min.
: 14 N min.
: 7 N min.
: 4 N min.
––
Connector total withdrawal force
Mechanical
characteristics
Gauge hold force
Number of insertions and withdrawals
Connector total press-in force
(The value in press-fit connection is
shown about F type)
Press fit terminal hold force
(The value in press-fit connection is
shown about F type)
Pert Number System
1. F type
Part Number : FB#FR (a)-A
FB
#
F
R
(a)
: Series name
: Number of pins (24, 48, 96, 192)
: Female side connector
: Form of a lead terminal (Right-angle pin)
: PCB mounting ( H : Through-hole soldering connection,
P : Press-fit connection)
A
2. M type
Part Number : FB#MSP (a)-A-(b)(c)
FB
#
M
S
P
(a)
A
(b)
: Series name
: Number of pins (24, 48, 96, 192)
: Male side connector
: Form of a lead terminal (Straight pin)
: PCB mounting (Press-fit connection)
: Cable connector side pin length (2 : 4.3 mm, 4 : 13.6 mm)
: Gold plating thickness (0.8
µ
m min.)
: Female side connector connecting pin length (1 : 5.00 mm, 2 : 5.75 mm, 3 : 6.50 mm, S : sequence
∗∗
)
∗∗
“S” means the combination of 5.0 mm, 5.75 mm and 6.50 mm.
(c)
2
: Gold plating thickness (0.8
µ
m min.)
: Design order of sequence type
