801-93-016-10-001: Description16 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER, SOCKET; CategoryThe connector The connector; File Size47KB，1 Pages; ManufacturerPRECI-DIP; Websitehttp://www.precidip.com/en/index.html

Download Datasheet Parametric Compare View All

801-93-016-10-001 Overview

16 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER, SOCKET

801-93-016-10-001 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	unknow
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	Tin/Lead (Sn/Pb)
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	16
Base Number Matches	1

Preview

Download Datasheet

View All

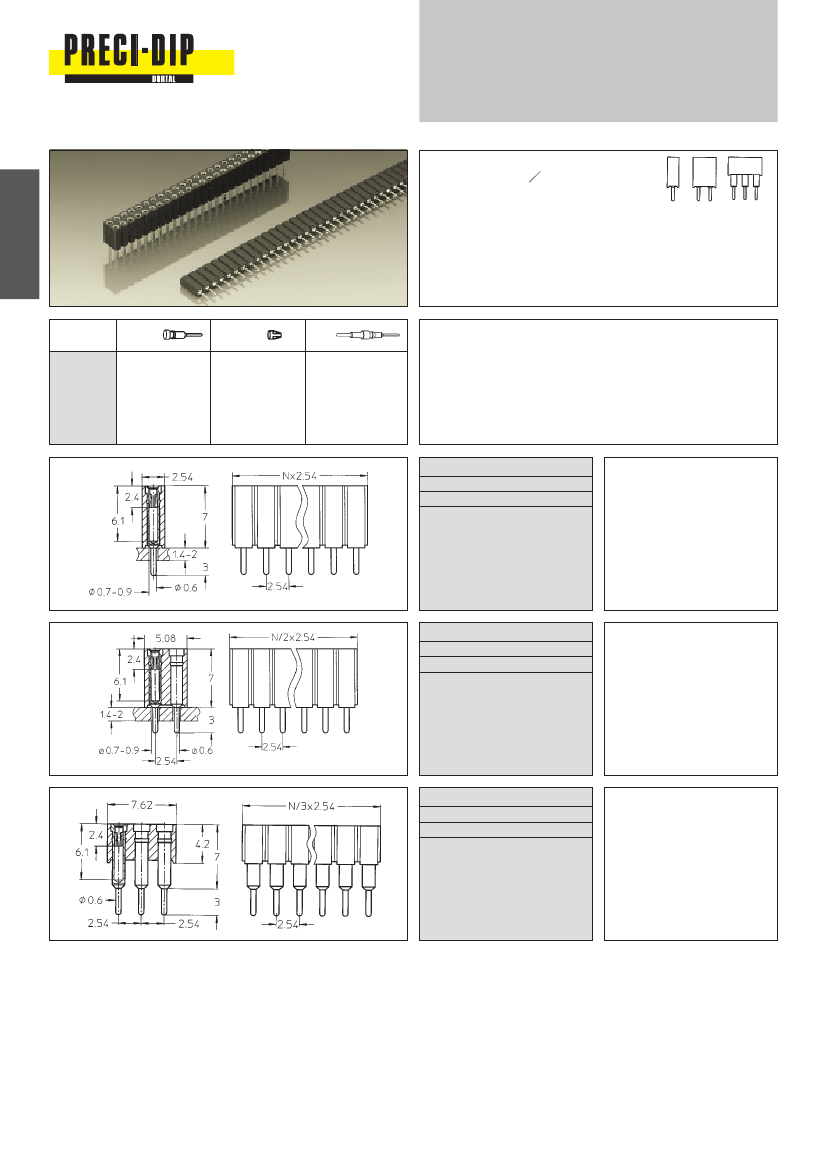

Series 800

22

PCB connectors 2.54 mm

Single row / double row / triple row

Solder tail

Receptacles, solder tail

Accept square pins

s

0.635 mm

and round pins

∅

0.70–0.80 mm

For corresponding pin connectors see

pages 30 to 35

Platings

91

93

99

Sleeve

5

µm

Sn Pb

5

µm

Sn Pb

5

µm

Sn Pb

Clip

0.25

µm

Au

0.75

µm

Au

5

µm

Sn Pb

Ordering information

Replace

xxx

with the number of poles, e.g. 803-91-xxx-10-001

for a double row version with 8 pins per row becomes:

803-91-016-10-001

801-91-xxx-10-001

801-93-xxx-10-001

801-99-xxx-10-001

Straight receptacle: solder tail,

single row

Availability from: 1 to 50 contacts

Standard number of contacts 24,

28, 29, 30, 36, 42, 48, 50

Option

On request with clinched

(right/left) solder tails

803-91-xxx-10-001

803-93-xxx-10-001

803-99-xxx-10-001

Straight receptacle: solder tail,

double row

Availability from: 4 to 100

contacts

Standard number of contacts 72

and 100

805-91-xxx-10-001

805-93-xxx-10-001

805-99-xxx-10-001

Straight receptacle: solder tail,

triple row

Availability from: 9 to 96 contacts

Standard number of contacts 96

801-93-016-10-001 Related Products

	801-93-016-10-001	801-91-016-10-001	801-99-016-10-001	803-93-016-10-001	803-99-016-10-001	805-91-016-10-001	805-93-016-10-001	805-99-016-10-001
Description	16 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER, SOCKET	16 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER, SOCKET	16 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER, SOCKET	16 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER, SOCKET	16 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER, SOCKET	16 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER, SOCKET	16 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER, SOCKET	16 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER, SOCKET
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	-	-	-
Reach Compliance Code	unknow	unknow	unknow	unknow	unknow	-	-	-
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	-	-	-
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	-	-	-
Contact to complete cooperation	GOLD	GOLD	TIN LEAD (197)	GOLD	TIN LEAD (197)	-	-	-
Contact completed and terminated	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	-	-
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	-	-	-
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-	-	-
DIN compliance	NO	NO	NO	NO	NO	-	-	-
Filter function	NO	NO	NO	NO	NO	-	-	-
IEC compliance	NO	NO	NO	NO	NO	-	-	-
JESD-609 code	e0	e0	e0	e0	e0	-	-	-
MIL compliance	NO	NO	NO	NO	NO	-	-	-
Mixed contacts	NO	NO	NO	NO	NO	-	-	-
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	-	-	-
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	-	-	-
Number of rows loaded	1	1	1	2	2	-	-	-
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	-	-	-
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	-	-	-
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	-	-	-
Total number of contacts	16	16	16	16	16	-	-	-

Recommended Resources

2Y-2Y connection two-speed motor switch control circuit

XJ10 series auto-coupling step-down starter starting circuit

STK441-105 STK441 power amplifier circuit diagram

Improved circuit diagram of voltage regulator

Telephone and fax machine protection circuit

555 high voltage delay turn-on circuit
