F-354X datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power management> transformer> F-354X

F-354X: DescriptionIC u0026 Component Sockets 8P TIN PIN GOLD CONT; CategoryPower management transformer; File Size102KB，1 Pages; ManufacturerTriad Magnetics; Websitehttps://www.triadmagnetics.com/; Environmental Compliance

Download Datasheet Parametric View All

F-354X Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	F-354X	-	-	View	Buy Now

F-354X Overview

IC u0026 Component Sockets 8P TIN PIN GOLD CONT

F-354X Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Triad Magnetics
Reach Compliance Code	compliant
ECCN code	EAR99
application	POWER
Certification	UL
Center click function 1	YES
Center click function 2	NO
high	65.86 mm
Insulation voltage	1500 V
length	101.6 mm
Installation features	CHASSIS MOUNT
Number of primary windings	2
Number of secondary windings	1
Output current 1	1.5 A
Output voltage 1	35 V
physical size	L101.6XB57.15XH65.86 (mm)
main rating	SINGLE 115/230V
surface mount	NO
Transformer type	POWER TRANSFORMER
VA rating	52.5 VA
width	57.15 mm

Preview

Download Datasheet

View All

OWE R

RAN S FO R M E R

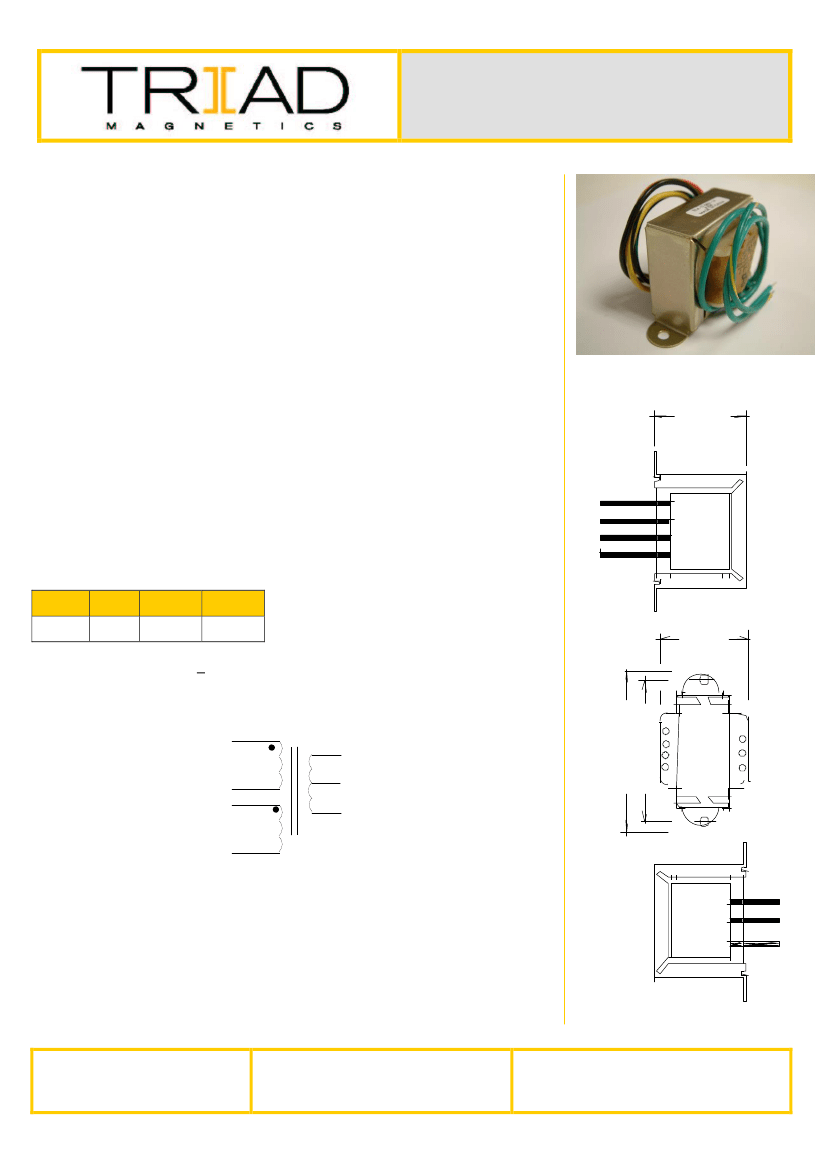

Chassis Mount: Single Secondary

F-354X

Electrical Specifications (@25C)

1. Maximum Power: 52.5 VA

2. Primary:

Series: 230V 50/60 Hz

Parallel: 115V 50/60 Hz

3. Secondary: 35.0VCT @ 1.50 Amps

4. Voltage Regulation: 10 % TYP @ full load to no load

5. Temperature Rise: 35C TYP (45C MAX allowed)

Description:

The F-354X is part of a series which has a long history of reliable service in the

field, made from a proven design and constructed with UL recognized materials.

Construction:

Wound on a single channel nylon bobbin. Materials are UL recognized, Class B

(130º C) rated.

Safety:

These products are 100% hipot tested with an insulation of 1500V between

primary and secondary windings as well as between the primary / secondary

windings and the core.

B / GR

LK N

R DB

E / LK

YLB

E / LK

Dimensions:

2.593

4.00

Units: In inches

2.250

3.562

Mounting Hole Diameter: .187 in

Lead length: 7.0 inches + 1 inch

Weight: 2.20 lbs

Schematic:

BLK

GRN

GRN/YEL

YEL/BLK

RED/BLK

GRN

BLK/GRN

Primary:

Series: BLK to BLK/GRN, Jumper YEL/BLK to RED/BLK

Parallel: BLK to YEL/BLK, Jumper BLK to RED/BLK and YEL/BLK to BLK/GRN

Secondary: Green to Green

RoHS Compliance:

As of manufacturing date February 2005, all standard products meet

the requirements of 2011/65/EU, known as the RoHS initiative.

* Upon printing, this document is considered “uncontrolled”. Please contact Triad

Magnetics’ website for the most current version.

G R/ Y L

N E

Web: www.TriadMagnetics.com

Phone 951-277-0757

Fax 951-277-2757

460 Harley Knox Blvd.

Perris, California 92571

Publish Date: May 11, 2015
