801-99-016-20-001: Description16 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER, SOCKET; Categorysemiconductor Other integrated circuit (IC); File Size54KB，1 Pages; ManufacturerPRECI-DIP; Websitehttp://www.precidip.com/en/index.html

Download Datasheet Compare View All

801-99-016-20-001 Overview

16 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER, SOCKET

Preview

Download Datasheet

View All

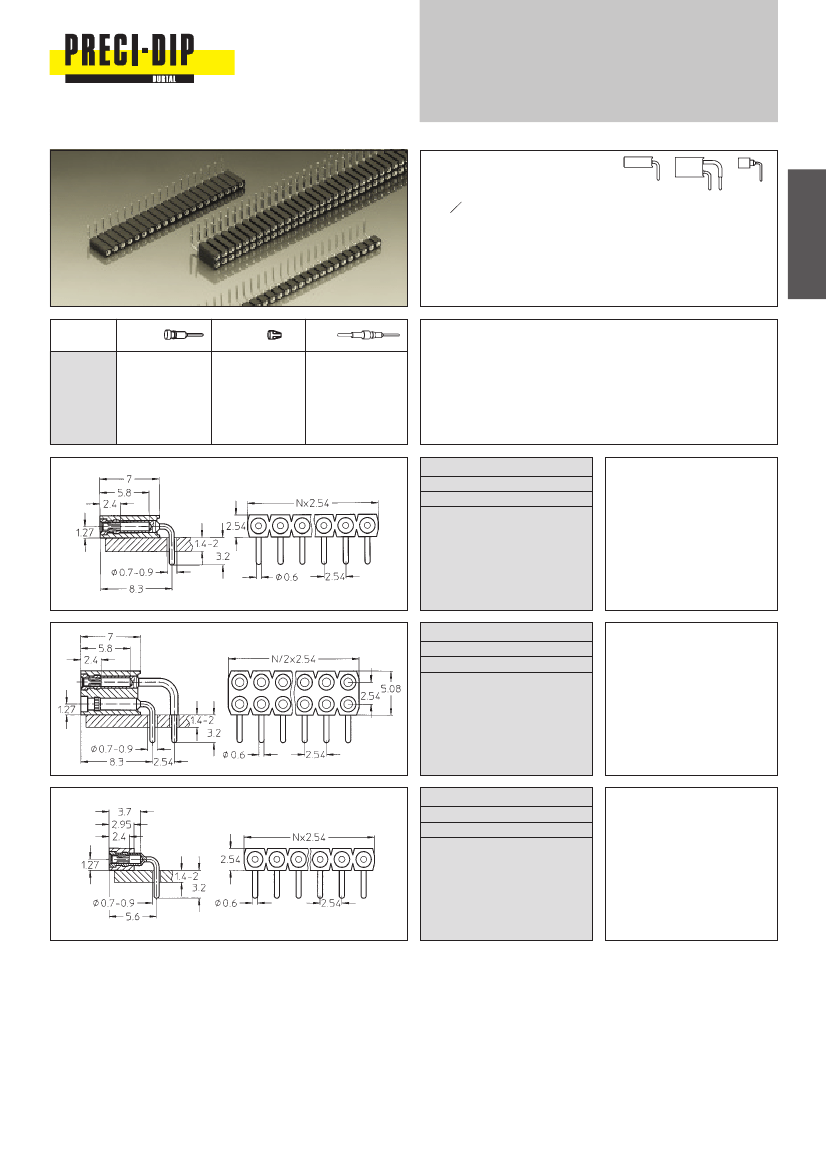

Series 800

PCB connectors 2.54 mm

Single row / double row

Solder tail

Right angle receptacles,

solder tail

Receptacles accept square

pins

0.635 mm

and round pins

∅

0.70–0.80 mm

For corresponding receptacle connectors see pages 30 to 35

Platings

Sleeve

µm

Sn Pb

µm

Sn Pb

µm

Sn Pb

Clip

0.25

µm

0.75

µm

Sn Pb

Ordering information

Replace

xxx

with the number of poles, e.g. 803-91-xxx-20-001

for a double row version with 8 pins per row becomes:

803-91-016-20-001

Option:

Triple row right angle receptacles on request

801-91-xxx-20-001

801-93-xxx-20-001

801-99-xxx-20-001

Right angle receptacle: solder tail,

single row

Availability from: 1 to 50 contacts

Standard number of contacts 24,

28, 29, 30, 36, 42, 48, 50

803-91-xxx-20-001

803-93-xxx-20-001

803-99-xxx-20-001

Right angle receptacle: solder tail,

double row

Availability from: 4 to 100

contacts

Standard number of contacts 72

and 100

801-91-xxx-20-002

801-93-xxx-20-002

801-99-xxx-20-002

Right angle short receptacle:

solder tail, single row

Availability from: 1 to 64 contacts

Standard number of contacts:

Right angle short receptacle:

solder tail, double row available

on request

Please consult
