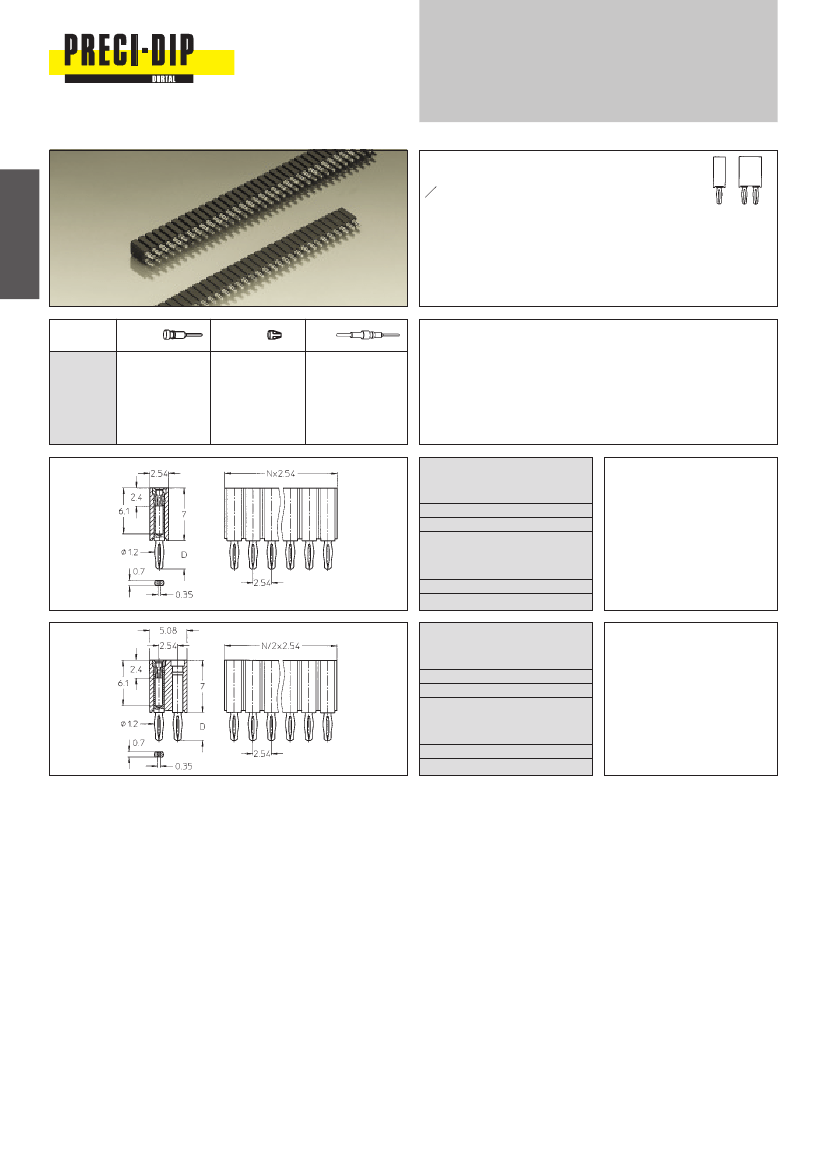

Series 800
28
PCB connectors 2.54 mm
Single row / double row
Press-fit
Receptacles connectors, press-fit
Receptacles accept square pins
s
0.635 mm, and round pins
∅
0.70–0.80 mm
With compliant pin for solderless mount into PCB
plated-thru holes
∅
1 mm + 0.09/– 0.06 mm
For corresponding connectors see pages 30 to 35
New version with modified eye of the needle pin
Platings
91
93
99
Sleeve
5
µm
Sn Pb
5
µm
Sn Pb
5
µm
Sn Pb
Clip
0.25
µm
Au
0.75
µm
Au
5
µm
Sn Pb
Pin
Ordering information
Replace
xxx
with the number of poles, e.g. 803-93-xxx-65-001
for a double row version with 8 pins per row becomes:
803-93-016-65-001
(Older versions 801/803-..-...-61/62/63-001 please consult)
for PCB thickness 1.5 to
2.0 mm D = 2.80 mm
801-91-xxx-65-001
801-93-xxx-65-001
801-99-xxx-65-001
for PCB thickness 2.1 to
3.2 mm D = 3.80 mm
801-91-xxx-66-001
801-93-xxx-66-001
801-99-xxx-66-001
for PCB thickness 1.5 to
2.0 mm D = 2.80 mm
803-91-xxx-65-001
803-93-xxx-65-001
803-99-xxx-65-001
for PCB thickness 2.1 to
3.2 mm D = 3.80 mm
803-91-xxx-66-001
803-93-xxx-66-001
803-99-xxx-66-001
Press-fit receptacle: single row
Availability from: 1 to 50 contacts
Standard number of contacts 24,
28, 29, 30, 36, 42, 48, 50
New version with modified eye of
the needle pin
Press-fit receptacle: double row
Availability from: 4 to 100
contacts
Standard number of contacts 72
and 100
New version with modified eye of
the needle pin
