803-91-016-40-001: DescriptionPCB connectors 2.54 mm Single row / double row / surface mount; File Size38KB，1 Pages; ManufacturerPRECI-DIP; Websitehttp://www.precidip.com/en/index.html

Download Datasheet Compare View All

803-91-016-40-001 Overview

PCB connectors 2.54 mm Single row / double row / surface mount

Preview

Download Datasheet

View All

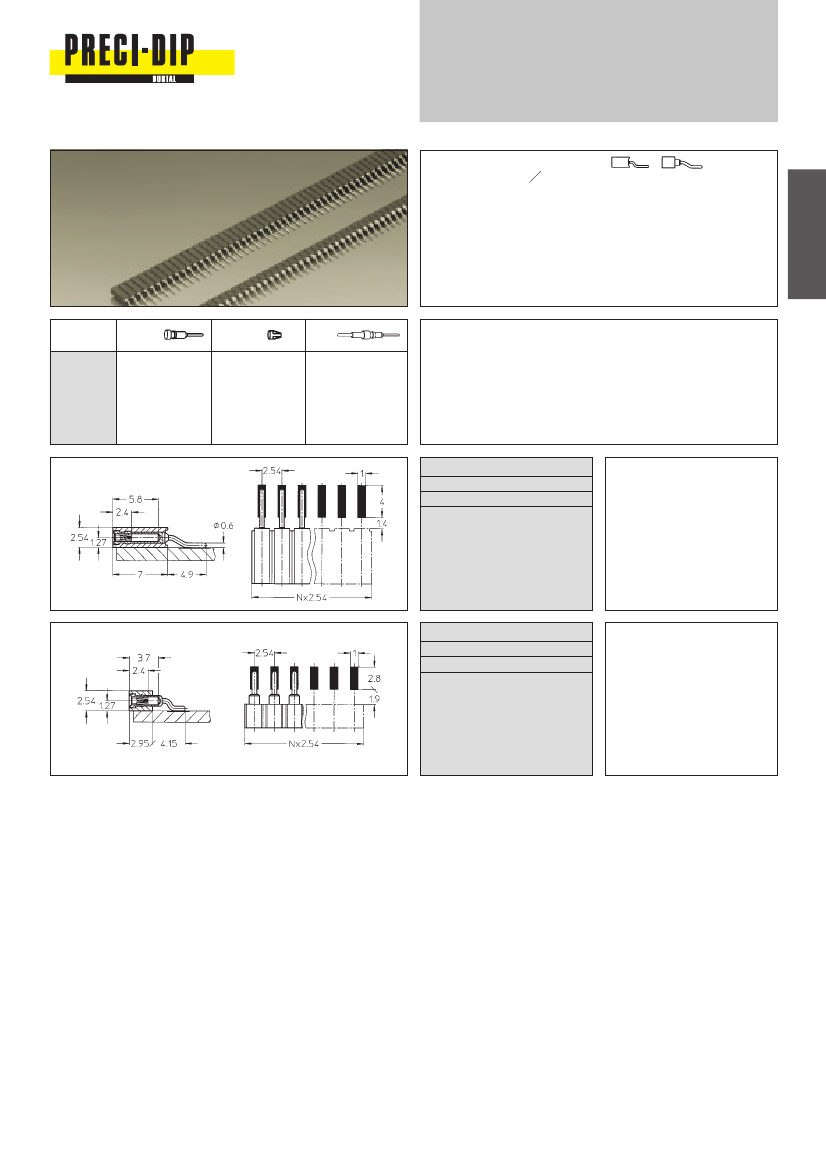

Series 800

PCB connectors 2.54 mm

Single row / double row / surface mount

27

Receptacles, surface mount

Accept square pins

s

0.635 mm

and round pins

∅

0.70–0.80 mm

For corresponding pin connectors see

pages 30 to 35

Platings

91

93

99

Sleeve

5

µm

Sn Pb

5

µm

Sn Pb

5

µm

Sn Pb

Clip

0.25

µm

Au

0.75

µm

Au

5

µm

Sn Pb

Ordering information

Replace

xxx

with the number of poles, e.g. 803-91-xxx-40-001

for a double row version with 8 pins per row becomes:

803-91-016-40-001

801-91-xxx-40-001

801-93-xxx-40-001

801-99-xxx-40-001

SMD receptacle: single row

parallel mount

Availability from: 1 to 50 contacts

Standard number of contacts 24,

28, 29, 30, 36, 42, 48 and 50

801-91-xxx-40-002

801-93-xxx-40-002

801-99-xxx-40-002

SMD receptacle: single row, low

profile, parallel mount

Availability from: 1 to 32 contacts

Standard number of contacts 32

803-91-016-40-001 Related Products

	803-91-016-40-001	801-91-016-40-001	801-93-016-40-001	801-93-016-40-002	801-99-016-40-002	801-99-016-40-001
Description	PCB connectors 2.54 mm Single row / double row / surface mount	PCB connectors 2.54 mm Single row / double row / surface mount	PCB connectors 2.54 mm Single row / double row / surface mount	PCB connectors 2.54 mm Single row / double row / surface mount	PCB connectors 2.54 mm Single row / double row / surface mount	PCB connectors 2.54 mm Single row / double row / surface mount
