440-086
EMI/RFI Tinel-Lock
®
Ring Adapter
Self-Locking Rotatable Coupling - Standard Profile
440
CONNECTOR
DESIGNATORS
440 F S 086 M 20 12-8 AI T1
Product Series
Connector Designator
Angle and Profile
H = 45°
J = 90°
S = Straight
Basic Part No.
Cable Entry (Table IV)
Finish (Table II)
Shell Size (Table I)
O-Ring
A Thread
(Table I)
Length **
** Length ± .060 (1.52)
Min. Order Length 1.0 inch
(See Note 4)
M (Table IV)
K*
L*
* (Table IV)
Tinel-Lock
®
Ring Supplied
(Table V - Omit for none)
Length: S only
(1/2 inch increments,
e.g. 8 = 4.000 inches)
Shrink Boot Options
(Table IV - Omit for none)
A-F-H-L-S
SELF-LOCKING
ROTATABLE
COUPLING
FOR TINEL-LOCK
®
RING TERMINATIONS
Length ± .060 (1.52)
Min. Order Length 2.0 inch
E Typ.
(Table I)

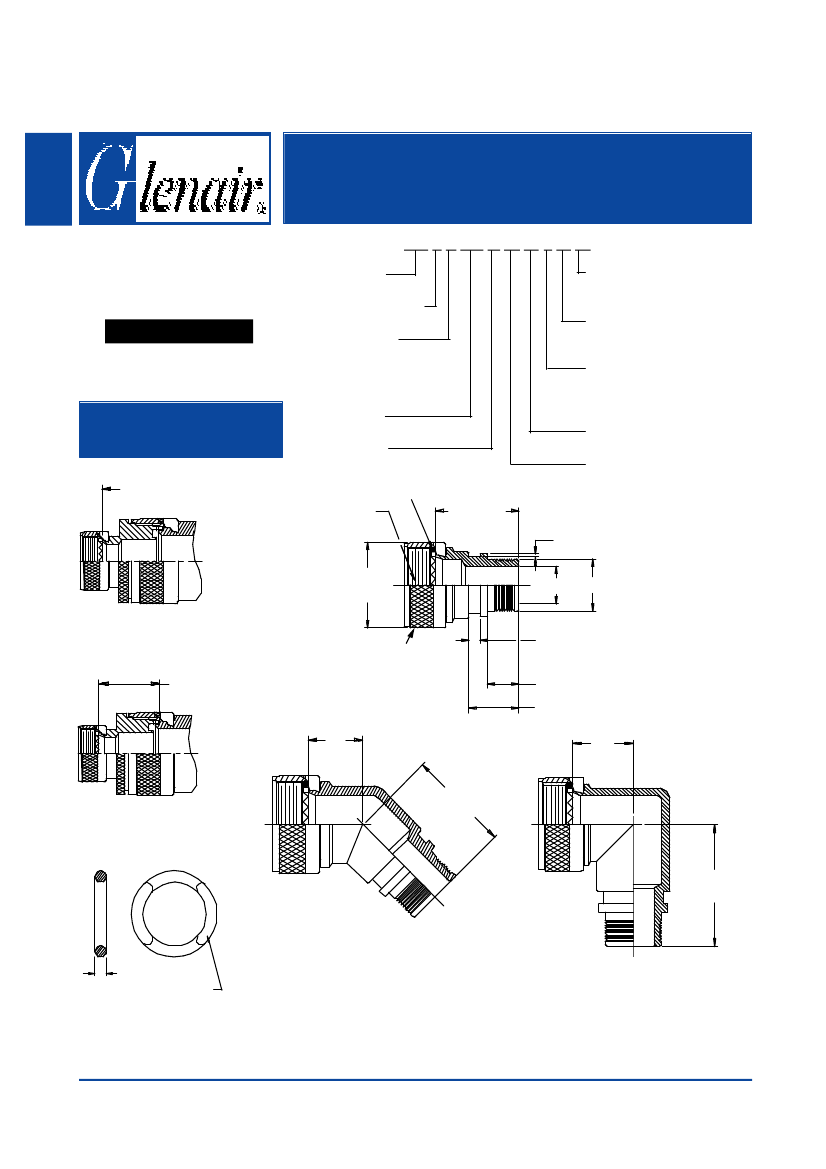

STYLE 2
(STRAIGHT
See Note 1)
1.00 (25.4)
Max
F
(Table III)
Anti-Rotation
Device (Typ.)
.135 (3.4)
±.005 (.1)
.272 (6.9) Ref.
.525 (13.3)
H
(Table III)
STYLE 2
(45° & 90°
See Note 1)
G (Table III)
J
(Table III)
.070 (1.8)
Thermochromic
Paint (Note 6)
Tinel-Lock
®
Ring
Option (See Table V)
© 2005 Glenair, Inc.
Note: The Tinel-Lock
®
ring designator must be specified according to the
type of cable braid used. Tinel-Lock
®
rings are marked with
thermochromic paint which changes color when the correct installation
temperature is reached. BI rings are identified with a red spot. CI rings
are identified with a blue spot.
Tinel-Lock
®
is a registered trademark of Tyco
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
Series 440 - Page 66
Self-Locking Rotatable Coupling - Standard Profile
TABLE III: ELBOW DIMENSIONS
Shell Size
Conn. Desig.
A-F-L-S
H
03
08
09
10
11
12
13
14
15
16
17
18
19
20
21
22
23
25
24
28
32
36
40
44
48
61
F
Max
.796 (20.2)
.796 (20.2)
.816 (20.7)
.846 (21.5)
.866 (22.0)
.886 (22.5)
.906 (23.0)
.926 (23.5)
.956 (24.3)
.976 (24.8)
1.196 (30.4)
1.246 (31.6)
1.296 (32.9)
1.336 (33.9)
1.396 (35.5)
1.446 (36.7)
1.156 (29.4)
G
Max
.89 (22.6)
.89 (22.6)
.92 (23.4)
.94 (23.9)
.97 (24.6)
.99 (25.1)
1.00 (25.4)
1.02 (25.9)
1.06 (26.9)
1.09 (27.7)
1.26 (32.0)
1.30 (33.0)
1.35 (34.3)
1.39 (35.3)
1.44 (36.6)
1.49 (37.8)
1.21 (30.7)
H
Max
.906 (23.0)
.906 (23.0)
.966 (24.5)
1.026 (26.1)
1.076 (27.3)
1.136 (28.9)
1.176 (29.9)
1.236 (31.4)
1.296 (32.9)
1.356 (34.4)
1.636 (41.6)
1.766 (44.9)
1.876 (47.7)
1.986 (50.4)
2.106 (53.5)
2.236 (56.8)
1.546 (39.3)
J
Max
1.00 (25.4)
1.00 (25.4)
1.06 (26.9)
1.12 (28.4)
1.19 (30.2)
1.25 (31.8)
1.27 (32.3)
1.33 (33.8)
1.41 (35.8)
1.48 (37.6)
1.72 (43.7)
1.81 (46.0)
1.92 (48.8)
2.03 (51.6)
2.16 (54.9)
2.28 (57.9)
1.57 (39.9)
Tinel-Lock
®
Ring Entry
Size
04
05
06
07
08
10
12
14
16
18
20
See inside back
cover fold-out or
pages 13 and 14
for Tables I and II.
Dash
K
No.
I.D.
04
.250 (6.4)
05
.312 (7.9)
06
.375 (9.5)
07
.437 (11.1)
08
.500 (12.7)
10
.625 (15.9)
12
.750 (19.1)
14
.875 (22.2)
16 1.000 (25.4)
18 1.125 (28.6)
20 1.250 (31.8)
L
Dia Max
.375 (9.5)
.437 (11.1)
.500 (12.7)
.562 (14.3)
.625 (15.9)
.750 (19.1)
.875 (22.2)
1.000 (25.4)
1.125 (28.6)
1.250 (31.8)
1.375 (34.9)
TABLE IV: CABLE ENTRY
M
+.008
(.2)
Shrink Boot
-.000
(.0)
Option T1*
.044 (1.1)
202K121-25-0
.044 (1.1)
202K132-25-0
.044 (1.1)
202K132-25-0
.044 (1.1)
202K142-25-0
.044 (1.1)
202K142-25-0
.044 (1.1)
202K153-25-0
.044 (1.1)
202K153-25-0
.069 (1.8)
202K163-25-0
.069 (1.8)
202K163-25-0
.069 (1.8)
202K174-25-0
.069 (1.8)
202K174-25-0
Shrink Boot
Option T2*
202K121-100-0
202K132-100-0
202K132-100-0
202K142-100-0
202K142-100-0
202K153-100-0
202K153-100-0
202K163-100-0
202K163-100-0
202K174-100-0
202K174-100-0
* Raychem Shrink Boot and Epoxy/Polyamide Two Part Adhesive Paste (S1125) Supplied with "T1" Option
(See Part Number Development)
** Raychem Shrink Boot and Hot-Melt/Polyolyfin Adhesive Supplied with "T2" Option (See Part Number
Development) - This is a Halogen Free System
1. When maximum cable entry (page 21) is exceeded, Style 2 will be
supplied.
Dimensions E, F, G, and H will not apply. Please consult factory.
2. Metric dimensions (mm) are indicated in parentheses.
3. Interface O-Ring not supplied with Connector Designator A.
4. Consult factory for shorter lengths on straight backshells.
5. See pages 40 for Shrink Boot Reference Information.
TABLE V: TINEL-LOCK
®
RING
Ring
Braid Type
Designator
Single Layer 36 AWG
AI
Single Layer 34 AWG
AI
Single Layer 32 AWG
BI
Single Layer 30 AWG
BI
Double Layer 36 AWG
BI
Double Layer 34 AWG
BI
Double Layer 32 AWG
CI
Printed in U.S.A.
© 2005 Glenair, Inc.
CAGE Code 06324
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
Series 440 - Page 67
440
440-086
EMI/RFI Tinel-Lock
®
Ring Adapter
