SMS3922-108

Description
Mixer Diode, Medium Barrier, X Band, Silicon, 1.83 X 1.43 MM, 1 MM HEIGHT, GREEN, HERMETIC SEALED, CERAMIC, CASE 108, 2 PIN
CategoryDiscrete semiconductor    diode
File Size399KB,4 Pages
ManufacturerSkyworks
Websitehttp://www.skyworksinc.com
Download Datasheet Parametric Compare View All

SMS3922-108 Overview

Mixer Diode, Medium Barrier, X Band, Silicon, 1.83 X 1.43 MM, 1 MM HEIGHT, GREEN, HERMETIC SEALED, CERAMIC, CASE 108, 2 PIN

SMS3922-108 Parametric

Parameter NameAttribute value
MakerSkyworks
package instructionR-CBCC-N2
Contacts2
Manufacturer packaging codeCASE 108
Reach Compliance Codeunknown
ECCN codeEAR99
ConfigurationSINGLE
Maximum diode capacitance1.5 pF
Diode component materialsSILICON
Diode typeMIXER DIODE
frequency bandX BAND
JESD-30 codeR-CBCC-N2
Number of components1
Number of terminals2
Package body materialCERAMIC, METAL-SEALED COFIRED
Package shapeRECTANGULAR
Package formCHIP CARRIER
Maximum power dissipation0.25 W
Certification statusNot Qualified
surface mountYES
technologySCHOTTKY
Terminal formNO LEAD
Terminal locationBOTTOM
Schottky barrier typeMEDIUM BARRIER
Base Number Matches1
DATA SHEET
Silicon Schottky Diodes in Hermetic Surface Mount Package
Applications
l
l
Mixers
Detectors
Features
l
l
l
l
l
l
l
Medium, low and ZBD barrier diodes
Hermetic ceramic package, 1.83 x 1.43 x 1.0 mm
Usable to 10 GHz
Low inductance 0.48 nH typ.
Operating temperature range -55 °C to 150 °C
ESD Class 0, human body model
Lead (Pb)-free, RoHS-compliant, and Green™, MSL-1 @ 260 °C
per JEDEC J-STD-020
NEW
Description

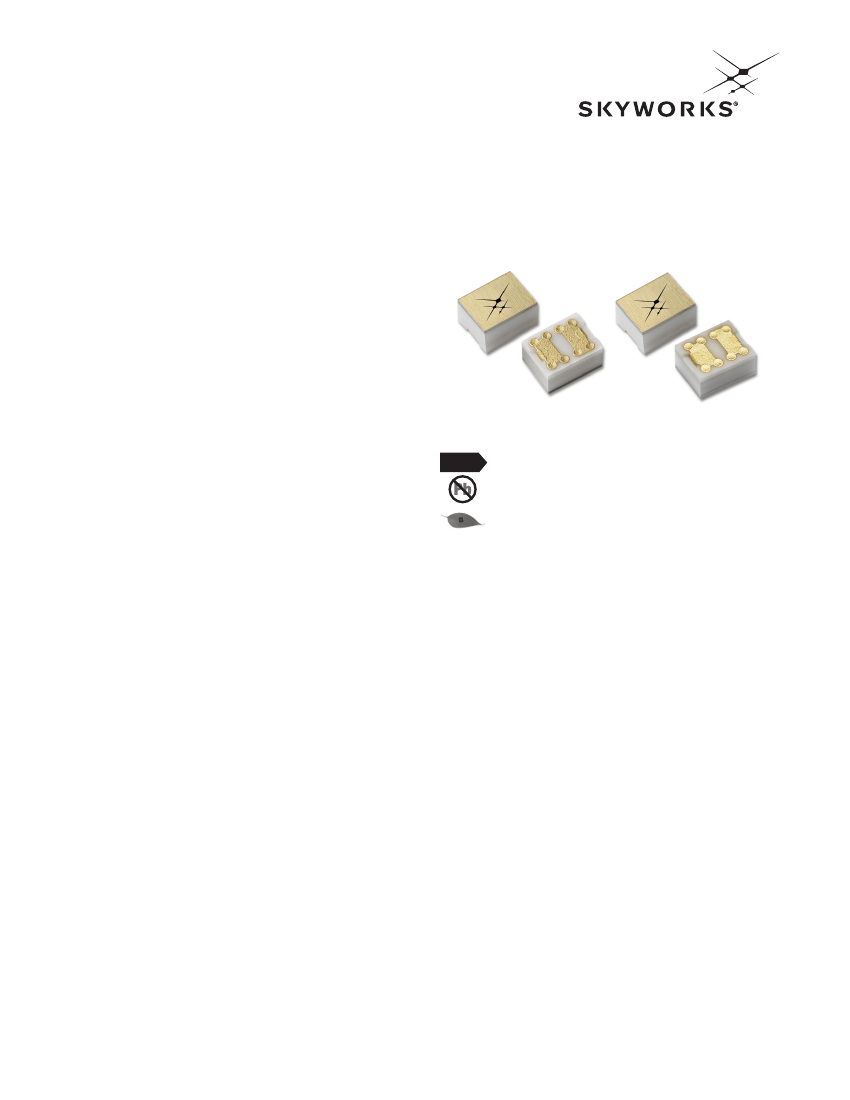

The family of proven silicon Schottky diodes is packaged in a
hermetic, ceramic package. This package offers excellent, very low
parasitic inductance and capacitance for wide bandwidth, high-
frequency operation. It has low thermal impedance and meets fine
and gross leak requirements for excellent reliability. Its small form
factor, 1.83 x 1.43 x 1.0 mm, compares favorably to that of the
smallest plastic packages.
This package meets Skyworks definition of Green: it is lead (Pb)-
free, fully complies with current RoHS requirements and contains
no halogens and no antimony (Sb).
The SMS3922-108 and SMS3923-108 are silicon medium barrier
Schottky diodes suitable for use in mixers and high level detector
circuits.
The SMS7621-108 is a silicon low barrier Schottky diode, suitable
for use in small signal, sensitive detector circuits.
The SMS7630-109 is a silicon Schottky zero bias detector diode
(ZBD) diode, suitable for use in the most sensitive detector circuits.
The diodes available in this package can operate over the
temperature range of -55 °C to 150 °C.
Skyworks Green™ products are RoHS (Restriction
of Hazardous Substances)-compliant, conform to
the EIA/EICTA/JEITA Joint Industry Guide (JIG)
Level A guidelines, are halogen free according to
IEC-61249-2-21, and contain <1,000 ppm antimony
trioxide in polymeric materials.
Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com
200807 Rev. B • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice. • October 3, 2008
1

SMS3922-108 Related Products

SMS3922-108 SMS3923-108
Description Mixer Diode, Medium Barrier, X Band, Silicon, 1.83 X 1.43 MM, 1 MM HEIGHT, GREEN, HERMETIC SEALED, CERAMIC, CASE 108, 2 PIN Mixer Diode, Medium Barrier, X Band, Silicon, 1.83 X 1.43 MM, 1 MM HEIGHT, GREEN, HERMETIC SEALED, CERAMIC, CASE 108, 2 PIN
Maker Skyworks Skyworks
package instruction R-CBCC-N2 1.83 X 1.43 MM, 1 MM HEIGHT, GREEN, HERMETIC SEALED, CERAMIC, CASE 108, 2 PIN
Contacts 2 2
Manufacturer packaging code CASE 108 CASE 108
Reach Compliance Code unknown unknown
ECCN code EAR99 EAR99
Configuration SINGLE SINGLE
Maximum diode capacitance 1.5 pF 1.275 pF
Diode component materials SILICON SILICON
Diode type MIXER DIODE MIXER DIODE
frequency band X BAND X BAND
JESD-30 code R-CBCC-N2 R-CBCC-N2
Number of components 1 1
Number of terminals 2 2
Package body material CERAMIC, METAL-SEALED COFIRED CERAMIC, METAL-SEALED COFIRED
Package shape RECTANGULAR RECTANGULAR
Package form CHIP CARRIER CHIP CARRIER
Maximum power dissipation 0.25 W 0.25 W
Certification status Not Qualified Not Qualified
surface mount YES YES
technology SCHOTTKY SCHOTTKY
Terminal form NO LEAD NO LEAD
Terminal location BOTTOM BOTTOM
Schottky barrier type MEDIUM BARRIER MEDIUM BARRIER
