B39162B9850P810 datasheet, PDF

B39162B9850P810: Description1 FUNCTIONS, 1575.42 MHz, SAW FILTER, ROHS COMPLIANT, SMD, 5 PIN; CategoryAnalog mixed-signal IC filter; File Size83KB，9 Pages; ManufacturerEPCOS (TDK)

Download Datasheet Parametric Compare View All

B39162B9850P810 Overview

1 FUNCTIONS, 1575.42 MHz, SAW FILTER, ROHS COMPLIANT, SMD, 5 PIN

Parameter Name	Attribute value
Maker	EPCOS (TDK)
Reach Compliance Code	unknown
Center frequency or cutoff frequency (fo/fc)	1575.42 MHz
filter type	SAW FILTER
high	0.4 mm
input resistance	50 OHM
Maximum insertion loss	0.8 dB
JESD-609 code	e4
length	1.1 mm
Installation type	SURFACE MOUNT
Number of functions	1
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
Output impedance	50 OHM Ω
physical size	L1.1XB0.9XH0.4 (mm)/L0.043XB0.035XH0.016 (inch)
Terminal surface	Nickel/Gold (Ni/Au)
width	0.9 mm
Base Number Matches	1

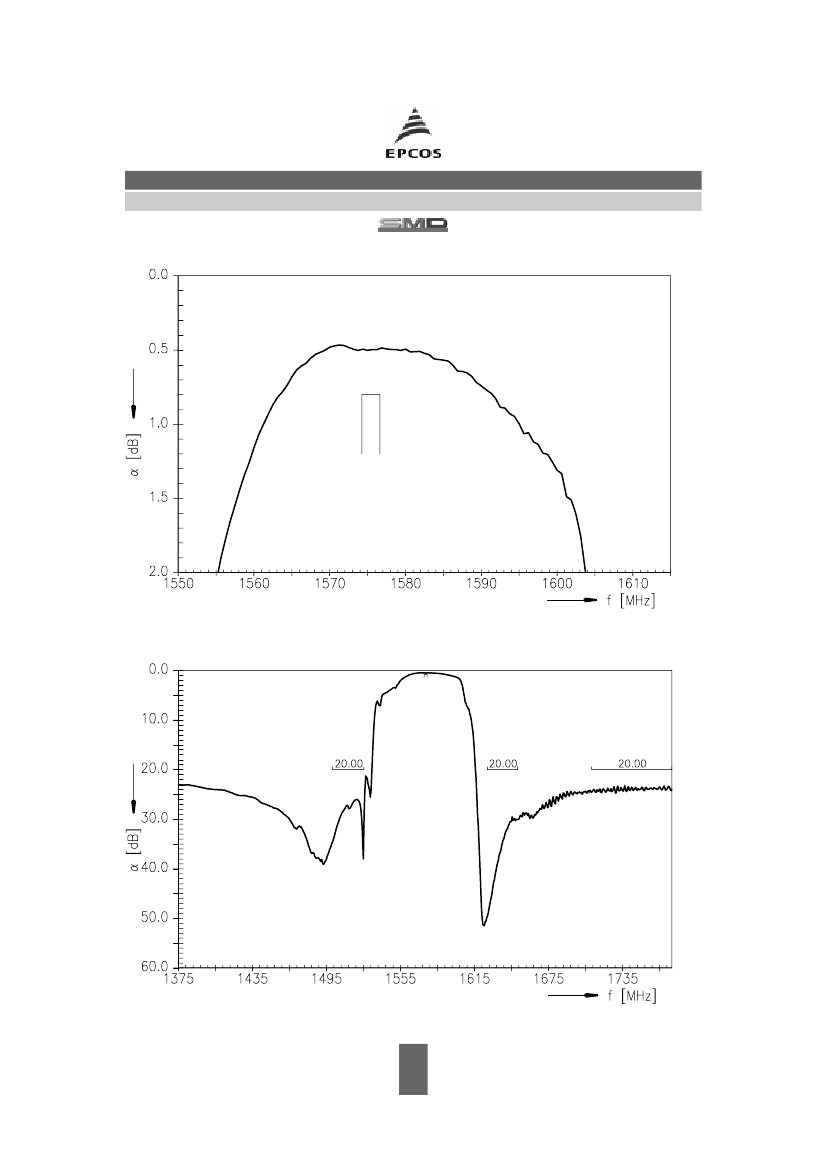

SAW Components

SAW Rx Filter

GPS

Series/Type:

Ordering code:

Date:

Version:

B9850

B39162B9850P810

Nov 29, 2010

2.0

EPCOS AG 2010. Reproduction, publication and dissemination of this data sheet, enclosures

hereto and the information contained therein without EPCOS’ prior express consent is prohibited.

	B39162B9850P810
Description	1 FUNCTIONS, 1575.42 MHz, SAW FILTER, ROHS COMPLIANT, SMD, 5 PIN
Maker	EPCOS (TDK)
Reach Compliance Code	unknown
Center frequency or cutoff frequency (fo/fc)	1575.42 MHz
filter type	SAW FILTER
high	0.4 mm
input resistance	50 OHM
Maximum insertion loss	0.8 dB
JESD-609 code	e4
length	1.1 mm
Installation type	SURFACE MOUNT
Number of functions	1
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
Output impedance	50 OHM Ω
physical size	L1.1XB0.9XH0.4 (mm)/L0.043XB0.035XH0.016 (inch)
Terminal surface	Nickel/Gold (Ni/Au)
width	0.9 mm
Base Number Matches	1
