B3F-4105S datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> B3F-4105S

B3F-4105S: DescriptionSwitch, SPST, Momentary, 0.05A, 24VDC, Through Hole-straight; CategoryMechanical and electronic products switch; File Size527KB，11 Pages; ManufacturerOMRON; Websitehttps://www.omron.com; Environmental Compliance

Download Datasheet Parametric Compare View All

B3F-4105S Overview

Switch, SPST, Momentary, 0.05A, 24VDC, Through Hole-straight

B3F-4105S Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	OMRON
Reach Compliance Code	unknown
Actuator angle
Actuator color	YELLOW
Actuator type	PUSHBUTTON
Other features	STICK PACK., GROUND TERMINALS
body width	11.9888 mm
Body length or diameter	11.9888 mm
Nozzle length
Maximum contact current (DC)	0.05 A
Contact (DC) maximum rated R load	0.05A@24VDC
Contact function	OFF-(ON)
Contact resistance	0.1 mΩ
contact time	BREAK-BEFORE-MAKE
Maximum contact voltage (DC)	24 V
Dielectric withstand voltage	500VAC V
Electrical life	300000 Cycle(s)
Insulation resistance	100000000 Ω
Manufacturer's serial number	B3F
Installation features	THROUGH HOLE-STRAIGHT
Maximum operating temperature	70 °C
Minimum operating temperature	-25 °C
PCB hole count	7
surface mount	NO
Switch action	MOMENTARY
switch function	SPST
Terminal length	0.138 inch
Termination type	SOLDER
Base Number Matches	1

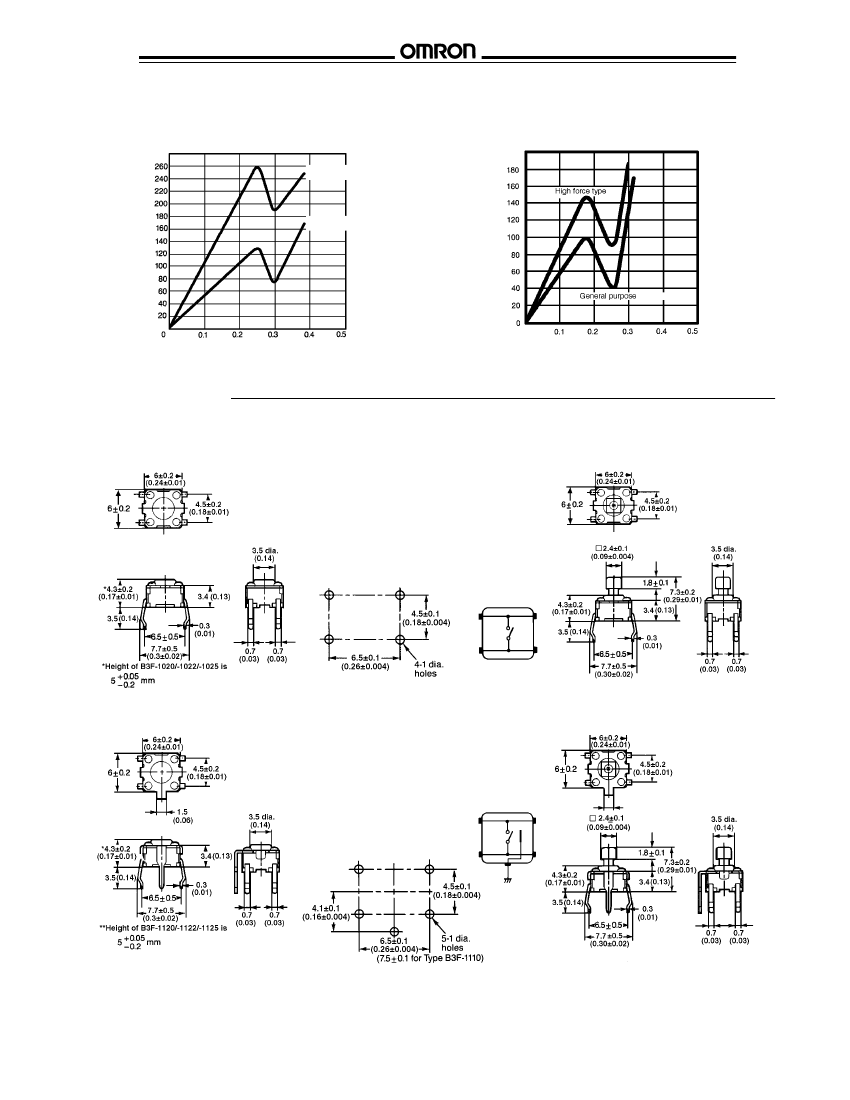

Preview

Download Datasheet

View All

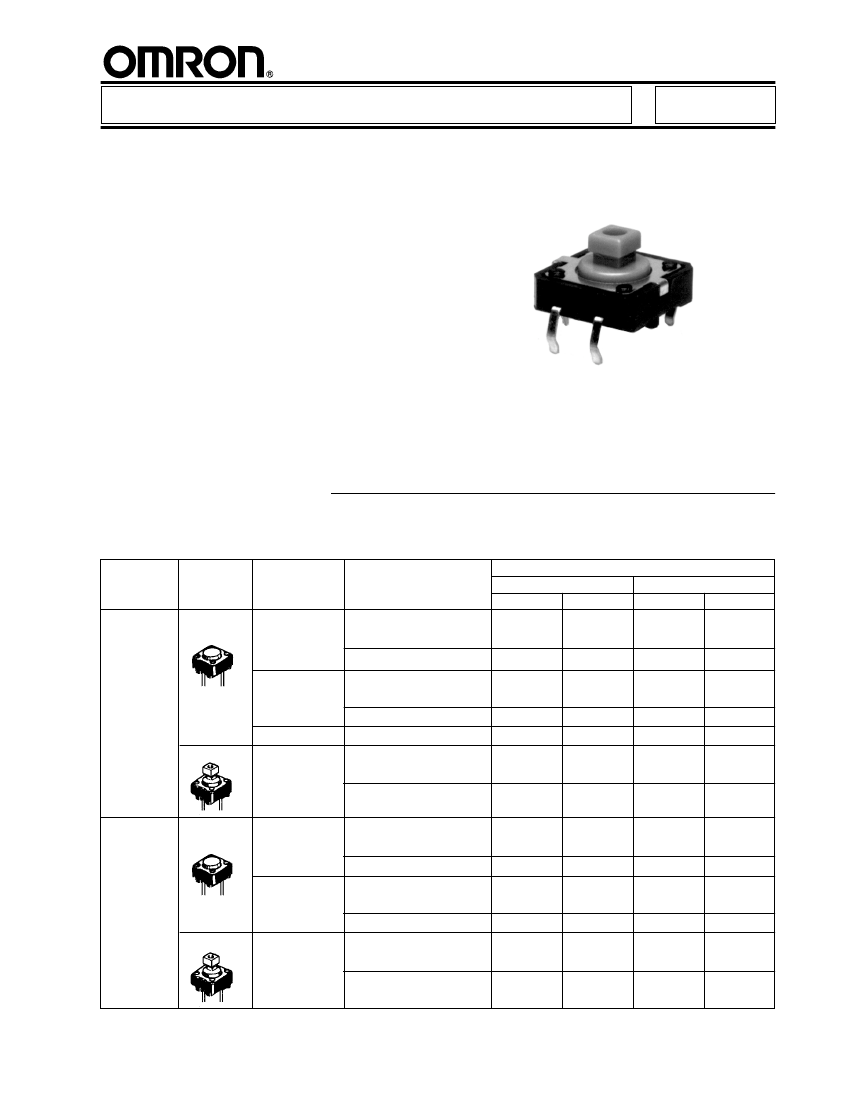

Tactile Switch

Miniature, Space-Saving Tactile Switch Provides

Long Service Life and Easy Mounting

Extended mechanical/electrical service life:

B3F

10 x 10

operations for 12 x 12 mm type and

1 x 10

operations for the 6 x 6 mm type

Ideal for applications such as audio, office

and communications equipment, measuring

instruments, TVs, VCRs, etc.

Taped radial type, vertical type, high force type,

and gold-plated contact type are available as

series versions

Flux-tight base structure allows automatic

soldering of the tactile switches onto a PC board

Ordering Information

B3F-1I

I I

B3F-3I

I I

I I,

6 x 6 mm type

Switch

height x pitch

4.3 x 6.5 mm

Part number

Without ground terminal

Operating Force

General-purpose: 100 g

150 g

High-force:

5.0 x 6.5 mm

260 g

150 g

High-force:

5.0 x 7.5 mm

Projected

7.3 x 6.5 mm

260 g

General-purpose: 100 g

Bags

B3F-1000

B3F-1002

B3F-1005

B3F-1020

B3F-1022

B3F-1025

—

B3F-1050

B3F-1052

B3F-1055

—

Sticks*

B3F-1000S

B3F-1002S

B3F-1005S

B3F-1020S

B3F-1022S

B3F-1025S

—

B3F-1050S

B3F-1052S

B3F-1055S

—

With ground terminal

Bags

B3F-1100

B3F-1102

B3F-1105

B3F-1120

B3F-1122

B3F-1125

B3F-1110

B3F-1150

B3F-1152

B3F-1155

B3F-3100

B3F-3102

B3F-3105

B3F-3120

B3F-3122

B3F-3125

B3F-3150

B3F-3152

B3F-3155

Sticks*

B3F-1100S

B3F-1102S

B3F-1105S

B3F-1120S

B3F-1122S

B3F-1125S

—

B3F-1150S

B3F-1152S

B3F-1155S

—

Type

Standard

Plunger

Flat

General-purpose: 100 g

150 g

High-force:

260 g

Vertical

Flat

3.15 mm

General-purpose: 100 g

150 g

High-force:

260 g

150 g

High-force:

260 g

3.85 mm

General-purpose: 100 g

Projected

6.15 mm

General-purpose: 100 g

150 g

High-force:

260 g

* Number of switches per stick:

Without ground terminal ........... 90/stick

With ground terminal ................ 75/stick

151

Important note: Switches cannot be water-washed.
