D15P34A4GV00LF datasheet, PDF - EEWORLD Datasheet

D15P34A4GV00LF: DescriptionD Type Connector, 15 Contact(s), Female, 0.108 inch Pitch, Solder Terminal, M3; CategoryThe connector The connector; File Size58KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

D15P34A4GV00LF Overview

D Type Connector, 15 Contact(s), Female, 0.108 inch Pitch, Solder Terminal, M3

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
body width	0.494 inch
subject depth	0.272 inch
body length	1.541 inch
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	STAGGERED
Contact resistance	10 mΩ
Contact style	RND PIN-SKT
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	D
Plug contact pitch	0.108 inch
Installation option 1	M3
Installation option 2	THREADED
Installation method	STRAIGHT
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	2.8448 mm
Plating thickness	FLASH inch
Rated current (signal)	5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.114 inch
Terminal pitch	2.7432 mm
Termination type	SOLDER
Total number of contacts	15
Base Number Matches	1

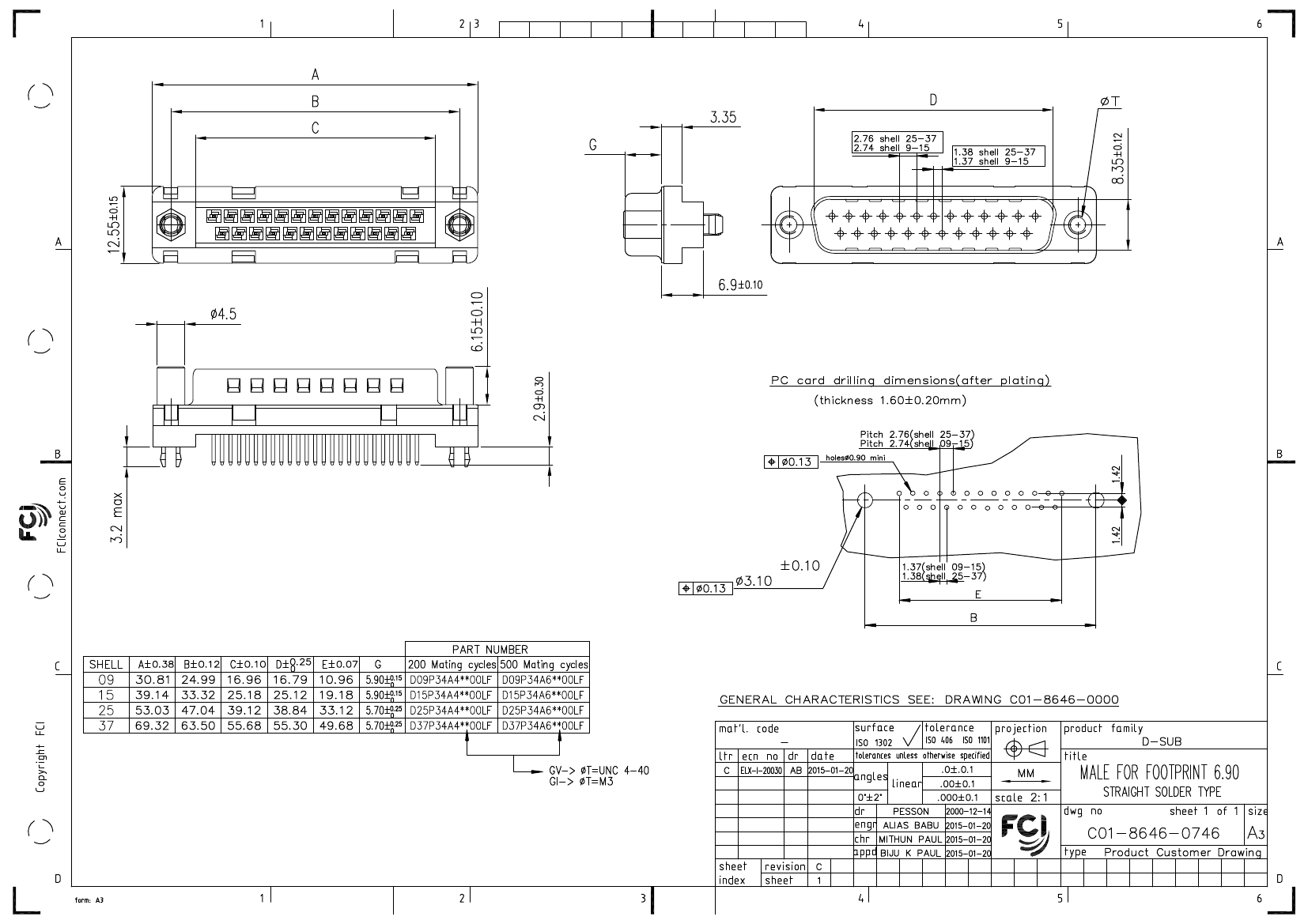

PDS: Rev :C

STATUS:Released

Printed: Jan 21, 2015
