420C172M400BB8 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> 420C172M400BB8

420C172M400BB8: DescriptionRESISTOR, NETWORK, FILM, BUSSED; ISOLATED; TERMINATOR, 0.6; 0.8; 1 W, THROUGH HOLE MOUNT; CategoryPassive components capacitor; File Size218KB，4 Pages; ManufacturerCDE [ CORNELL DUBILIER ELECTRONICS ]; Environmental Compliance

Download Datasheet Parametric View All

420C172M400BB8 Overview

RESISTOR, NETWORK, FILM, BUSSED; ISOLATED; TERMINATOR, 0.6; 0.8; 1 W, THROUGH HOLE MOUNT

420C172M400BB8 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	CDE [ CORNELL DUBILIER ELECTRONICS ]
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	1700 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	50.8 mm
dielectric materials	ALUMINUM (WET)
ESR	0.0686 mΩ
JESD-609 code	e3
leakage current	2.47386 mA
length	82.55 mm
Manufacturer's serial number	420C
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package shape	CYLINDRICAL PACKAGE
Package form	PCB Mount
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	400 V
ripple current	7100 mA
series	420C
surface mount	NO
Terminal surface	Tin (Sn)
Terminal shape	WIRE

Preview

Download Datasheet

View All

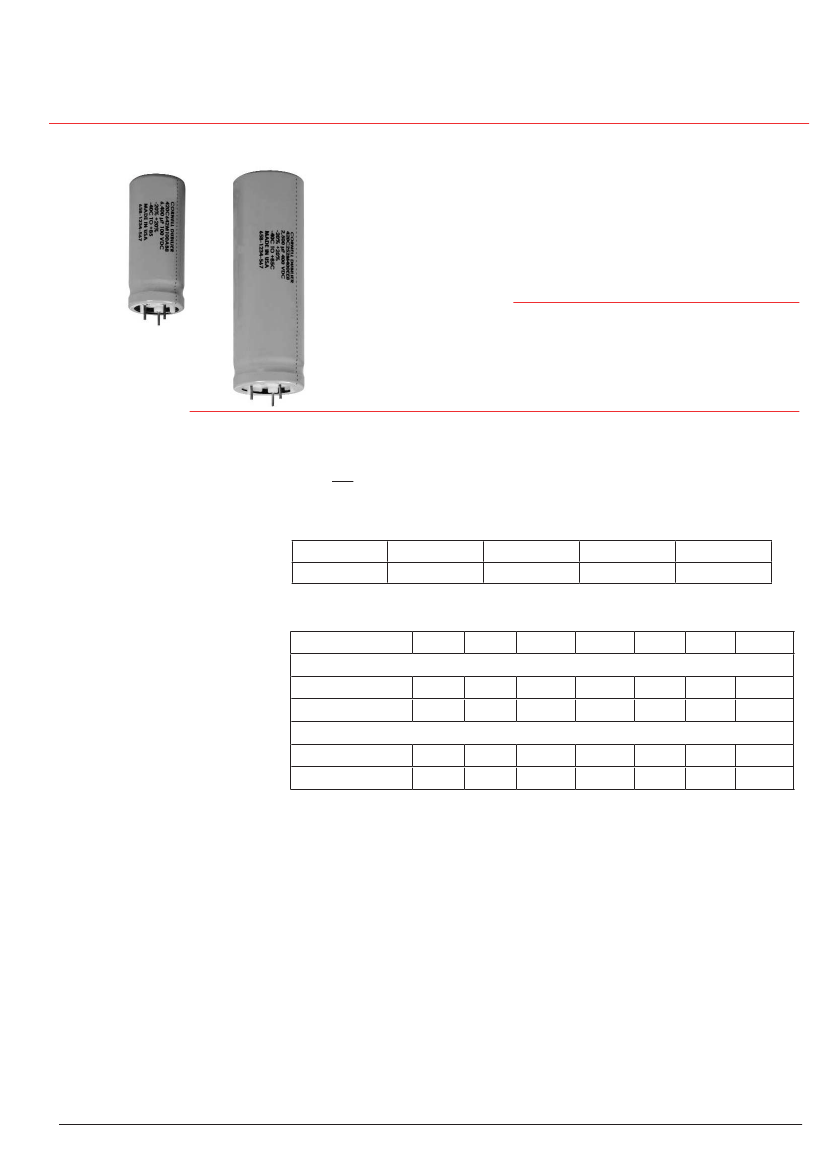

Best Value High Ripple Type Plug-in

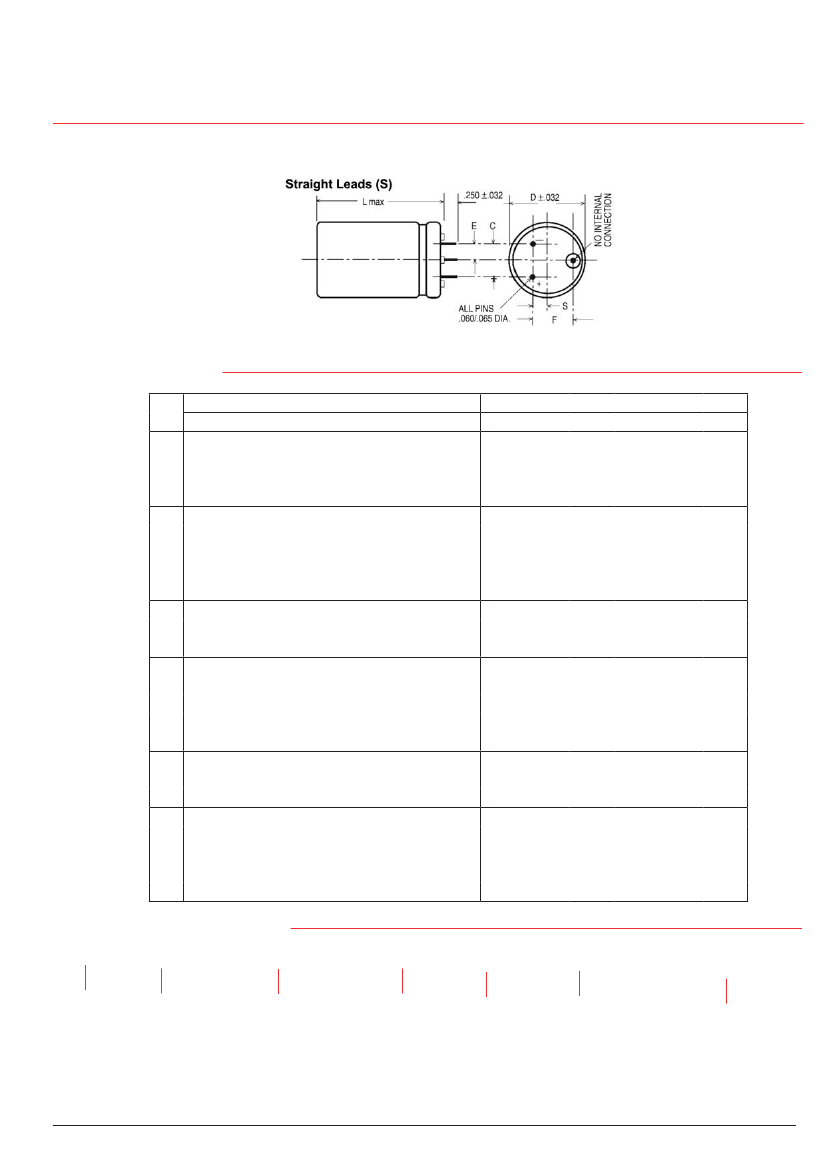

Type 420C

85 °C, Long-Life, Inverter Grade, Radial Leaded

Type 420C is the PC-mount version of the Type 520C screw

terminal, computer grade capacitor and the 85 °C version

of the Type 450C Inverter Grade capacitor. It delivers the

ripple current capability and exceptional life needed for

motor-drive bus capacitors and approaches the performance

of the 450C at a lower cost. The extended cathode foil of

the 420C assures cool operation and heat ﬂow from the

capacitor element to the can in all orientations.

Highlights

• For motor drives and UPS systems

• ESRs to 6.9 mΩ

• Printed-circuit mounting

• Thermal-Pak™ extended cathode construction

–40 °C to 85 °C

100 to 500 Vdc

160 µF to 27,000 µF ± 20%

≤ 3 √CV µA, 4 mA max, 5 minutes

–20 °C multiple of 25 °C Z ≤ 3

Ambient Temperature

45 °C

1.80

55 °C

1.63

65 °C

1.45

75 °C

1.25

85 °C

1.00

Speciﬁcations

Operating Temperature:

Rated Voltage:

Capacitance:

DC Leakage Current:

Cold Impedance:

Ripple Current Multipliers:

Frequency

50 Hz

1 3/8” & 1 3/4” Diameters

100 to 350 V

400 to 500 V

2” Diameters

100 to 350 V

400 to 500 V

0.92

0.82

0.94

0.86

1.00

1.05

1.14

1.07

1.20

1.08

1.23

1.08

1.27

0.91

0.82

0.93

0.86

1.00

1.06

1.14

1.08

1.20

1.09

1.23

1.09

1.23

60 Hz

120 Hz

360 Hz

1 kHz

5 kHz

10 kHz

EIA Ripple Life:

4000 h at full load at 85 °C per EIA IS-749

∆ capacitance ± 20%

ESR 200 % of limit

DCL 100 % of limit

Life Test:

6,000 h at 85ºC with rated voltage

∆ Capacitance ±10%

ESR 200% of limit

DCL 100% of limit

Shelf Life Test:

500 h at 105 °C. Capacitance, ESR and DCL meet initial requirements

Vibration:

10 to 55 Hz, 0.06” and 10 g max, 2 h each plane

CDM Cornell Dubilier

•

140 Technology Place

•

Liberty, SC 29657

•

Phone: (864)843-2277

•

Fax: (864)843-3800

•

www.cde.com
