UPC7808H datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> UPC7808H

UPC7808H: DescriptionFixed Positive Standard Regulator, 8VBIPolar, PSIP3, SIP-3; CategoryPower/power management The power supply circuit; File Size159KB，6 Pages; ManufacturerNEC Electronics

Download Datasheet Parametric Compare View All

UPC7808H Overview

Fixed Positive Standard Regulator, 8VBIPolar, PSIP3, SIP-3

UPC7808H Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	SIP-3
Reach Compliance Code	compliant
Maximum input voltage	25 V
Minimum input voltage	10.5 V
JESD-30 code	R-PSIP-T3
JESD-609 code	e0
Number of functions	1
Number of terminals	3
Working temperatureTJ-Max	125 °C
Working temperature TJ-Min
Maximum output current 1	1 A
Maximum output voltage 1	8.4 V
Minimum output voltage 1	7.6 V
Nominal output voltage 1	8 V
Package body material	PLASTIC/EPOXY
encapsulated code	SIP
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Regulator type	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR
Maximum seat height	14.5 mm
surface mount	NO
technology	BIPOLAR
Terminal surface	TIN LEAD
Terminal form	THROUGH-HOLE
Terminal pitch	2.3 mm
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
width	2.7 mm
Base Number Matches	1

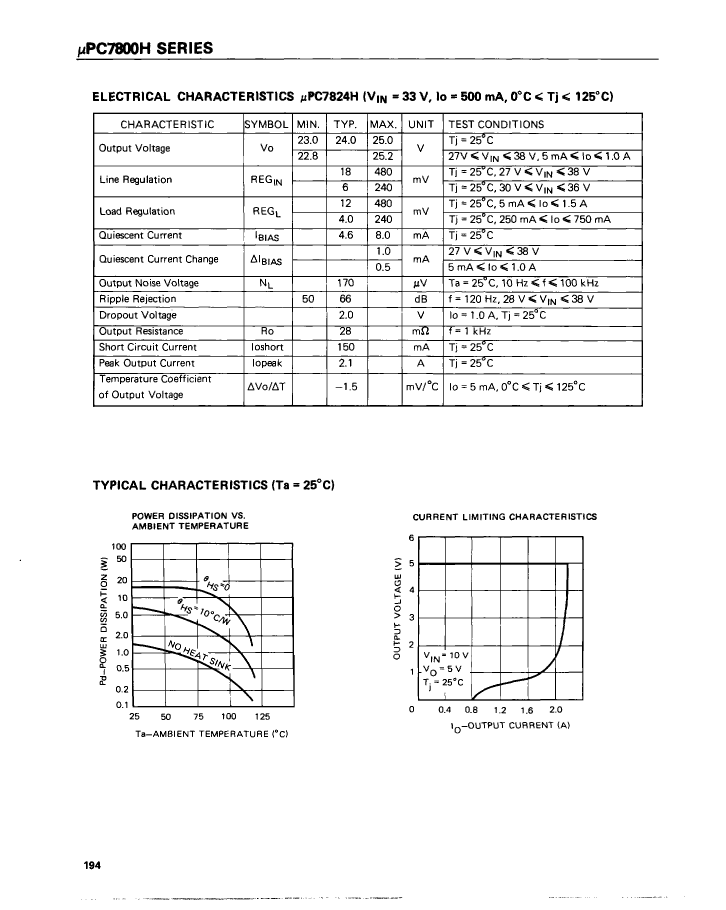

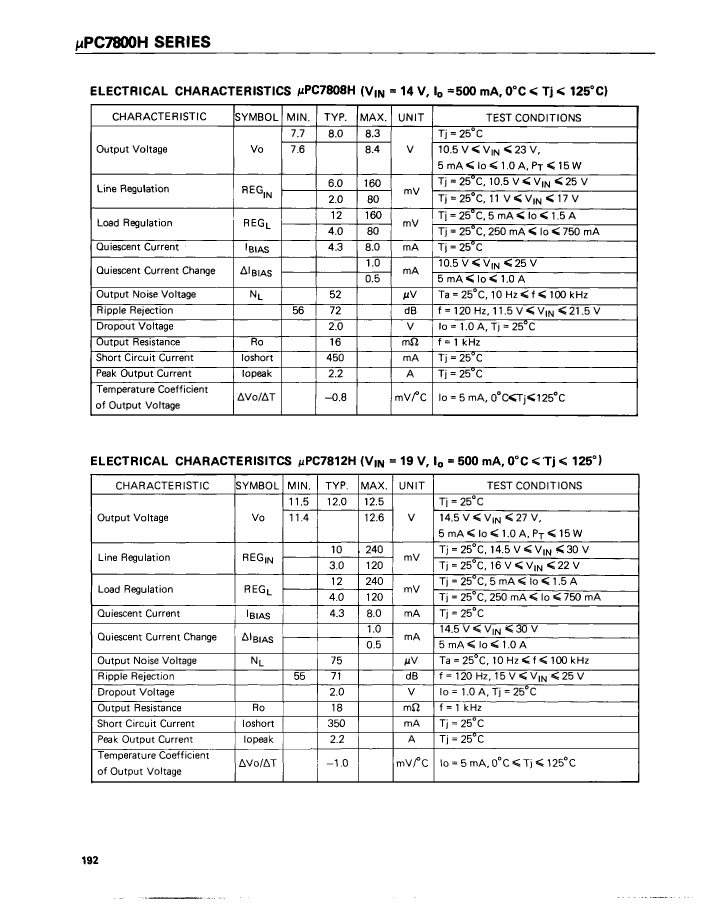

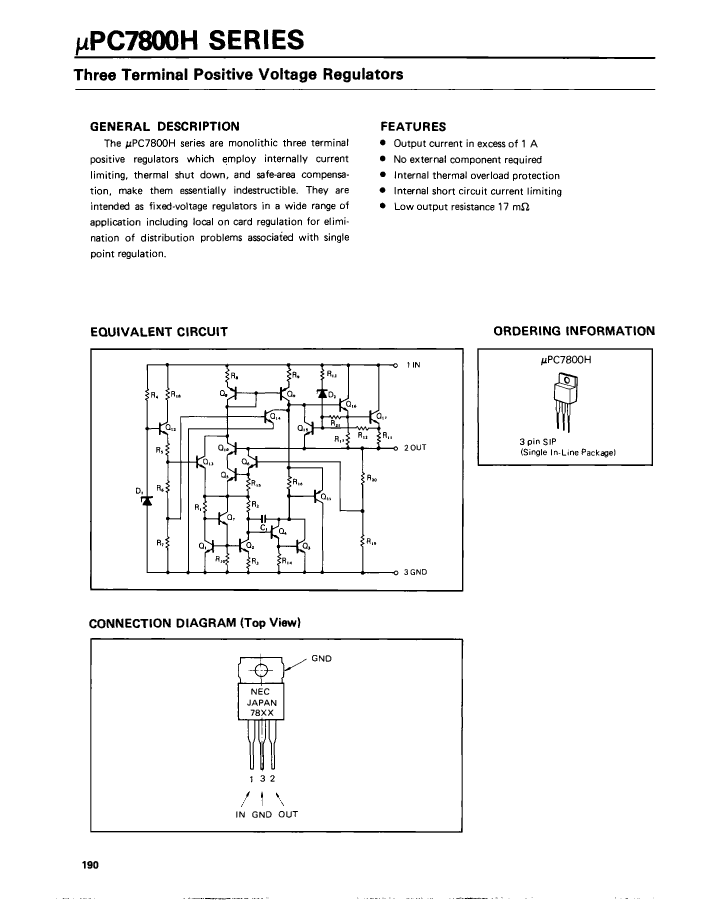

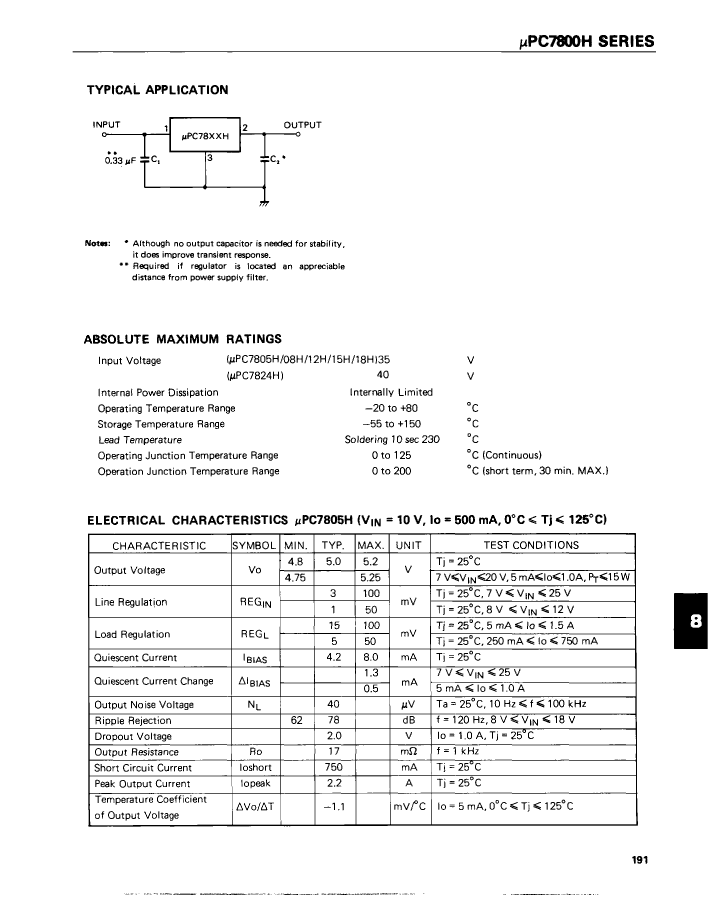

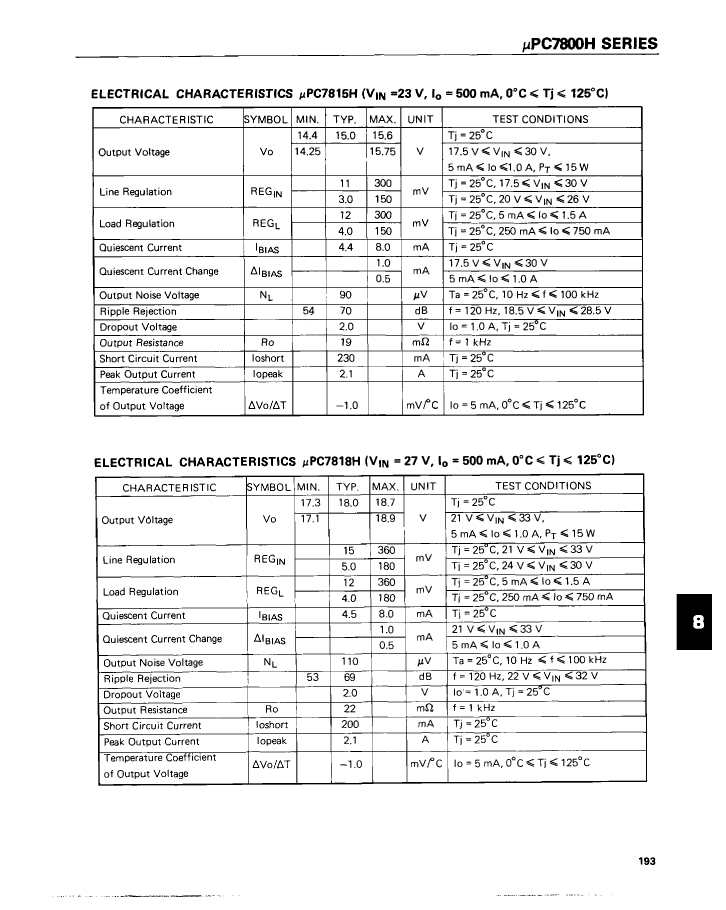

Preview

Download Datasheet

View All

UPC7808H Related Products

	UPC7808H	UPC7824H	UPC7818H	UPC7812H	UPC7815H	UPC7805H
Description	Fixed Positive Standard Regulator, 8VBIPolar, PSIP3, SIP-3	Fixed Positive Standard Regulator, 24VBIPolar, PSIP3, SIP-3	Fixed Positive Standard Regulator, 18VBIPolar, PSIP3, SIP-3	Fixed Positive Standard Regulator, 12VBIPolar, PSIP3, SIP-3	Fixed Positive Standard Regulator, 15VBIPolar, PSIP3, SIP-3	Fixed Positive Standard Regulator, 5VBIPolar, PSIP3, SIP-3
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	SIP-3	SIP-3	SIP-3	SIP,	SIP,	SIP-3
Reach Compliance Code	compliant	compliant	compliant	compliant	compli	compli
Maximum input voltage	25 V	38 V	33 V	30 V	30 V	25 V
Minimum input voltage	10.5 V	27 V	21 V	14.5 V	17.5 V	7 V
JESD-30 code	R-PSIP-T3	R-PSIP-T3	R-PSIP-T3	R-PSIP-T3	R-PSIP-T3	R-PSIP-T3
JESD-609 code	e0	e0	e0	e0	e0	e0
Number of functions	1	1	1	1	1	1
Number of terminals	3	3	3	3	3	3
Working temperatureTJ-Max	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Maximum output current 1	1 A	1 A	1 A	1 A	1 A	1 A
Maximum output voltage 1	8.4 V	25.2 V	18.9 V	12.6 V	15.75 V	5.25 V
Minimum output voltage 1	7.6 V	22.8 V	17.1 V	11.4 V	14.25 V	4.75 V
Nominal output voltage 1	8 V	24 V	18 V	12 V	15 V	5 V
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SIP	SIP	SIP	SIP	SIP	SIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Regulator type	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR
Maximum seat height	14.5 mm	14.5 mm	14.5 mm	14.5 mm	14.5 mm	14.5 mm
surface mount	NO	NO	NO	NO	NO	NO
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Terminal surface	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.3 mm	2.3 mm	2.3 mm	2.3 mm	2.3 mm	2.3 mm
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	2.7 mm	2.7 mm	2.7 mm	2.7 mm	2.7 mm	2.7 mm
Maker	-	NEC Electronics	NEC Electronics	NEC Electronics	NEC Electronics	NEC Electronics
