Product Bulletin OPB360
August 1996
Slotted Optical Switches
Types OPB360, OPB370 Series

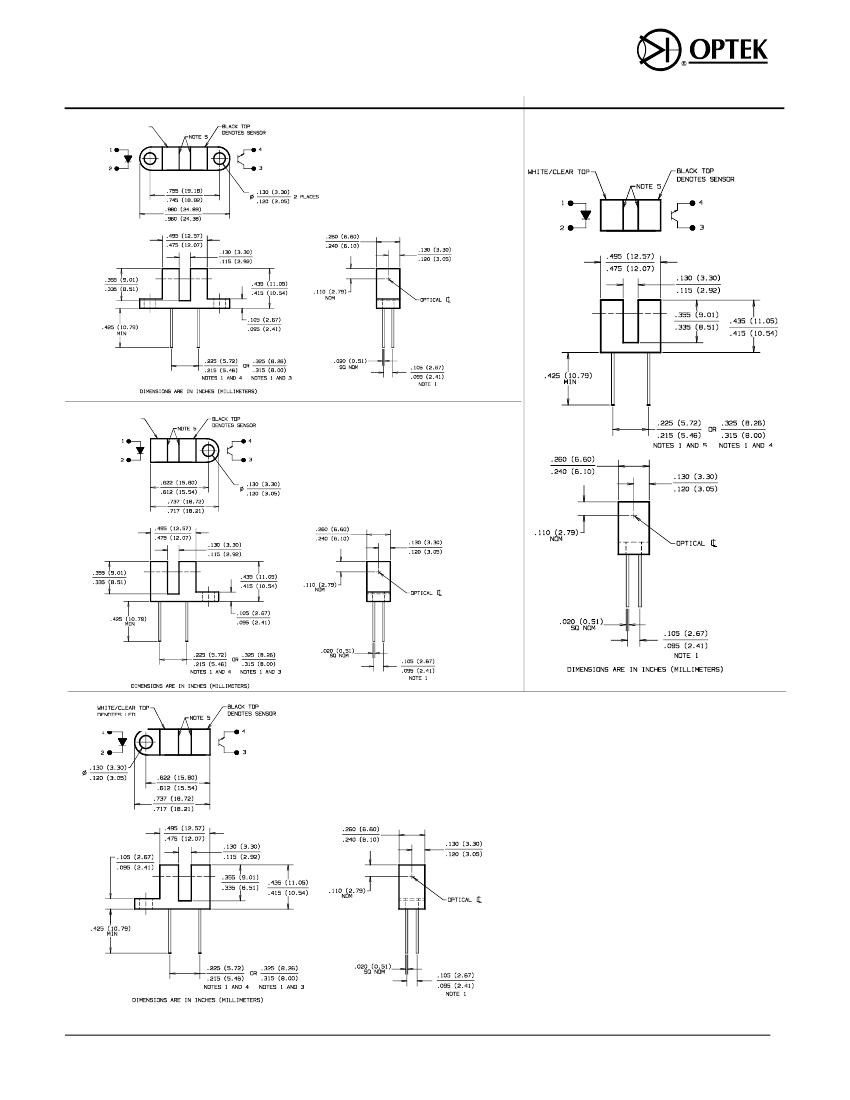

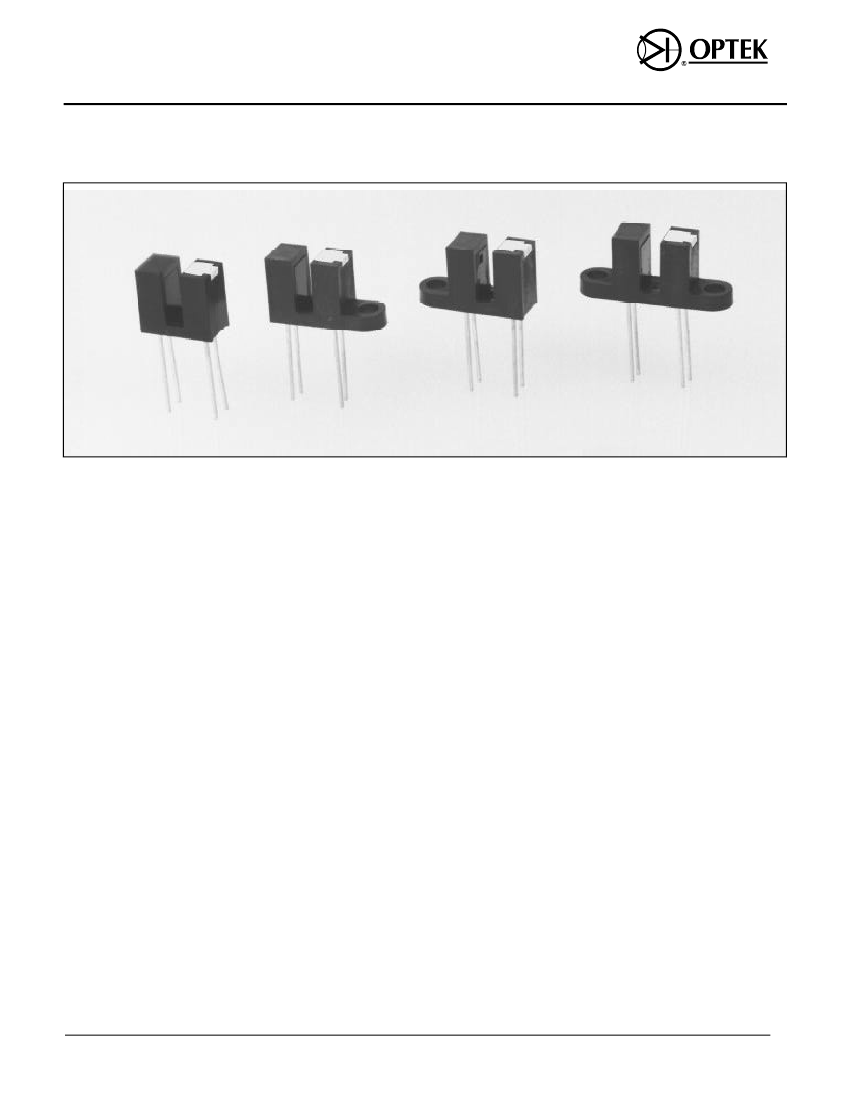

Package N
Package L
Package P
Package T
Features
•
0.125" (3.18 mm) wide gap
•
Choice of aperture
•
Choice of opaque or IR transmissive
shell material
•
Choice of mounting configuration
•
Choice of lead spacing
Absolute Maximum Ratings
(T
A
= 25
o
C unless otherwise noted)
Storage and Operating Temperature Range
. . . . . . . . . . . . . . . . . . . . . . . .
-40
o
C to +85
o
C
Lead Soldering Temperature Range [1/16 inch (1.6 mm) from case for 5 sec. with
soldering iron] . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 240
o
C
(2)
Input Diode
Forward DC Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 mA
Peak Forward Current (1
µs
pulse width, 300 pps) . . . . . . . . . . . . . . . . . . . . . . . 3.0 A
Reverse DC Voltage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.0 V
Power Dissipation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100 mW
(1)
Description
The OPB360/370 series of slotted
switches provides the design engineer
with the flexibility of a custom device
from a standard product line. Building
from a standard housing with a .125"
(3.18 mm) wide slot, the user can specify
(1) electrical output parameters, (2)
mounting tab configuration, (3) choice of
lead spacing, (4) discrete shell material,
and (5) aperture width.
All housings are an opaque grade of
injection-molded plastic to minimize the
assembly's sensitivity to ambient
radiation, both visible and near-infrared.
Discrete shells (exposed on the parallel
faces inside the device throat) are either
IR transmissive plastic for applications
where aperture contamination may occur
or opaque plastic with aperture openings
for maximum protection against ambient
light.
Output Phototransistor
Collector-Emitter Voltage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 V
Emitter-Collector Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.0 V
Collector DC Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 mA
Power Dissipation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100 mW
(1)
Notes:
(1) Derate linearly 1.67 mW/
o
C above 25
o
C.
(2) RMA flux is recommended. Duration can be extended to 10 sec. max. when flow soldering.
(3) All parameters tested using pulse technique.
(4) Lead spacing of 0.220" (5.59 mm) or 0.320" (8.13 mm) is available. Leads are 0.20" sq. (5.08
mm) and 0.425" (10.80 mm) long (min).
(5) Methanol and isopropanol are recommended as cleaning agents. Plastic housings are
soluble in chlorinated hydrocarbons and ketones.
(6) Polarity is denoted by color of housing top:
LED - Gray or Clear
Sensor - Black
Replaces/Upgrades
OPB860, OPB870 Series
Optek Technology, Inc.
1215 W. Crosby Road
Carrollton, Texas 75006
12-8
(972) 323-2200
Fax (972) 323-2396
Types OPB360, OPB370 Series

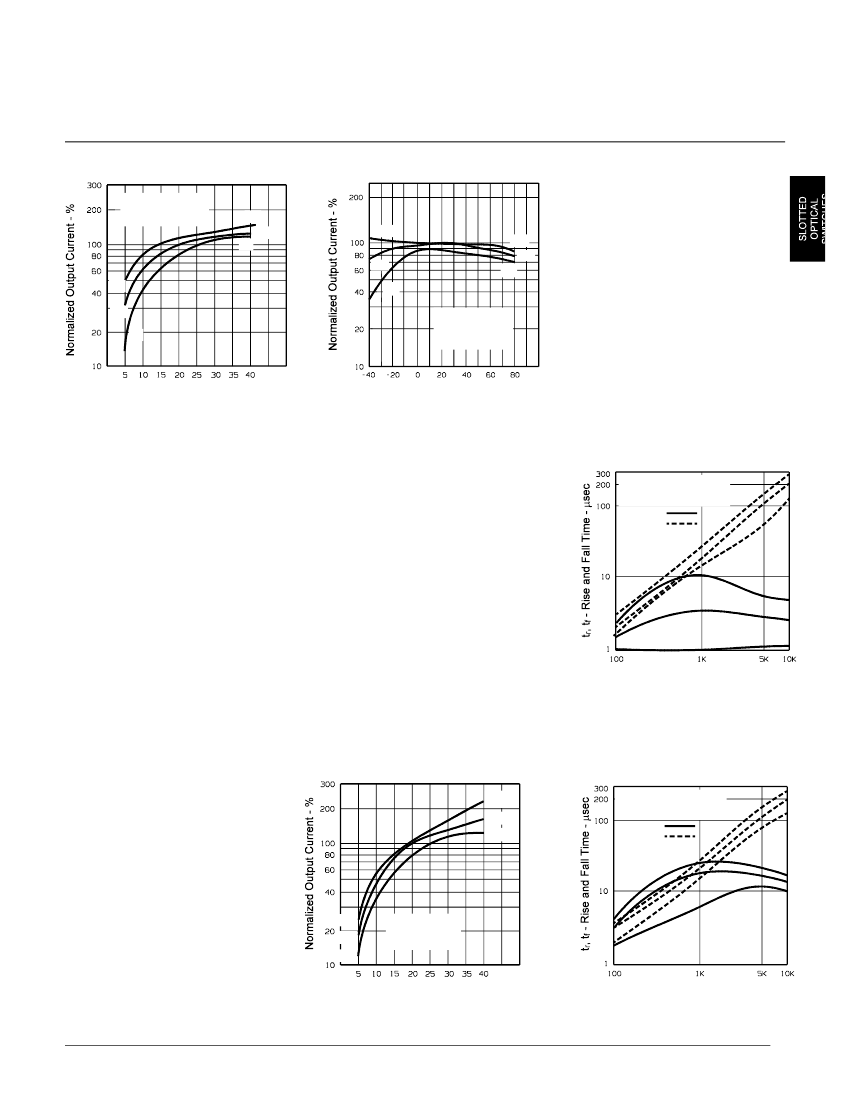

Electrical Characteristics
(T
A
= 25
o
C unless otherwise noted)
SYMBOL
Input Diode
V
F
I
R
V
(BR)CEO
V
(BR)ECO
I
CEO
PARAMETER
MIN MAX UNITS
1.7
100
30
5.0
100
V
µA
V
V
nA
I
F
= 20 mA
V
R
= 2 V
I
C
= 1 mA
I
E
= 100
µA
TEST CONDITIONS
Forward Voltage
Reverse Current
Collector-Emitter Breakdown Voltage
Emitter-Collector Breakdown Voltage
Collector-Emitter Dark Curreent
On-State Collector Current
OPB360T, N, L, P55
OPB365T, N, L, P55
OPB370T, N, L, P55
OPB375T, N, L, P55
Output Phototransistor
V
CE
= 10 V, I
F
= 0, E
e
= 0
Coupled
3.5
14.0
mA
V
CE
= 0.4 V, I
F
= 20 mA
I
C(ON)
OPB360T, N, L, P51
OPB365T, N, L, P51
OPB370T, N, L, P51
OPB375T, N, L, P51
OPB360T, N, L, P11
OPB365T, N, L, P11
OPB370T, N, L, P11
OPB375T, N, L, P11
2.5
10.0
mA
V
CE
= 0.4 V, I
F
= 20 mA
1.0
5.0
mA
V
CE
= 0.4 V, I
F
= 20 mA
PART NUMBER GUIDE
OPB 3 X X X X X
Optek Assembly
Aperture Width In Front
of Sensor
5 = .0.050" 1 = 0.010"
Phototransistor Output
Family
Discrete Shell Material
Designation
6 - Base Mount IR Transmissive
Plastic Discrete Shell
PC Mountable Leads
7 - Base Mount Opaque
Plastic Discrete Shell
PC Mountable Leads
Lead Space Designator
0 = 0.320”(8.12 mm) Lead Space
5 = 0.220”(5.59 mm) Lead Space
Aperture Width In Front
of Emitter
5 = 0.050" 1= 0.010"
Mounting Configurations
T -Both Mounting Tabs
N - No Mounting Tabs
L - Single Mounting Tab
Emitter Side
P - Single Mounting Tab
Phototransistor Side
