85336-108: DescriptionTelecom and Datacom Connector, 17 Contact(s), Female, Right Angle, Surface Mount Terminal, Receptacle; CategoryThe connector The connector; File Size595KB，8 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

85336-108 Overview

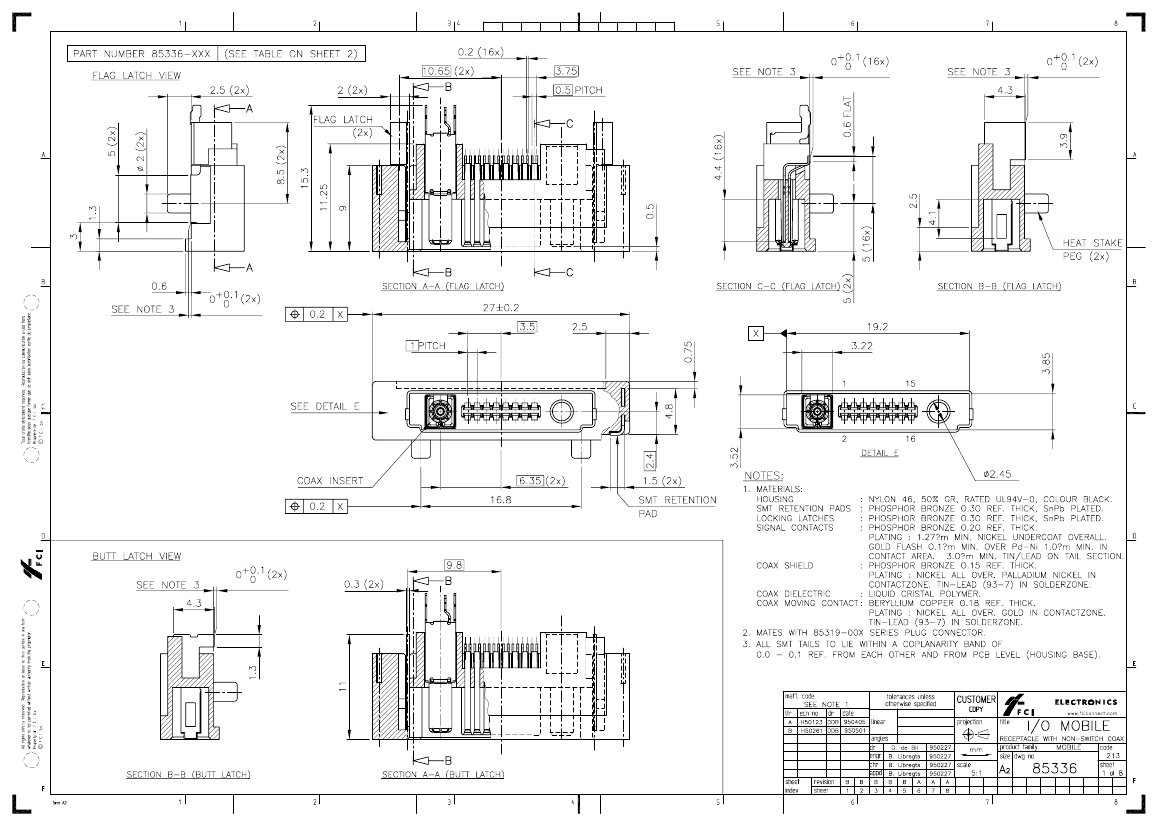

Telecom and Datacom Connector, 17 Contact(s), Female, Right Angle, Surface Mount Terminal, Receptacle

85336-108 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
Other features	SHIELDED
Body/casing type	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	GOLD FLASH (4) OVER PALLADIUM NICKEL/GOLD OVER NICKEL
Contact completed and terminated	TIN LEAD (118) OVER NICKEL/TIN LEAD OVER NICKEL
Contact point gender	FEMALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	85336
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	YES
Installation method	RIGHT ANGLE
Installation type	BOARD
Options	GENERAL PURPOSE
Shell material	NYLON46
Termination type	SURFACE MOUNT
Total number of contacts	17
UL Flammability Code	94V-0
Base Number Matches	1

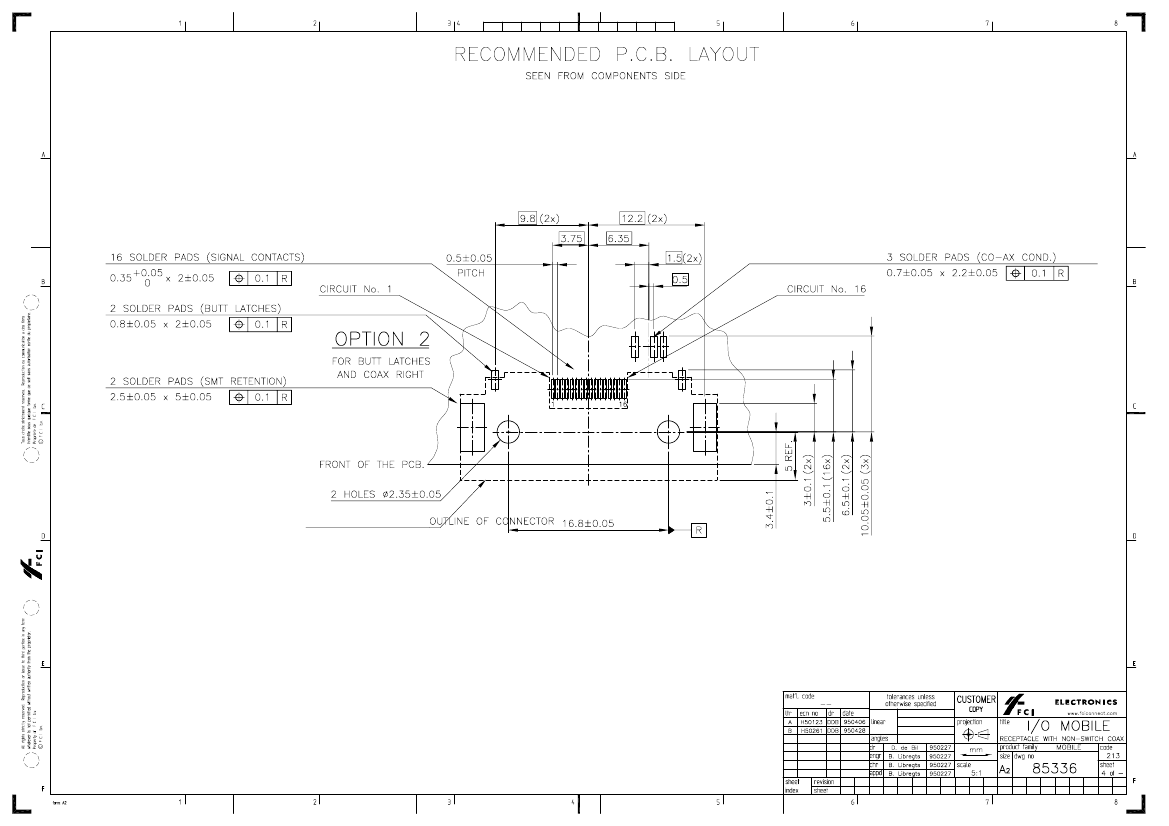

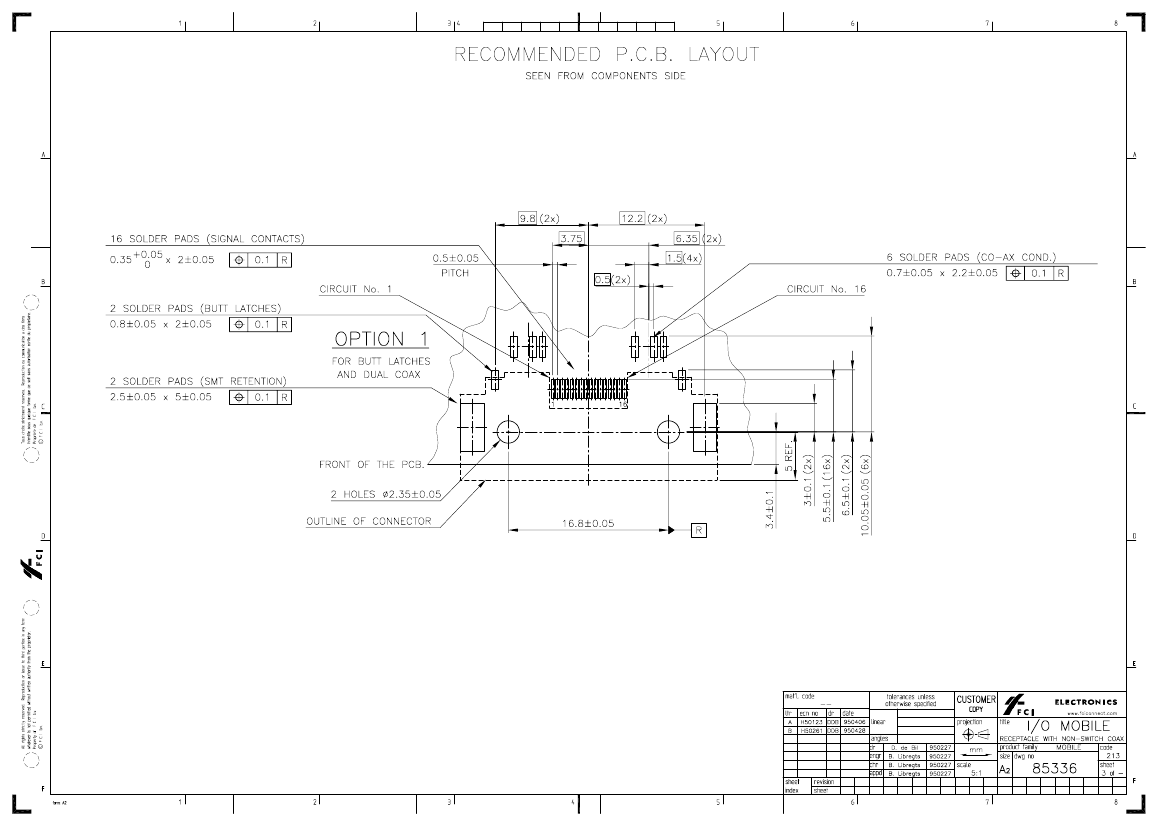

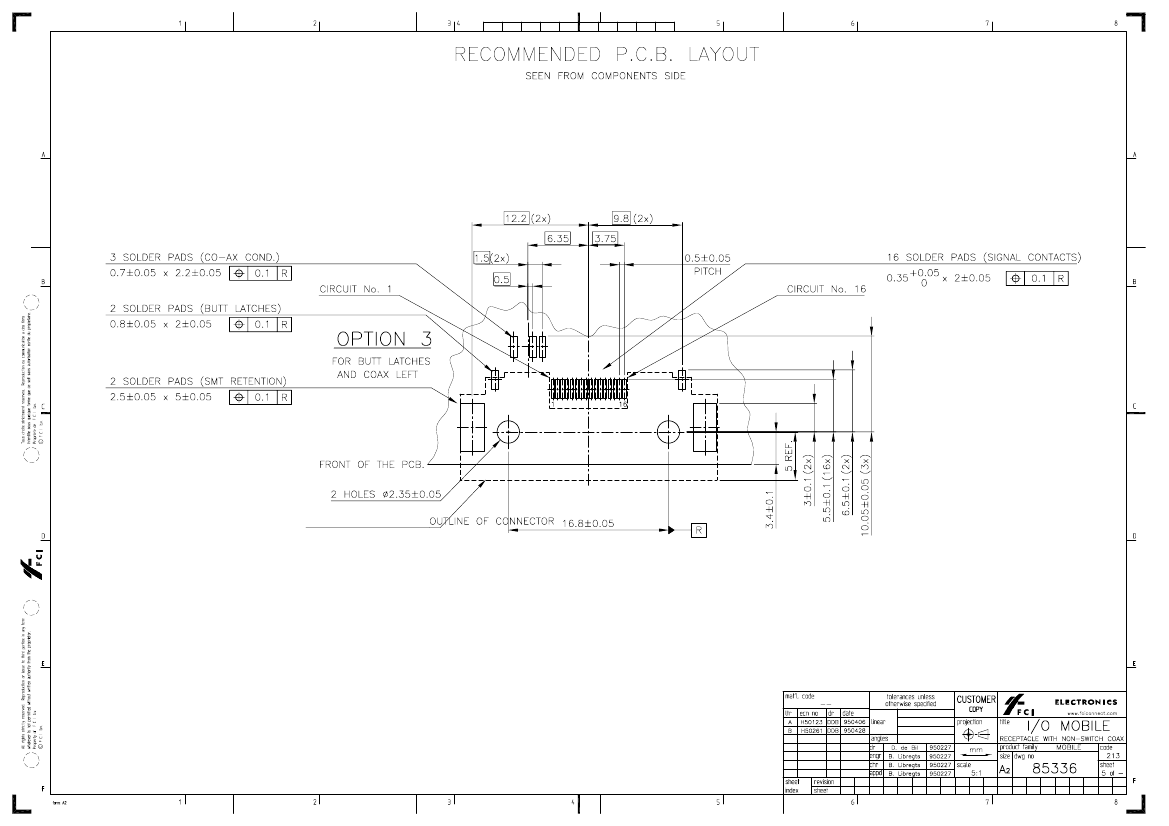

Preview

Download Datasheet

View All

PDM: Rev:B

STATUS:

Released

Printed: Sep 29, 2009

.

85336-108 Related Products

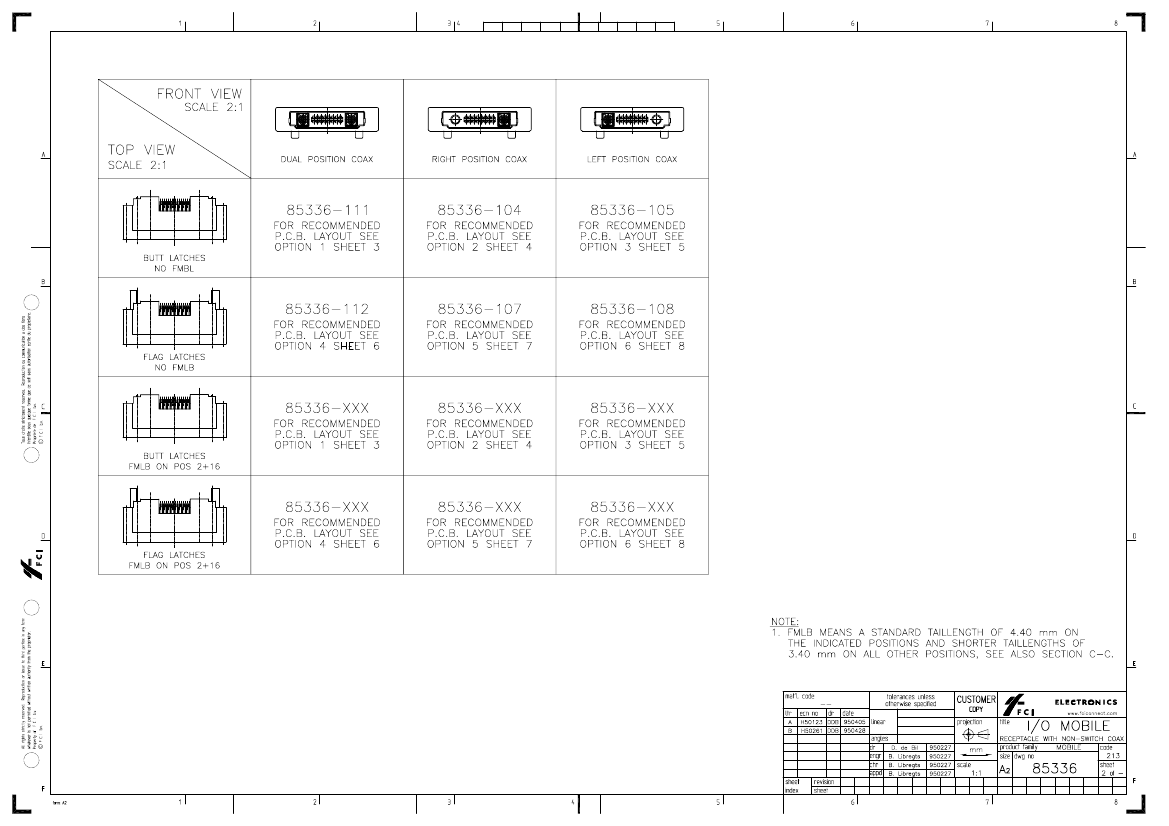

	85336-108	85336-111	85336-112	85336-104	85336-105	85336-107
Description	Telecom and Datacom Connector, 17 Contact(s), Female, Right Angle, Surface Mount Terminal, Receptacle	Telecom and Datacom Connector, 18 Contact(s), Female, Right Angle, Surface Mount Terminal, Receptacle	Telecom and Datacom Connector, 18 Contact(s), Female, Right Angle, Surface Mount Terminal, Receptacle	Telecom and Datacom Connector, 17 Contact(s), Female, Right Angle, Surface Mount Terminal, Receptacle	Telecom and Datacom Connector, 17 Contact(s), Female, Right Angle, Surface Mount Terminal, Receptacle	Telecom and Datacom Connector, 17 Contact(s), Female, Right Angle, Surface Mount Terminal, Receptacle
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
Other features	SHIELDED	SHIELDED	SHIELDED	SHIELDED	SHIELDED	SHIELDED
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	GOLD FLASH (4) OVER PALLADIUM NICKEL/GOLD OVER NICKEL	GOLD FLASH (4) OVER PALLADIUM NICKEL/GOLD OVER NICKEL	GOLD FLASH (4) OVER PALLADIUM NICKEL/GOLD OVER NICKEL	GOLD FLASH (4) OVER PALLADIUM NICKEL/GOLD OVER NICKEL	GOLD FLASH (4) OVER PALLADIUM NICKEL/GOLD OVER NICKEL	GOLD FLASH (4) OVER PALLADIUM NICKEL/GOLD OVER NICKEL
Contact completed and terminated	TIN LEAD (118) OVER NICKEL/TIN LEAD OVER NICKEL	TIN LEAD (118) OVER NICKEL/TIN LEAD OVER NICKEL	TIN LEAD (118) OVER NICKEL/TIN LEAD OVER NICKEL	TIN LEAD (118) OVER NICKEL/TIN LEAD OVER NICKEL	TIN LEAD (118) OVER NICKEL/TIN LEAD OVER NICKEL	TIN LEAD (118) OVER NICKEL/TIN LEAD OVER NICKEL
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO	NO	NO
empty shell	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO
JESD-609 code	e0	e0	e0	e0	e0	e0
MIL compliance	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	85336	85336	85336	85336	85336	85336
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	YES	YES	YES	YES	YES	YES
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell material	NYLON46	NYLON46	NYLON46	NYLON46	NYLON46	NYLON46
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	17	18	18	17	17	17
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Maker	-	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
