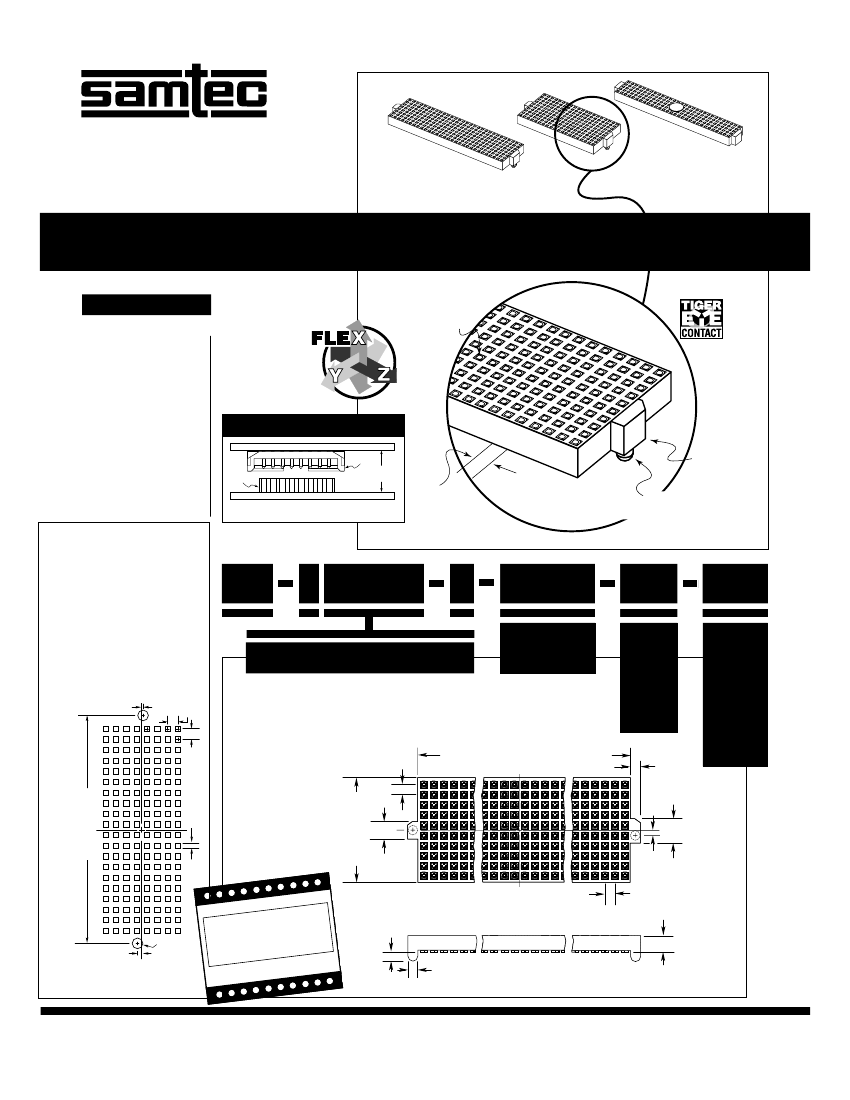

FACTSHEET F-200
YFE–120–01–G–T–A
YFE–130–01–G–E–A
YFE–130–01–G–F–K
HI-DENSITY SOCKET
YFE SERIES
SPECIFICATIONS
Mates with:
YFT. YFW
Materials:
Insulator Material:
Black Liquid Crystal Polymer
Contact Material:
BeCu
Current Rating:
2A @ 80°C ambient
Operating Temp Range:
-65°C to +125°C
Plating:
Au over 50µ" (1,27µm) Ni
Contact Resistance:
10mΩ max
High reliability
Tiger-Eye
contacts
ALSO AVAILABLE
MSB
CSB
(3,00)
.118
Polarized
notches
(1,27mm) .050"
micro pitch
Note:
Some sizes, styles and
options are non-standard,
non-returnable.
Request MSB/CSB Series FactSheet.
Optional polarized
Alignment Pins
Processing:
Max Processing Temp:
230°C for 60 seconds
SMT Lead Coplanarity:
(0,15mm) .006" max
Typical Processing:
• Water soluable paste
compound
• (0,15mm to 0,20mm) .006"
to .008" paste thickness
• 1:1 aperture
• Mask or plug vias
• Process like a BGA
• X-ray inspection as required
Suggested PCB Layouts:
Your specific layout may vary
(0,14) .0055
(1,27)
.050
YFE
1
NO. PINS
PER ROW
01
PLATING
OPTION
ROW
OPTION
OTHER
OPTION
20, 30, 40 & 50
= 20
µ
" (0,51
µ
m)
Gold on contact area
–G
–F
= Five Row
–A
= Alignment
Pin
–E
= Eight Row
–K
= Polyamide
film Pick &
Place Pad
–T
= Ten Row
(1,27)
.050
500
–TR
(1,27)
.050
No. of positions x (1,27) .050 + (0,51) .020
10
(1,27)
.050
= Tape & Reel
No.
of
positions
x
(1,27)
.050
+
(1,78)
.070
(0,64)
.025
SQ
No. of
rows
x
(1,27) (2,41)
.050 .095
+
(0,51)
.020
491
01
(3,68)
.145
(0,64)
.025
(1,27) .050
TAPE & RE
01
08
(0,50) .0197
except 5 row is
(0,64) .025
-0,00
(1,35 +0,08)
-.000
.053 +.003
DIA (2)
arges.
No tooling ch um order.
im
in
125 piece m y above minimum.
tit
er any quan gn, manufacture.
Ord
si
In-house de turn-around.
Quick
tions
for specifica
Call Samtec g information.
and orderin
E
ILITY
L AVAILAB
(1,27)
.050
(1,27)
.050
DIA
–A OPTION
(3,00)
.118
SAMTEC USA
• Tel: 1-800-SAMTEC-9 or 812-944-6733 • Fax: 812-948-5047
SAMTEC UK
• Tel: 01236 739292 • Fax: 01236 727113
SAMTEC ASIA PACIFIC
• Tel: 65-745-5955 • Fax: 65-841-1502
SAMTEC GERMANY
• Tel: +49 (0) 89 / 89460-0 • Fax: +49 (0) 89 / 89460-299
SAMTEC FRANCE
• Tel: 01 60 95 06 60 • Fax: 01 60 95 06 61
SAMTEC ITALY
• Tel: 39 039 6890337 • Fax: 39 039 6890315
SAMTEC JAPAN
• Tel: 81-424-42-8318 • Fax: 81-424-42-8319
SAMTEC CHINA
• Tel: 86-21-5385-4089 • Fax: 86-21-5385-4047
SAMTEC TAIWAN
• Tel: (02) 2395-1677 • Fax: (02) 2395-1689
Due to technical progress, all designs, specifications and components are subject to change without notice.
