LH3344RU datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> LH3344RU

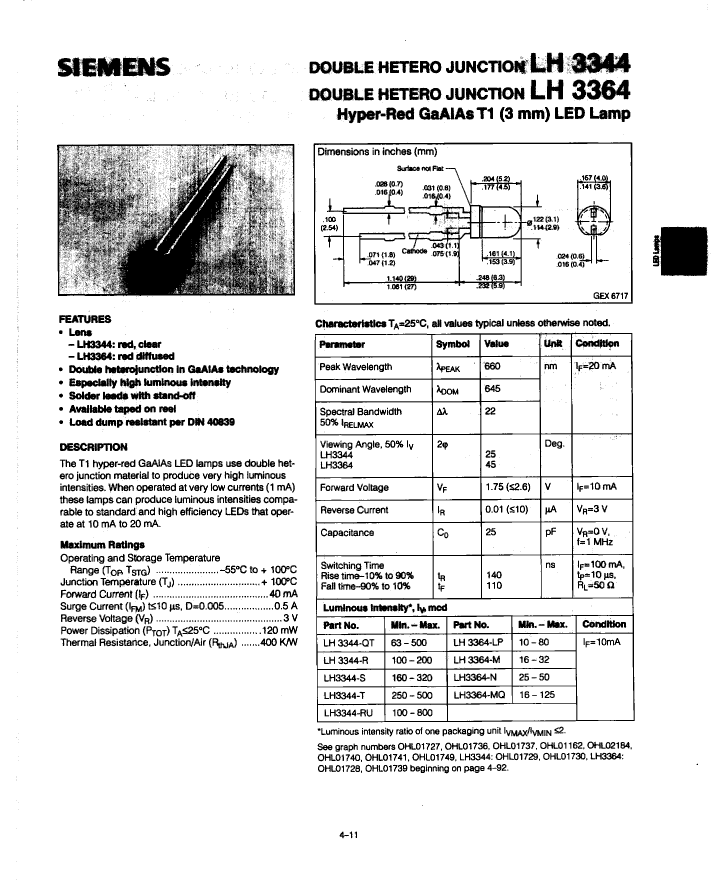

LH3344RU: DescriptionT-1 SINGLE COLOR LED, HYPER RED, 3 mm; CategoryLED optoelectronic/LED photoelectric; File Size100KB，1 Pages; ManufacturerSIEMENS; Websitehttp://www.infineon.com/

Download Datasheet Parametric Compare View All

LH3344RU Overview

T-1 SINGLE COLOR LED, HYPER RED, 3 mm

LH3344RU Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
color	HYPER RED
Configuration	SINGLE
Maximum forward current	0.04 A
Lens type	RED CLEAR
Nominal luminous intensity	450 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
Optoelectronic device types	SINGLE COLOR LED
total height	4.85 mm
method of packing	TAPE AND REEL
peak wavelength	660 nm
shape	ROUND
size	3 mm
surface mount	NO
T code	T-1
Terminal pitch	2.54 mm
perspective	25 deg
Base Number Matches	1

Preview

Download Datasheet

View All

LH3344RU Related Products

	LH3344RU	LH3344-QTE7500	LH3344-SE7500	LH3364-ME7500	LH3364-MQE7500	LH3344-RE7500	LH3344-RUE7500	LH3364-LPE7500	LH3364-NE7500	LH3344-TE7500
Description	T-1 SINGLE COLOR LED, HYPER RED, 3 mm	Single Color LED, Hyper Red, Red Clear, T-1, 3mm	Single Color LED, Hyper Red, Red Clear, T-1, 3mm	Single Color LED, Hyper Red, Red Diffused, T-1, 3mm	Single Color LED, Hyper Red, Red Diffused, T-1, 3mm	Single Color LED, Hyper Red, Red Clear, T-1, 3mm	Single Color LED, Hyper Red, Red Clear, T-1, 3mm	Single Color LED, Hyper Red, Red Diffused, T-1, 3mm	Single Color LED, Hyper Red, Red Diffused, T-1, 3mm	Single Color LED, Hyper Red, Red Clear, T-1, 3mm
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknow
color	HYPER RED	HYPER RED	HYPER RED	HYPER RED	HYPER RED	HYPER RED	HYPER RED	HYPER RED	HYPER RED	HYPER RED
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maximum forward current	0.04 A	0.04 A	0.04 A	0.04 A	0.04 A	0.04 A	0.04 A	0.04 A	0.04 A	0.04 A
Lens type	RED CLEAR	RED CLEAR	RED CLEAR	RED DIFFUSED	RED DIFFUSED	RED CLEAR	RED CLEAR	RED DIFFUSED	RED DIFFUSED	RED CLEAR
Nominal luminous intensity	450 mcd	281.5 mcd	240 mcd	24 mcd	70.5 mcd	150 mcd	450 mcd	45 mcd	37.5 mcd	375 mcd
Installation features	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT
Number of functions	1	1	1	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2	2	2	2
Maximum operating temperature	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED
total height	4.85 mm	4.85 mm	4.85 mm	4.85 mm	4.85 mm	4.85 mm	4.85 mm	4.85 mm	4.85 mm	4.85 mm
method of packing	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL
peak wavelength	660 nm	660 nm	660 nm	660 nm	660 nm	660 nm	660 nm	660 nm	660 nm	660 nm
shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
size	3 mm	3 mm	3 mm	3 mm	3 mm	3 mm	3 mm	3 mm	3 mm	3 mm
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
T code	T-1	T-1	T-1	T-1	T-1	T-1	T-1	T-1	T-1	T-1
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
perspective	25 deg	25 deg	25 deg	45 deg	45 deg	25 deg	25 deg	45 deg	45 deg	25 deg
Maker	-	SIEMENS	SIEMENS	-	SIEMENS	SIEMENS	SIEMENS	SIEMENS	SIEMENS	SIEMENS
