ATMEGA32U4-AU: Description8-BIT, FLASH, 16 MHz, RISC MICROCONTROLLER, PQFP44; CategoryThe embedded processor and controller Microcontrollers and processors; File Size4MB，408 Pages; ManufacturerAtmel (Microchip); Environmental Compliance

Download Datasheet Parametric Compare View All

ATMEGA32U4-AU Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	ATMEGA32U4-AU	-	-	View	Buy Now

ATMEGA32U4-AU Overview

8-BIT, FLASH, 16 MHz, RISC MICROCONTROLLER, PQFP44

ATMEGA32U4-AU Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Atmel (Microchip)
Parts packaging code	QFP
package instruction	TQFP, TQFP44,.47SQ,32
Contacts	44
Reach Compliance Code	compli
ECCN code	EAR99
Factory Lead Time	1 week
core architecture	AVR
Device core	AVR
clock speed	16
Memory	2.5
flash memory	32
were able	0
Adc channel	12
ADC resolution	10
Samacsys Descripti	MCU AVR 32K FLASH 16MHZ 44-TQFP Atmel ATMEGA32U4-AU, 8bit AVR Microcontroller, 16MHz, 1 kB, 32 kB Flash, 44-Pin TQFP
Has ADC	YES
Other features	ALSO OPERATES AT 8 MHZ WITH A MINIMUM SUPPLY OF 2.7V
Address bus width
bit size	8
CPU series	AVR RISC
maximum clock frequency	16 MHz
DAC channel	NO
DMA channel	NO
External data bus width
JESD-30 code	S-PQFP-G44
length	10 mm
Number of I/O lines	26
Number of terminals	44
On-chip program ROM width	16
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PWM channel	YES
Package body material	PLASTIC/EPOXY
encapsulated code	TQFP
Encapsulate equivalent code	TQFP44,.47SQ,32
Package shape	SQUARE
Package form	FLATPACK, THIN PROFILE
power supply	3/5 V
Certification status	Not Qualified
RAM (bytes)	2560
rom(word)	16384
ROM programmability	FLASH
Maximum seat height	1.2 mm
speed	16 MHz
Maximum slew rate	15 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	QUAD
width	10 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER, RISC

Preview

Download Datasheet

View All

Features

•

High Performance, Low Power AVR

8-Bit Microcontroller

•

Advanced RISC Architecture

– 135 Powerful Instructions – Most Single Clock Cycle Execution

– 32 x 8 General Purpose Working Registers

– Fully Static Operation

– Up to 16 MIPS Throughput at 16 MHz

– On-Chip 2-cycle Multiplier

Non-volatile Program and Data Memories

– 16/32K Bytes of In-System Self-Programmable Flash (ATmega16U4/ATmega32U4)

– 1.25/2.5K Bytes Internal SRAM (ATmega16U4/ATmega32U4)

– 512Bytes/1K Bytes Internal EEPROM (ATmega16U4/ATmega32U4)

– Write/Erase Cycles: 10,000 Flash/100,000 EEPROM

– Data retention: 20 years at 85°C/ 100 years at 25°C

(1)

– Optional Boot Code Section with Independent Lock Bits

In-System Programming by On-chip Boot Program hardware activated after

reset

True Read-While-Write Operation

All supplied parts are preprogramed with a default USB bootloader

– Programming Lock for Software Security

JTAG (IEEE std. 1149.1 compliant) Interface

– Boundary-scan Capabilities According to the JTAG Standard

– Extensive On-chip Debug Support

– Programming of Flash, EEPROM, Fuses, and Lock Bits through the JTAG Interface

USB 2.0 Full-speed/Low Speed Device Module with Interrupt on Transfer Completion

– Complies fully with Universal Serial Bus Specification Rev 2.0

– Supports data transfer rates up to 12 Mbit/s and 1.5 Mbit/s

– Endpoint 0 for Control Transfers: up to 64-bytes

– 6 Programmable Endpoints with IN or Out Directions and with Bulk, Interrupt or

Isochronous Transfers

– Configurable Endpoints size up to 256 bytes in double bank mode

– Fully independent 832 bytes USB DPRAM for endpoint memory allocation

– Suspend/Resume Interrupts

– CPU Reset possible on USB Bus Reset detection

– 48 MHz from PLL for Full-speed Bus Operation

– USB Bus Connection/Disconnection on Microcontroller Request

Peripheral Features

– On-chip PLL for USB and High Speed Timer: 32 up to 96 MHz operation

– Two 8-bit Timer/Counters with Separate Prescaler and Compare Mode

– Two 16-bit Timer/Counter with Separate Prescaler, Compare- and Capture Mode

– One 10-bit High-Speed Timer/Counter with PLL (64 MHz) and Compare Mode

– Four 8-bit PWM Channels

– Four PWM Channels with Programmable Resolution from 2 to 16 Bits

– Six PWM Channels for High Speed Operation, with Programmable Resolution from

2 to 11 Bits

– Output Compare Modulator

– 12-channels, 10-bit ADC (features Differential Channels with Programmable Gain)

– Programmable Serial USART with Hardware Flow Control

– Master/Slave SPI Serial Interface

•

8-bit

Microcontroller

with

16/32K Bytes of

ISP Flash

and USB

Controller

ATmega16U4

ATmega32U4

•

Preliminary

•

7766D–AVR–01/09

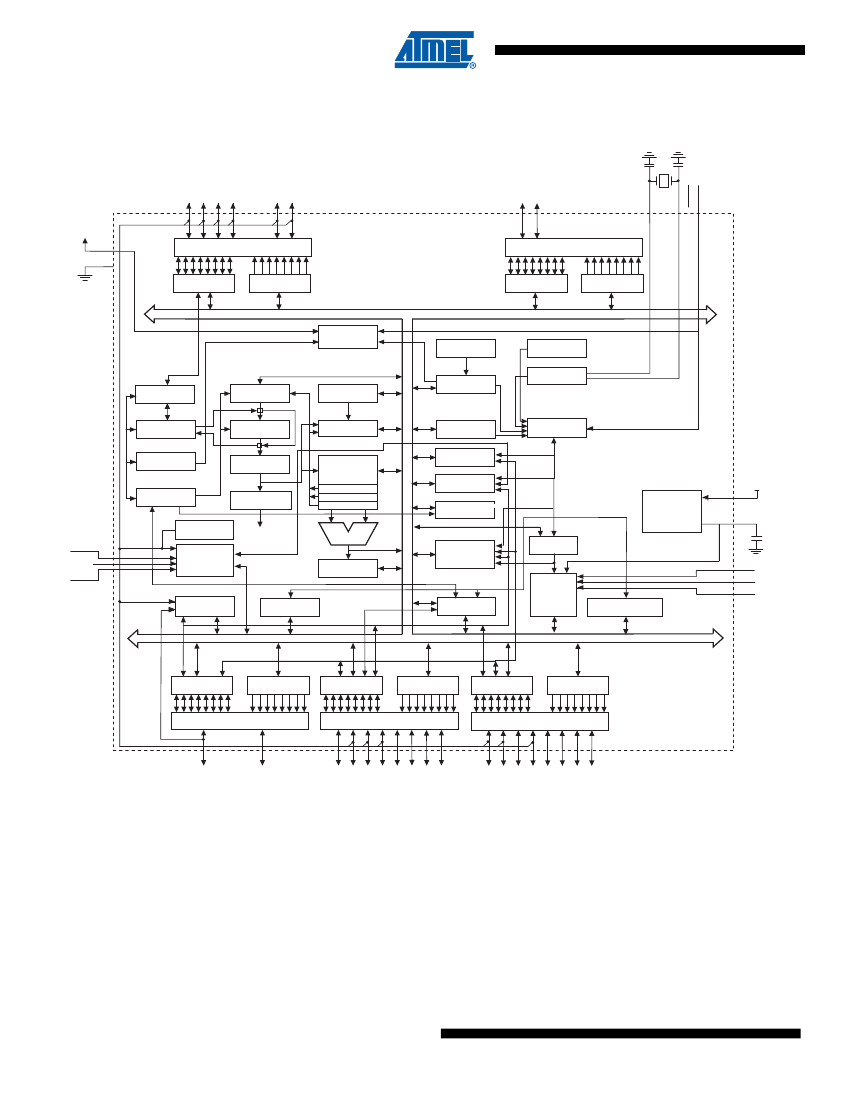

ATmega16U4/ATmega32U4

channels 10-bit ADC with optional differential input stage with programmable gain, an on-chip

calibrated temperature sensor, a programmable Watchdog Timer with Internal Oscillator, an SPI

serial port, IEEE std. 1149.1 compliant JTAG test interface, also used for accessing the On-chip

Debug system and programming and six software selectable power saving modes. The Idle

mode stops the CPU while allowing the SRAM, Timer/Counters, SPI port, and interrupt system

to continue functioning. The Power-down mode saves the register contents but freezes the

Oscillator, disabling all other chip functions until the next interrupt or Hardware Reset. The ADC

Noise Reduction mode stops the CPU and all I/O modules except ADC, to minimize switching

noise during ADC conversions. In Standby mode, the Crystal/Resonator Oscillator is running

while the rest of the device is sleeping. This allows very fast start-up combined with low power

consumption.

The device is manufactured using ATMEL’s high-density nonvolatile memory technology. The

On-chip ISP Flash allows the program memory to be reprogrammed in-system through an SPI

serial interface, by a conventional nonvolatile memory programmer, or by an On-chip Boot pro-

gram running on the AVR core. The boot program can use any interface to download the

application program in the application Flash memory. Software in the Boot Flash section will

continue to run while the Application Flash section is updated, providing true Read-While-Write

operation. By combining an 8-bit RISC CPU with In-System Self-Programmable Flash on a

monolithic chip, the ATMEL ATmega16U4/ATmega32U4 is a powerful microcontroller that pro-

vides a highly flexible and cost effective solution to many embedded control applications.

The ATmega16U4/ATmega32U4 AVR is supported with a full suite of program and system

development tools including: C compilers, macro assemblers, program debugger/simulators, in-

circuit emulators, and evaluation kits.

2.2

2.2.1

Pin Descriptions

VCC

Digital supply voltage.

2.2.2

GND

Ground.

2.2.3

Port B (PB7..PB0)

Port B is an 8-bit bi-directional I/O port with internal pull-up resistors (selected for each bit). The

Port B output buffers have symmetrical drive characteristics with both high sink and source

capability. As inputs, Port B pins that are externally pulled low will source current if the pull-up

resistors are activated. The Port B pins are tri-stated when a reset condition becomes active,

even if the clock is not running.

Port B has better driving capabilities than the other ports.

Port B also serves the functions of various special features of the ATmega16U4/ATmega32U4

as listed on

page 71.

2.2.4

Port C (PC7,PC6)

Port C is an 8-bit bi-directional I/O port with internal pull-up resistors (selected for each bit). The

Port C output buffers have symmetrical drive characteristics with both high sink and source

capability. As inputs, Port C pins that are externally pulled low will source current if the pull-up

resistors are activated. The Port C pins are tri-stated when a reset condition becomes active,

even if the clock is not running.

7766D–AVR–01/09
