MLR
Epoxy Dipped Radial Lead
Metallized Polyphenylene
Sulphide Film Capacitors
•
•
•
Temperature stable
High temperature
RoHS compliant
-40°C to +125°C
±10% at 1kHz, 20°C
100
For T> +105°C the applied voltage must be decreased by 1.5% per °C
Freq. (kHz)
1
100
.1%
.3%
15000MΩ Minimum, 100VDC applied for 60 seconds
1,000 hours at 125% of rated VDC and at 105°C
Capacitance Change
≤5%
of initial measured value
≤200%
of maximum specified value
>50%of mimimum specified value
•
Automotive
•
Audio
•
Polycarbonate alternative
Operating Temperature Range
Capacitance Tolerance
Rated Voltage
Dissipation Factor
(max) at 20°C
Insulation Resistance
VDC
Load Life Test
Dissipation Factor
Insulation Resistance
500 hours at 40°C ±2°C with 90-95% relative humidity and 100% of rated WVDC
Damp Heat Test
Capacitance Change
Dissipation Factor
Insulation Resistance
≤5%
change from initial value.
≤0.005
at 1kHz and 25°C
>33%of minimum specification
≤1
nH/mm along the capacitor pitch and lead wire length.
150% of rated WVDC applied between the terminals for 60 seconds
Self-inductance
Dielectric
Strength
Capacitance Drift Factor
Temperature Coefficient
Dielectric
Electrodes
Construction
Leads
Coating
200% of rated WVDC applied to the terminals and the case for 1 to 5 seconds
≤1.0%
up to 40°C after 2 years
0 ppm/°C, ± 100ppm/°C
Polyphenylene sulphide
Vacuum deposited metal layers
Wound Metalized film
Lead free Tinned copper wire
Flame retardant epoxy sealed resin (UL 94V-O)
Capacitance
(µF)
0.1
0.12
0.15
0.18
0.22
0.27
0.3
0.33
0.36
WVDC
PART
NUMBER
104MLR100K
124MLR100K
154MLR100K
184MLR100K
224MLR100K
274MLR100K
304MLR100K
334MLR100K
364MLR100K
dv/dt
(v/µs)
Maximum
RMS current
1kHz,20°C.
LxHxT
(mm)
S
(mm)
d
(mm)
L max
T
max
H max
G
100
100
100
100
100
100
100
100
100
15
15
15
15
15
15
15
15
15
0.18
0.16
0.12
0.1
0.09
0.072
0.06
0.05
0.04
13x9x5.5
13x9.5x6
13x9.5x6
13x10x6
13x10x6
13x11x7
13x12x7.5
13x12x8
13x12x8
8.0
8.0
8.0
8.0
8.0
8.0
8.0
9.0
9.0
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
15
min.
d
S±1.5
®
3757 W. Touhy Ave., Lincolnwood, IL 60712 • (847) 675-1760 • Fax (847) 673-2850 • www.illcap.com
1
MLR
Epoxy dipped Radial lead
Metallized Polphenylene
Sulphide Film Capacitors

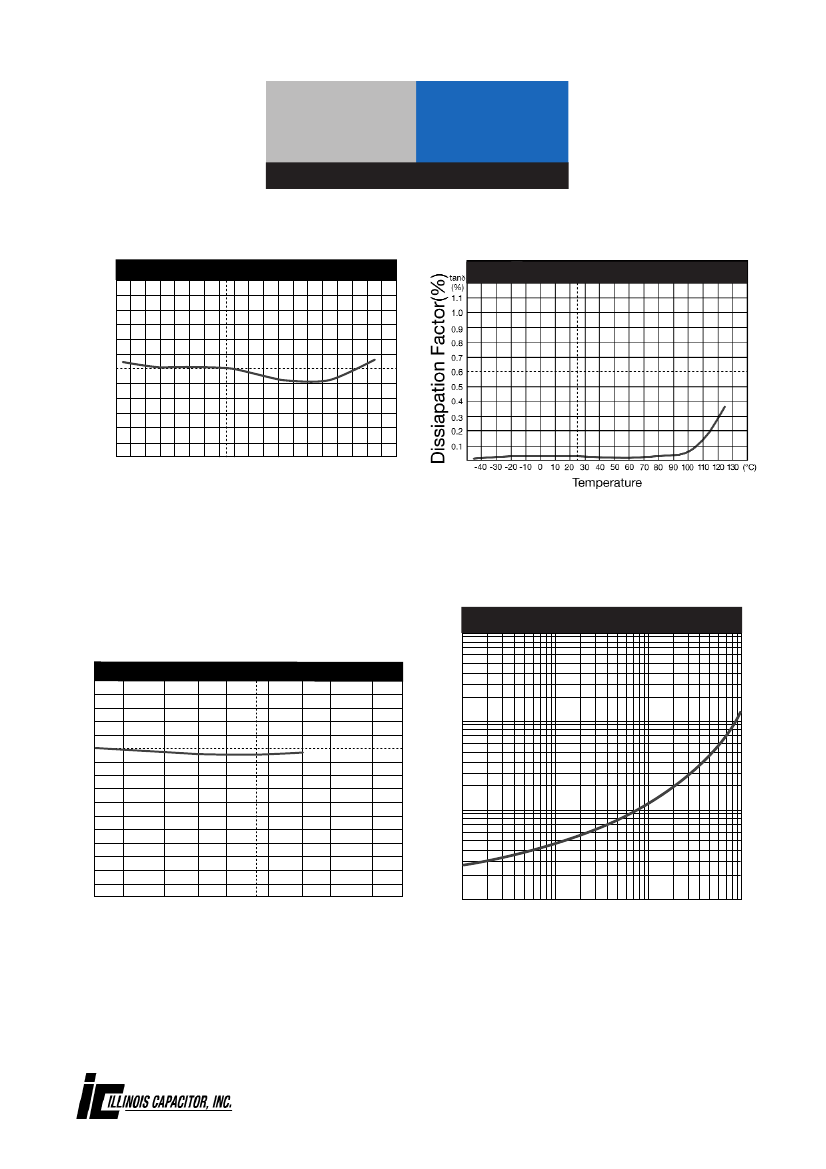

Enviromental and frequency characterisitc graphs
Temperature vs Capacitance
Temperature vs tanδ
Capacity Change (%)
5
4
3
2
1
0
-1
-2
-3
-4
-5
-40 -30 -20 -10 0 10 20 30 40 50 60 70 80 90 100 110 120 130 (°C)
Temperature
Dissipation Factor (tanδ) vs Frequency.
Frequency Character
0.5
0.4
0.3
0.2
0
-0.1
-0.2
-0.3
-0.4
-0.5
-0.6
-0.7
-0.8
-0.9
-1.0
Capacity Change (%)
1.0
Dissiapation Factor (%)
0.1
0.1
10
3
2
5
10
4
2
4 5
10
5
2
5
10
6
10
3
2
5
10
4
2
5
10
5
2
5
10
6
0.01
Frequency (Hz)
®
3757 W. Touhy Ave., Lincolnwood, IL 60712 • (847) 675-1760 • Fax (847) 673-2850 • www.illcap.com
