90942-014 datasheet, PDF - EEWORLD Datasheet

90942-014: DescriptionCard Edge Connector, 14 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal; CategoryThe connector The connector; File Size73KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

90942-014 Overview

Card Edge Connector, 14 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal

Parameter Name	Attribute value
Reach Compliance Code	compliant
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	TIN LEAD
Contact completed and terminated	TIN LEAD
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	0.5 mm
Termination type	SURFACE MOUNT
Total number of contacts	14
UL Flammability Code	94V-0
Base Number Matches	1

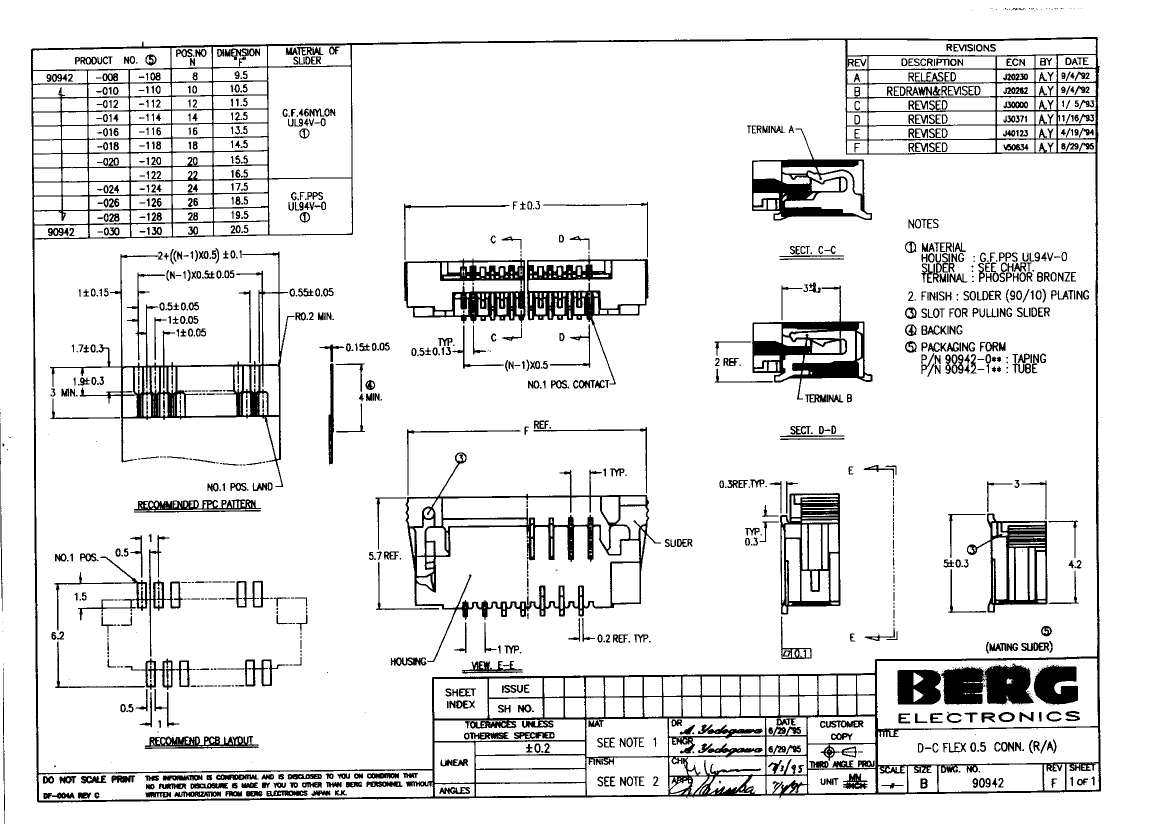

PDM: Rev:F

STATUS:

Released

Printed: Oct 10, 2006

.
