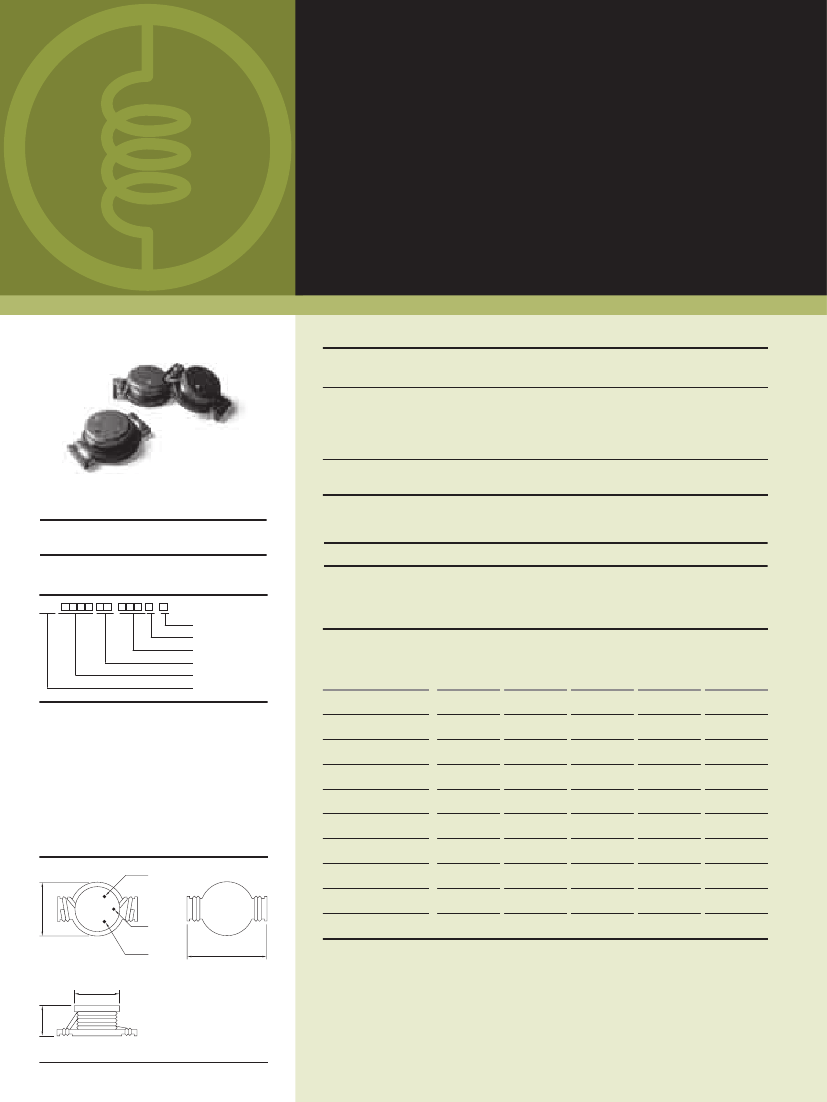

SMD Power Inductors
SSL1306HC Series
These series have been specially designed for high current, low voltage DC-DC converter applica-
tions.
This simple, rugged design provides current ratings normally available only in much larger packages
- up to 16Arms for a .33µH part. With its tinned self-leaded construction, the SSL0804HC achieves
very low DCR values and excellent solderability. In addition to the standard parts shown, custom val-
ues are also available.
These inductors are less than .2’ (5mm) high. They have very low resistance and a rugged self-
leaded construction.
fEATURES
For high current, low voltage DC-DC converter
applications.
AppLICATIonS
Notebook computers, Sep-up and step-down converters, memory programmers. etc...
pRodUCT IdEnTIfICATIon
SSL
-
-
International No.
Tolerance
Inductance
High Current
Dimensions
Product Symbol
ELECTRICAL CHARACTERISTICS
pART no.
SSL1306HC-R78M-S
IndUCTAnCE
(µH ± 20%) *
0.78
1.5
2.2
3.3
3.9
4.7
6.0
7.8
10
15
SRf
(mHz)
156
100
75
60
55
40
35
35
28
20
dC
RESISTAnCE
(Ω) Max.
2.6
4.0
6.1
8.6
10
14
17
18
26
32
Isat **
(A)
30
25
20
17
15
13
12
11
10
8
Irms ***
(A)
15
15
12
10
9.0
8.4
7.5
7.5
6.0
4.4
• Packaging: T: Tape and Reel, B:Bulk
• Tolerance: M: ±20%
• Note: YAGEO will start to release SSL_HC
Series inductors with lead-free terminals
which meet SONY SS-00259's criteria
for lead-free product in Q2 of 2004, and
YAGEO Internal No will be changed to ‘N’
as identification. Ex. SSL0503HC-R56M-N
SSL1306HC-1R5M-S
SSL1306HC-2R2M-S
SSL1306HC-3R3M-S
SSL1306HC-3R9M-S
SSL1306HC-4R7M-S
SSL1306HC-6R0M-S
SSL1306HC-7R8M-S
SSL1306HC-100M-S
SSL1306HC-150M-S
SHApES And dImEnSIonS
1st.
Significant
Digit
16.26
2nd.
Significant
Digit
3rd.
Multiplier
22.35
* L : Tested at 0.1 Vrms, 100 KHz (HP-4192A)
** Isat : Inductance Drop = 10% Typ.
*** ∆T = 40°C Typ at Irms.
Operating Temperature Range -40°C to +85°C
12.7
8.0
Dimensions : mm
281
ELECTRICAL CHARACTERISTICS : LEAd-fREE & RoHS CompLIAnCE
pART no.
SSL1306HC-R78
SSL1306HC-1R5
SSL1306HC-2R2
SSL1306HC-3R3
SSL1306HC-3R9
SSL1306HC-4R7
SSL1306HC-6R0
SSL1306HC-7R8
SSL1306HC-100
SSL1306HC-150
-N
-N
-N
-N
-N
-N
-N
-N
-N
-N
IndUCTAnCE
(nH)
0.78
1.5
2.2
3.3
3.9
4.7
6
7.8
10
15
ToLERAnCE
(±%)
20
20
20
20
20
20
20
20
20
20
Rdc
(Ω)
0.0026+0
0.0040+0
0.0061+0
0.0086+0
0.0100+0
0.0140+0
0.0170+0
0.0180+0
0.0260+0
0.0320+0
Isat
(A)
30TYP.
25TYP.
20TYP.
17TYP.
15TYP.
13TYP.
12TYP.
11TYP.
10TYP.
8TYP.
Irms
(A)
15
15
12
10
9
8.4
7.5
7.5
6
4.4
SRf
(KHz)Typ.
156
100
75
60
55
40
35
35
28
20
NOTE :
-tolerance M=±20% / T=±30%
1.Operating temperature range -40°C~85°C
2.Inductance drop 10% typ. at last
3. ∆T=40°C rise typ.at Irms.
"-N"FOR COMPLETELY LEAD FREE TYPE(INCLUDING FERRITE BODY & SOLDER)
282
TApE dImEnSIonS
TApE mATERIAL
Carrier Tape : Polystyrene
Cover Type : Polyethylene
P0
P2
E
K0
K0
Plastic
Paper
W
D
P
160mm Min.
Blank Part
Cover Tape
Chip Mounting
Part
Blank
330mm Min.
Leader
REEL dImEnSIonS
RECommEndEd pATTERn
Land pattern
A
C
B
A
B
D
D
C
Dimensions : mm
TYpE
TApE
dImEnSIonS
k0
SSL0503HC 5.3
d
1.55
E
1.75
W
16
p
12
p0
4
p2
2
RECommEndEd
pATTERn
UnIT A
In
mm
SSL0804HC 6.1
1.55
1.75
24
16
4
2
In
mm
SSL1306HC 7.2
1.55
1.75
44
24
4
2
In
mm
0.075
1.91
0.060
1.521
0.125
3.18
B
0.160
4.06
0.160
4.06
0.340
8.64
C
0.350
8.89
0.460
11.68
0.820
20.71
d
0.200
5.08
0.34
8.64
0.560
14.35
330
100
13
45.4
250
330
100
13
24.2
750
REEL
dImEnSIonS
A
330
B
100
C
13
d
17.4
1000
QUAnTITY
/REEL
283
SSL SERIES RELIABILITY TEST
1-1 MECHANICAL PERFORMANCE
NO.
1-1-1
ITEM
Vibration
SPECIFICATION
Appearance : No Damage
L Change : within ±10%
Q Change : within ±30%
RDC : within Specification
1-1-2
Resistance to
Soldering Heat
Appearance : No Damage
TEST CONDITIONS
Test device shall be soldered on the substrate.
Oscillation Frequency : 10 to 55 to 10Hz for 1Min.
Amplitude : 1.5mm
Time : 2Hrs. for each Axis (X,Y & Z), Total 6Hrs.
Pre-heating : 150°C, 1Min.
Solder Composition : Sn/Pb = 63/37
Solder Temperature : 260 ± 5°C
Immersion Time : 10 ± 1Sec.
1-1-3
Solderability
The electrodes shall be at least 90% covered
with new solder coating.
Pre-heating : 150°C, 1Min.
Solder Composition : Sn/Pb = 63/37
Solder Temperature : 230 ± 5°C
Immersion Time : 4 ± 1Sec.
1-2 EnVIRonmEnTAL pERfoRmAnCE
NO.
1-2-1
ITEM
Temperature Shock
SPECIFICATION
Appearance : No Damage
L Change : within ±10%
L Change : within ±30%
RDC : within Specification
1-2-2
Temperature Cycle
TEST CONDITIONS
10 Cycles (Air to Air) 1 Cycles shall Consist of :
30Min. Exposure to -55°C
30Min. Exposure to 125°C
15Sec. Max. Transition between Temperatures
Measured after Exposure in the Room Condition for 24Hrs.
One Cycle
Step
1
2
3
4
Total : 100 Cycles
Measured after Exposure in the Room Condition for 24Hrs.
1-2-3
Humidity Resistance
Temperature : 40 ± 2°C
Relative Humidity : 90 ~ 95%
Time : 1000Hrs.
Measured after Exposure in the Room Condition for 24Hrs.
1-2-4
High Temperature
Resistance
Temperature : 85 ± 3°C
Relative Humidity : 20%
Applied Current : Rated Current
Time : 1000Hrs.
Measured after Exposure in the Room Condition for 24Hrs.
1-2-5
Low Temperature
Resistance
Temperature : -25 ± 3°C
Relative Humidity : 0%
Time : 1000Hrs.
Measured after Exposure in the Room Condition for 24Hrs.
Temperature (∆C)
-25 ± 3
25 ± 2
85 ± 3
25 ± 2
Time (min.)
30
3
30
3
284
TYpICAL ELECTRICAL CHARACTERISTICS
Curves of SSL Series
300
250
200
L (uH)
SSL0503HC, INDUCTANCE vs. FREQUENCY CHARACTERISTICS
47uH
60
50
SSL0503HC, Q vs. FREQUENCY CHARACTERISTICS
47uH
40
L (uH)
150
100
50
0
33uH
30
33uH
20
10
4.7uH
1
10
100
1000
10000
100000
FREQUENCY (kHz)
4.7uH
0
1
2
3
4
5
6
IDC(A)
0
50
40
30
L (uH)
SSL0804HC, INDUCTANCE vs. FREQUENCY CHARACTERISTICS
25
22uH
20
15
L (uH)
SSL0804HC, Q vs. FREQUENCY CHARACTERISTICS
22uH
20
10uH
10
0
1.5uH
1
10
100
1000
10000
100000
10
5
10uH
1.5uH
0
0
2
4
6
8
10
12
14
16
IDC(A)
FREQUENCY (kHz)
40
35
30
25
L (uH)
SSL1306HC, INDUCTANCE vs. FREQUENCY CHARACTERISTICS
18
16
14
12
L (uH)
SSL1306HC, Q vs. FREQUENCY CHARACTERISTICS
15uH
20
15
10
5
0
1
10
100
15uH
10uH
4.7uH
10
8
6
4
2
10uH
4.7uH
1000
10000
100000
0
0
4
8
12
16
20
24
IDC(A)
FREQUENCY (kHz)
