318-506-22-03: DescriptionTRIPLE COLOR LED, RED/GREEN, 7 mm; CategoryLED optoelectronic/LED; File Size163KB，3 Pages; ManufacturerMarl International; Websitehttps://www.leds.co.uk

Download Datasheet Parametric View All

318-506-22-03 Overview

TRIPLE COLOR LED, RED/GREEN, 7 mm

318-506-22-03 Parametric

Parameter Name	Attribute value
Maximum operating temperature	85 Cel
Minimum operating temperature	-40 Cel
Number of functions	1
Number of terminals	3
Processing package description	ROHS COMPLIANT, PACKAGE-3
Lead-free	Yes
EU RoHS regulations	Yes
state	ACTIVE-UNCONFIRMED
terminal coating	Tin OVER Nickel
structure	COMMON CATHODE, 2 ELEMENTS
Optoelectronic device type	Three color light emitting diodes
color	Red Green
Maximum continuous forward current	20 mA
LED height	27.8 mm
lead gap	4.2 mm
Lens type	WATER CLEAR
light intensity	60.0/50.0
Installation features	Panel mounting
peak wavelength	627/565
shape	round
size	7 mm

Preview

Download Datasheet

View All

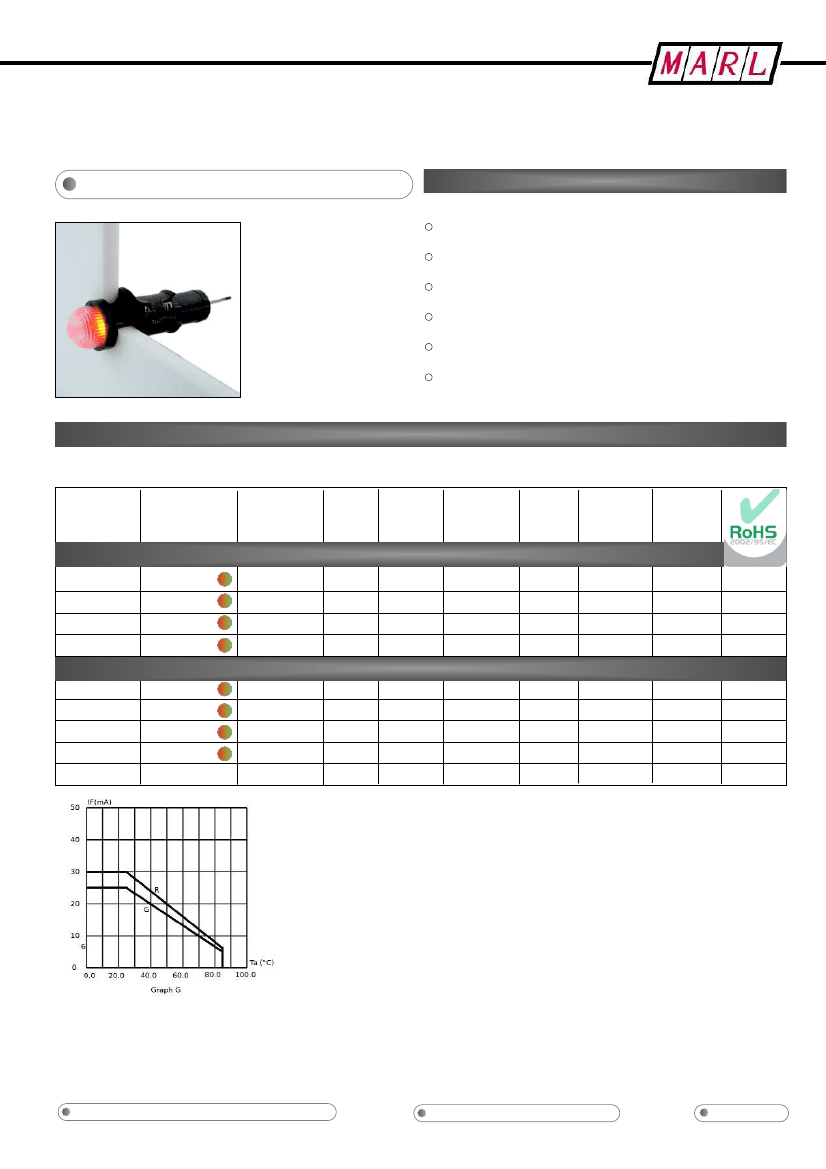

PANEL INDICATOR LEDs - Ø6.35mm Mounting

FEATURES

318

Bi-colour &

Tri-colour

SERIES

Domed fresnel lens styling for wide viewing angle

Flying lead terminations available

Available as a Red/Amber/Green tri-colour indicator

Sealed to IP40

Supplied complete with mounting hardware

Product illustrated 318-530-23

PACK QUANTITY = 20 PIECES

SPECIFICATIONS

Ordering Information & Typical T

echnical Characteristics (T

a = 25°C)

Mean Time Between Failure Typically = 100,000 Hours.

PART NUMBER

COLOUR

LENS

Luminous intensity figures refer to the unmodified discrete LED.

VOLTAGE

CURRENT

LUMINOUS

WAVE

OPERATING

STORAGE

DC (Vdc)

Vopr

DC (mA)

lopr

INTENSITY

lv@20mA (mcd)

LENGTH

λp

(nm)

TEMP

T

opr

TEMP

T

stg

BI-COLOUR STANDARD INTENSITY

318-530-04

318-530-20

318-530-21

318-530-23

Red/Green

Water Clear

2.0/2.2

5/6

12

24-28

20

15/20

20

30/25

627/565

-40 ~ +85^

-40 ~ +85

Yes

TRI-COLOUR STANDARD INTENSITY

318-535-04-35

318-535-20-35

318-535-21-35

318-535-22-35

UNITS

530 & 535

Red/Green

Water Clear

2.0/2.2

5/6

12

24-28

Vdc

20

15/20

20

mA

60/50

mcd

627/565

nm

-40 ~ +85^

°C

-40 ~ +85

°C

Yes

^ = Products must be derated according to the derating information. Each derating graph

refers to specific LEDs.

Appropriate LED numbers shown.

How to Order:

website: www.marl.co.uk • email: sales@marl.co.uk •

•

T

elephone +44 (0)1229 582430

•

Fax: +44 (0)1229 585155

relating to either products or service.

for products or service.

The information contained in this datasheet does not constitute part of any order or contract and should not be regarded as a representation

Marl International reserve the right to alter without notice the specification or any conditions of supply

Issue 1

SAMPLES AVAILABLE

Page 1 of

3
