BR13-140B1-12V datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> relay> BR13-140B1-12V

BR13-140B1-12V: DescriptionPower/Signal Relay, 2 Form C, DPDT, Momentary, 0.086A (Coil), 12VDC (Coil), 1032mW (Coil), 5A (Contact), 28VDC (Contact), DC Input, Random, DC Output, Panel Mount,; CategoryMechanical and electronic products relay; File Size668KB，2 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com

Download Datasheet Parametric View All

BR13-140B1-12V Overview

Power/Signal Relay, 2 Form C, DPDT, Momentary, 0.086A (Coil), 12VDC (Coil), 1032mW (Coil), 5A (Contact), 28VDC (Contact), DC Input, Random, DC Output, Panel Mount,

BR13-140B1-12V Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
ECCN code	EAR99
body width	10.41 mm
body height	22.86 mm
Body length or diameter	20.57 mm
Maximum coil current (DC)	0.086 A
Coil operating voltage (DC)	8.4 V
Coil power	1032 mW
Coil release voltage (DC)	0.6 V
Coil resistance	140 Ω
Maximum coil voltage (DC)	12 V
Nominal coil voltage	12 V
Coil/Input Power Type	DC
Maximum contact current (DC)	5 A
Contact (DC) maximum rated R load	5A@28VDC
Contact resistance	50 mΩ
Maximum contact voltage (DC)	28 V
Contact/Output Power Type	DC
Dielectric strength between coil and contacts	1000 Vrms
Dielectric strength between breaking contacts	750 Vrms
Input switching control type	Random
Insulation resistance	10000000000 Ω
Installation features	PANEL MOUNT
operating hours	7 ms
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
physical size	20.57mm x 10.41mm x 22.86mm
Guideline	MIL-PRF-39016
Relay action	MOMENTARY
Relay style	2 FORM C
Relay function	DPDT
Relay type	POWER/SIGNAL RELAY
release time	7 ms
surface mount	NO
Termination type	SOLDER HOOK
weight	37 g
Base Number Matches	1

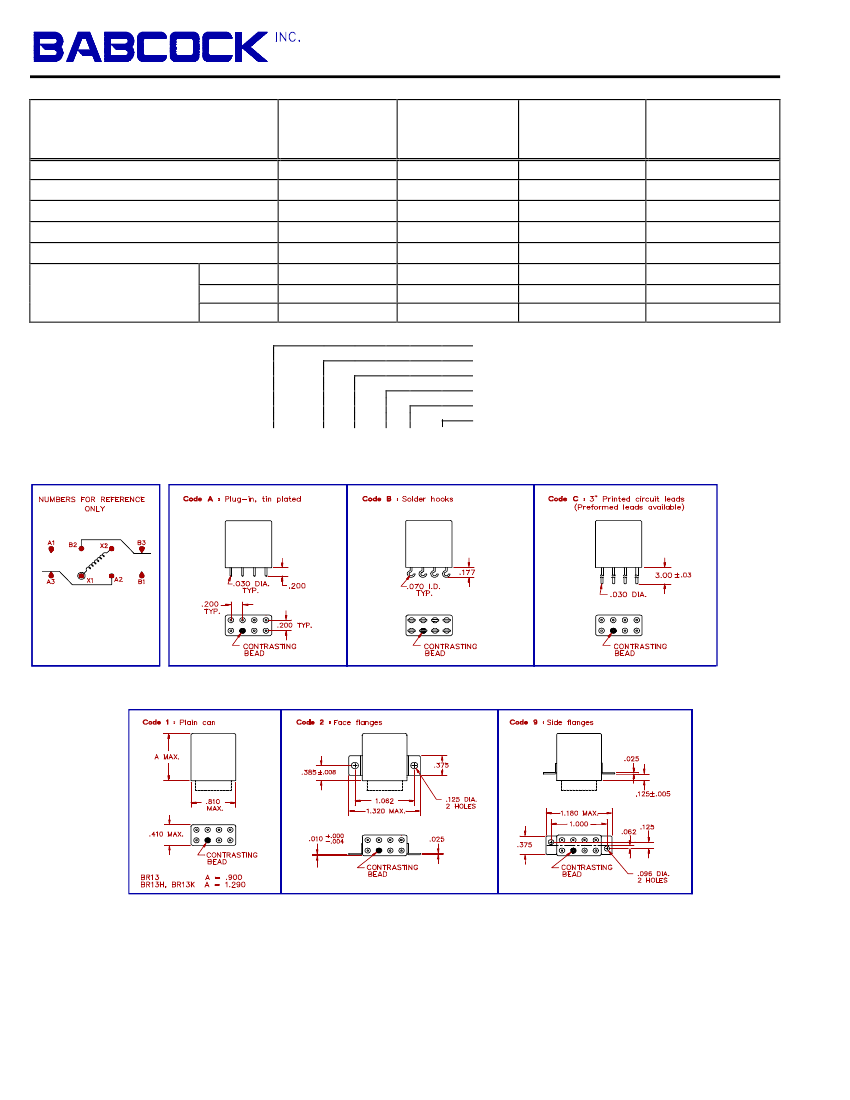

Preview

Download Datasheet

View All

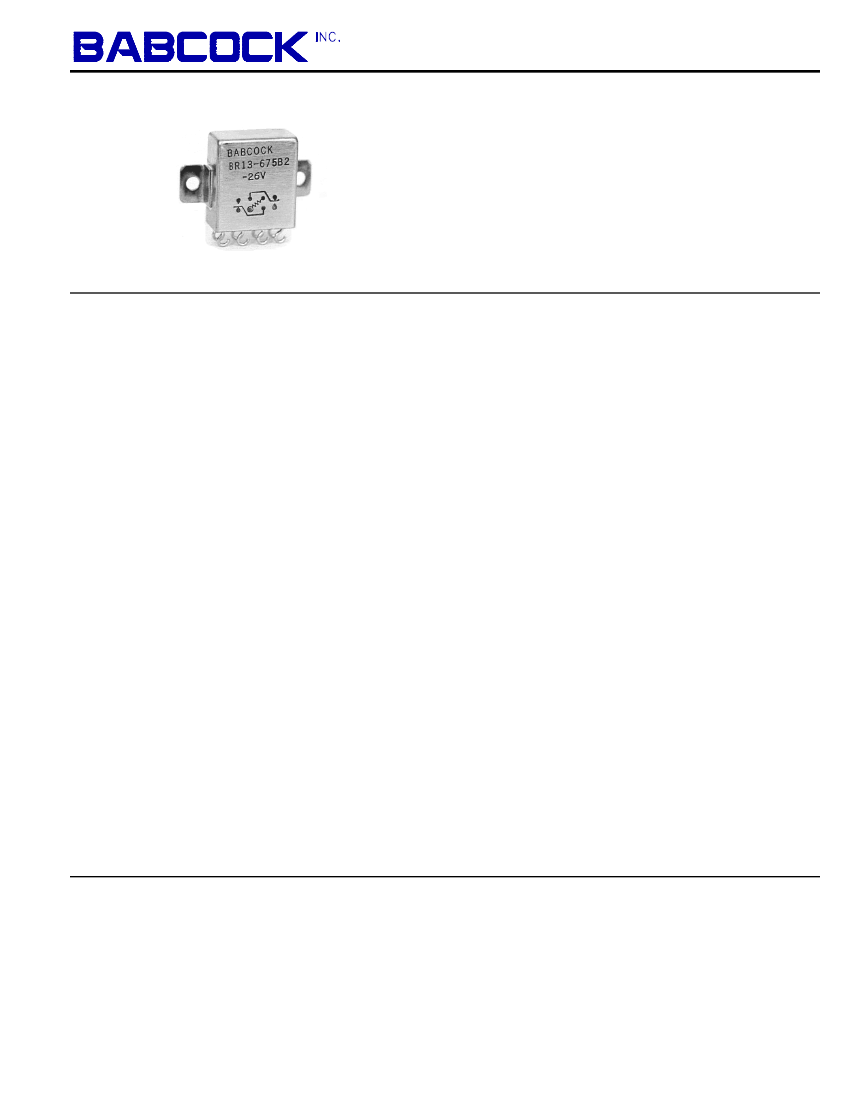

BR13

Crystal Can

Welded • DPDT

Dry Circuit to 5 Amps

SPECIFICATIONS

GENERAL

Contact Arrangement

.......................... 2PDT (2 Form C)

Weight.........................................................

1.3 oz approx.

Designed to meet the requirements of MIL-PRF-39016.

PERFORMANCE

Contact Rating

(Note 1)

Resistive:

BR13 ......................................... 5 Amps @ 28 VDC

BR13H.................3 Amps @ 28 VDC or 2 Amps @

115 VAC, 400 Hz (Case Ungrounded)

BR13K ........................................2 Amps @ 28 VDC

115 VAC, 400 Hz (Case Ungrounded)

Inductive ........................................... 1 Amp @ 28 VDC

Low Level ............................ 10-50 µA @ 10-50 mv DC

or peak AC (Note 4)

Pull In Power:

BR13.....................................................250 mw approx.

BR13H..................................................100 mw approx.

BR13K ....................................................40 mw approx.

Operate/Release Time:

BR13............................................................... 5 ms max

BR13H............................................................ 6 ms max

BR13K .......................................................... 15 ms max

excluding bounce time at nominal coil voltage

Contact Bounce Time:

BR13 and BR13H .............2 MS max @ 2 and 3 Amps

@ 28 VDC

BR13K ........................... 2 MS max @ 2 Amps 28 VDC

Contact Resistance:

Before Life.......................0.050 Ohms @ rated current

and 6 VDC

After Life ..........................0.100 Ohms @ rated current

and 6 VDC

ENVIRONMENTAL

Temperature Range

............................... -65 C to +125 C

Vibration

(Note 2):

BR13............................................... 0.4" DA 10 - 38 Hz,

20 G's 38 - 2,000 Hz

BR13H and BR13K........................ 0.4" DA 10 - 31 Hz,

20 G's 31 - 2,000 Hz

Shock (Operating) (Note 2) .......................... 50 G's 11 ms

ELECTRICAL CHARACTERISTICS

Duty Cycle........................................................Continuous

Insulation Resistance..

10,000 megohms @ 500V 25 C

1,000 megohms @ 500V 125 C

Dielectric Strength:

Sea Level:

Contact to Case ................................... 1,000 VRMS

Contact to Coil ..................................... 1,000 VRMS

Coil to Case ......................................... 1,000 VRMS

Across Open Contacts:

BR13 and BR13H ................................ 750 VRMS

BR13K.................................................. 500 VRMS

70,000 Feet

All points.................................................. 350 VRMS

Notes:

1. For case grounded loads and other ratings, consult the

factory.

For applications requiring other shock and vibration

levels, consult the factory.

For other ratings consult the factory.

Relay contacts which have switched high level currents

are no longer suitable for switching low level loads.
