ME8512SCM-20 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> ME8512SCM-20

ME8512SCM-20: DescriptionEEPROM Module, 512KX8, 200ns, Parallel, CMOS; Categorystorage storage; File Size389KB，10 Pages; ManufacturerMOSAIC; Websitehttp://www.mosaicsemi.com/

Download Datasheet Parametric Compare View All

ME8512SCM-20 Overview

EEPROM Module, 512KX8, 200ns, Parallel, CMOS

ME8512SCM-20 Parametric

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C
Maximum access time	200 ns
Other features	PAGE WRITE; AUTOMATIC WRITE
JESD-30 code	R-XDMA-T32
memory density	4194304 bit
Memory IC Type	EEPROM MODULE
memory width	8
Number of functions	1
Number of terminals	32
word count	524288 words
character code	512000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
organize	512KX8
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Parallel/Serial	PARALLEL
Programming voltage	5 V
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal location	DUAL
Base Number Matches	1

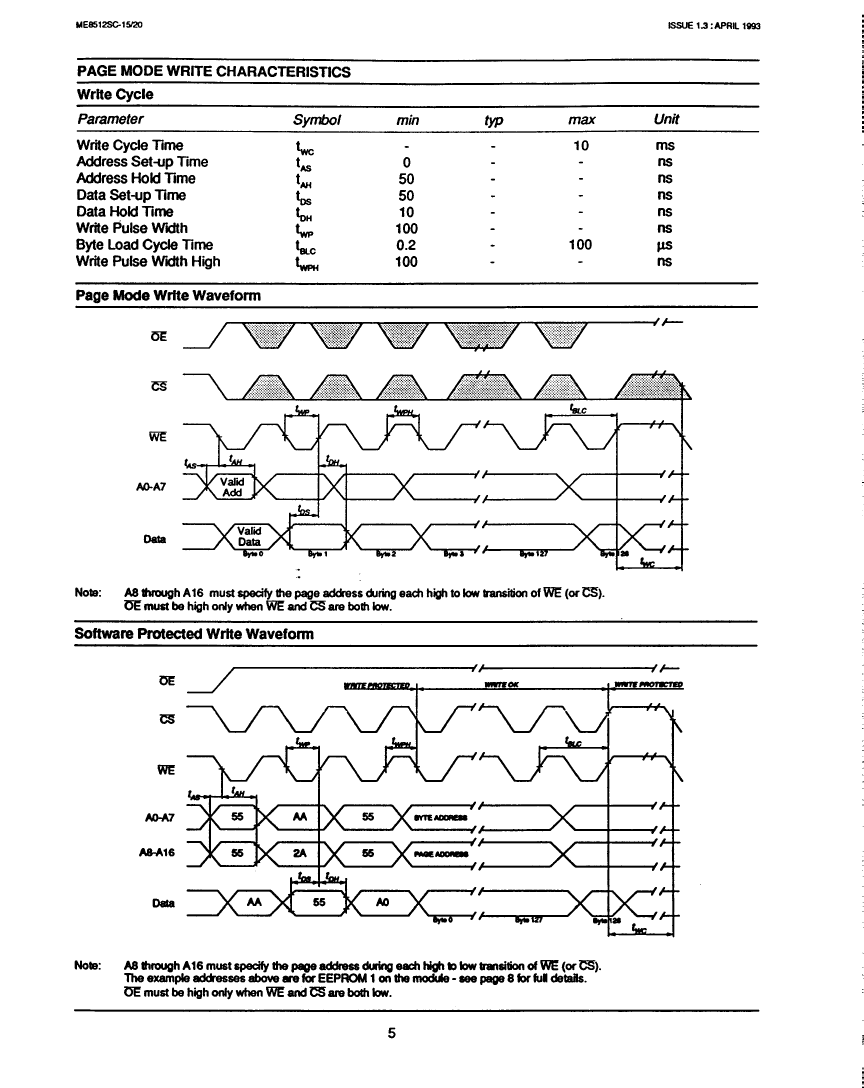

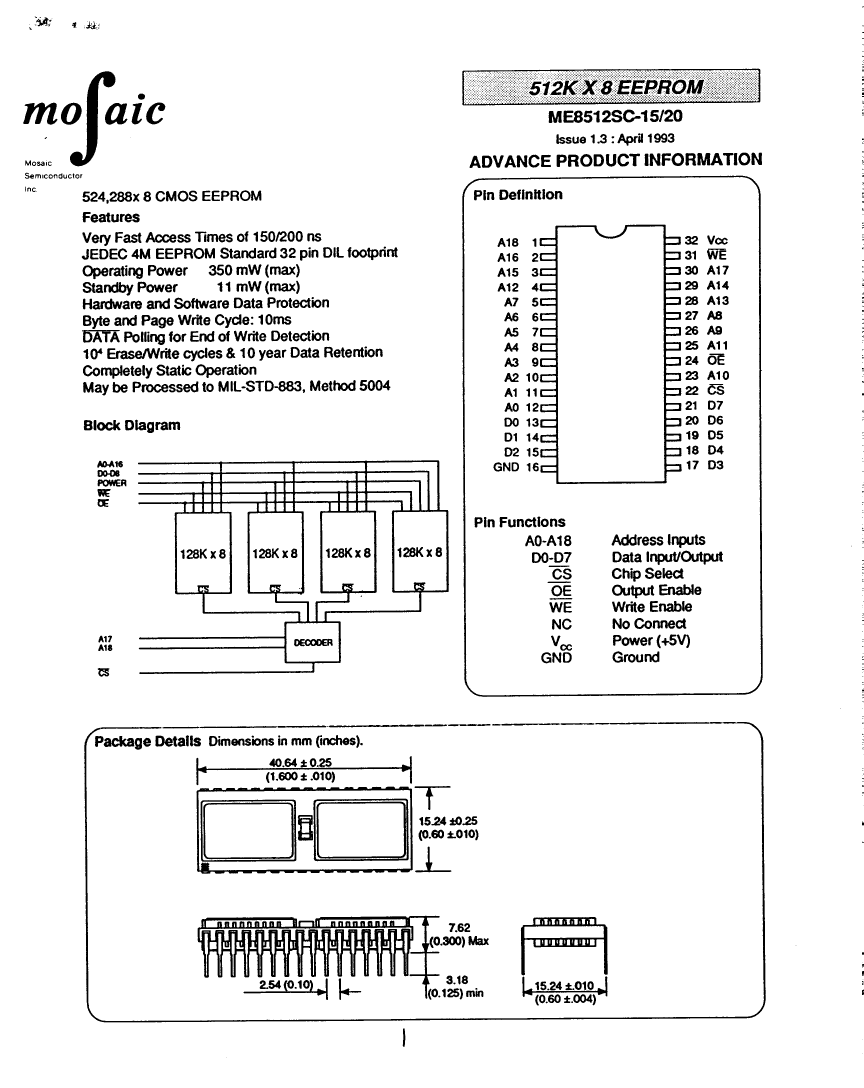

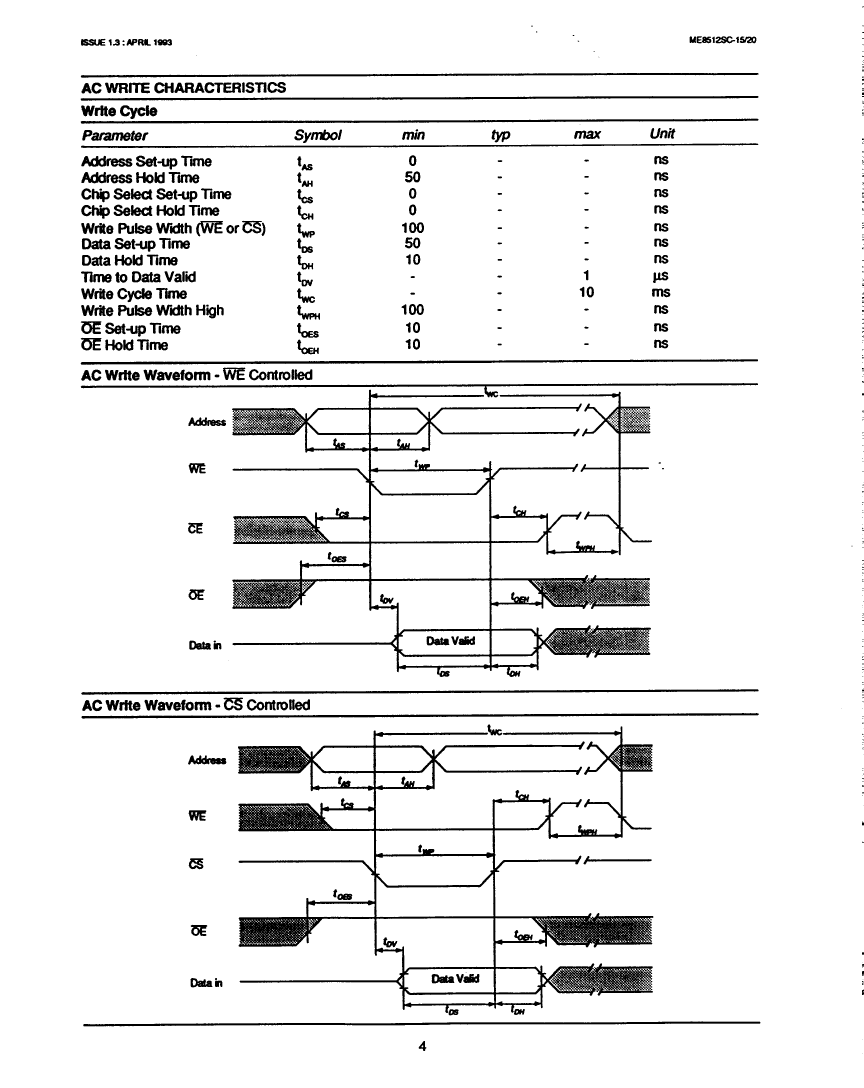

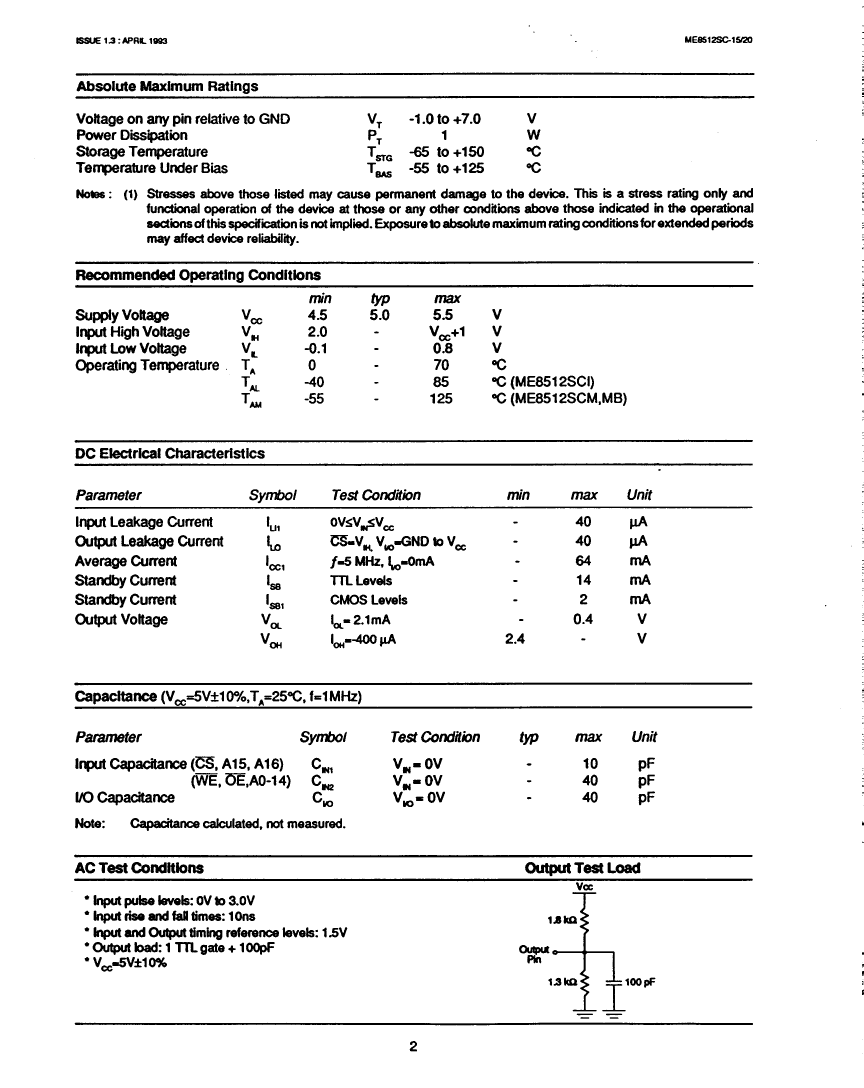

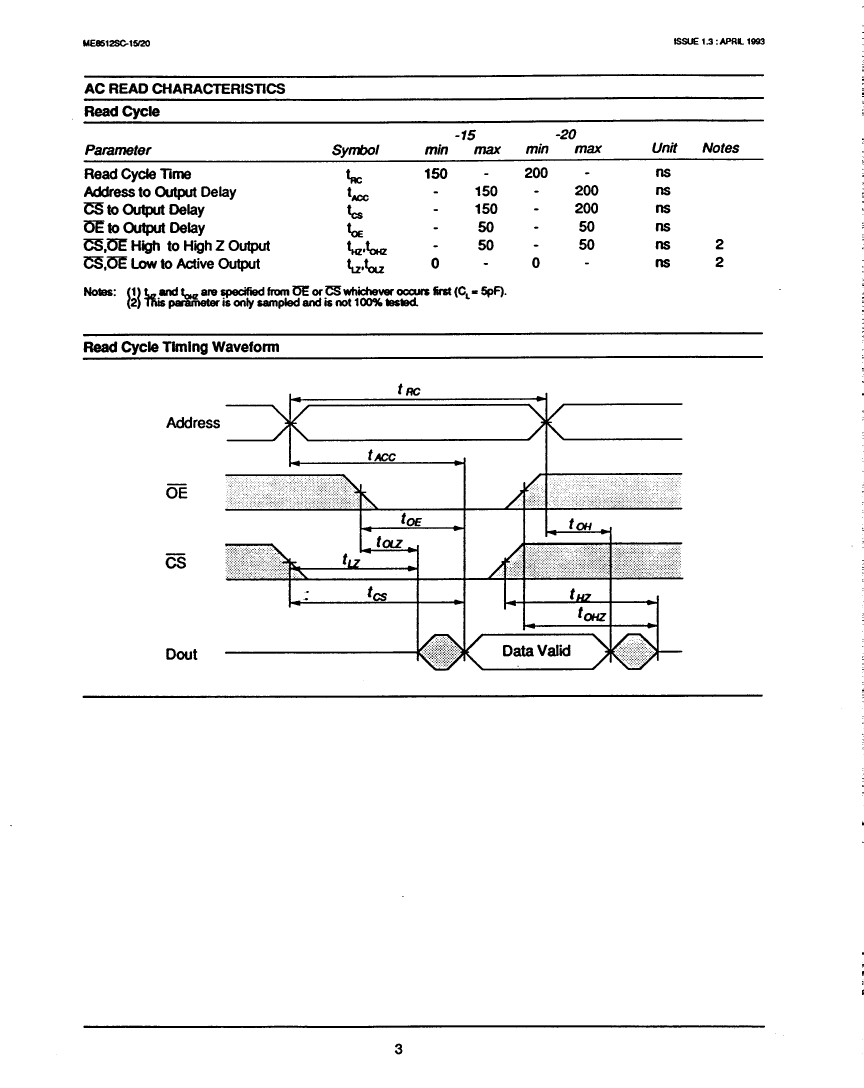

Preview

Download Datasheet

View All

ME8512SCM-20 Related Products

	ME8512SCM-20	ME8512SCMB-20	ME8512SCMB-15	ME8512SC-15	ME8512SCM-15	ME8512SCI-15
Description	EEPROM Module, 512KX8, 200ns, Parallel, CMOS	EEPROM Module, 512KX8, 200ns, Parallel, CMOS	EEPROM Module, 512KX8, 150ns, Parallel, CMOS	EEPROM Module, 512KX8, 150ns, Parallel, CMOS	EEPROM Module, 512KX8, 150ns, Parallel, CMOS	EEPROM Module, 512KX8, 150ns, Parallel, CMOS
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A991.B.1.B.1	3A001.A.2.C	3A991.B.1.B.1
Maximum access time	200 ns	200 ns	150 ns	150 ns	150 ns	150 ns
Other features	PAGE WRITE; AUTOMATIC WRITE	PAGE WRITE; AUTOMATIC WRITE	PAGE WRITE; AUTOMATIC WRITE	PAGE WRITE; AUTOMATIC WRITE	PAGE WRITE; AUTOMATIC WRITE	PAGE WRITE; AUTOMATIC WRITE
JESD-30 code	R-XDMA-T32	R-XDMA-T32	R-XDMA-T32	R-XDMA-T32	R-XDMA-T32	R-XDMA-T32
memory density	4194304 bit	4194304 bit	4194304 bit	4194304 bit	4194304 bit	4194304 bit
Memory IC Type	EEPROM MODULE	EEPROM MODULE	EEPROM MODULE	EEPROM MODULE	EEPROM MODULE	EEPROM MODULE
memory width	8	8	8	8	8	8
Number of functions	1	1	1	1	1	1
Number of terminals	32	32	32	32	32	32
word count	524288 words	524288 words	524288 words	524288 words	524288 words	524288 words
character code	512000	512000	512000	512000	512000	512000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	125 °C	125 °C	125 °C	70 °C	125 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-	-55 °C	-40 °C
organize	512KX8	512KX8	512KX8	512KX8	512KX8	512KX8
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Programming voltage	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	COMMERCIAL	MILITARY	INDUSTRIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Base Number Matches	1	1	1	1	-	-
