LYM676-Q2S1-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> LYM676-Q2S1-1

LYM676-Q2S1-1: DescriptionVisible LED, Clear; CategoryLED optoelectronic/LED photoelectric; File Size116KB，12 Pages; ManufacturerInfineon; Websitehttp://www.infineon.com/

Download Datasheet Parametric Compare View All

LYM676-Q2S1-1 Overview

Visible LED, Clear

LYM676-Q2S1-1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	unknown
color@wavelength	Yellow
Maximum forward current	0.03 A
Maximum forward voltage	2.5 V
JESD-609 code	e0
Lens type	CLEAR
Maximum operating temperature	100 °C
Minimum operating temperature	-40 °C
total height	1.4 mm
peak wavelength	591 nm
Maximum reverse voltage	3 V
Terminal surface	Tin/Lead (Sn/Pb)
perspective	120 deg
Base Number Matches	1

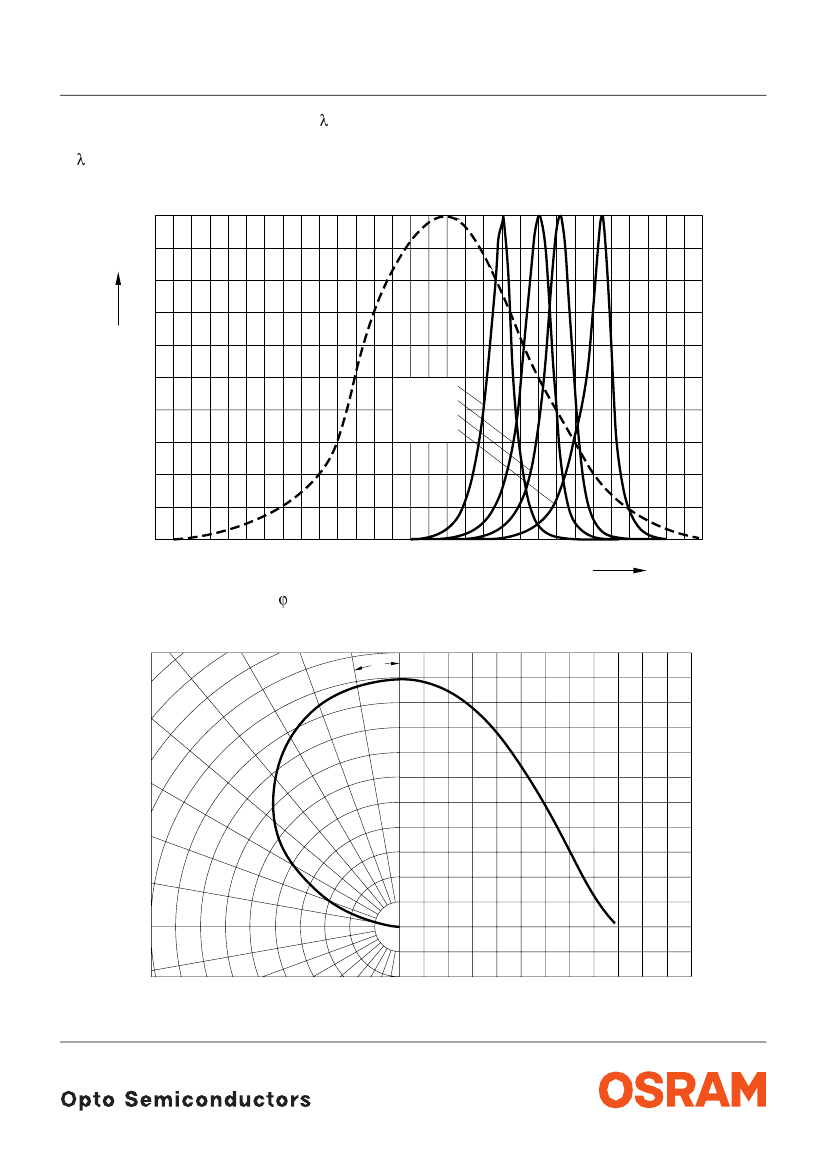

Preview

Download Datasheet

View All

Hyper Mini TOPLED

Hyper-Bright LED

LS M676, LA M676, LO M676, LY M676

Besondere Merkmale

•

Gehäusetyp:

weißes SMT-Gehäuse

•

Besonderheit des Bauteils:

kleine Bauform

2,3 mm x 1,3 mm x 1,4 mm

•

Wellenlänge:

632 nm (super-rot),

615 nm (amber), 605 nm (orange),

587 nm (gelb)

•

Abstrahlwinkel:

Lambertscher Strahler (120°)

•

Technologie:

InGaAlP

•

optischer Wirkungsgrad:

11 lm/W (gelb,

orange, amber), 7 lm/W (super-rot)

•

Gruppierungsparameter:

Lichtstärke

•

Verarbeitungsmethode:

für alle

SMT-Bestücktechniken geeignet

•

Lötmethode:

IR Reflow Löten

•

Vorbehandlung:

nach JEDEC Level 2

•

Gurtung:

8 mm Gurt mit 3000/Rolle, ø180 mm

oder 12000/Rolle, ø330 mm

Anwendungen

•

Informationsanzeigen im Innenbereich

optischer Indikator

Einkopplung in Lichtleiter

Hinterleuchtung (LCD, Schalter, Tasten,

Displays, Werbebeleuchtung,

Allgemeinbeleuchtung)

• Innenbeleuchtung im Automobilbereich

(z.B. Instrumentenbeleuchtung, u.ä.)

Features

•

package:

white SMT package

•

feature of the device:

small package

2.3 mm x 1.3 mm x 1.4 mm

•

wavelength:

632 nm (super-red),

615 nm (amber), 605 nm (orange),

587 nm (yellow)

•

viewing angle:

Lambertian Emitter (120°)

•

technology:

InGaAlP

•

optical efficiency:

11 lm/W (yellow, orange,

amber), 7 lm/W (super-red)

•

grouping parameter:

luminous intensity

•

assembly methods:

suitable for all

SMT assembly methods

•

soldering methods:

IR reflow soldering

•

preconditioning:

acc. to JEDEC Level 2

•

taping:

8 mm tape with 3000/reel, ø180 mm or

12000/reel, ø330 mm

Applications

indoor displays

optical indicators

coupling into light guides

backlighting (LCD, switches, keys, displays,

illuminated advertising, general lighting)

• interior automotive lighting. (e.g. dashboard

backlighting, etc.)

•

2000-09-19

LYM676-Q2S1-1 Related Products

	LYM676-Q2S1-1	LAM676-P2Q2-1	LAM676-Q2S1-1	LSM676-N2P2-1	LOM676-Q1R1-1	LYM676-P2Q2-1
Description	Visible LED, Clear	Visible LED, Clear	Visible LED, Clear	Visible LED, Clear	Visible LED, Clear	Visible LED, Clear
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	unknown	unknown	not_compliant	not_compliant	not_compliant
color@wavelength	Yellow	Amber	Amber	Orange-Red	Orange	Yellow
Maximum forward current	0.03 A	0.03 A	0.03 A	0.03 A	0.03 A	0.03 A
Maximum forward voltage	2.5 V	2.5 V	2.5 V	2.5 V	2.5 V	2.5 V
JESD-609 code	e0	e0	e0	e0	e0	e0
Lens type	CLEAR	CLEAR	CLEAR	CLEAR	CLEAR	CLEAR
Maximum operating temperature	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
total height	1.4 mm	1.4 mm	1.4 mm	1.4 mm	1.4 mm	1.4 mm
peak wavelength	591 nm	622 nm	622 nm	645 nm	610 nm	591 nm
Maximum reverse voltage	3 V	3 V	3 V	3 V	3 V	3 V
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
perspective	120 deg	120 deg	120 deg	120 deg	120 deg	120 deg
Maker	-	Infineon	Infineon	Infineon	Infineon	Infineon
