SPECIFICATIONS
Current Rating:
Voltage Rating:
Terminal Body:
Terminal Screw:
Wire Guard:
Insulator:
Wire Range:
Solid Wire:
Stranded Wire:
Torque:
Screw:
Wire Strip Length:
Withstanding:
Operating Temp:
15A/17A/15A
300VAC
Brass
Steel Zinc Plating
PhBz Tin plated
Thermoplastic UL94V-0
2.5mm²/0.34-2.5mm²
12-24
12-24
3.5LB-In./o.5Nm/0.56Nm
M3
6-7mm
1.6KV/2.5KV/2.5KV
-30ºC to +105ºC
A
B
C
D
D
E
E
Series
CMTB
Terminal Block
F
Type
TSB
TSA=Plug, Front Latch
TSB=Plug, Rear Latch
RoHS compliant
Rev.
Description
Date
Approved
Drawing
Name
Approved Howard
Checked Lizzy
Drawn Tina
0.0 ± 0.35
1
2
3
4
Pitch
500
350=3.5mm 700=7mm
381=3.81mm 762=7.62mm
500=5mm
1000=10mm
Poles
XX
02-24
Color
XX
BK=Black
GN=Green
BL=Blue
GY=Gray
F
Date
08/07/06
08/07/06
08/07/06 Part No.:
Central Components Manufacturing
440 Lincoln Blvd., Middlesex, New Jersey 08846
Phone 732 469-5720 888 288-5152 Fax 732 469-1919
CMTB-TSB-500-XX-XX
G
7
8
9
G
0.00 ± 0.20 Angles ± 3’
UNIT: mm
5
6

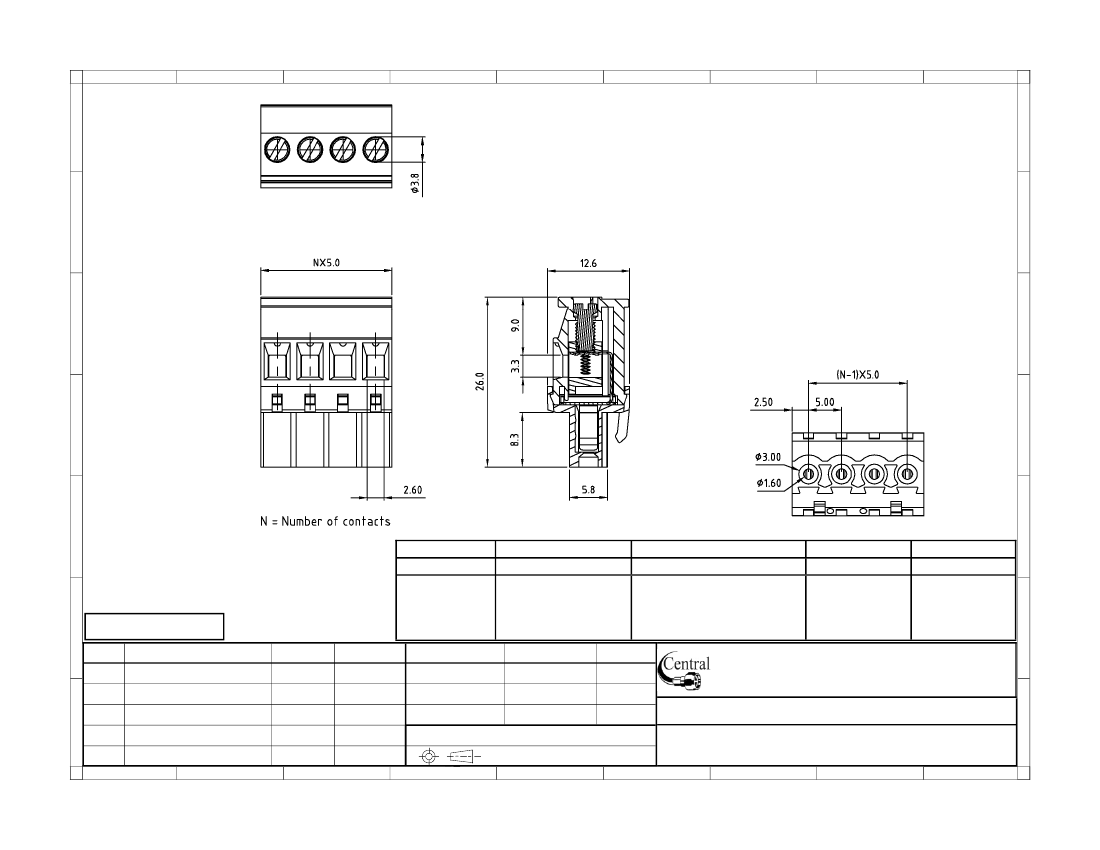

Description: Terminal Block, 5.00mm pitch TSA/TSB Series
