PIC16F74-I/SS301 datasheet, PDF

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> PIC16F74-I/SS301

PIC16F74-I/SS301: DescriptionIC,MICROCONTROLLER,8-BIT,PIC CPU,CMOS,SSOP,28PIN,PLASTIC; CategoryThe embedded processor and controller Microcontrollers and processors; File Size4MB，168 Pages; ManufacturerMicrochip; Websitehttps://www.microchip.com

Download Datasheet Parametric View All

PIC16F74-I/SS301 Overview

IC,MICROCONTROLLER,8-BIT,PIC CPU,CMOS,SSOP,28PIN,PLASTIC

PIC16F74-I/SS301 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	SSOP
package instruction	SSOP, SSOP28,.3
Contacts	28
Reach Compliance Code	compliant
Has ADC	YES
Address bus width
bit size	8
CPU series	PIC
maximum clock frequency	20 MHz
DMA channel	NO
External data bus width
JESD-30 code	R-PDSO-G28
JESD-609 code	e0
length	10.2 mm
Number of I/O lines	22
Number of terminals	28
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PWM channel	YES
Package body material	PLASTIC/EPOXY
encapsulated code	SSOP
Encapsulate equivalent code	SSOP28,.3
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH
power supply	5 V
Certification status	Not Qualified
RAM (bytes)	192
rom(word)	4096
ROM programmability	FLASH
speed	20 MHz
Maximum slew rate	15 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	DUAL
width	5.25 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER, RISC
Base Number Matches	1

Preview

Download Datasheet

View All

PIC16F7X

28/40-Pin 8-Bit CMOS FLASH Microcontrollers

Devices Included in this Data Sheet:

• PIC16F73

• PIC16F74

• PIC16F76

• PIC16F77

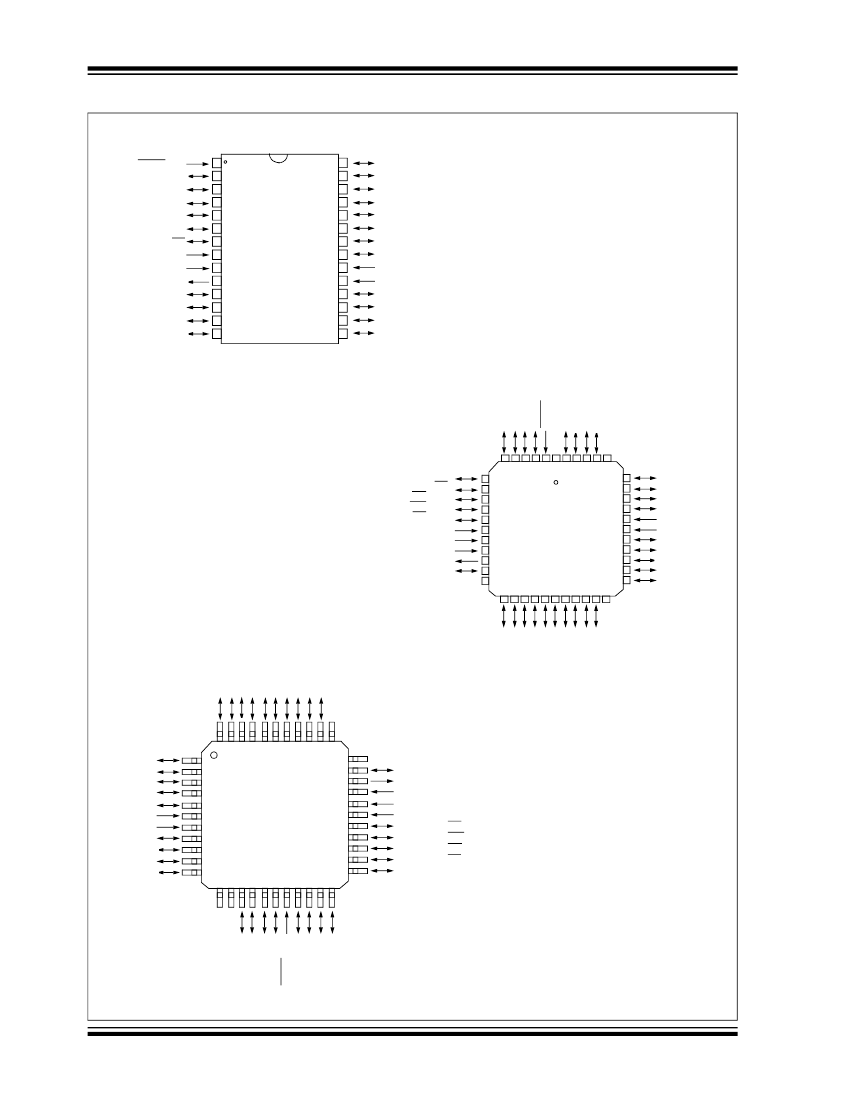

Pin Diagram

PDIP

MCLR/V

RA0/AN0

RA1/AN1

RA2/AN2

RA3/AN3/V

REF

RA4/T0CKI

RA5/AN4/SS

RE0/RD/AN5

RE1/WR/AN6

RE2/CS/AN7

OSC1/CLKIN

OSC2/CLKOUT

RC0/T1OSO/T1CKI

RC1/T1OSI/CCP2

RC2/CCP1

RC3/SCK/SCL

RD0/PSP0

RD1/PSP1

RB7

RB6

RB5

RB4

RB3

RB2

RB1

RB0/INT

RD7/PSP7

RD6/PSP6

RD5/PSP5

RD4/PSP4

RC7/RX/DT

RC6/TX/CK

RC5/SDO

RC4/SDI/SDA

RD3/PSP3

RD2/PSP2

Microcontroller Core Features:

• High-performance RISC CPU

• Only 35 single word instructions to learn

• All single cycle instructions except for program

branches which are two cycle

• Operating speed: DC - 20 MHz clock input

DC - 200 ns instruction cycle

• Up to 8K x 14 words of FLASH Program Memory,

Up to 368 x 8 bytes of Data Memory (RAM)

• Pinout compatible to the PIC16C73B/74B/76/77

• Pinout compatible to the PIC16F873/874/876/877

• Interrupt capability (up to 12 sources)

• Eight level deep hardware stack

• Direct, Indirect and Relative Addressing modes

• Power-on Reset (POR)

• Power-up Timer (PWRT) and

Oscillator Start-up Timer (OST)

• Watchdog Timer (WDT) with its own on-chip RC

oscillator for reliable operation

• Programmable code protection

• Power saving SLEEP mode

• Selectable oscillator options

• Low power, high speed CMOS FLASH technology

• Fully static design

• In-Circuit Serial Programming (ICSP) via two

pins

• Processor read access to program memory

• Wide operating voltage range: 2.0V to 5.5V

• High Sink/Source Current: 25 mA

• Industrial temperature range

• Low power consumption:

- < 2 mA typical @ 5V, 4 MHz

- 20

µA

typical @ 3V, 32 kHz

- < 1

µA

typical standby current

Peripheral Features:

• Timer0: 8-bit timer/counter with 8-bit prescaler

• Timer1: 16-bit timer/counter with prescaler,

can be incremented during SLEEP via external

crystal/clock

• Timer2: 8-bit timer/counter with 8-bit period

• Two Capture, Compare, PWM modules

- Capture is 16-bit, max. resolution is 12.5 ns

- Compare is 16-bit, max. resolution is 200 ns

- PWM max. resolution is 10-bit

• 8-bit multi-channel Analog-to-Digital converter

• Synchronous Serial Port (SSP) with SPI



(Master

mode) and I



(Slave)

• Universal Synchronous Asynchronous Receiver

Transmitter (USART/SCI)

• Parallel Slave Port (PSP) 8-bits wide, with

external RD, WR and CS controls (40/44-pin only)

• Brown-out detection circuitry for

Brown-out Reset (BOR)



2000 Microchip Technology Inc.

Advance Information

PIC16F77/74

DS30325A-page 1

PIC16F7X

Table of Contents

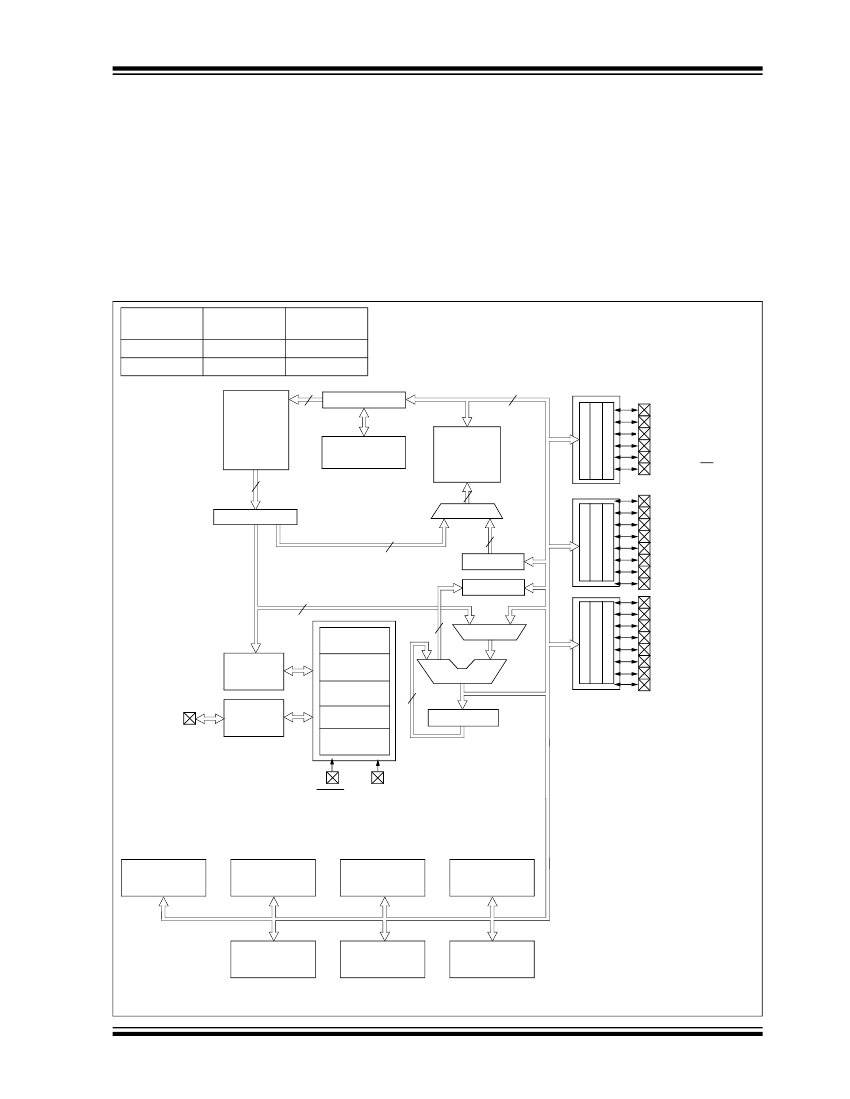

1.0

Device Overview ............................................................................................................................................................ 5

2.0

Memory Organization .................................................................................................................................................. 11

3.0

I/O Ports....................................................................................................................................................................... 29

4.0

Reading Program Memory........................................................................................................................................... 41

5.0

Timer0 Module ............................................................................................................................................................. 45

6.0

Timer1 Module ............................................................................................................................................................. 49

7.0

Timer2 Module ............................................................................................................................................................. 53

8.0

Capture/Compare/PWM Modules ................................................................................................................................ 55

9.0

Synchronous Serial Port (SSP) Module....................................................................................................................... 61

10.0

Universal Synchronous Asynchronous Receiver Transmitter (USART) ...................................................................... 73

11.0

Analog-to-Digital Converter (A/D) Module ................................................................................................................... 89

12.0

Special Features of the CPU ....................................................................................................................................... 95

13.0

Instruction Set Summary ........................................................................................................................................... 111

14.0

Development Support ................................................................................................................................................ 119

15.0

Electrical Characteristics ........................................................................................................................................... 125

16.0

DC and AC Characteristics Graphs and Tables ........................................................................................................ 147

17.0

Packaging Information ............................................................................................................................................... 149

Appendix A: Revision History ......................................................................................................................................................... 157

Appendix B: Device Differences..................................................................................................................................................... 157

Appendix C: Conversion Considerations ....................................................................................................................................... 157

Index .................................................................................................................................................................................................. 159

On-Line Support................................................................................................................................................................................. 165

Reader Response .............................................................................................................................................................................. 166

PIC16F7X Product Identification System ........................................................................................................................................... 167
