851-93-016-30-001: Description16 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SURFACE MOUNT, SOCKET; Categorysemiconductor Other integrated circuit (IC); File Size54KB，1 Pages; ManufacturerPRECI-DIP; Websitehttp://www.precidip.com/en/index.html

Download Datasheet Compare View All

851-93-016-30-001 Overview

16 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SURFACE MOUNT, SOCKET

Preview

Download Datasheet

View All

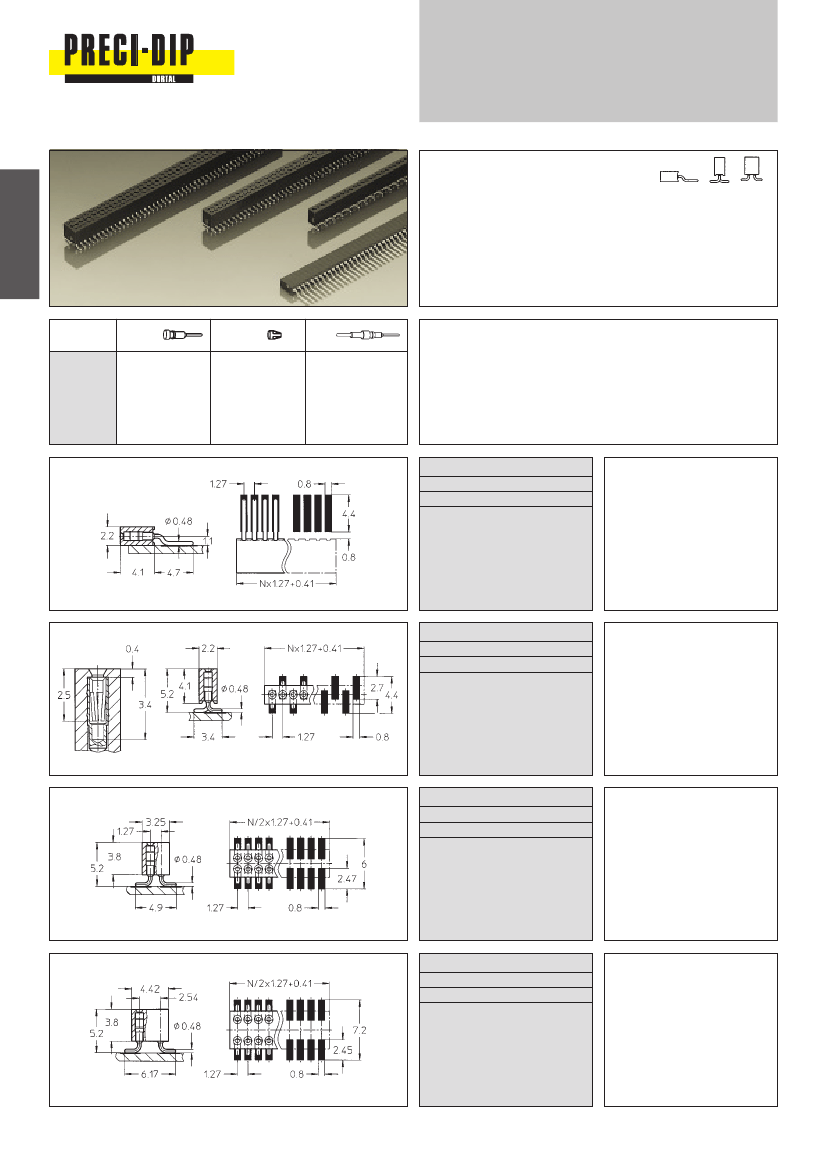

Series 850

12

PCB connectors 1.27 mm

Single row / double row

Surface mount

Ultraminiature PCB receptacles,

surface mount

Grid spacing 1.27

×1.27

mm

Receptacles for pins

∅

0.35–0.45 mm

For corresponding connectors see pages 13, 14 and 15

Platings

91

93

99

Sleeve

5

µm

Sn Pb

5

µm

Sn Pb

5

µm

Sn Pb

Clip

0.25

µm

Au

0.75

µm

Au

5

µm

Sn Pb

Ordering information

Replace

xxx

with the number of poles, e.g. 853-91-xxx-30-001

for a double row version with 8 pins per row becomes:

853-91-016-30-001

851-91-xxx-40-001

851-93-xxx-40-001

851-99-xxx-40-001

SMD receptacle: single row,

parallel mount

Availability from: 1 to 50 contacts

Standard number of contacts 25

and 50

851-91-xxx-30-001

851-93-xxx-30-001

851-99-xxx-30-001

SMD receptacle: single row,

perpendicular mount

Availability from: 3 to 50 contacts

Standard number of contacts

single row: 25 and 50

853-91-xxx-30-001

853-93-xxx-30-001

853-99-xxx-30-001

SMD receptacle: double row,

perpendicular mount

Availability from: 4 to 100

contacts

Standard number of contacts 50

and 100

853-91-xxx-30-002

853-93-xxx-30-002

853-99-xxx-30-002

SMD receptacle: double row with

2.54 mm distance, perpendicular

row to row mount

Availability from: 4 to 100

contacts

Standard number of contacts 100

On request with positioning pins
