100
Please observe the disclaimer.

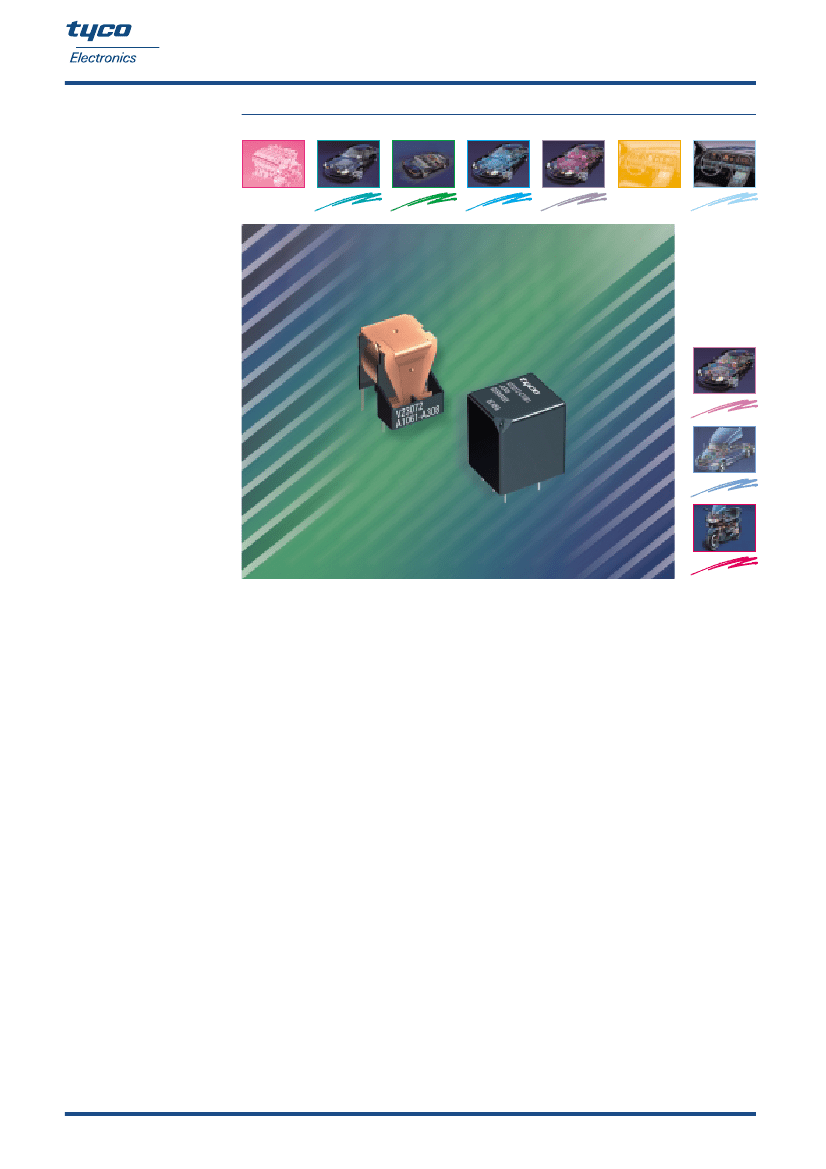

PCB relays
Single relays
Mini power relay K (open)
Dimensional drawing
Open version
.512±.008
(13.0
±0.2)
.591
±.039
(15
±1)
Ø .138
(3.5)
Catalog 1308028
Issued 01-05
.374
±.008
(9.5
±0.2)
.571
±.016
(14.5
±0.4)
.689
±.020
(17.5
±0.5)
.008 … .055
(0.2 … 1.4)
.138
±.012
*)
(3.5
±0.3)
*) additional tin tops
max .039 inch (1 mm)
.157
±.039
(4
±1)
Terminals tinned
.035
±.006
(0.9
±0.15)
.240
±.012
(6.1
±
0.3)
.264
±.012
(6.7
±
0.3)
Tyco0595-Z
View of the terminals
(Bottom view)
Ø .033
±.002
(0.85
±0.05)
.033
±.002
(0.85
±0.06)
4 x .033
±.002
(0.85
±0.06)
.030
±.002
(0.75
±0.06)
.022
±.002
(0.55
±0.05)
ECR2209-U
Mounting holes
View of the terminals
(Bottom view)
Grid 0.049 … 0.050" (1.25 … 1.27 mm)
Ø .512 +.004
(1.3 +0.1)
.049 … .050
(1.25 … 1.27)
.039
±.018
(1
±0.45)
.091 max.
(2.3 max.)
.047
±.016
(1.2
±0.4)
.056
±.010
(1.42
±0.25)
Tyco0596-8
101
Please observe the disclaimer.
PCB relays
Single relays
Mini power relay K (sealed)
Dimensional drawing
Sealed version
.579
±.012
(14.7
±0.3)
.665
±.012
(16.9
±0.3)
The Nipp-off-pin may be
removed after soldering
and washing
(for ventilation)
Catalog 1308028
Issued 01-05
Assembly and
Nipp-off-pin
positioning aid
.756
±.012
(19.2
±0.3)
.018
±.016
(0.45
±0.4)
.118
±.012
*)
(3
±0.3)
*) additional tin tops
max .039 inch (1 mm)
.012
±.008
(0.3
±0.2)
Tyco1112-3
Terminals tinned
View of the terminals
(Bottom view)
.075
±.008
(1.9
±0.2)
2 x Ø .033
±.002
(0.85
±0.05)
.181
±.008
(4.6
±0.2)
Ø .079
±.004
(Ø 2
±0.1)
.354
±.008
(9
±0.2)
.033
±.002
(0.85
±0.06)
.033
±.002
(0.85
±0.06)
.030
±.002
(0.75
±0.06)
4 x .022
±.002
(0.55
±0.05)
ECR2210-X
Mounting holes
View of the terminals
(Bottom view)
Grid 1.25 … 1.27 mm
Ø .512 +.004
(1.3 +0.1)
.049 … .050
(1.25 … 1.27)
.094
±.024
(2.4
±0.6)
ECR0598-P
.106
±.016
(2.7
±0.4)
102
Please observe the disclaimer.
PCB relays
Single relays
Mini power relay K (open and sealed)
Catalog 1308028
Issued 01-05

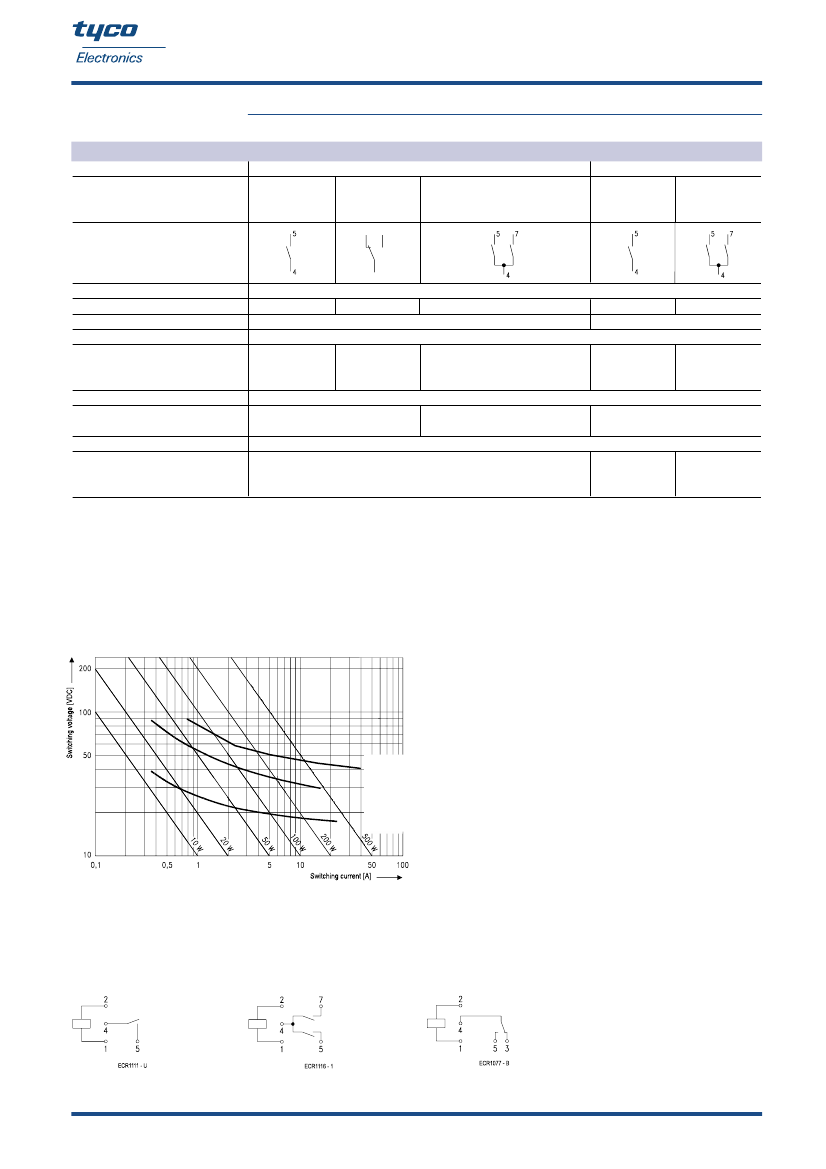

Contact data
Typical areas of application
Contact configuration
Make
contact/
Form A
Resistive / inductive loads
Changeover
Double
contact/
make contact/
Form C
Form U
3
5
Indicator lamps
Make
Double
contact/
make contact/
Form A
Form U
Circuit symbol
(see also Pin assignment)
4
Rated voltage
Rated current at 85 °C
Contact material
Max. switching voltage/power
Max. switching current
1)
On
2)
Off
Min. recommended load
5)
Voltage drop at 10 A (initial)
for NC/NO contacts
Mechanical endurance (without load)
Electrical endurance
(example of resistive load)
1)
2)
10 A
5 A/10 A
AgNi0.15
12 V
2x6A
See load limit curve
5A
AgSnO
2
2x5A
60 A
20 A
NC/NO
12 A/60 A
10 A/20 A
2 x 40 A
2 x 20 A
1 A at 5 V
60 A
3)
6A
120 A
3)
12 A
Typ. 50 mV, 300 mV max.
Typ. 2 x 50 mV, 300 mV max.
> 10
7
operations
5
operations
> 2 x 10
10 A, 13.5 V
Typ. 150 mV, 300 mV max.
> 1,5 x 10
6
operations
up to 3 x 21 W
> 1.5 x 10
6
operations
up to 6 x 21 W
The values apply to a resistive load or inductive load with suitable spark suppression.
For a load current duration of maximum 3 s for a make/break ratio of 1:10.
3)
Corresponds to the peak inrush current on initial actuation (cold filament).
4)
At 50 % ON period
5)
See chapter Diagnostics in our Application Recommendations on page 18.
Load limit curve
Tyco0626-Y
Tyco
Load limit curve 1
^
safe shutdown,
=
connected as form X, load on pin 5
and 7
Load limit curve 2
^
safe shutdown,
=
no stationary arc / make contact
Load limit curve 3
^
arc extinguishes
=
during transit time (changeover contact)
Load limit
Load limi
curve
curve 1
1
Load limit
Load limi
curve 2
2
curve
Load limit
Load
curve 3
limi
curve 3
Pin assignment (open and sealed)
1 make contact/
1 form A
1 double make contact/
1 form U
1 changeover contact/
1 form C
103
Please observe the disclaimer.
PCB relays
Single relays
Mini power relay K (open and sealed)
Catalog 1308028
Issued 01-05
Coil data
Available for nominal voltages
Nominal power consumption of the unsuppressed coil at nominal voltage
Test voltage winding/contact
Maximum ambient temperature range
1)
Operate time at nominal voltage
2)
Release time at nominal voltage
1)
2)
12, 24 V
(other coils on request)
1.1 W
500 VAC
rms
– 40 to + 85 °C
Typ. 3 ms
Typ. 1.5 ms
See also operating voltage range diagram
Measured at nominal voltage without coil suppression unit
N.B.
A low resistive suppression device in parallel to the relay coil increases the release time and reduces
the lifetime caused by increased erosion and/or higher risk of contact tack welding.
Operating voltage range
Does not take into account
the temperature rise due to
the contact current
E = pre-energization
Mechanical data
Enclosure
Sealed
Sealed relay is suitable for immersion cleaning of PCB assembly or conformal coating.
Please refer to the Application Recommendations in this catalog.
