60.8mm (2.4 INCH) 5x8 DOT MATRIX DISPLAY
Part Number: TBA24-11SURKCGKWA
Hyper Red
Green
Features
2.4 inch matrix height.
Dot size 5mm.
Low current operation.
High contrast and light output.
Stackable horizontally.
Easy mounting on P.C. boards or sockets.
Multicolor available.
Mechanically rugged.
Standard : gray face, white dot.
RoHS compliant.
Description
The Hyper Red source color devices are made with Al-
GaInP on GaAs substrate Light Emitting Diode.
The Green source color devices are made with AlGaInP on
GaAs substrate Light Emitting Diode.

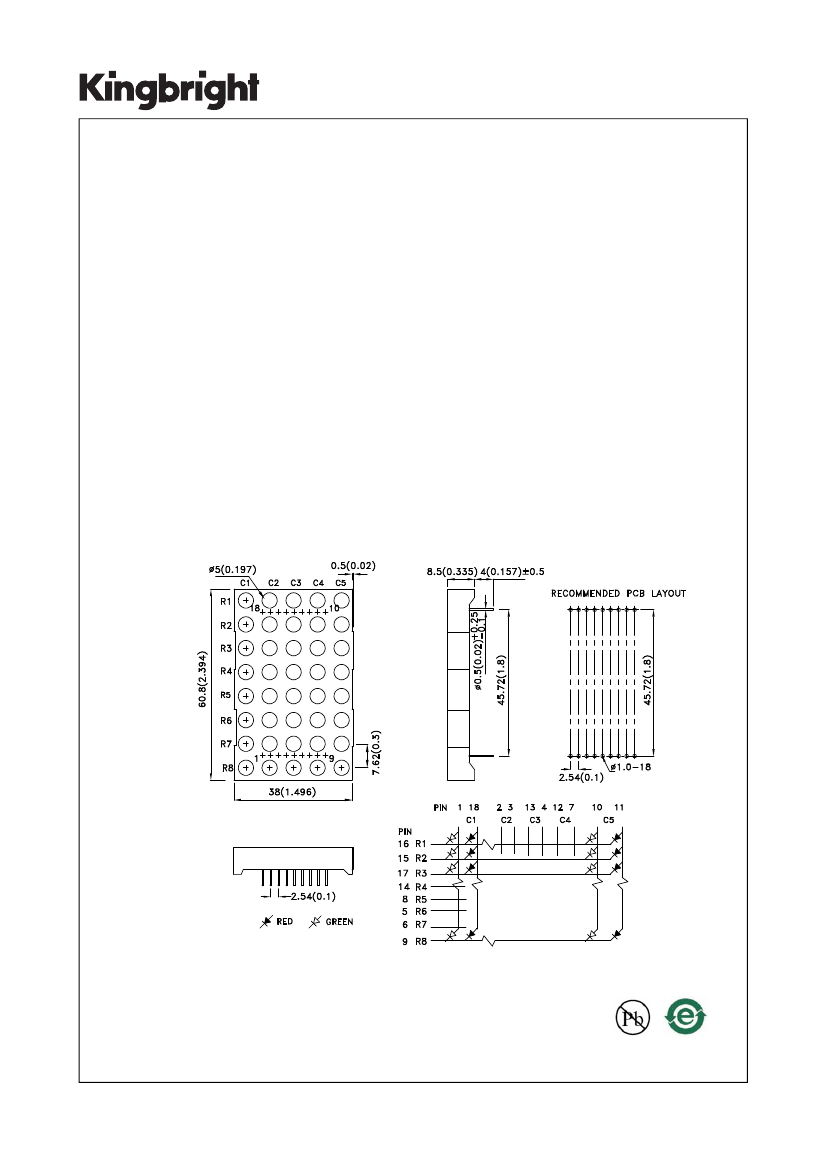

Package Dimensions & Internal Circuit Diagram
Notes:
1. All dimensions are in millimeters (inches), Tolerance is ±0.25(0.01")unless otherwise noted.
2. The specifications, characteristics and technical data described in the datasheet are subject to change without prior notice.
SPEC NO: DSAK2922
APPROVED: WYNEC
REV NO: V.4A
CHECKED: Joe Lee
DATE: MAY/14/2013
DRAWN: F.Cui
PAGE: 1 OF 7
ERP: 1332001436
Selection Guide
Part No.
Dice
Lens Type
Iv (ucd) [1]
@ 10mA
Min.
52000
Hyper Red (AlGaInP)
*21000
TBA24-11SURKCGKWA
Green (AlGaInP)
*9000
Notes:
1. Luminous intensity/ luminous Flux: +/-15%.
*Luminous intensity value is traceable to the CIE127-2007 compliant national standards.
Description
Typ.
150000
*49000
Column Anode
42000
*17000
White Diffused
21000

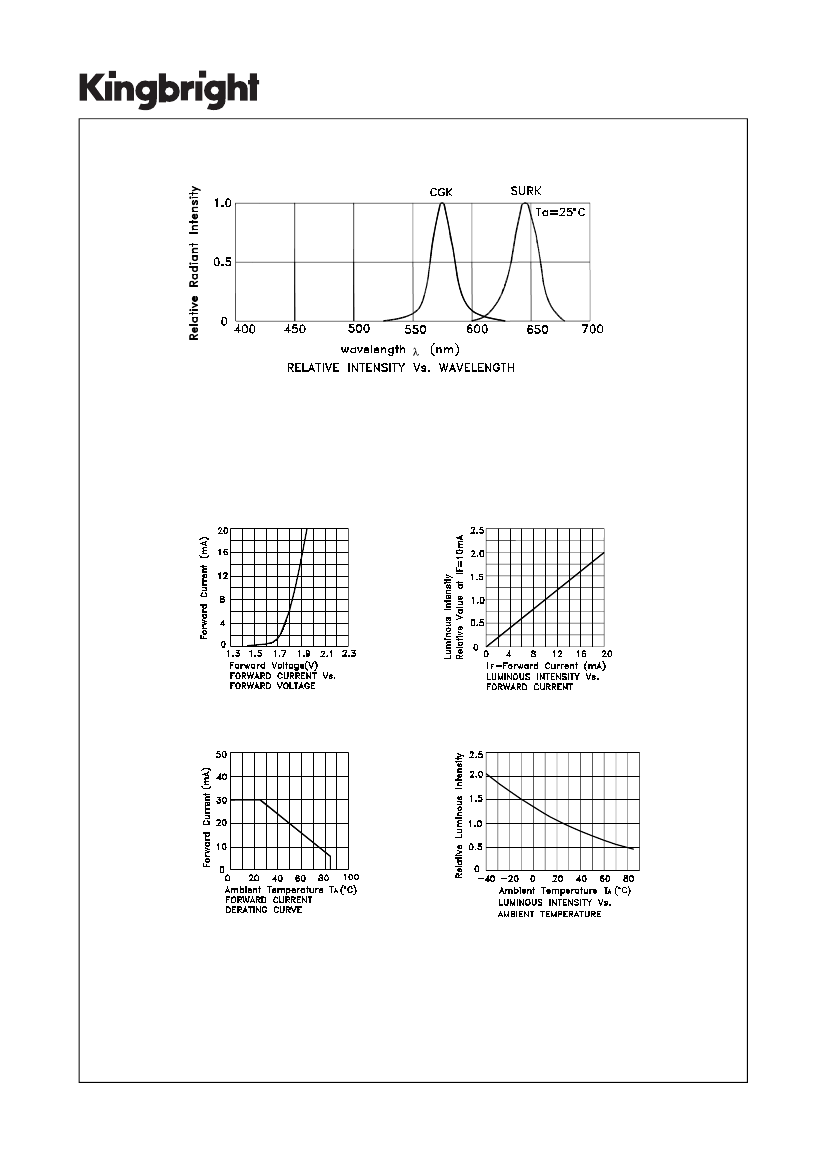

Electrical / Optical Characteristics at TA=25°C
Symbol
λpeak
λD
[1]
Δλ1/2
C
V
F
[2]
I
R
Parameter
Peak Wavelength
Dominant Wavelength
Spectral Line Half-width
Capacitance
Forward Voltage
Reverse Current
Device
Hyper Red
Green
Hyper Red
Green
Hyper Red
Green
Hyper Red
Green
Hyper Red
Green
Hyper Red
Green
Typ.
645
574
630
570
28
20
35
15
1.95
2.1
2.5
2.5
10
10
Max.
Units
nm
nm
nm
pF
V
uA
Test Conditions
I
F
=20mA
I
F
=20mA
I
F
=20mA
V
F
=0V;f=1MHz
I
F
=20mA
V
R
=5V
Notes:
1.Wavelength: +/-1nm.
2. Forward Voltage: +/-0.1V.
3. Wavelength value is traceable to the CIE127-2007 compliant national standards.
Absolute Maximum Ratings at TA=25°C
Parameter
Power dissipation
DC Forward Current
Peak Forward Current [1]
Reverse Voltage
Operating/Storage Temperature
Lead Solder Temperature [2]
Notes:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
2. 2mm below package base.
Hyper Red
75
30
185
5
-40°C To +85°C
Green
75
30
150
Units
mW
mA
mA
V
260°C For 3-5 Seconds

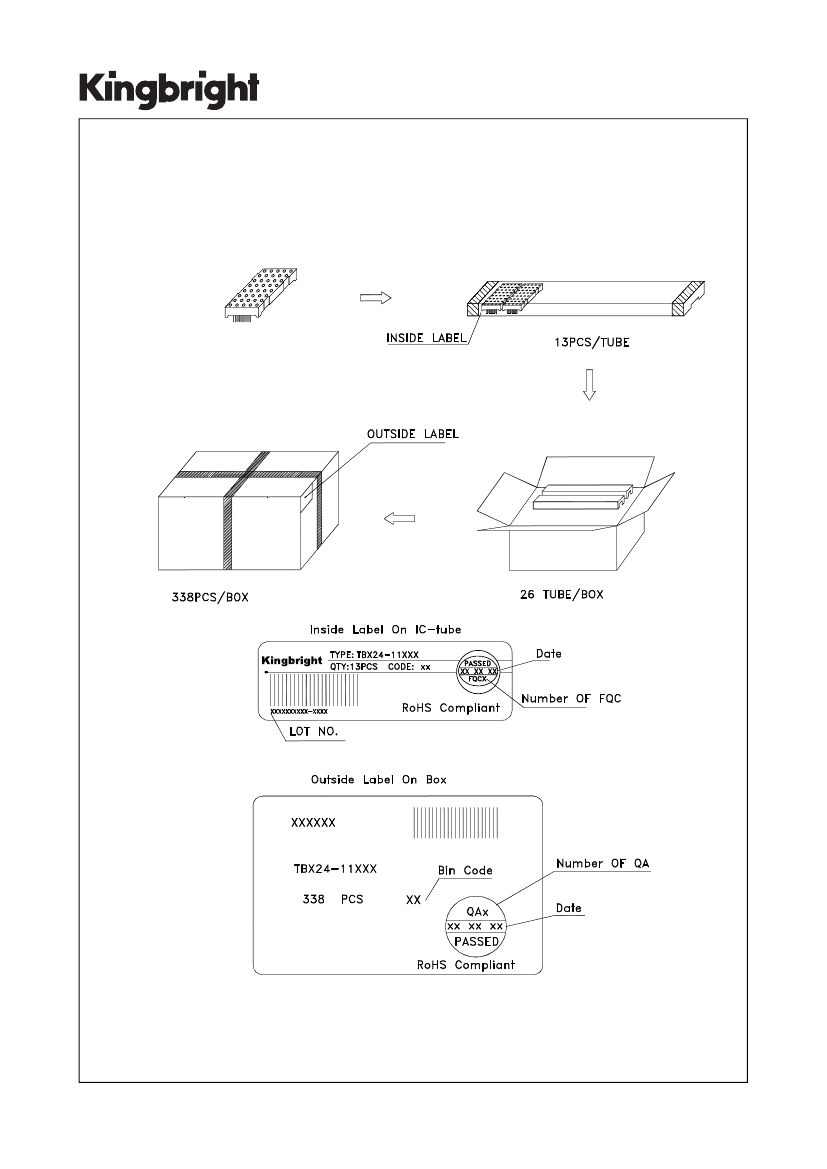

SPEC NO: DSAK2922
APPROVED: WYNEC
REV NO: V.4A
CHECKED: Joe Lee
DATE: MAY/14/2013
DRAWN: F.Cui
PAGE: 2 OF 7
ERP: 1332001436
