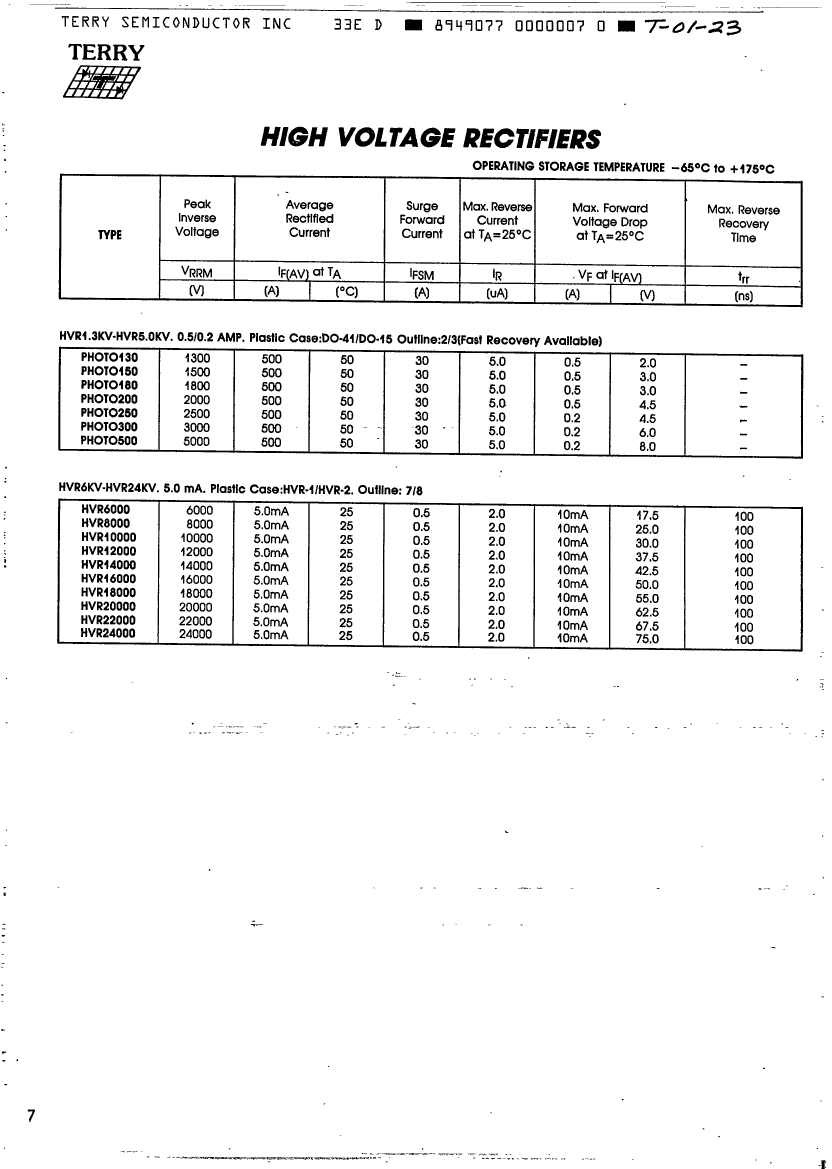

Preview

HVR6000: DescriptionRectifier Diode, 1 Element, 0.005A, 6000V V(RRM); CategoryDiscrete semiconductor diode; File Size33KB，1 Pages; ManufacturerTerry Semiconductor Inc.

Download Datasheet Parametric Compare View All

HVR6000 Overview

Rectifier Diode, 1 Element, 0.005A, 6000V V(RRM)

HVR6000 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	unknown
Configuration	SINGLE
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	17.5 V
JESD-609 code	e0
Maximum non-repetitive peak forward current	0.5 A
Number of components	1
Maximum operating temperature	175 °C
Maximum output current	0.005 A
Maximum repetitive peak reverse voltage	6000 V
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Base Number Matches	1

Preview

Download Datasheet

View All

HVR6000 Related Products

	HVR6000	HVR12000	HVR14000	HVR16000	HVR18000	HVR20000	HVR10000	HVR22000	HVR24000
Description	Rectifier Diode, 1 Element, 0.005A, 6000V V(RRM)	Rectifier Diode, 1 Element, 0.005A, 12000V V(RRM)	Rectifier Diode, 1 Element, 0.005A, 14000V V(RRM)	Rectifier Diode, 1 Element, 0.005A, 16000V V(RRM)	Rectifier Diode, 1 Element, 0.005A, 18000V V(RRM)	Rectifier Diode, 1 Element, 0.005A, 20000V V(RRM)	Rectifier Diode, 1 Element, 0.005A, 10000V V(RRM)	Rectifier Diode, 1 Element, 0.005A, 22000V V(RRM)	Rectifier Diode, 1 Element, 0.005A, 24000V V(RRM)
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	17.5 V	37.5 V	42.5 V	50 V	55 V	62.5 V	30 V	67.5 V	75 V
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0	e0
Maximum non-repetitive peak forward current	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A
Number of components	1	1	1	1	1	1	1	1	1
Maximum operating temperature	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C
Maximum output current	0.005 A	0.005 A	0.005 A	0.005 A	0.005 A	0.005 A	0.005 A	0.005 A	0.005 A
Maximum repetitive peak reverse voltage	6000 V	12000 V	14000 V	16000 V	18000 V	20000 V	10000 V	22000 V	24000 V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Base Number Matches	1	1	1	1	1	-	-	-	-
Maker	-	Terry Semiconductor Inc.	Terry Semiconductor Inc.	Terry Semiconductor Inc.	Terry Semiconductor Inc.	Terry Semiconductor Inc.	Terry Semiconductor Inc.	Terry Semiconductor Inc.	Terry Semiconductor Inc.
