CO4602-50.001-EXT-T-TR datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> oscillator> CO4602-50.001-EXT-T-TR

Preview

CO4602-50.001-EXT-T-TR: DescriptionOscillator, 50.001MHz Min, 156.25MHz Max, 50.001MHz Nom, CMOS; CategoryPassive components oscillator; File Size68KB，1 Pages; ManufacturerRaltron; Websitehttp://www.raltron.com/; Environmental Compliance

Download Datasheet Parametric View All

CO4602-50.001-EXT-T-TR Overview

Oscillator, 50.001MHz Min, 156.25MHz Max, 50.001MHz Nom, CMOS

CO4602-50.001-EXT-T-TR Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	DILCC4,.2,200
Reach Compliance Code	compliant
Installation features	SURFACE MOUNT
Number of terminals	4
Maximum operating frequency	156.25 MHz
Minimum operating frequency	50.001 MHz
Nominal operating frequency	50.001 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
Encapsulate equivalent code	DILCC4,.2,200
power supply	3.3 V
Certification status	Not Qualified
Maximum slew rate	45 mA
Nominal supply voltage	3.3 V
surface mount	YES
technology	CMOS
Base Number Matches	1

Preview

Download Datasheet

View All

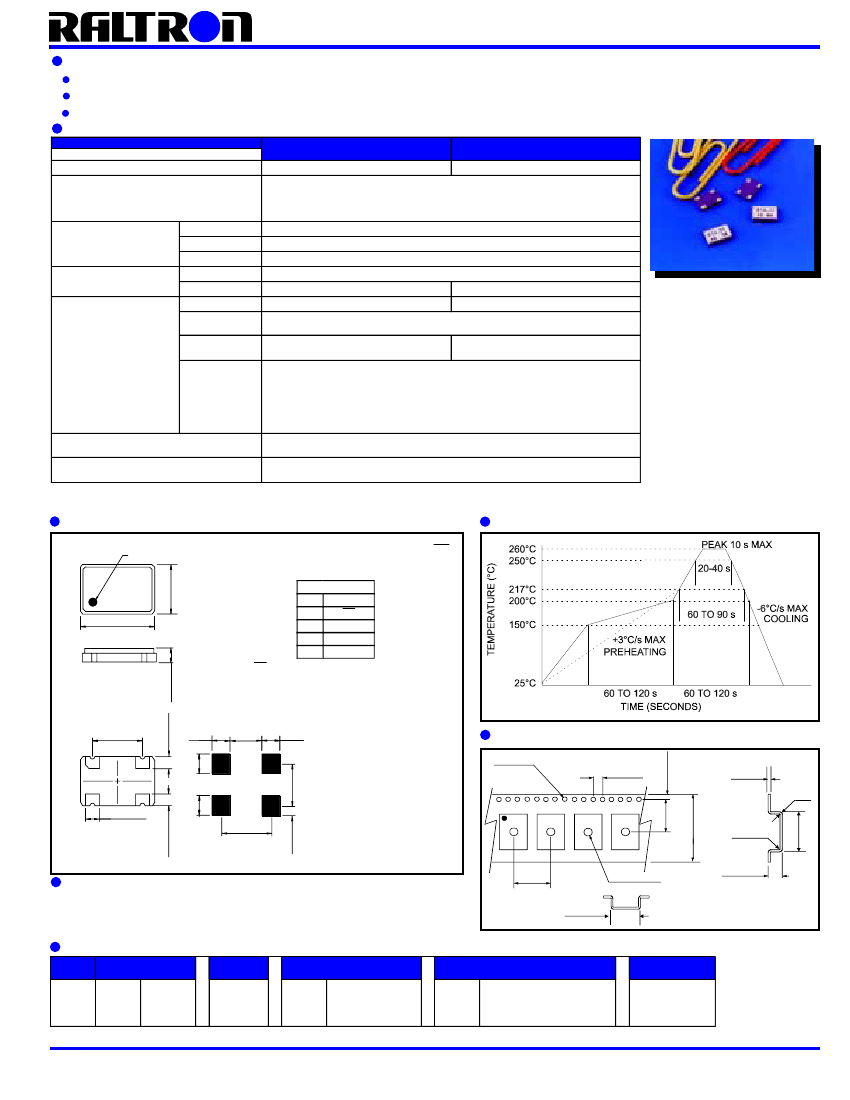

SURFACE MOUNT CLOCK OSCILLATORS

FEATURES

ULTRA SMALL PACKAGE

EXCELLENT FOR HIGH DENSITY PACKAGING

SUITABLE FOR REFLOW SOLDERING

SPECIFICATIONS

S ERIES

P A RA M ETE R

FRE QUE NCY RA NGE

CO43

1.544 M Hz TO 50.000 M Hz

SERIES CO43 AND 46

CO46

50.001 M Hz TO 156.250 M Hz

±100 P P M

±50 PP M

±25 PP M *

±20 PP M *

-10°C TO +70°C

-40°C TO +85°C

-55°C TO +125°C

+3.3 V DC ±10%

FRE QUE NCY S TA B ILITY †

OP E RA TING

TE M P ERA TURE RA NGE

E XTE NDE D

S TORA GE

INPUT

V OLTA GE

CURRENT, M A X

LOA D

S Y M M E TRY

LE V EL

OUTP UT

RISE /FA LL TIM E

(20% to 80% )

25 m A M A X

45 m A M A X

5 TTL M AX OR 15 pF HCM OS

5 TTL M AX OR 20 pF HCM OS

NORM A L: 40% TO 60%

TIGHT: 45% TO 55%

LOGIC "0": 0.4 V DC M A X

LOGIC "0": 0.5 V DC M A X

LOGIC "1": 2.8 V DC M IN

1.00 M Hz TO 10.00 M Hz : 5 ns

10.10 M Hz TO 30.00 M Hz : 4 ns

30.10 M Hz TO 50.00 M Hz : 3 ns

50.10 M Hz TO 80.00 M Hz : 2.5 ns

80.10 M Hz TO 156.25 M Hz : 2 ns

1.0 ps RM S (1ó), 12k Hz < .j < 20M Hz

P IN 1: HIGH (+2.2 V DC M IN) P IN 3: E NAB LE D

P IN 1: LOW (+ 0.8 V DC M A X) P IN 3: DIS A B LE D (HIGH IM P E DA NCE )

JITTE R

E NA B LE /DIS A B LE

FUNCTION

*

STABILITY OVER TEMPERATURE ONLY AT -40°C TO +85°C

† INCLUSIVE OF 25°C TOLERANCE, OPERATING TEMPERATURE RANGE, VOLTAGE OR LOAD CHANGES, AGING, SHOCK AND VIBRATION

OUTLINE DRAWING

Scale none Dimension in

PIN 1 LOCATION

REFLOW SOLDERING PROFILE

mm

inch

MARKING

AREA

.197 ± 0.008

5.0 ± 0.2

CO43/46 SERIES

1

2

3

4

FUNCTION

INH

GROUND

OUTPUT

VDD

7.5 MAX

0.295 MAX

1.8 MAX

.070 MAX

INH: HI OR OPEN-Fout LOW-OSCILLATION STOPS

.043 ± .005

1.1 ± 0.12

SOLDERN PATTERN

5.08 ± 0.12

.200 ± .005

1

2

1.8

.071

3.28

.129

1.8

.071

CARRIER TAPE DIMENSIONS

1 .5 ± 0 .1

.0 5 9 ± .0 0 4

4 .0 ± 0 .1

.1 5 7 ± .0 0 4

1 .7 5 ± 0 .1

.2 9 5 ± .0 0 4 .0 6 9 ± .0 0 4

1 6 .0 ± 0 .3

0 .3 ±.0 6

.0 1 2 ±.0 0 2

R 0 .3

R .0 1 2

.6 3 0 ± .0 1 2

7 .6 5 ±0 .1

.3 0 1 ±.0 0 4

.082

2.1

.082

2.1

1.1 ± 0.12

.043 ± .005

5.08

.200

1.05 TYP

.041 TYP

1.4 ± 0.12

.055 ± .005

7 .5 ± 0 .1

4

3

.165

4.2

Ø5 MAX

Ø .2 M A X

PACKAGING

254 mm REEL DIAMETER, 16mm TAPE WIDTH, 8mm PITCH

QUANTITY: 1000 PIECES PER REEL

PART NUMBERING SYSTEM

S ERIES

FREQUENCY

S TABILITY

10

05

025

02

±100 P P M

±50 P P M

±25 P P M

±20 P P M

-

IN M Hz

FREQUENCY

-

E XT

EX TENDED

TEM P ERATURE

E XTE NDE D

(-40°C TO + 85°C)

-

T

8 .0 ±0 .1

.3 1 5 ±.0 0 4

5 .7 5 ±0 .1

0 .2 2 6 ±.0 0 4

2 .0 ± 0 .1 D IA

.0 7 8 ± .0 0 4 D IA

2 .2 ± 0 .1

.0 8 6 ± .0 0 4

TIGHT

S YM M ETRY

-

TIGHT S Y M M E TRY (45-55% )

TAP E AND REEL

CO43

CO46

TR

EXAMPLE: CO4305-32.000-TR, CO4610-50.000-T-TR

Raltron Electronics Corporation 10651 NW 19th St. Miami, Florida 33172 U.S.A.

Tel: 305-593-6033 Fax: 305-594-3973 e-mail: sales@raltron.com Internet: http://www.raltron.com
