RUEF800 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> RUEF800

RUEF800: DescriptionPTC Resettable Fuse, 0.02ohm, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT; CategoryPassive components The resistor; File Size505KB，23 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

RUEF800 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	RUEF800	-	-	View	Buy Now

RUEF800 Overview

PTC Resettable Fuse, 0.02ohm, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT

RUEF800 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	RESISTANCE RANGE(MIN-MAX): 0.005-0.013
Manufacturer's serial number	RUEF
Installation features	THROUGH HOLE MOUNT
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package shape	RECTANGULAR PACKAGE
method of packing	BULK
Rated (AC) voltage (URac)	30 V
Rated power dissipation(P)	4 W
resistance	0.02 Ω
Resistor type	PTC RESETTABLE FUSE
surface mount	NO
Terminal location	RADIAL
Terminal shape	WIRE
Thermistor Applications	TEMPERATURE SENSING
Base Number Matches	1

Preview

Download Datasheet

View All

PolySwitch

™

Resettable Devices

Radial-leaded Devices

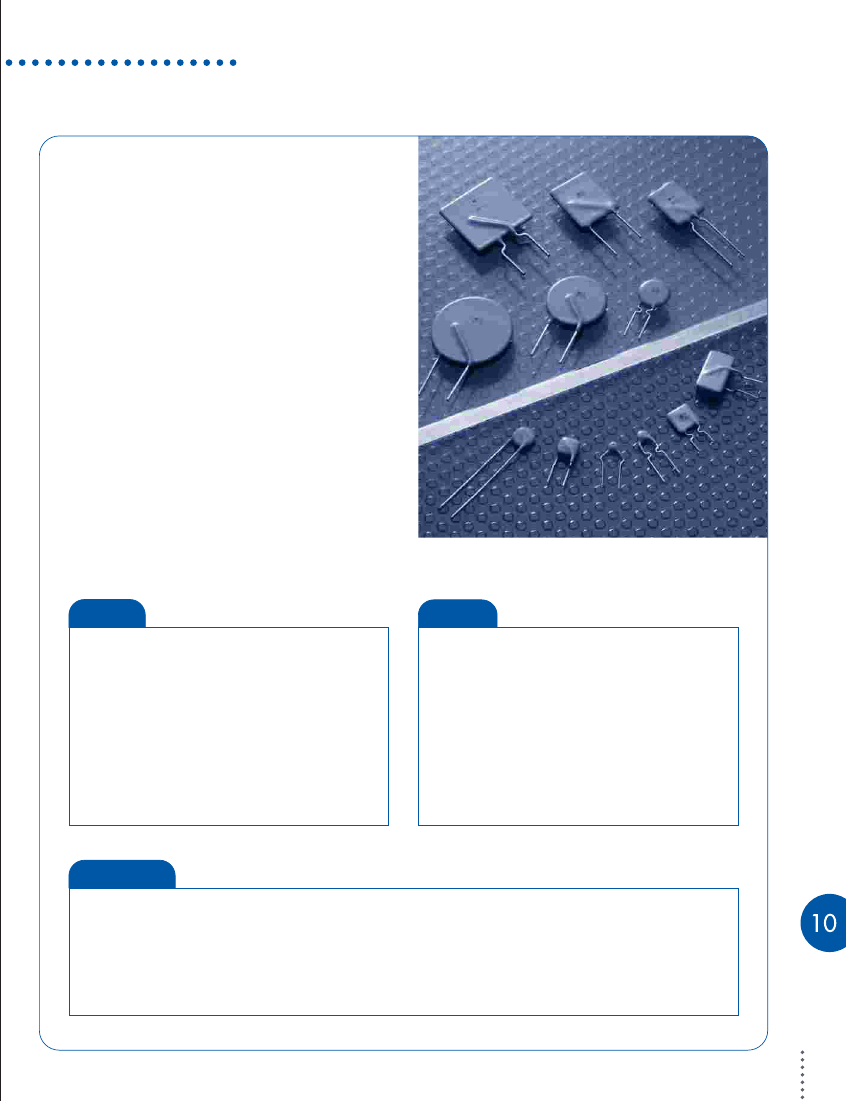

Raychem Circuit Protection has pioneered PPTC technology

for over 25 years. Our radial-leaded products represent the

widest range of product capabilities.

•

RGEF series for hold curents up to 14A

•

RHEF series for flatter thermal derating and operating

temperatures up to 125°C

•

RUEF series for balance of voltage rating (30V) and

hold current (up to 9A)

•

RUSBF series for fast time-to-trip and low-resistance

computer applications

•

RTEF series specifically designed for IEEE-1394 applications

•

RXEF series for low hold currents (down to 50mA) and high

voltage rating (up to 72V)

•

LVR series for line voltage applications up to a continuous

operating voltage of 265V

•

BBRF series for cable telephone applications

•

Now offering Pb-free versions of all products. For Pb-free

versions of R-line products simply add an "F" to the end of

the series description.

Whether for design or volume application, Raychem Circuit

Protection's radial-leaded products represent the most

comprehensive and complete set of PPTC products available

in the industry today.

Benefits

• Many product choices give engineers more design flexibility

• Compatible with high-volume electronics assembly

• Assists in meeting regulatory requirements

• Higher voltage ratings allow use in new applications

Features

• Broadest range of radial-leaded resettable devices

available in the industry

• Current ratings from 50mA to 15A

• Voltage ratings from 6V (computer and electronic

Radial-leaded Devices

applications) to 265V

line voltage applications

• Agency recognition : UL, CSA, TÜV

• Fast time-to-trip

• Low resistance

Applications

• Satellite video receivers

• Industrial controls

• Transformers

• Computer motherboards

• Modems

• USB hub, ports and peripherals

• IEEE1394 ports

• CD-ROMs

• Game machines

• Battery packs

• Phones

• Fax machines

• Analog and digital line cards

• Printers
