SAW Bandpass Filter 270104B
1. Features
IF bandpass filter
High attenuation
Single-ended operation
DIP Package
Maximum Storage Temperature Range : -40
℃
~ 85
℃
Electrostatics Sensitive Device (ESD)
2. Package Dimension
12.7±0.5
5.5max 6.0max
7.6±0.2
2.5±0.2
Output
Ground
Case ground
ITF 04A001
270104B
27.3±0.5
Package : D2712
0.45±0.05
Pin Configuration
1
Input
Dimensions shown are nominal in millimeters
Base : Fe(SPCC), Au plating over Ni plated
Cap : Cu & Cr Alloy, Ni Plated
Termination : Kovar, Au Plated
5
2, 4
3, 6
I T F Co., Ltd.
102-901, Bucheon Technopark 364,
Samjeong-Dong, Ojeong-Gu, Bucheon-City,
Gyounggi-Do, Korea 421-809
Part No.
Rev. Date
Rev.
2004-03-17
NW3029-CS03
1/5
17.7±0.2
2.5±0.2
270104B
SAW Bandpass Filter 270104B
3. Specifications
Fo = 70 MHz
Terminating source impedance
Terminating load impedance
: 50Ω and matching network
: 50Ω and matching network
Operating temperature range : -10℃ ~ +60℃
Center Frequency
Insertion Loss
1dB Bandwidth
3dB Bandwidth
40dB Bandwidth
Amplitude Ripple (Fo +/- 0.45 MHz)
Group Delay Variation (Fo +/- 0.45 MHz)
Absolute Delay
Ultimate Rejection
Temperature Coefficient of Frequency
MHz
dB
MHz
MHz
MHz
dB
nsec
usec
dB
ppm/°C
2
Minimum
-
-
-
1.25
-
-
-
-
50
-
Typical
70.0
23.1
1.15
1.35
2.17
0.4
90
3.18
52
-0.03
Maximum
-
26.0
-
-
2.3
1.0
300
-
-
-
Notes :
1)
2)
3)
All specifications are based on the matching schematic shown below
All specifications are measured by Agilent Network analyzer and full 2 port calibration
Electrical margin has been built into the design to account for the variations due to temperature drift and
manufacturing tolerances
4)
All attenuation measurements are measured relative to insertion loss
I T F Co., Ltd.
102-901, Bucheon Technopark 364,
Samjeong-Dong, Ojeong-Gu, Bucheon-City,
Gyounggi-Do, Korea 421-809
Part No.
Rev. Date
Rev.
270104B
2004-03-17
NW3029-CS03
2/5
SAW Bandpass Filter 270104B
4. Matching Schematic
( Actual matching values may vary due to PCB layout and parasitics )
Input
50
Ω
L1
L2
Output
50
Ω
L1 = 150 nH,
L2 = 150 nH
5. Marking Configuration
ITF
1)
04A001
2)
270104B
3)
1) Manufacturer name
2) Lot Number
3) Part Number
I T F Co., Ltd.
102-901, Bucheon Technopark 364,
Samjeong-Dong, Ojeong-Gu, Bucheon-City,
Gyounggi-Do, Korea 421-809
Part No.
Rev. Date
Rev.
270104B
2004-03-17
NW3029-CS03
3/5
SAW Bandpass Filter 270104B

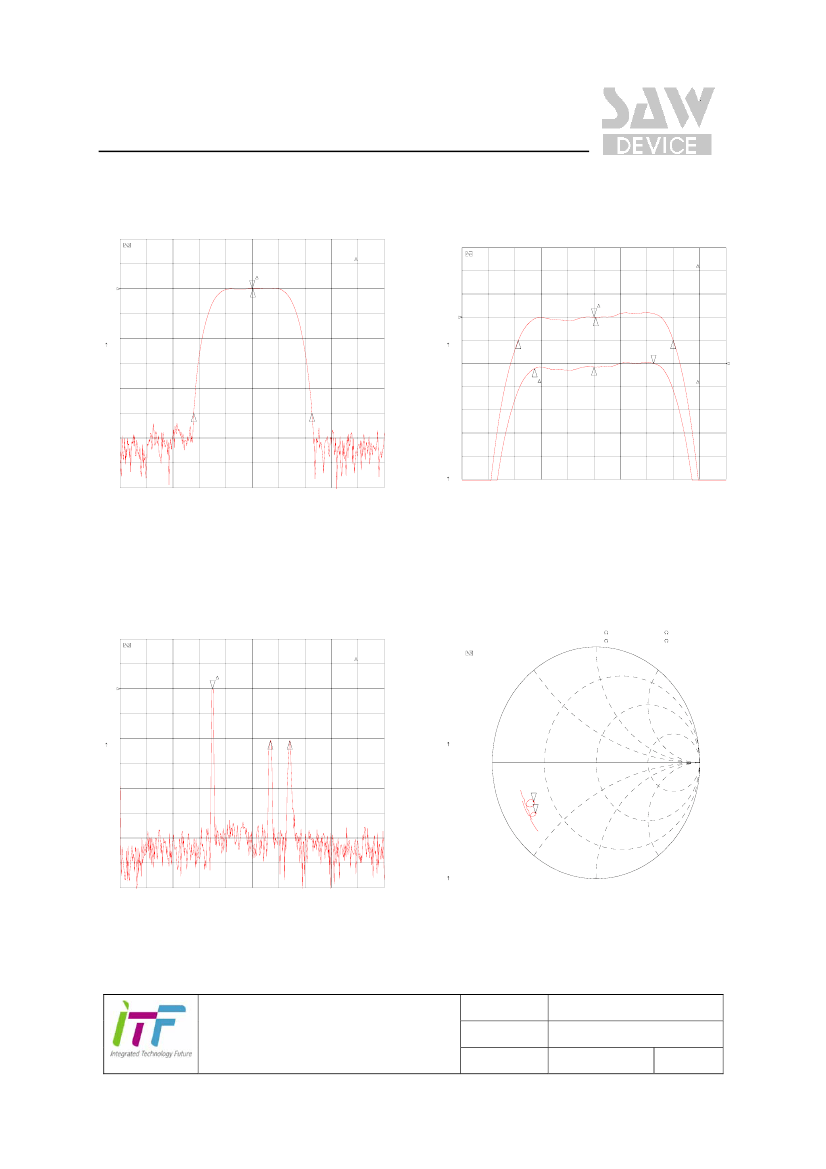

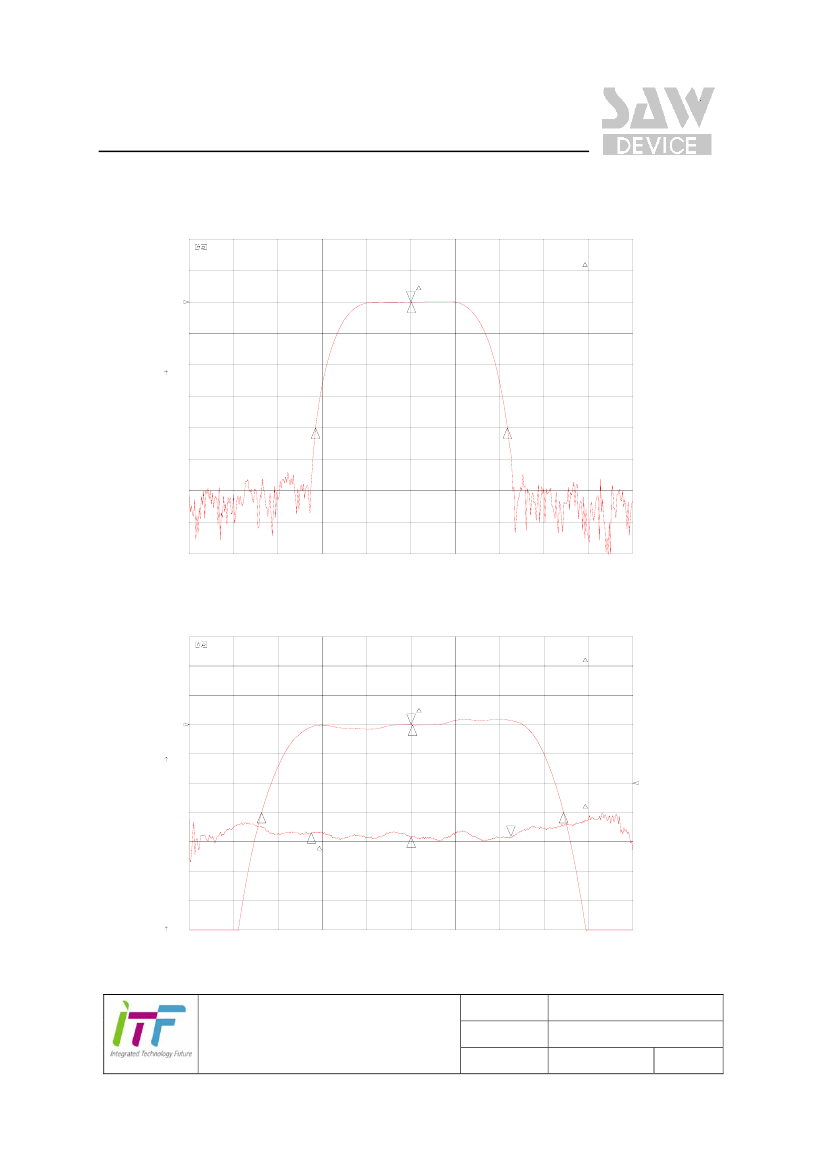

6. Typical Performance ( at +25℃ )
CH1
S 21
log MAG
10 dB/
REF -23.21 dB
17 Nov 2003 12:40:13
1_: 0
0.000 000 MHz
PRm
BW:
Cor
1
cent: 70.006811 MHz
2
1_ loss: -23.218 dB
Q: 32.35
2.164 027 MHz
REF=1
dB
3
4
CENTER 70.000 000 MHz
SPAN
5.000 000 MHz
CH1
CH2
PRm
Cor
S 21
S 21
log MAG
delay
1 dB/
200 ns/
REF -23.21 dB
REF 3.542 us
17 Nov 2003 12:48:14
1_: 0
dB
3_ -26.131 ns
0.000 000 MHz
REF=1
BW:
1.361 992 MHz
cent: 70.006631 MHz
1
1_ loss: -23.208 dB
2
Q: 51.4
.900 000 MHz
REF=2
PRm
Cor
3
2
1
mean: 3.180 4 us
3
s.dev: 17.272 ns
p-p: 79.155 ns
2
4
Smo
1
CENTER 70.000 000 MHz
SPAN
2.000 000 MHz
I T F Co., Ltd.
102-901, Bucheon Technopark 364,
Samjeong-Dong, Ojeong-Gu, Bucheon-City,
Gyounggi-Do, Korea 421-809
Part No.
Rev. Date
Rev.
270104B
2004-03-17
NW3029-CS03
4/5
SAW Bandpass Filter 270104B
CH1
S 21
log MAG
10 dB/
17 Nov 2003 12:40:29
1_: 0
dB
REF -23.21 dB
0.000 000 MHz
CH1
CH2
REF=1
PRm
Cor
S 21
S 21
log MAG
log MAG
1 dB/
1 dB/
17 Nov 2003 12:48:59
1_: 0
dB
REF -23.22 dB
3_ .2194 dB
REF -23.07 dB
0.000 000 MHz
REF=1
BW:
1.171 895 MHz
PRm
BW:
Cor
1
cent: 70.012848 MHz
2
2.236 246 MHz
cent: 70.013041 MHz
1
Q: 59.743
1_ loss: -23.212 dB
2
Q: 31.308
1_ loss: -23.214 dB
3
3
4
.900 000 MHz
2
PRm
Cor
3
4
1
mean:-23.197 dB
s.dev: .1112 dB
p-p: .3504 dB
REF=2
1
CENTER 70.000 000 MHz
SPAN
5.000 000 MHz
CENTER 70.000 000 MHz
SPAN
2.000 000 MHz
2
CH1
S 21
log MAG
10 dB/
17 Nov 2003 12:43:02
1_: 0
dB
REF -26.5 dB
0.000 000 MHz
CH1
CH2
REF=1
S 11
S 22
1 U FS
1 U FS
1_: 9.8657
2_ 8.7588
17 Nov 2003 12:41:11
-12.44
182.76 pF
-16.024
141.89 pF
70.000 000 MHz
PRm
1
PRm
Cor
2_:-20.962 dB
43.841 MHz
3_:-20.944 dB
58.436 MHz
2
3
70.000 000 MHz
1
2
Cor
PRm
START
.010 000 MHz
STOP 200.000 000 MHz
CENTER 70.000 000 MHz
SPAN
5.000 000 MHz
I T F Co., Ltd.
102-901, Bucheon Technopark 364,
Samjeong-Dong, Ojeong-Gu, Bucheon-City,
Gyounggi-Do, Korea 421-809
Part No.
Rev. Date
Rev.
270104B
2004-03-17
NW3029-CS03
5/5
