MP03HBN130-18 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Trigger device> MP03HBN130-18

MP03HBN130-18: DescriptionSilicon Controlled Rectifier, 134000mA I(T), 1800V V(RRM),; CategoryAnalog mixed-signal IC Trigger device; File Size363KB，10 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com

Download Datasheet Parametric Compare View All

MP03HBN130-18 Overview

Silicon Controlled Rectifier, 134000mA I(T), 1800V V(RRM),

MP03HBN130-18 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	113282333
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum DC gate trigger current	200 mA
Maximum DC gate trigger voltage	3 V
Quick connection description	G
Description of screw terminals	A-K-AK
Maximum leakage current	30 mA
On-state non-repetitive peak current	4000 A
Maximum on-state voltage	1.9 V
Maximum on-state current	134000 A
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Repeated peak reverse voltage	1800 V

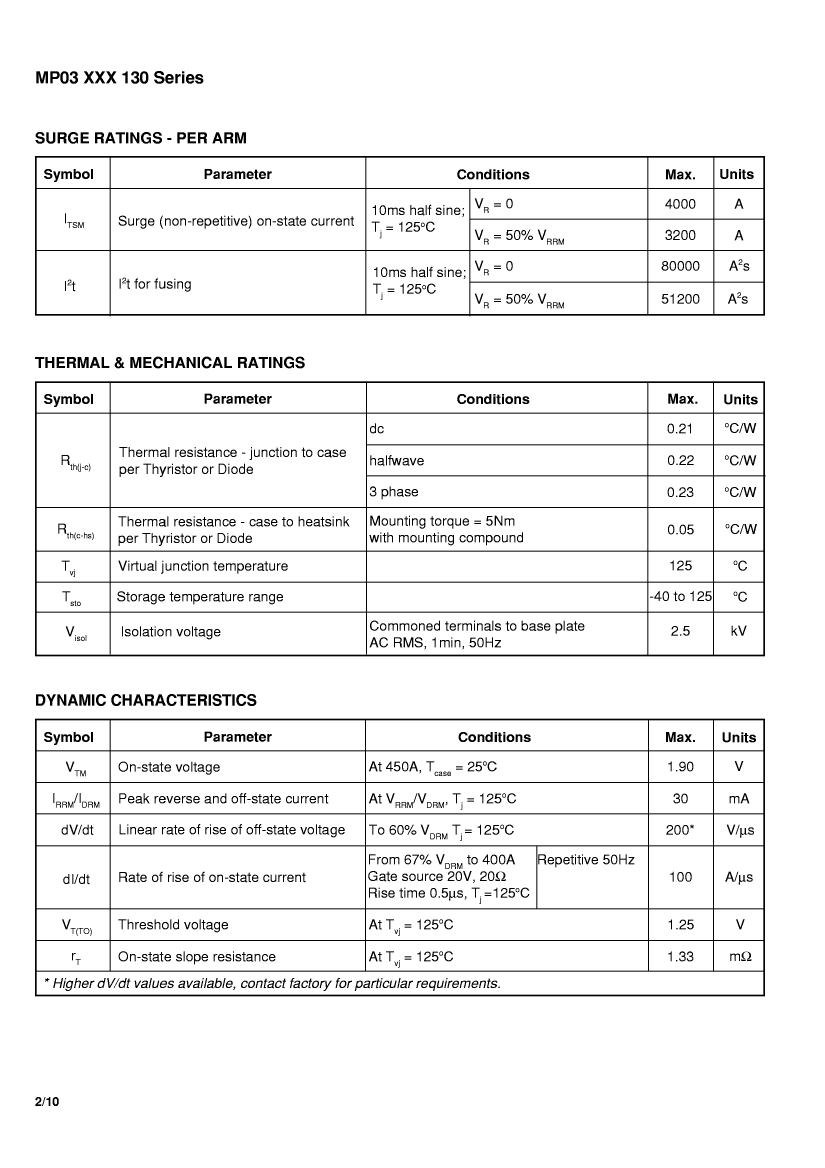

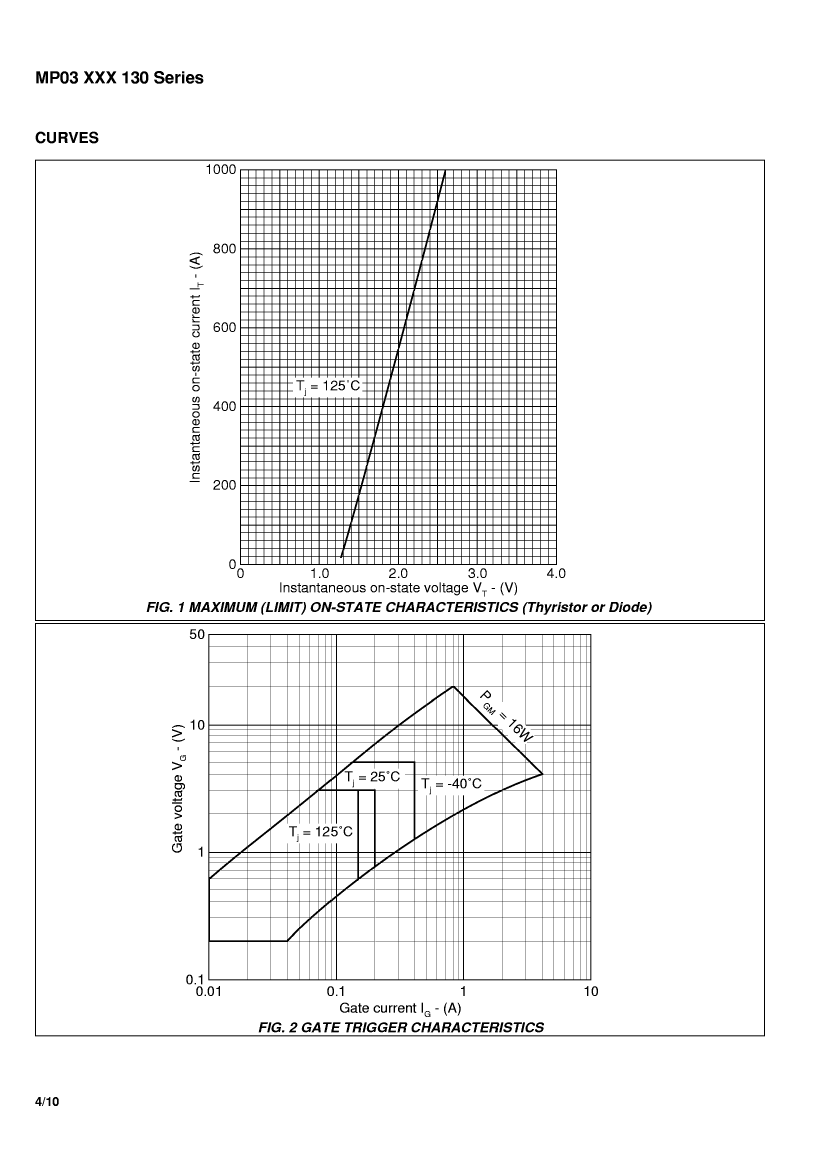

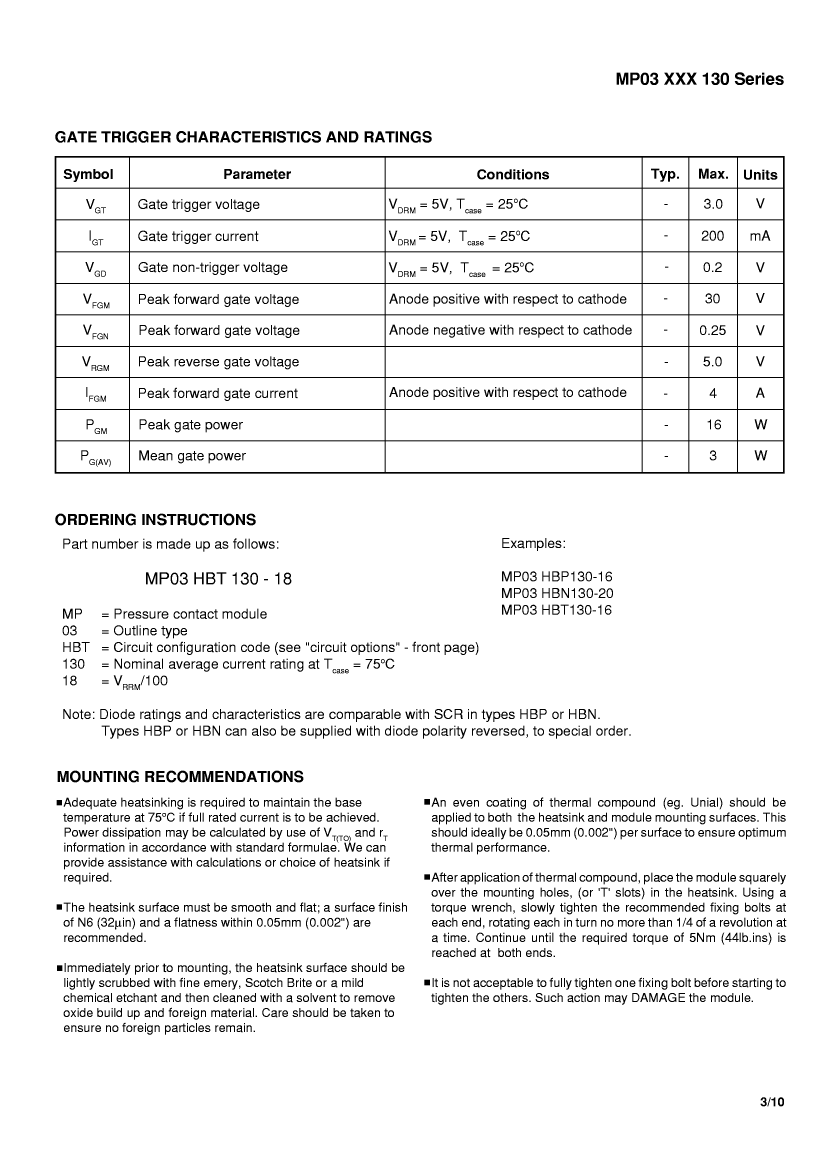

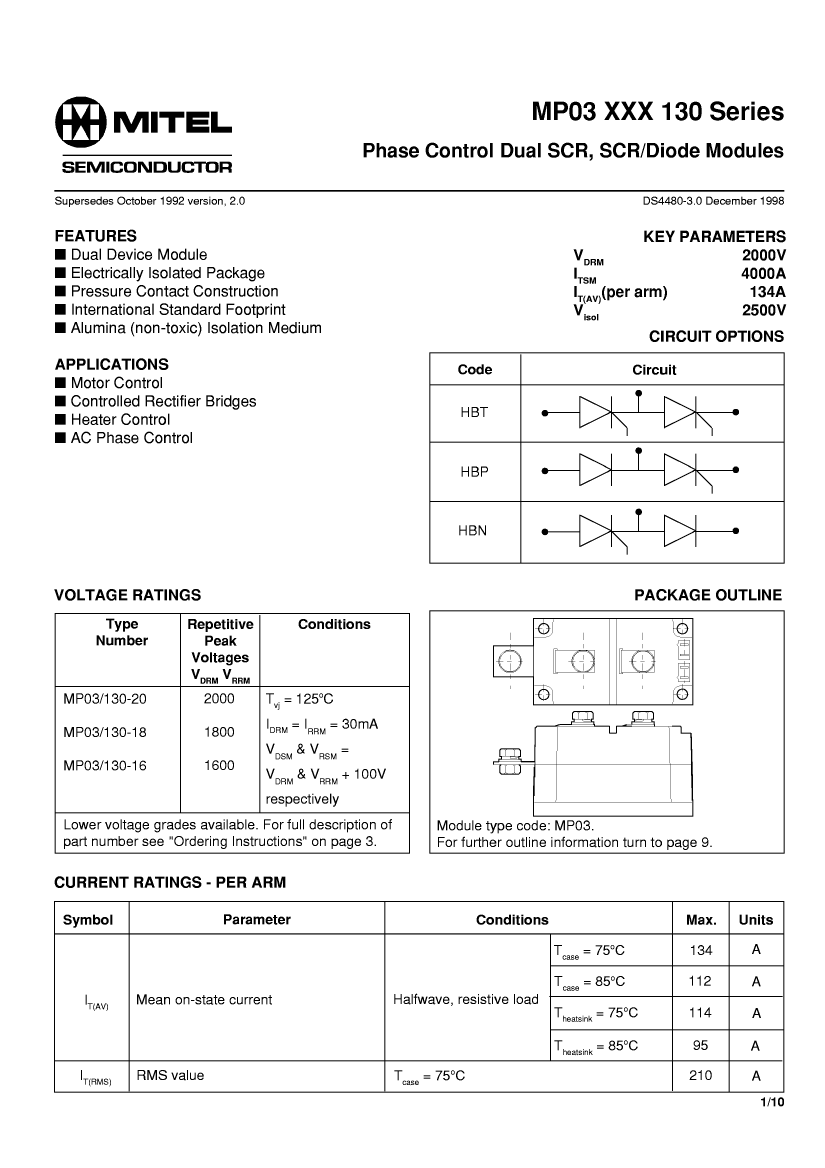

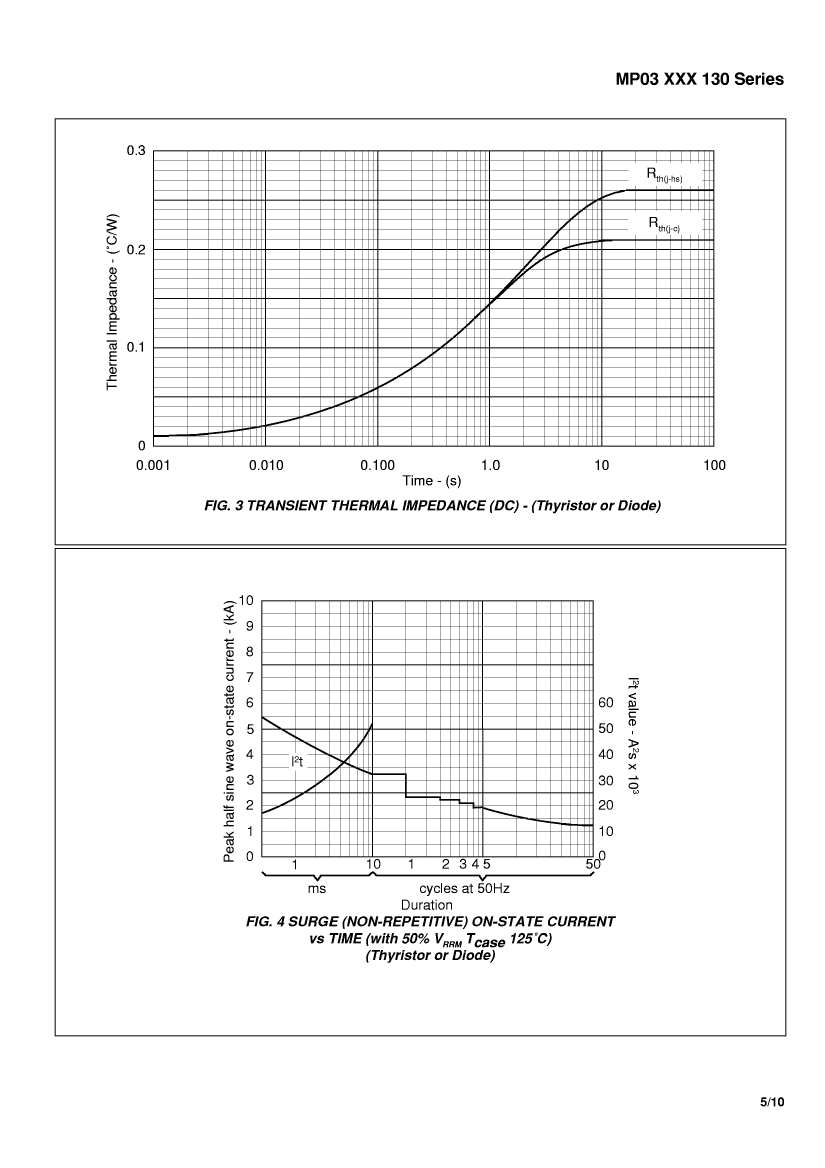

Preview

Download Datasheet

View All

MP03HBN130-18 Related Products

	MP03HBN130-18	MP03HBN130-16	MP03HBP130-16	MP03HBT130-16	MP03HBP130-18	MP03HBP130-20	MP03HBT130-18	MP03HBT130-20
Description	Silicon Controlled Rectifier, 134000mA I(T), 1800V V(RRM),	Silicon Controlled Rectifier, 134000mA I(T), 1600V V(RRM),	Silicon Controlled Rectifier, 134000mA I(T), 1600V V(RRM),	Silicon Controlled Rectifier, 134000mA I(T), 1600V V(RRM),	Silicon Controlled Rectifier, 134000mA I(T), 1800V V(RRM),	Silicon Controlled Rectifier, 134000mA I(T), 2000V V(RRM),	Silicon Controlled Rectifier, 134000mA I(T), 1800V V(RRM),	Silicon Controlled Rectifier, 134000mA I(T), 2000V V(RRM),
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Maximum DC gate trigger current	200 mA	200 mA	200 mA	200 mA	200 mA	200 mA	200 mA	200 mA
Maximum DC gate trigger voltage	3 V	3 V	3 V	3 V	3 V	3 V	3 V	3 V
Quick connection description	G	G	G	2G	G	G	2G	2G
Description of screw terminals	A-K-AK	A-K-AK	A-K-AK	A-K-AK	A-K-AK	A-K-AK	A-K-AK	A-K-AK
Maximum leakage current	30 mA	30 mA	30 mA	30 mA	30 mA	30 mA	30 mA	30 mA
On-state non-repetitive peak current	4000 A	4000 A	4000 A	4000 A	4000 A	4000 A	4000 A	4000 A
Maximum on-state voltage	1.9 V	1.9 V	1.9 V	1.9 V	1.9 V	1.9 V	1.9 V	1.9 V
Maximum on-state current	134000 A	134000 A	134000 A	134000 A	134000 A	134000 A	134000 A	134000 A
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Repeated peak reverse voltage	1800 V	1600 V	1600 V	1600 V	1800 V	2000 V	1800 V	2000 V
