T1343NL datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power management> transformer> T1343NL

T1343NL: DescriptionTelecom Transformer, ROHS COMPLIANT; CategoryPower management transformer; File Size313KB，2 Pages; ManufacturerPulse Electronics; Environmental Compliance

Download Datasheet Parametric Compare View All

T1343NL Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	T1343NL	-	-	View	Buy Now

T1343NL Overview

Telecom Transformer, ROHS COMPLIANT

T1343NL Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	BREADTH DIM INCLUDES TERMINALS ALSO, TURNS RATIO: 1:1.266
high	7.11 mm
length	25.4 mm
Manufacturer's serial number	T1343NL
Installation features	SURFACE MOUNT
Maximum operating temperature	70 °C
Minimum operating temperature
method of packing	TAPE & REEL; TUBE
physical size	L25.4XB10.8XH7.11 (mm)
surface mount	YES
Transformer type	TELECOM TRANSFORMER
width	10.8 mm
Base Number Matches	1

Preview

Download Datasheet

View All

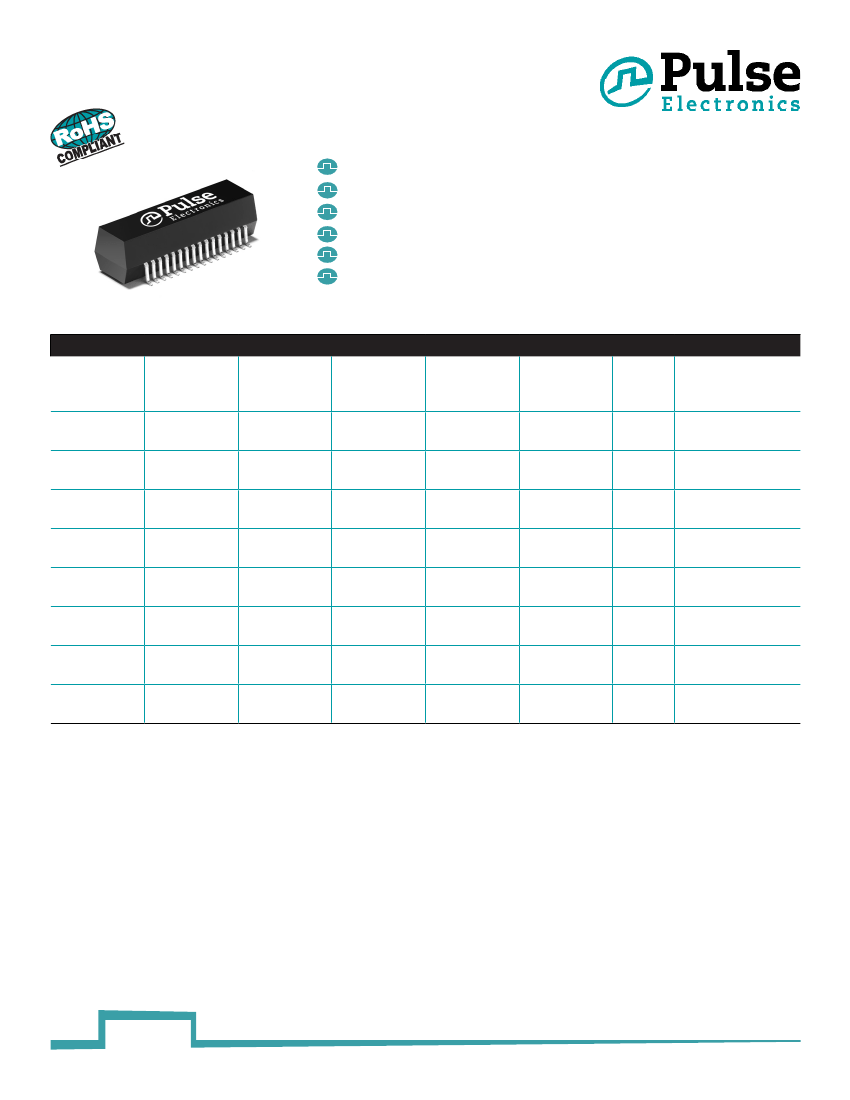

T1/E1/CEPT/ISDN-PRI TRANSFORMER

Octal SMT Transformer Module, Small Package

RoHS peak reflow temperature rating 245½C

Industry’s smallest T1/E1 quad-port transformer module

Crosstalk: -60 dB typically

Operating temperature range: -40½C to +85½C

UL recognized (some parts pending approval)

Isolation voltage: 1500 Vrms

Electrical Specifications @ 25°C - Operating Temperature -40°C to +85°C

RoHS-6

Compliant

Part Number

TX1341NL

TX1344NL

TX1470NL

TX1471NL

TX1472NL

TX1473NL

TX1474NL

TX1475NL

Turns Ratio

(Pri:Sec 2%)

1:2

1:1 & 1:2

1:1.41

1:1

1:2.4 & 1:1

1:2 & 1:1

1:2.42

1:2 & 1:1

OCL Secondary

@ 25½C

(mH MIN)

1.2

(μH MAX)

.60

C w/w

(pF MAX)

Isolation

Voltage

(Vrms MIN)

1500

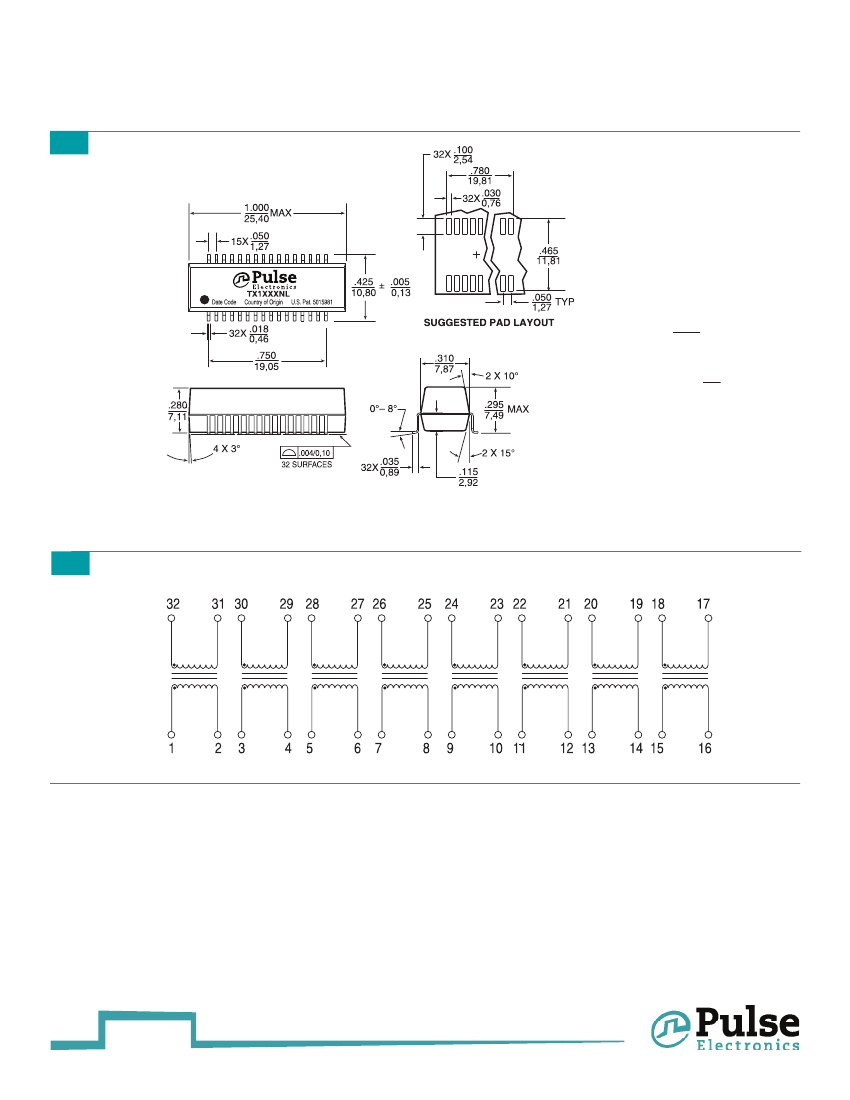

Package/

Schematic

YB/1

Primary Pins

1-2, 3-4, 5-6, 7-8

9-10, 11-12, 13-14, 15-16

1-2, 5-6, 9-10, 13-14 &

3-4, 7-8, 11-12, 15-16

1-2, 3-4, 5-6, 7-8

9-10, 11-12, 13-14, 15-16

1-2, 3-4, 5-6, 7-8

9-10, 11-12, 13-14, 15-16

1-2, 7-8, 9-10, 15-16 &

3-4, 5-6, 11-12, 13-14

1-2, 5-6, 9-10, 13-14 &

3-4, 5-6, 11-12, 15-16

1-2, 5-6, 9-10, 13-14 &

3-4, 5-6, 11-12, 15-16

1-2, 7-8, 9-10, 15-16 &

3-4, 5-6, 11-12, 13-14

USA 858 674 8100

Germany 49 7032 7806 0

Singapore 65 6287 8998

Shanghai 86 21 62787060

China 86 755 33966678

Taiwan 886 3 4356768

T671.H (12/12)

pulseelectronics.com

T1343NL Related Products

	T1343NL	TX1344NLT	TX1342NL	TX1472NL	TX1473NL	TX1473NLT	TX1475NL	TX1474NL	TX1470NL
Description	Telecom Transformer, ROHS COMPLIANT	Telecom Transformer, ROHS COMPLIANT	Telecom Transformer, ROHS COMPLIANT	Telecom Transformer, ROHS COMPLIANT	Telecom Transformer, ROHS COMPLIANT	Telecom Transformer,	Telecom Transformer, ROHS COMPLIANT	Telecom Transformer, ROHS COMPLIANT	Telecom Transformer, ROHS COMPLIANT
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	not_compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	BREADTH DIM INCLUDES TERMINALS ALSO, TURNS RATIO: 1:1.266	TURNS RATIO: 1:1; 1:2, HEIGHT DIM INCLUDES TERMINAL ALSO	BREADTH DIM INCLUDES TERMINALS ALSO, TURNS RATIO: 1:1.15	BREADTH DIM INCLUDES TERMINALS ALSO, TURNS RATIO: 1:2.4; 1:1	BREADTH DIM INCLUDES TERMINALS ALSO, TURNS RATIO: 1:2; 1:1	HEIGHT DIMENSION INCLUDES TERMINALS ALSO, TURNS RATIO: 1:2:1	BREADTH DIM INCLUDES TERMINALS ALSO, TURNS RATIO: 1:2; 1:1	BREADTH DIM INCLUDES TERMINALS ALSO, TURNS RATIO: 1:2.42	BREADTH DIM INCLUDES TERMINALS ALSO, TURNS RATIO: 1:1.41
high	7.11 mm	7.49 mm	7.11 mm	7.11 mm	7.11 mm	7.11 mm	7.11 mm	7.11 mm	7.11 mm
length	25.4 mm	25.4 mm	25.4 mm	25.4 mm	25.4 mm	25.4 mm	25.4 mm	25.4 mm	25.4 mm
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Maximum operating temperature	70 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
method of packing	TAPE & REEL; TUBE	TAPE & REEL	TAPE & REEL; TUBE	TAPE & REEL; TUBE	TAPE & REEL; TUBE	TR	TAPE & REEL; TUBE	TAPE & REEL; TUBE	TAPE & REEL; TUBE
physical size	L25.4XB10.8XH7.11 (mm)	L25.4XB7.87XH7.49 (mm)	L25.4XB10.8XH7.11 (mm)	L25.4XB10.8XH7.11 (mm)	L25.4XB10.8XH7.11 (mm)	L25.4XB7.87XH7.11 (mm)	L25.4XB10.8XH7.11 (mm)	L25.4XB10.8XH7.11 (mm)	L25.4XB10.8XH7.11 (mm)
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES
Transformer type	TELECOM TRANSFORMER	TELECOM TRANSFORMER	TELECOM TRANSFORMER	TELECOM TRANSFORMER	TELECOM TRANSFORMER	TELECOM TRANSFORMER	TELECOM TRANSFORMER	TELECOM TRANSFORMER	TELECOM TRANSFORMER
width	10.8 mm	7.87 mm	10.8 mm	10.8 mm	10.8 mm	7.87 mm	10.8 mm	10.8 mm	10.8 mm
Is it Rohs certified?	conform to	conform to	-	conform to	conform to	conform to	conform to	-	-
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	-	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Manufacturer's serial number	T1343NL	TX1344NL	TX1342NL	TX1472NL	TX1473NL	-	TX1475NL	TX1474NL	TX1470NL
Base Number Matches	1	1	1	1	1	1	1	-	-
Factory Lead Time	-	9 weeks	-	9 weeks	9 weeks	9 weeks	9 weeks	-	-
Maker	-	-	Pulse Electronics	Pulse Electronics	Pulse Electronics	Pulse Electronics	Pulse Electronics	Pulse Electronics	Pulse Electronics
