593D156X9035D2WE33: DescriptionCAPACITOR, TANTALUM, SOLID, POLARIZED, 35 V, 15 uF, SURFACE MOUNT, 2916, CHIP, LEAD FREE; CategoryPassive components capacitor; File Size193KB，11 Pages; ManufacturerVishay; Websitehttp://www.vishay.com

Download Datasheet Parametric View All

593D156X9035D2WE33 Overview

CAPACITOR, TANTALUM, SOLID, POLARIZED, 35 V, 15 uF, SURFACE MOUNT, 2916, CHIP, LEAD FREE

593D156X9035D2WE33 Parametric

Parameter Name	Attribute value
package instruction	, 2916
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	STANDARD: IECQ-C-300801
capacitance	15 µF
Capacitor type	TANTALUM CAPACITOR
dielectric materials	TANTALUM (DRY/SOLID)
leakage current	0.0053 mA
Manufacturer's serial number	593D
Installation features	SURFACE MOUNT
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
method of packing	TR, EMBOSSED PLASTIC, 13 INCH
polarity	POLARIZED
positive tolerance	10%
Rated (DC) voltage (URdc)	35 V
ripple current	760 mA
size code	2916
surface mount	YES
Delta tangent	0.06
Terminal shape	J BEND
Base Number Matches	1

Preview

Download Datasheet

View All

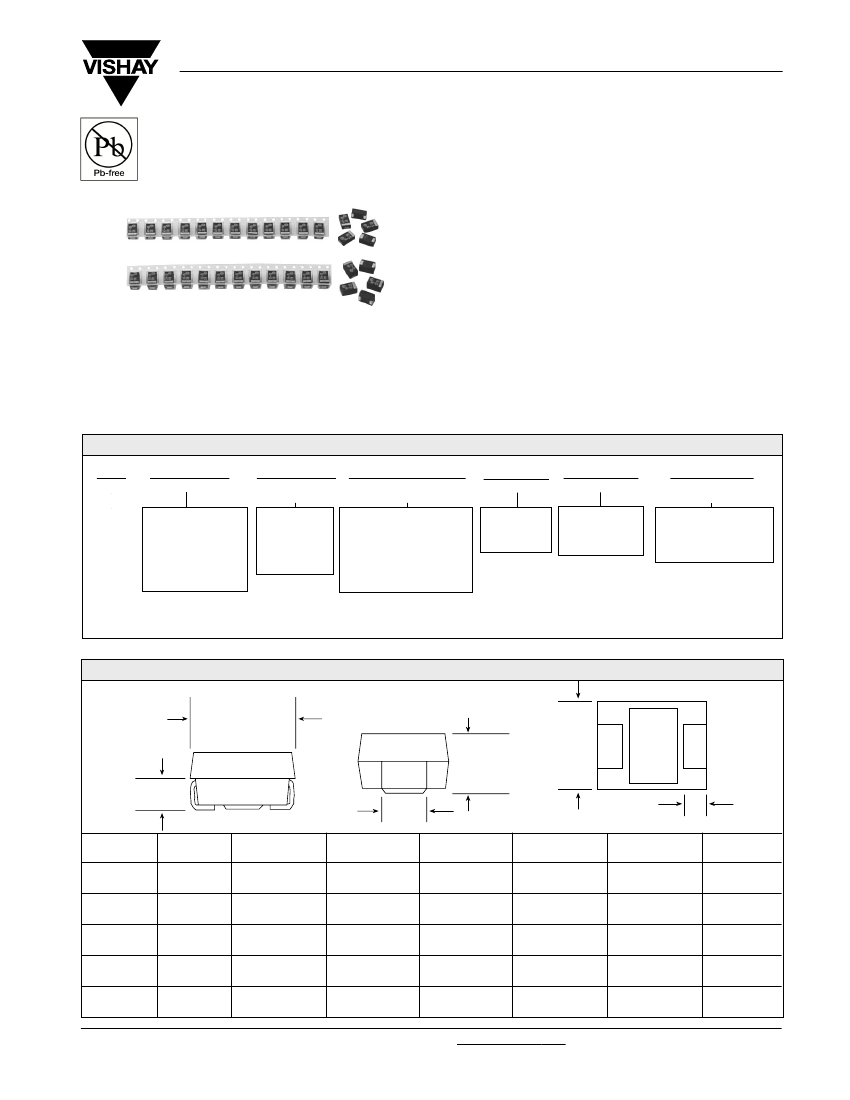

593D

Vishay Sprague

Solid Tantalum Chip Capacitors

Tantamount

Commercial, Surface Mount

for Switch Mode Power Supplies and Converters

FEATURES

•

Molded case available in five case codes.

•

Compatible with "High Volume" automatic pick and place

equipment.

•

High Ripple Current carrying capability.

•

Low ESR.

•

Meets EIA 535BAAE and IEC Specification QC300801/

US0001.

• Terminations: Tin or Sn/Pb (90/10) (2).

PERFORMANCE/ELECTRICAL CHARACTERISTICS

Operating Temperature:

- 55°C to + 85°C.

(To +125°C with voltage derating.)

Capacitance Range:

0.47µF to 680µF.

Capacitance Tolerance:

20%,

10% standard.

Compliant Terminations

100% Surge Current Tested (C, D, & E Case Sizes)

Voltage Rating:

4 WVDC to 50 WVDC.

ORDERING INFORMATION

593D

TYPE

107

CAPACITANCE

TOLERANCE

010

DC VOLTAGE RATING

@ + 85°C

CASE CODE

See Ratings

and Case

Code Tables.

TERMINATION

2 = Solderable

coating.

Standard.

REEL SIZE AND

PACKAGING

T = 7" [178mm] reel,*

W = 13" [330mm] reel*

*cathode nearest

sprocket hole.

This is expressed in X0 =

20% This is expressed in volts.

picofarads. The

To complete the three-

X9 =

10%

digit block, zeros precede

first two digits are

X5 =

the significant

the voltage rating. A

figures. The third is (Special Order) decimal point is indicated

the number of zeros

by an "R"

to follow.

(6R3 = 6.3 volts).

Note:

Preferred Tolerance and reel sizes are in bold.

We reserve the right to supply higher voltage ratings and tighter capacitance tolerance capacitors in the same case size. Voltage

substitutions will be marked with the higher voltage rating.

DIMENSIONS

in inches [millimeters]

CASE

CODE

EIA

SIZE

3216

3528

6032

7343

7343H

0.126

0.008

[3.2

0.20]

0.138

0.008

[3.5

0.20]

0.236

0.012

[6.0

0.30]

0.287

0.012

[7.3

0.30]

0.287

0.012

[7.3

0.30]

0.063

0.008

[1.6

0.20]

0.110

0.008

[2.8

0.20]

0.126

0.012

[3.2

0.30]

0.170

0.012

[4.3

0.30]

0.170

0.012

[4.3

0.30]

0.063

0.008

[1.6

0.20]

0.075

0.008

[1.9

.20]

0.098

0.012

[2.5

0.30]

0.110

0.012

[2.8

0.30]

0.158

0.012

[4.0

.30]

0.031

0.012

[0.80

0.30]

0.031

0.012

[0.80

0.30]

0.051

0.012

[1.3

0.30]

0.051

0.012

[1.3

0.30]

0.051

0.012

[1.3

0.30]

0.047

0.004

[1.2

0.10]

0.087

0.004

[2.2

0.10]

0.087

0.004

[2.2

0.10]

0.095

0.004

[2.4

0.10]

.095

0.004

[2.4

0.10]

(MIN)

0.028

[0.70]

0.028

[0.70]

0.039

[1.0]

0.039

[1.0]

0.039

[1.0]

www.vishay.com

Document Number 40005

Revision 03-Dec-04

For technical questions, contact tantalum@vishay.com
