CX425Z-A5B4C8-80-12.0D8 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> Crystal/resonator> CX425Z-A5B4C8-80-12.0D8

Preview

CX425Z-A5B4C8-80-12.0D8: DescriptionParallel - Fundamental Quartz Crystal, 12MHz Nom, ROHS COMPLIANT, CERAMIC PACKAGE-4; CategoryPassive components Crystal/resonator; File Size2MB，1 Pages; ManufacturerCardinal Components; Environmental Compliance

Download Datasheet Parametric View All

CX425Z-A5B4C8-80-12.0D8 Overview

Parallel - Fundamental Quartz Crystal, 12MHz Nom, ROHS COMPLIANT, CERAMIC PACKAGE-4

CX425Z-A5B4C8-80-12.0D8 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT, CERAMIC PACKAGE-4
Reach Compliance Code	compliant
Other features	TAPE AND REEL
Ageing	5 PPM/YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	100 µW
frequency stability	0.001%
frequency tolerance	15 ppm
JESD-609 code	e4
load capacitance	8 pF
Manufacturer's serial number	CX425
Installation features	SURFACE MOUNT
Nominal operating frequency	12 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
physical size	L4.0XB2.5XH0.75 (mm)/L0.157XB0.098XH0.03 (inch)
Series resistance	80 Ω
surface mount	YES
Terminal surface	Gold (Au)
Base Number Matches	1

Preview

Download Datasheet

View All

CARDINAL

COMPONENTS

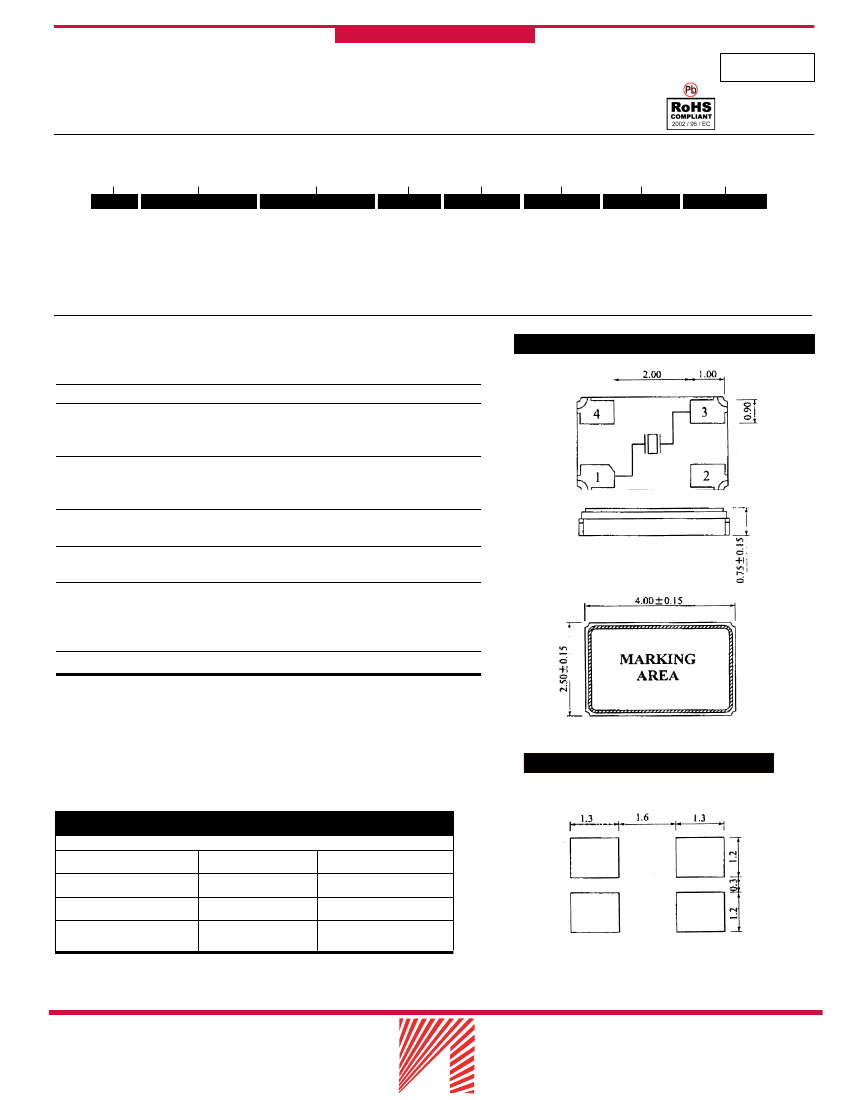

Ceramic Surface Mount Crystal

• Small overall package dimensions

Series

CX425

Part Numbering Example: CX425 Z - A5 B3 C3 - 80 - 12.0 D10

CX425

Z

A5*

B3

C3

80

12.0

D10

SERIES ADDED FEATURES OPERATING TEMP. STABILITY TOLERANCE RESISTANCE FREQUENCY LOAD CAP.

SEE CHART

CX425

BLANK = BULK PACK

A5 = -20°C ~ + 7 0°C

B3 = ± 30 C3 =

± 30

D8, D10, ETC.

B6 = ± 15 C8

=

± 15

BELOW

Z = TAPE AND REEL

A7 = -10°C ~ + 60°C

B4 = ± 10 C4 = ± 10

*NOTE:

The above ABC combinations cover basic specification options. We tailor our crystal specifications

to meet customer requirements. Please contact our sales department if you don’t see exactly what you need.

Specifications:

Frequency Range:

Frequency Stability:

12.000 ~

50.000

MHz

-20°C ~ +70°C

± 30 ppm

± 15 ppm

± 10 ppm

± 30 ppm

± 15 ppm

± 10 ppm

Standard 8 pF,10 pF, etc.

Other values are available.

CX425

(Fundamental)

Operating Temperature:

Frequency Tolerance:

(at 25°C)

Load Capacitance:

Resistance:

Standard:

Maximum resistance corresponds to frequency.

See chart below.

Shunt Capacitance: 7 pF Max

Aging: ± 5 ppm/year

Drive Level: 100 µW Max

Option:

Packaging: Tape and Reel

Recommended Solder Pattern

Resistance Chart:

All resistances are maximum

EQUIVALENT SERIES RESISTANCE (ESR), MODE OF OPERATION (MODE)

Frequency MHz

12.0

20.0

26.0

ESR (Ω)

80

Oscillation Mode

Fundamental

~

19.999

25.999

32.000

70

50

155 Route 46 West

Wayne, NJ 07470

Rev: C-090414-11

Cardinal Components, Inc.

C-16

TEL:

(973)785-1333

E-MAIL: sales@cardinalxtal.com

WEB: http://www.cardinalxtal.com
