SAW Bandpass Filter 253351B
1. Features
IF Bandpass Filter
Low-Loss Filter
Single-Ended Operation
Ceramic Surface Mount Device (SMD) Package
Maximum Storage Temperature Range : -40
℃
~ 85
℃
Electrostatics Sensitive Device (ESD)
2. Package Dimensions
13.30±0.2
10
9
8
7
7
7.62±0.1
8
9
10
6.50±0.2
11
12
ITF04A001
253351B
1
2
3
4
6
6
1.50±0.1
11
5
2.54±0.1
5
12
1.61±0.2
4
3
2
2.54±0.1
1
0.80±0.1
Pad Configuration
Package : S1365
11
5
6, 12
Input
Output
Ground
Case ground
Dimensions shown are nominal in millimeters
Other
Body : Al
2
O
3
Ceramic
Lid : Kovar, Ni Plated
Terminations : Au plating 0.3 ~ 1.0 um, Over a 1.27 ~ 8.89 um Ni Plating
I T F Co., Ltd.
102-901, Bucheon Technopark 364,
Samjeong-Dong, Ojeong-Gu, Bucheon-City,
Gyounggi-Do, Korea 421-809
Part No.
Rev. Date
Rev.
253351B
2004-04-28
NJ3011-CS02
1/5
SAW Bandpass Filter 253351B
3. Specifications
Fo = 140.0 MHz
Terminating source impedance
Terminating load impedance
: 50Ω and matching network
: 50Ω and matching network
Operating temperature range : -10℃ ~ +60℃
Center Frequency
Insertion Loss
1dB Bandwidth
3dB Bandwidth
40dB Bandwidth
Amplitude Ripple (Fo +/- 12.8 MHz)
Group Delay Variation (Fo +/- 12.8 MHz)
Absolute Delay
Ultimate Rejection
Temperature Coefficient of Frequency
MHz
dB
MHz
MHz
MHz
dB
nsec
usec
dB
ppm/°C
Minimum
139.6
-
30.0
32.0
-
-
-
-
40
-
Typical
140.0
12.0
31.9
33.4
39.3
0.6
30
0.64
45
-86
Maximum
140.4
13.0
-
-
41.0
1.0
100
-
-
-
Room Temperature : +25℃
Amplitude Ripple (Fo +/- 15 MHz)
Group Delay Variation (Fo +/- 15 MHz)
dB
nsec
Minimum
-
-
Typical
0.6
30
Maximum
1.0
100
Notes :
1)
2)
3)
All specifications are based on the matching schematic shown below
All specifications are measured by Agilent Network analyzer and full 2 port calibration
Electrical margin has been built into the design to account for the variations due to temperature drift and
manufacturing tolerances
4)
All attenuation measurements are measured relative to insertion loss
I T F Co., Ltd.
102-901, Bucheon Technopark 364,
Samjeong-Dong, Ojeong-Gu, Bucheon-City,
Gyounggi-Do, Korea 421-809
Part No.
Rev. Date
Rev.
253351B
2004-04-28
NJ3011-CS02
2/5
SAW Bandpass Filter 253351B
4. Matching Schematic
( Actual matching values may vary due to PCB layout and parasitics )
Input
50
Ω
L1
L4
Output
50
Ω
L2
L3
L1 = 39 nH,
L2 = 68 nH,
L4 = 18 nH
L3 = 33 nH
5. Marking Configuration
ITF
1)
04A001
2)
253351B
3)
4)
1) Manufacturer name
2) Lot Number
3) Part Number
4) Pad Number 1 Index
I T F Co., Ltd.
102-901, Bucheon Technopark 364,
Samjeong-Dong, Ojeong-Gu, Bucheon-City,
Gyounggi-Do, Korea 421-809
Part No.
Rev. Date
Rev.
253351B
2004-04-28
NJ3011-CS02
3/5
SAW Bandpass Filter 253351B

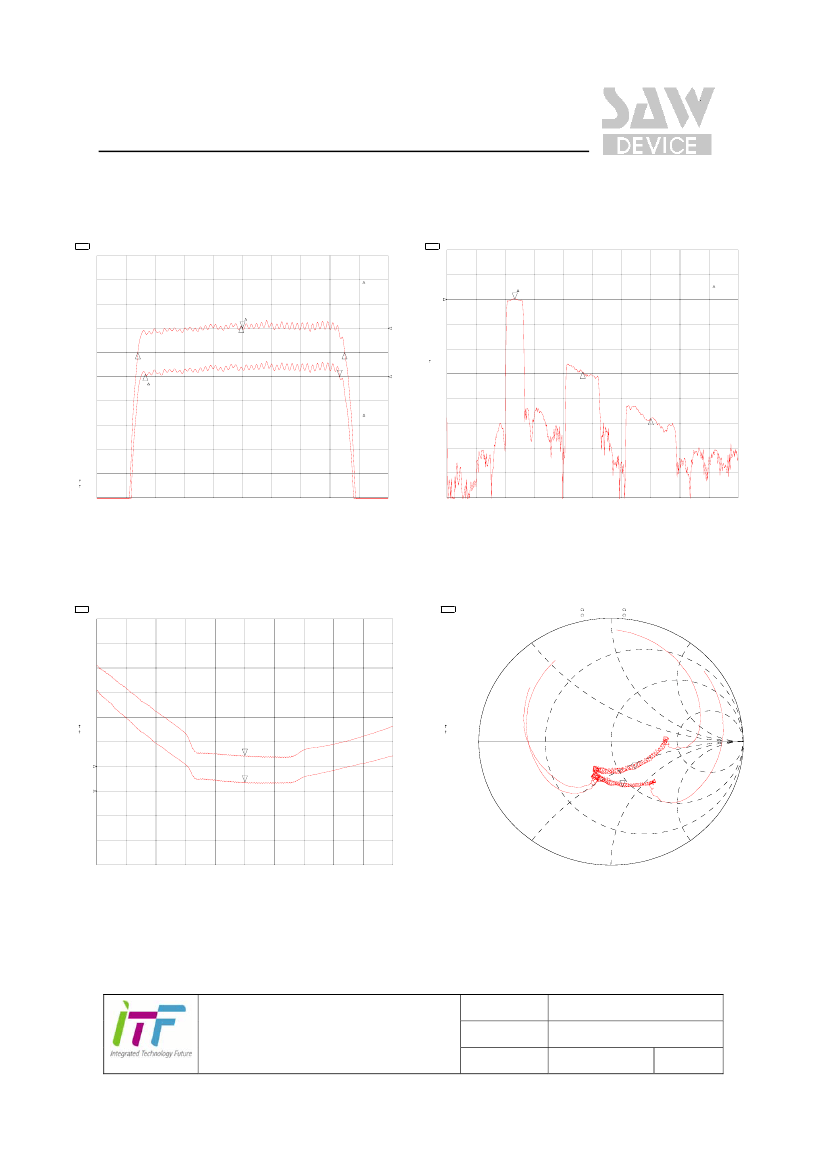

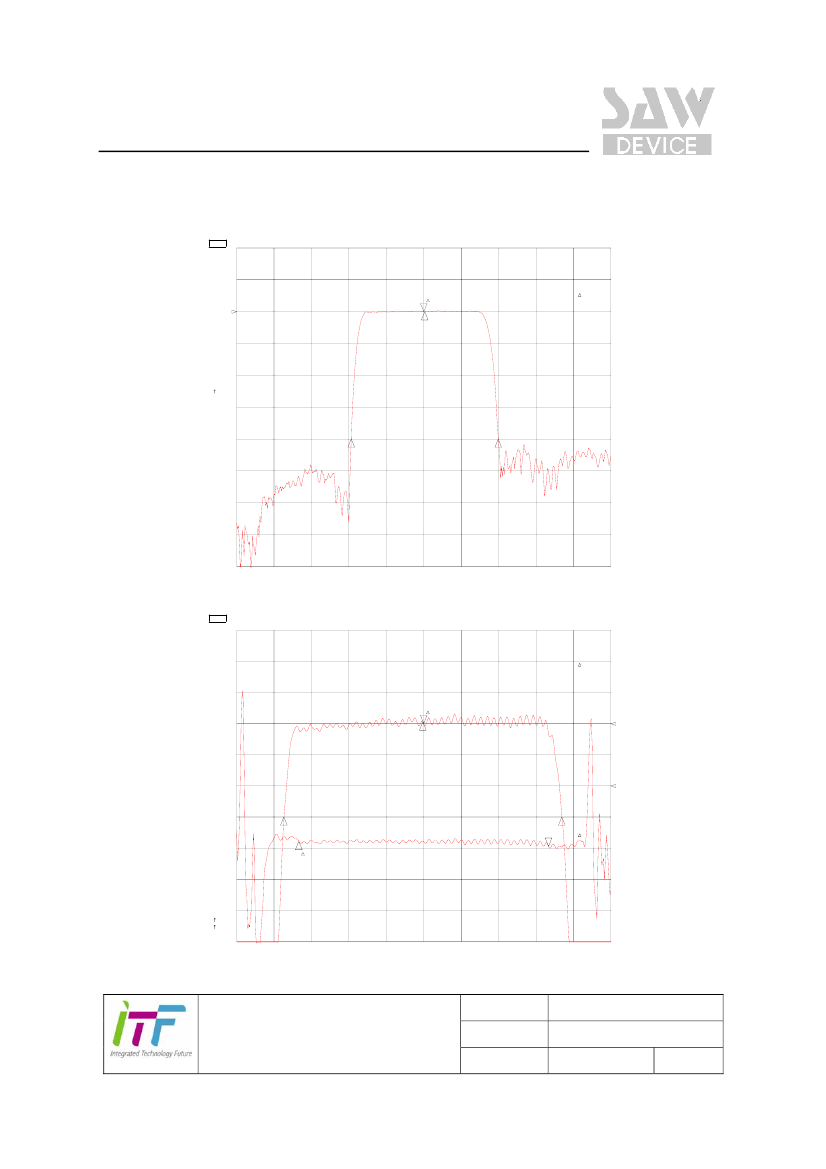

6. Typical Performance ( at +25℃ )
27 Apr 2004 11:01:58
1: 0. 0000 dB
0. 000 000 MHz
CH1
S21
LOG
10 dB/
REF -12.23 dB
253351B
CH1 Markers
1
Cor
2
BW
:
39. 294300
MHz
MHz
REF=1
cent : 140 . 261652
Q: 3. 5695
1_loss : -12 . 233 dB
3
4
CENTER 140 . 000 000 MHz
SPAN 100 . 000 000 MHz
CH2
CH4
S21
S21
LOG
DEL
1 dB/
100 ns/
REF -12.22 dB
REF 822 ns
27 Apr 2004 11:02:30
1: 0. 0000 dB
0. 000 000 MHz
3: -16 . 118 ns
30. 000 000 MHz
253351B
CH2 Markers
BW
:
33. 411592
MHz
MHz
REF=1
cent : 139 . 902718
1
2
Q: 4. 1873
1_loss : -12 . 219 dB
Cor
Smo
3
2
CH4 Markers
4
3
mean : 642 . 31 ns
s. dev : 4. 8822 ns
p-p : 24. 957 ns
REF=2
Cor
4
CENTER 140 . 000 000 MHz
SPAN
45. 000 000 MHz
2
I T F Co., Ltd.
102-901, Bucheon Technopark 364,
Samjeong-Dong, Ojeong-Gu, Bucheon-City,
Gyounggi-Do, Korea 421-809
Part No.
Rev. Date
Rev.
253351B
2004-04-28
NJ3011-CS02
4/5
SAW Bandpass Filter 253351B
CH2
CH4
S21
S21
LOG
LOG
1 dB/
1 dB/
REF -12.23 dB
REF -12.53 dB
27 Apr 2004 11:02:44
1: 0. 0000 dB
0. 000 000 MHz
3: - . 11110 dB
30. 000 000 MHz
CH1
S21
LOG
10 dB/
REF -12.22 dB
27 Apr 2004 11:03:47
1: 0. 0000 dB
0. 000 000 MHz
253351B
CH2 Markers
BW
:
31. 933722
MHz
MHz
REF=1
253351B
CH1 Markers
1
2: -29 . 272 dB
140 . 000 MHz
3: -47 . 984 dB
280 . 000 MHz
REF=1
cent : 139 . 797000
1
2
Q: 4. 3777
1_loss : -12 . 223 dB
3
3
2
4
2
CH4 Markers
Cor
mean : -12 . 201 dB
s. dev : . 12340 dB
p-p : . 59860 dB
Cor
REF=2
3
CENTER 140 . 000 000 MHz
SPAN
45. 000 000 MHz
4
2
START
. 010 000 MHz
STOP 600 . 000 000 MHz
CH1
CH3
S11
S22
SWR
SWR
5 /
5 /
REF 0
REF 0
27 Apr 2004 11:03:16
1: 2. 2181
140 . 000 000 MHz
2: 1. 8149
140 . 000 000 MHz
CH1
CH3
S11
S22
1 U FS
1 U FS
1: 44. 145
2: 63. 498
-38 . 043
-31 . 309
27 Apr 2004 11:03:07
29. 883 pF
140 . 000 000 MHz
36. 310 pF
140 . 000 000 MHz
253351B
253351B
Cor
Cor
Cor
Cor
1
2
2
1
CENTER 140 . 000 000 MHz
SPAN 100 . 000 000 MHz
CENTER 140 . 000 000 MHz
SPAN 100 . 000 000 MHz
I T F Co., Ltd.
102-901, Bucheon Technopark 364,
Samjeong-Dong, Ojeong-Gu, Bucheon-City,
Gyounggi-Do, Korea 421-809
Part No.
Rev. Date
Rev.
253351B
2004-04-28
NJ3011-CS02
5/5
