SAW Bandpass Filter 252851B
1. Features
IF Bandpass Filter
Low-Loss Filter
Single-Ended Operation
Ceramic Surface Mount Device (SMD) Package
Maximum Storage Temperature Range : -40
℃
~ 85℃
Electrostatics Sensitive Device (ESD)
2. Package Dimensions
13.30±0.2
10
9
8
7
7
7.62±0.1
8
9
10
6.50±0.2
11
12
ITF 06A001
252851B
1
2
3
4
6
6
1.50±0.1
11
5
2.54±0.1
5
12
1.61±0.2
4
3
2
2.54±0.1
1
0.80±0.1
Pad Configuration
Package : S1365
11
5
6, 12
Input
Output
Ground
Case ground
Dimensions shown are nominal in millimeters
Other
Body : Al
2
O
3
Ceramic
Lid : Kovar, Ni Plated
Terminations : Au plating 0.3 ~ 1.0 um, Over a 1.27 ~ 8.89 um Ni Plating
I T F Co., Ltd.
102-901, Bucheon Technopark 364,
Samjeong-Dong, Ojeong-Gu, Bucheon-City,
Gyounggi-Do, Korea 421-809
Part No.
Rev. Date
Rev.
252851B
2006-03-04
NJ6004-CS01
1/5
SAW Bandpass Filter 252851B
3. Specifications
Fo = 100 MHz
Operating temperature range : -25 to + 70
℃
Center Frequency
Insertion Loss
1dB Bandwidth
3dB Bandwidth
40dB Bandwidth
Amplitude Ripple (Fo +/- 13.07 MHz)
Group Delay Variation (Fo +/- 13.07 MHz)
Absolute Delay
Temperature Coefficient of Frequency
MHz
dB
MHz
MHz
MHz
dB
nsec
usec
ppm/°C
Minimum
99.8
-
27.9
Typical
100
11.5
28
28.8
Maximum
100.2
13.5
-
-
35
1.0
50
-
-
-
-
-
-
-
32.5
0.7
35
0.9
-86
Room temperature : + 25
℃
Center Frequency
Insertion Loss
Amplitude Ripple (Fo +/- 13.5 MHz)
Group Delay Variation (Fo +/- 13.5 MHz)
MHz
dB
dB
nsec
Minimum
99.1
-
-
-
Typical
100
11.5
0.7
50
Maximum
100.1
13.0
1.0
100
Notes :
1)
2)
3)
All specifications are based on the matching schematic shown below
All specifications are measured by Agilent Network analyzer and full 2 port calibration
Electrical margin has been built into the design to account for the variations due to temperature drift and
manufacturing tolerances
4)
All attenuation measurements are measured relative to insertion loss
I T F Co., Ltd.
102-901, Bucheon Technopark 364,
Samjeong-Dong, Ojeong-Gu, Bucheon-City,
Gyounggi-Do, Korea 421-809
Part No.
Rev. Date
Rev.
252851B
2006-03-04
NJ6004-CS01
2/5
SAW Bandpass Filter 252851B
4. Matching Schematic
( Actual matching values may vary due to PCB layout and parasitics )
Input
50
Ω
Output
50
Ω
L1
L2
L1 =39 nH,
L2 =27 nH
5. Marking Configuration
ITF
1)
06A001
2)
252851B
3)
4)
1) Manufacturer name
2) Lot Number
3) Part Number
4) Pad Number 1 Index
I T F Co., Ltd.
102-901, Bucheon Technopark 364,
Samjeong-Dong, Ojeong-Gu, Bucheon-City,
Gyounggi-Do, Korea 421-809
Part No.
Rev. Date
Rev.
252851B
2006-03-04
NJ6004-CS01
3/5
SAW Bandpass Filter 252851B

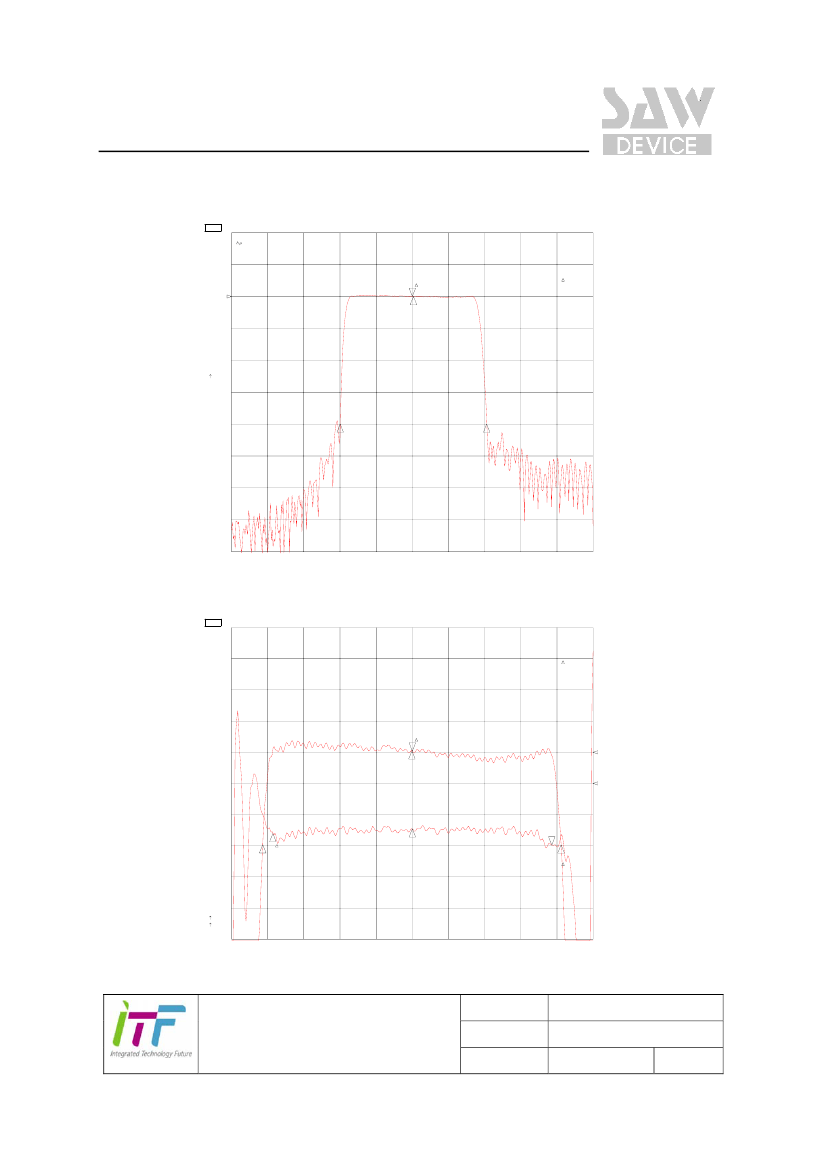

6. Typical Performance ( at +25℃ )
CH1 S21
LOG
252851B
10 dB/
REF -11.5 dB
9 Mar 2006 15:36:51
1: 0. 0000 dB
0. 000 000 MHz
CH1 Markers
1
Cor
2
BW 32. 410743 MHz
:
cent : 100 . 280472 MHz
Q: 3. 0941
1_loss : -11 . 457 dB
REF=1
3
4
CENTER 100 . 000 000 MHz
SPAN 80. 000 000 MHz
CH2 S21
CH4 S21
LOG
DEL
1 dB/
50 ns/
REF -11.5 dB
REF 980 ns
9 Mar 2006 15:38:53
1: 0. 0000 dB
0. 000 000 MHz
2:-19 . 052 ns
27. 000 000 MHz
CH2 Markers
BW 28. 889553 MHz
:
cent :
99. 959764 MHz
Q: 3. 4601
1_loss : -11 . 465 dB
1
2
4
REF=1
Cor
Smo
3
Cor
3
2
1
CH4 Markers
mean: 902 . 77 ns
s. dev : 6. 2917 ns
p-p : 36. 403 ns
4
REF=3
CENTER 100 . 000 000 MHz
SPAN 35. 000 000 MHz
2
I T F Co., Ltd.
102-901, Bucheon Technopark 364,
Samjeong-Dong, Ojeong-Gu, Bucheon-City,
Gyounggi-Do, Korea 421-809
Part No.
Rev. Date
Rev.
252851B
2006-03-04
NJ6004-CS01
4/5

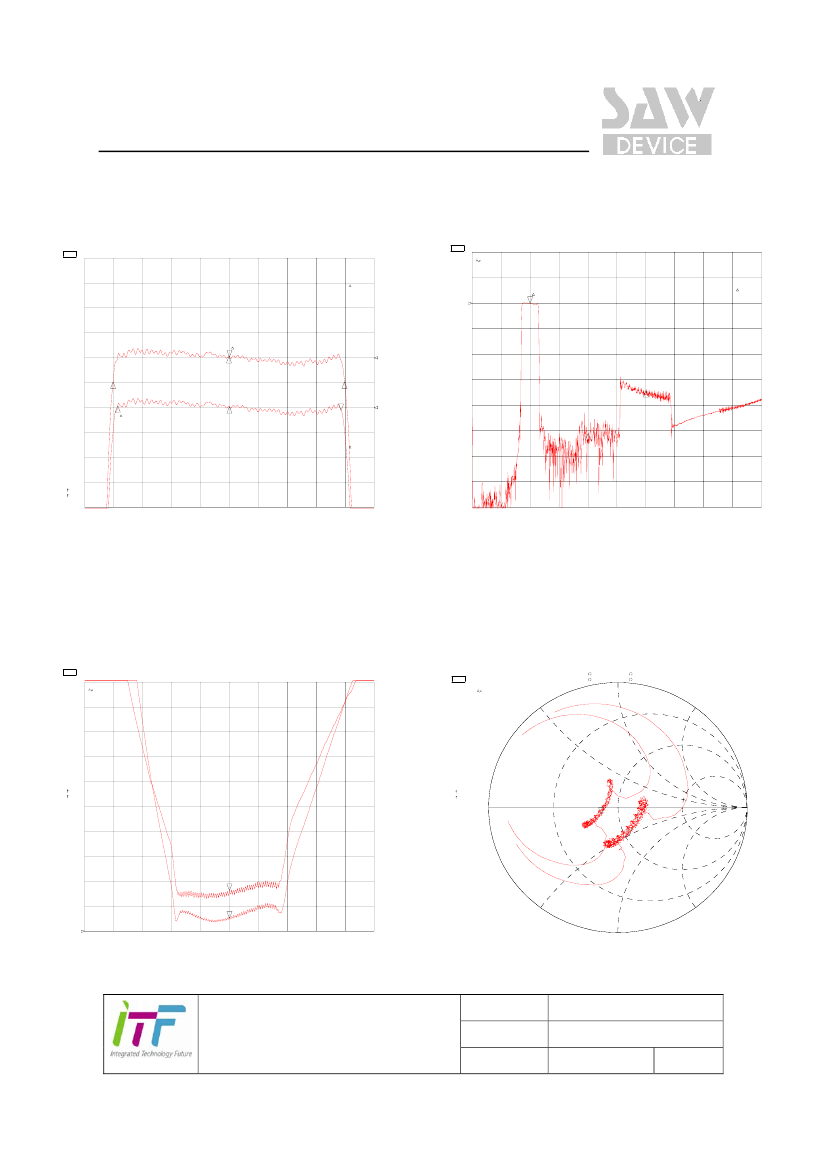

SAW Bandpass Filter 252851B
CH2 S21
CH4 S21
LOG
LOG
1 dB/
1 dB/
REF -11.5 dB
REF -11.5 dB
9 Mar 2006 15:39:44
1: 0. 0000 dB
0. 000 000 MHz
2:- . 19190 dB
27. 000 000 MHz
CH1 S21
LOG
252851B
10 dB/
REF -11.5 dB
9 Mar 2006 15:42:15
1: 0. 0000 dB
0. 000 000 MHz
CH2 Markers
BW 27. 992345 MHz
:
cent :
99. 932214 MHz
Q: 3. 5700
1_loss : -11 . 465 dB
REF=1
1
CH1 Markers
2:-50 . 917 dB
100 . 000 MHz
3:-34 . 124 dB
200 . 000 MHz
REF=1
1
2
3
4
2
3
1
3
Cor
CH4 Markers
Cor
mean: -11 . 470 dB
s. dev : . 16970 dB
p-p : . 71500 dB
2
REF=3
CENTER 100 . 000 000 MHz
SPAN 35. 000 000 MHz
4
2
START
. 010 000 MHz
STOP 500 . 000 000 MHz
CH1 S11
CH3 S22
SWR
SWR
252851B
1 /
1 /
REF 0
REF 800 m
9 Mar 2006 15:41:07
1: 1. 6348
100 . 000 000 MHz
2: 1. 3277
100 . 000 000 MHz
CH1 S11
CH3 S22
1 U FS
1 U FS
252851B
1: 53. 281
2: 38. 297
-25 . 451
-4 . 2539
9 Mar 2006 15:41:24
62. 533 pF
100 . 000 000 MHz
374 . 14 pF
100 . 000 000 MHz
Cor
Cor
MARKER 2
100 MHz
Cor
Cor
2
1
1
2
CENTER 100 . 000 000 MHz
SPAN 80. 000 000 MHz
CENTER 100 . 000 000 MHz
SPAN 80. 000 000 MHz
I T F Co., Ltd.
102-901, Bucheon Technopark 364,
Samjeong-Dong, Ojeong-Gu, Bucheon-City,
Gyounggi-Do, Korea 421-809
Part No.
Rev. Date
Rev.
252851B
2006-03-04
NJ6004-CS01
5/5
