EMI Shield Beads
DIP/RH TYPE
RH TYPE Series
APPLICATIONS
Prevention of high frequency EMI from video and acoustic communication units as well as
other electronic devices.
FEATURES

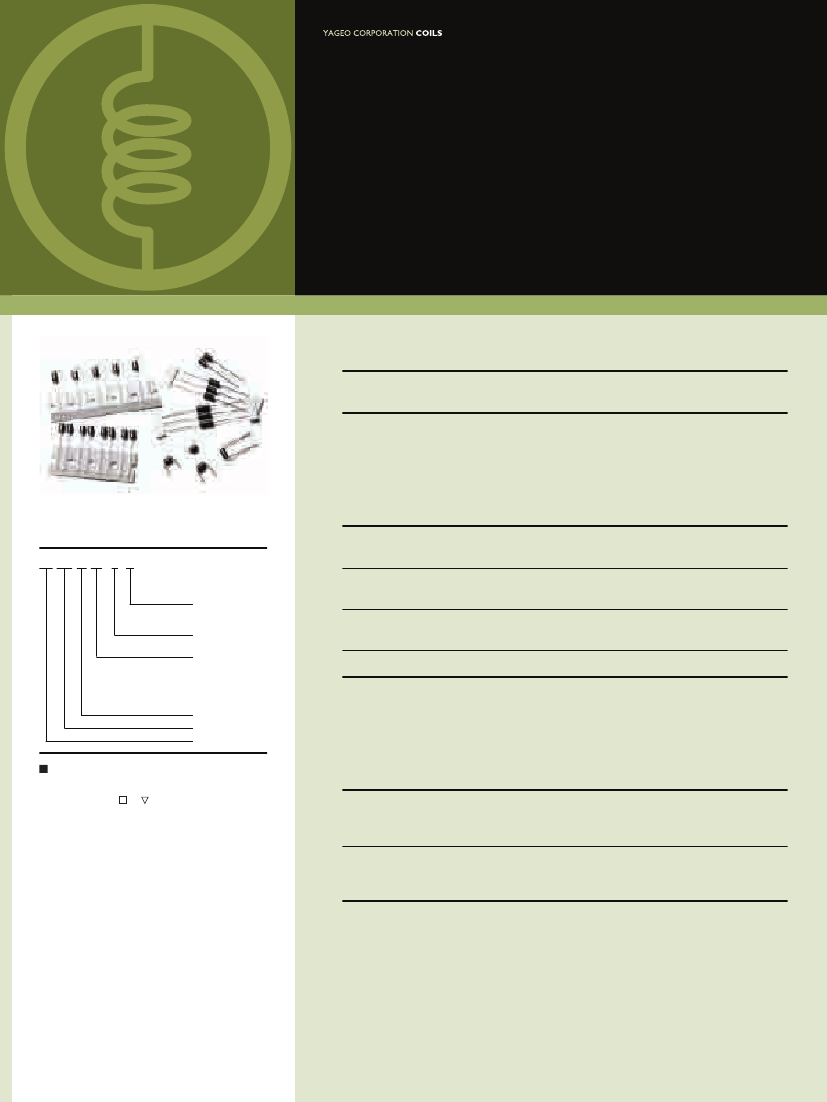

PRODUCT IDENTIFICATION
RH 035 06 ST - B -
∆
ST : Ammo Pack
A : 26.5mm
B : 52.4mm
Material Code
B, Y7, B246
Packaging Symbol
Bulk : S, B, PS
AS, B1, B2
Reel Ammo :
ST, PT, AT
B1T, B2T
B Dim.
A Dim.
Product Symbol
The Filters Suppress Voltage & Current Spikes Within the Circuit, Providing Protection to
Semiconductor Devices
The filter can be mounted directly onto the leads of components utilizing no additional
space.
When these products are placed in series with diodes, they more effectively suppress
transient current changes which cause noise than other methods.
Best designed and tested to offer perfect space utilization and accurate impedance.
YAGEO the part number of lead-free products will
be added “-N” after original one as identification.
Ex: RH025015 -B -N
OUTLINE
YAGEO EMI / RFI filters are useful for suppressing noise mainly of low impedance circuits.
it can effectively absorb any given spectrum of noise by selecting the appropriate ferrite
material.
These filters are comparatively inexpensive easily installed. The most important thing is
that they attenuate the unwanted noise & EMI without degradation of the informative
signal.

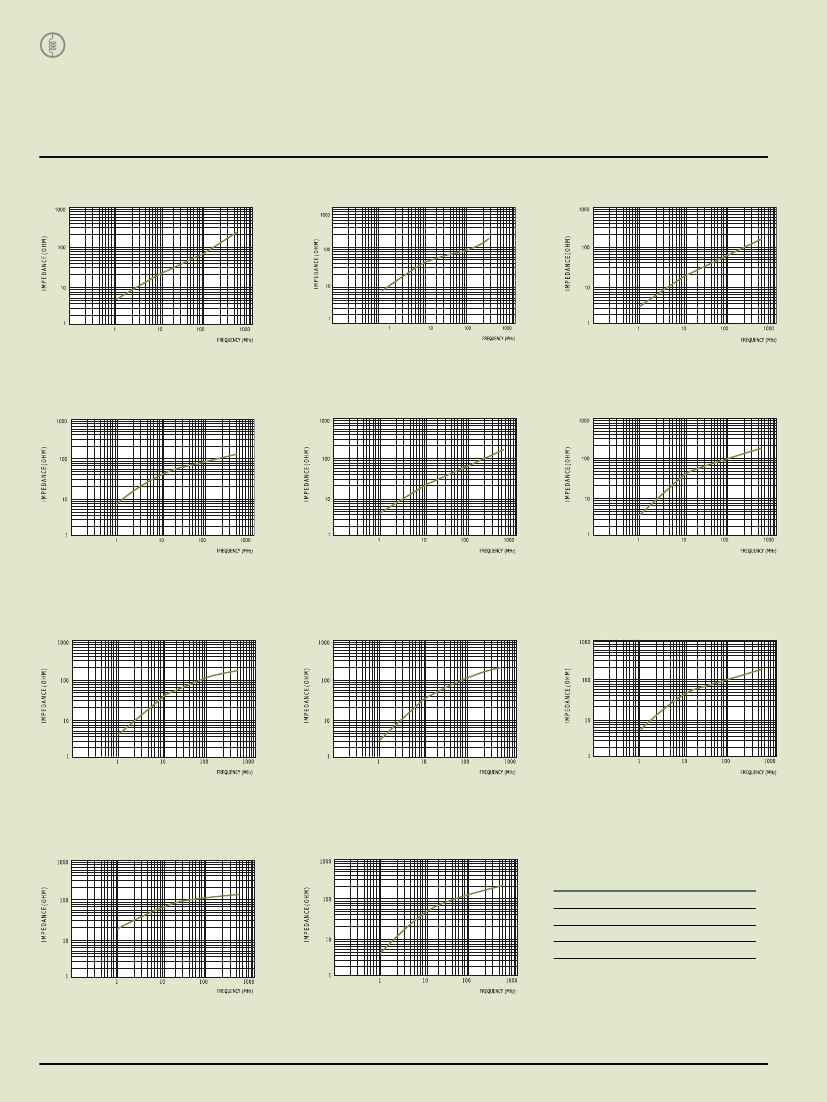

ELECTRICAL PARAMETERS
RH025030S-B
RH035030S-B
RH035040S-B
RH035060S-B
RH035045S-Y7
RH035060S-Y7
RH035067S-Y7
RH035078S-Y7
RH035078S-B
RH035090S-B246
RH035083S-Y7
TEST METER
HP 4287A RF Impedance Analyzer
Test Fixture : HP 16092A Spring Clip Fixture
Test Wire : 0.65ø TCW. (L:63mm)
Test Winding :
1
/
2
Ts.
PACKING SPECIFICATION

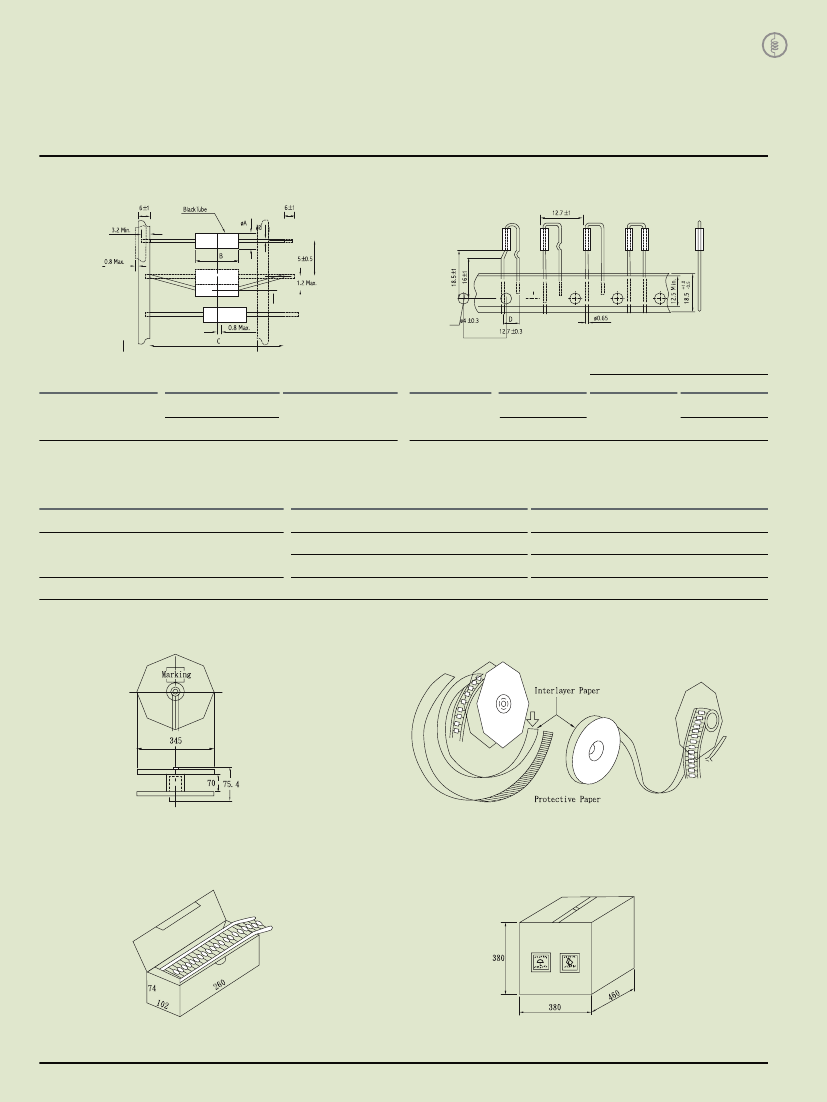

Packing Dimension
1. Axial
2. Radial
Dimensions : mm
TAPE
C
BULK
26.5
+1.0
- 0.5
52.4±1.5
Packing Dimension
63± 3
LEAD
SPACING
D
PACKING STYLE
CATEGORY
Erection
Pair
TAPE
4.8 ~ 5.8
BULK
6.35±1
5±1
The Size of Packing Case
CARTON DIMENSION
(A x B x C) mm
Reel
AMMO Typing
350 x 430 x 340
260 x 260 x 224
380 x 415 x 385
Bulk
Reel Dimensions (mm)
150 x 75 x 85
PACKING QUANTITY
PCS
20,000
25,000
25,000
30,000
Marking : 1. Product Name 2. Quantity 3. Inspection No.
Ammo-Packing
Carton Dimension
Marking : 1. Product Name 2. Quantity 3. Inspection No.
